Where Is S18 Type Oil-Immersed Distribution Transformer Used?

The S18 type oil-immersed distribution transformer is used in many places, including power lines in cities, projects to bring electricity to rural areas, installations for green energy, heavy industry sites, and business buildings. Its fully sealed design, high energy efficiency, and strong cooling abilities make it ideal for places that need years of reliable, maintenance-free use. This transformer can handle a wide range of voltage and load needs while keeping overall lifecycle costs low. It can be used in mining operations, wind farms, solar parks, and city substations.

What Is an S18 Type Oil-Immersed Distribution Transformer?

At its core, the S18 type oil-immersed distribution transformer is a big step forward in the technology of distribution transformers. This machinery mostly works at 6kV and 12kV voltage levels. It can handle both single-phase and three-phase setups with a power range of 30kVA to 3,150kVA. The transformer uses self-cooling methods that involve mineral or ester oil surrounding the windings. This oil does two things: it protects against electricity flow and quickly gets rid of heat.

Sealed Design and Cooling Innovation

The S18 type oil-immersed distribution transformer is different from earlier types because it has a corrugated tank with a frame that keeps out air and water. Unlike usual designs that use oil conservators, this fully sealed method doesn't have any touch with the air, so oil doesn't oxidise and moisture doesn't get in. The ribbed fins make the surface area for transferring heat much larger, which lets natural convection cooling happen without using fans or pumps. This passive cooling system makes the unit more reliable and lowers the noise level to below 45 decibels, making it perfect for cities with lots of noise.

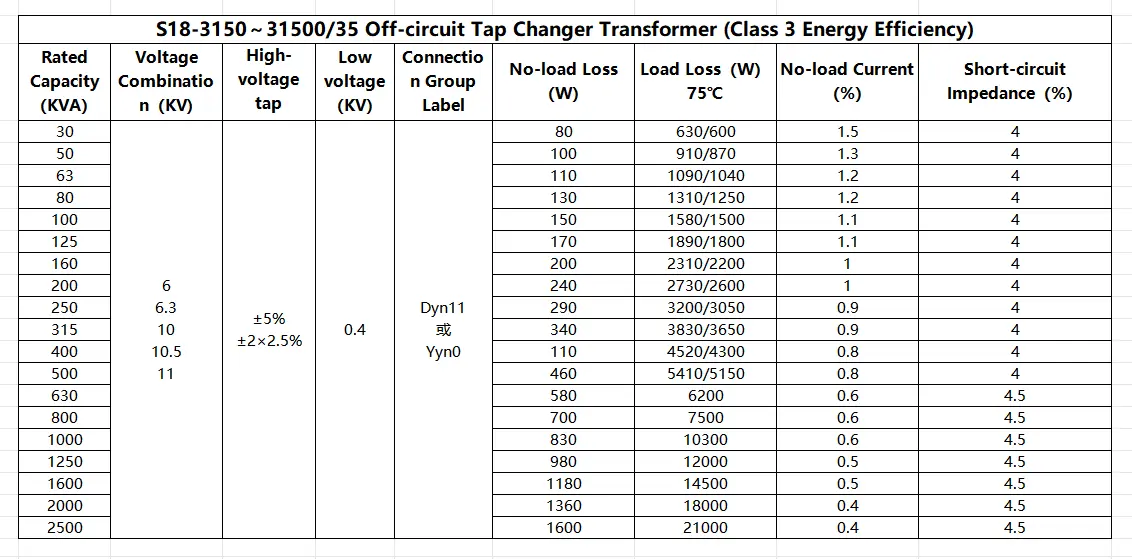

Technical Specifications and Standards Compliance

The S18 type oil-immersed distribution transformer meets the strict requirements of GB/T 6451 and GB 20052 for energy efficiency, earning a Tier 1 grade for energy economy. Non-excitation tap switches with ranges of 5% or 22.5% are used for voltage control. This lets the field be adjusted to match grid conditions. Connection group names like Yyn0 and Dyn11 make it possible for different distribution network setups. Power frequency withstand voltage of AC-35kV and impulse withstand voltage of L1-75kV are strict standards for insulation levels. This protects against sudden overvoltages that happen a lot in utility networks.

Operating frequency support includes both 50Hz and 60Hz systems, which makes it easier to use in places around the world. The transformer can work in temperatures as high as 40°C, but it can be customised to work in harsher conditions. The parameters of the impedance voltage match technical standards or user-specific needs, making it easier for upstream safety devices to work together.

Typical Applications and Industries Using S18 Transformers

Urban and Rural Grid Modernization

Power companies are under more and more pressure to replace old equipment and cut down on energy waste. The S18 type oil-immersed distribution transformer directly solves these problems by having 10–20% less loss performance than S13 types. These transformers are part of efforts by State Grid and China Southern Power Grid to update their power grids. They are replacing old equipment in both highly crowded cities and remote rural areas. The small size makes it possible to place in underground vaults with limited room, and the sealed design can handle harsh weather in outdoor pad-mounted uses.

Renewable Energy Integration

Installing wind and solar panels has its own set of scientific requirements. Variability in generation causes load changes that happen quickly and put stress on transformer parts. The high-grade silicon steel core of the S18 type oil-immersed distribution transformer keeps stimulation current low, so it stays efficient even when the load changes. The transformer's ability to handle reverse power flow during times of high output is helpful for photovoltaic farms. Wind parks that work in seaside or desert areas like the sealed design that keeps salt spray, dust, and high temperatures from getting into the internal parts.

Industrial Manufacturing Environments

Heavy companies need power that is always on and stable. High task cycles cause a lot of heat to be put on equipment in steel mills, chemical processing plants, and mines. The S18 type oil-immersed distribution transformer's better cooling system allows it to run continuously at 100% without any heat damage. The tightly sealed tank keeps out corrosive gases and flying contaminants that are common in industrial settings. This makes the tank last longer than 30 years. Companies that do mining in remote areas like the design because it doesn't need to be maintained. This means that they don't need as many expert staff members at these remote sites.

Commercial and Infrastructure Projects

Commercial complexes, business towers, housing developments, hospitals, and college sites are all examples of large-scale infrastructure developments that need transformers that balance performance with environmental concerns. Because the S18 type oil-immersed distribution transformer makes very little noise, it can be used in places with a lot of people. Energy economy directly leads to lower energy costs over many years of use, which improves the economics of the project. Because it is sealed, there is no need to regularly sample and restock the oil, which lowers maintenance costs and makes running the facility easier.

Comparing S18 Transformers to Other Models and Types

Performance Advantages Over S13 Series

There are real perks to switching from S13 to S18 type oil-immersed distribution transformer technology. Losses when there is no load go down by 20 to 30 percent thanks to better core materials and better magnetic circuit design. Load losses also go down because the windings are better set up and there are fewer eddy current effects. Over time, these efficiency gains add up because transformers usually work around the clock for decades. If a buying manager looks at the total cost of ownership, they will see that the starting price is balanced out by the energy savings it makes over a few years.

Oil-Immersed Versus Dry-Type Considerations

When installed inside, where fire safety is very important, dry-type transformers are better. On the other hand, the S18 type oil-immersed distribution transformer version works better in hot conditions and lasts longer. When demand goes up, oil can handle more than usual because it cools better than air or plastic. Traditional worries about oil leaks and polluting the environment are lessened by the protected oil system. For uses outside, in places with a lot of humidity, or when dependability is very important, oil-immersed technology still has technical and financial benefits.

Cost-Effectiveness and Market Positioning

When buying workers look at competing offers, they consider a number of factors. The S18 type oil-immersed distribution transformer strikes the perfect mix between cutting-edge efficiency and reasonable price. Ultra-premium amorphous metal transformers may have slightly smaller losses, but they are very expensive and easily broken, so they can't be used in most situations. The unit is certified to meet foreign standards, such as IEC, CE, and UL. This makes it easier to buy things across borders and makes sure it works with engineering methods used around the world. This set of certifications lowers the technical risk for EPC workers who are in charge of handling projects across borders.

Maintenance, Troubleshooting & Lifespan of S18 Transformers

Routine Inspection Protocols

No care is needed, but it is recommended that the outside of the S18 type oil-immersed distribution transformer be inspected from time to time to make sure it is working at its best. By looking at the curved tank, you can see if it has any damage from outside collisions. Checking for cracks, tracking, or pollution growth is part of making sure a bushing is solid. To keep safety standards, ground lines need to be checked. Before they become fails, thermographic scanning finds hot spots that are signs of problems inside or bad links.

Oil Quality and Internal Health

The sealed design greatly increases the life of the oil by stopping it from absorbing water and rusting. Initial tests of the oil quality during startup set the standard conditions. Follow-up dissolved gas analysis (DGA) every 10 years can find early signs of faults by looking for specific gas patterns. Measuring the dielectric breakdown voltage (BDV) makes sure that the shielding is still good. These tests are done a lot less often than with standard transformers that have a conservator and need oil cleaning once a year.

Anticipated Service Life and Influencing Factors

It is possible for the S18 type oil-immersed distribution transformer to last longer than 30 years under normal working settings. How long someone really lives varies on a number of factors. Consistent running close to the nameplate rate without frequent overloading extends the life. Extremes of weather make insulation wear out faster; installations in mild regions last longer. When something is installed correctly the first time, it will work reliably for decades to come. This includes leaving enough space for air flow and protecting it from damage.

The protected design stops the oil from breaking down slowly, which shortens the life of regular transformers. By keeping the air from interacting with the insulation, the moisture level stays low, which keeps the insulation's electrical strength. Because of this basic design benefit, the unit can keep up its performance levels for a much longer time than its predecessors, giving you a better return on your investment.

Procuring S18 Oil-Immersed Distribution Transformers: Key Considerations

Manufacturer Selection and Certification Verification

Finding suitable makers for the S18 type oil-immersed distribution transformer takes more work than just believing what the marketing says. Check to see if the makers have up-to-date ISO 9001:2015 quality management certification and that independent testing labs have inspected their factories. Technical skills are proven by certifications that are relevant to the product, such as IEC 60076 compliance, CE marking for European markets, and UL listing for North American uses. You can get copies of type test results from reputable organisations like the National Transformer Quality Supervision and Inspection Center.

Customization Capabilities for Project-Specific Needs

Standard catalogue items don't always work perfectly for every situation. Check out the engineering tools that manufacturers have to meet demands for customisation. Changes to the voltage ratio, different ways of connecting, better coatings that protect against corrosion, earthquake strengthening, and cooperation with certain safety relay schemes may need to be made to the design. Manufacturers with in-house R&D teams and skilled engineering staff can handle these needs quickly and correctly, avoiding delays and misunderstandings.

Supply Chain Reliability and Delivery Commitments

Large projects need delivery plans that can be planned ahead of time and are in line with building goals. Check to see how much a company can make, how stable their sources are for raw materials, and how long they've been delivering on time. Firms that have more than one producing facility with a lot of space and workers show that they can handle large orders. Check examples from past projects, especially ones that were of a similar size and had similar technology needs. Project timelines are kept safe by clear contractual terms about late delivery fines and quality promises.

After-Sales Support and Warranty Terms

Technical help goes beyond the original setup. Check out the service networks, spare parts availability, and reaction times for expert questions of different makers. Full insurance protection against production flaws usually lasts between 24 and 36 months. Make the guarantee terms clear, including what doesn't cover things like bad installation or using the product beyond its stated limits. Having access to application experts who know how to solve problems in a certain business is useful for the whole lifecycle of the tools.

Conclusion

The S18 type oil-immersed distribution transformer is reliable and up-to-date enough to meet the changing needs of current power systems. Its sealed design gets rid of the usual upkeep problems and makes it very energy efficient across voltage levels from 6kV to 12kV and power ranges up to 3,150kVA. The balanced performance profile of this technology makes it useful for modernising power grids, integrating renewable energy, making things in factories, and building business infrastructure. When looking at other options, the S18 type oil-immersed distribution transformer's better loss characteristics compared to S13 models and strong build that can handle harsh conditions make it a clear winner. A successful purchase depends on choosing makers whose certifications have been checked, who can make changes, and whose supply chains have been shown to be reliable.

FAQ

How does the sealed design affect operational maintenance?

The tightly sealed corrugated tank keeps oil from coming into touch with air, which stops moisture from getting in and oxidation from happening. Compared to transformers with conservators, this system requires a lot less upkeep. For the first 10 to 15 years, users can expect maintenance-free running; only exterior inspections and bushing cleaning will be needed. The sealed system keeps the quality of the oil without having to be topped off or sampled on a regular basis. This lowers the lifetime costs and makes operations easier in remote sites.

Can S18 transformers handle integration with variable renewable sources?

Because of how it is built, the S18 type oil-immersed distribution transformer works well with alternative energy sources. Low stimulation current keeps efficiency high even when the load changes, which is common in solar and wind systems. The cooling system can handle the heat stress that comes from changing loads quickly. The design also allows power to flow in both directions, which is important for situations where energy from renewable sources comes back into the electric grid.

What distinguishes S18 loss performance from previous generations?

The S18 type oil-immersed distribution transformer has 10–20% less losses than S13 units thanks to a number of new features. Core losses can be cut down with high-grade cold-rolled grain-oriented silicon steel. When a magnetic circuit is designed well, flux loss is kept to a minimum. Resistance losses go down when better wrapping methods are used. These improvements add up to measured drops in both no-load and load losses. This means that over the transformer's many-decade working life, a lot of energy will be saved.

Partner With a Trusted S18 Type Oil-Immersed Distribution Transformer Manufacturer

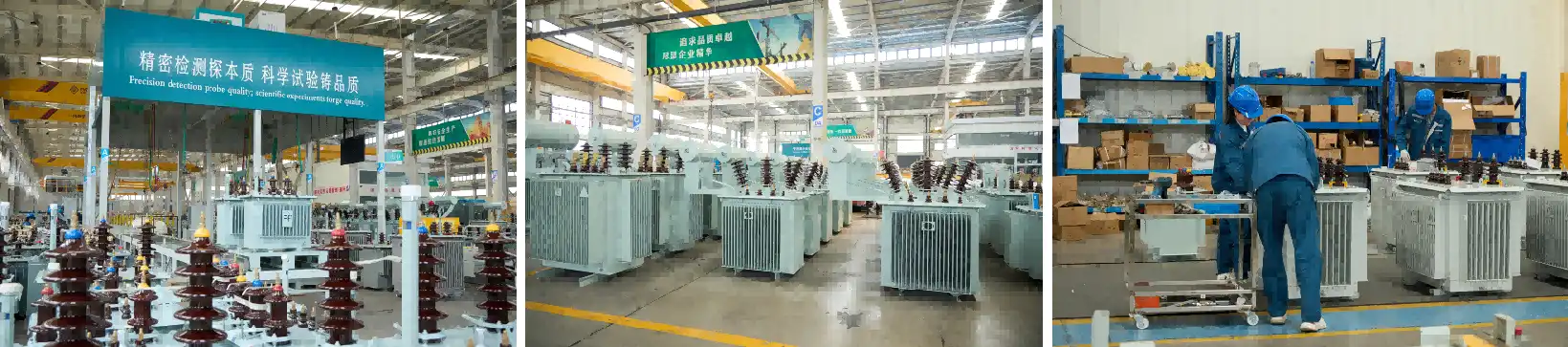

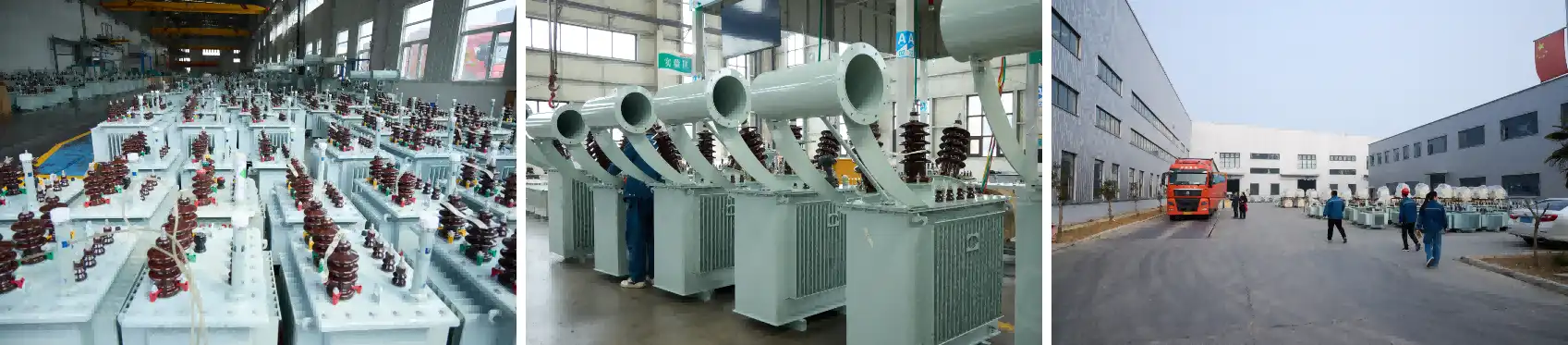

Lijie Electric Power Technology Group has a wide range of skills that can help you buy an S18 type oil-immersed distribution transformer. We have two modern manufacturing bases in Xuzhou and Nantong that cover a total area of 500,000 square meters. Each year, we can produce enough to support projects of any scale. Over 160 of our employees are engineers with doctoral and master's degrees. This ensures that the planning and production processes are carried out with the utmost scientific knowledge. We make S18 type oil-immersed distribution transformers that are certified by ISO 9001:2015, CE, UL, and IEC, which means they meet strict international quality standards.

Our units are reliable and use little energy, just what your projects need. They have been used successfully in utility, commercial, and green energy settings before. Our engineering team is here to help you with technical issues, whether you need basic setups or solutions that are made to fit your specific needs. We know that electricity engineers, buying managers, and project leaders have to balance technical performance, delivery reliability, and lifetime value when they buy things.

To talk about your unique transformer needs, email our team at lijieelectrical@gmail.com or visit lijie-electrical.com. To help you make smart procurement choices, we give you thorough technical documentation, project examples, and personalised quotes.
