April 27, 2025
With a tight project schedule, the manufacturer delivered on time, and on-site technical personnel provided guidance throughout the entire installation and commissioning process; the collaboration was highly efficient and hassle-free.

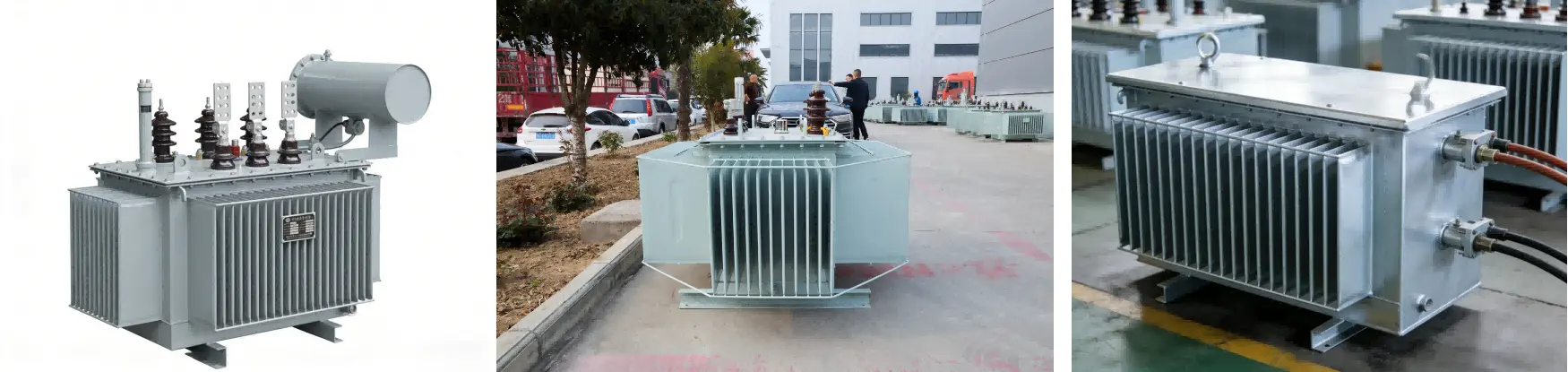

S13 type distribution transformer
1. Low loss, fully sealed, non-excitation voltage regulation (5 levels), 24-hour uninterrupted power supply, long annual operating time.
2. Cooling method: ONAN oil-immersed self-cooling.
3. High-permeability cold-rolled grain-oriented silicon steel sheets (0.23mm grade), fully oblique joints, no punching, low noise, low loss.
4. Fully sealed corrugated oil tank: no oil conservator, corrugated plate automatically compensates for oil volume changes; completely isolated from the atmosphere, maintenance-free, prevents oil aging, and extends lifespan.
5. Windings: high-purity oxygen-free copper wire; cylindrical/continuous type, uniform oil channels, strong short-circuit resistance.
6. Standard application scenarios: urban residential communities, commercial complexes, office buildings; industrial parks, factories, enterprise power distribution, municipal public facilities; rural power grids, urban public transformer area renovation, etc.
7. Standardized design, special requirements can be customized.
Product Description
S13 Type Distribution Transformer - Advanced Power Solution for Your Facility

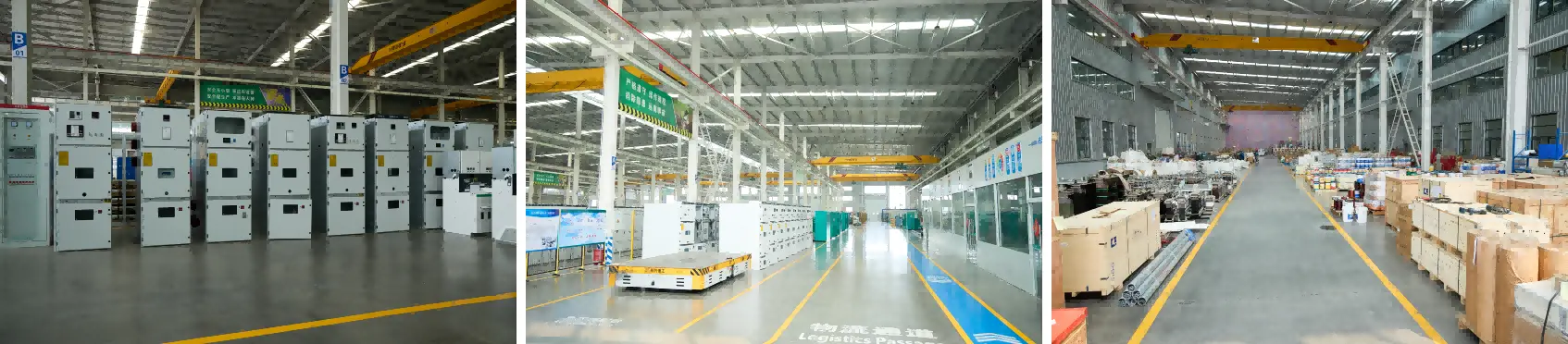

Our S13 type distribution transformer delivers enterprise-grade performance with impressive energy efficiency. Manufactured by Lijie Electric Power Technology Group across 500,000 square meters of advanced production facilities, this transformer features no-load loss reduction of up to 30% compared to previous models. With capacity ranging from 30-3150kVA and a fully sealed corrugated oil tank design, you get maintenance-free operation for years. Our team of 160+ engineers ensures every unit meets stringent quality standards, backed by annual sales exceeding 5 billion RMB and certifications including ISO 9001:2015, CE, and IEC compliance.
What Makes This Transformer Different?
Energy-Efficient Core Technology
You'll appreciate the shrewd building behind our control conveyance hardware. The center employs high-permeability cold-rolled grain-oriented silicon steel sheets at fair 0.23mm thickness. This isn't fair specialized jargon—it implies vital lowerity bills for you.
The completely angled joint plan dispenses with punching gaps. This diminishes operational commotion essentially. Your office remains calmer whereas devouring less power.
Fully Sealed Design Means Zero Maintenance
Here's where our item truly sparkles. The folded oil tank consequently compensates for oil volume changes. No oil conservator needed.
What does this cruel for you? The oil never contacts the air. It won't age or fall apart. You won't require standard support checks. Essentially introduce it and disregard around it.
This fixed framework expands the transformer's life expectancy significantly. You spare time and cash on upkeep.
Built to Last with Premium Materials
We utilize as it were high-purity oxygen-free copper wire for all windings. The round and hollow plan makes uniform oil channels all through. Warm disseminates productively. Short-circuit resistance remains solid indeed beneath requesting conditions.
The Dyn11 association bunch gives steady voltage control over five positions. You can alter from 19.5kV to 20.5kV without excitation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Level | 6kV, 12kV |
| Rated Voltage | 10±2×2.5%/0.4kV |
| Capacity Range | 30-3150kVA |
| Frequency | 50Hz / 60Hz |
| Number of Phases | Single-phase / Three-phase |
| Connection Group | Dyn11, Yyn0 |
| Voltage Regulation | Non-excitation, ±5%, ±2×2.5% |
| Cooling Method | ONAN (Oil-immersed self-cooling) |
| Insulation Level | Power frequency 35kV AC, Impulse 75kV |
| Operating Temperature | Maximum 40℃ outdoor |
| Impedance Voltage | Per technical parameter table |
Where Can You Use This Transformer?
Our distribution transformers serve diverse applications:
Urban Settings:
- Residential communities requiring stable 24-hour power
- Commercial complexes with high energy demands
- Office buildings needing reliable distribution
Industrial Applications:
- Manufacturing facilities and factory power distribution
- Industrial parks with multiple power requirements
- Enterprise-level electrical infrastructure
Public Infrastructure:
- Municipal facilities and government buildings
- Rural power grid modernization projects
- Urban transformer area renovation initiatives
The S13 type distribution transformer adapts to your specific requirements. Standard designs ship within 6-30 days. Need customization? Our engineering team works with your specifications.
Key Performance Advantages
Predominant Warm Management
Uniform oil channels guarantee steady cooling. The ONAN cooling strategy works normally without pumps or fans. Less complexity implies less disappointment points.
Low Clamor Operation
The no-punching plan keeps operational clamor negligible. Your neighbors won't complain. Your specialists appreciate a way better environment.
Exceptional Durability
Fully fixed development secures inner components. Dampness remains out. Contaminants can't enter. The transformer works dependably year after year.
Flexible Voltage Regulation
Five-position tap changer lets you fine-tune yield: 20.5kV / 20.25kV / 20kV / 19.75kV / 19.5kV. Alter to coordinate your lattice conditions impeccably.
Frequently Asked Questions
Q: How often does this transformer need maintenance?
A: The fully sealed design eliminates routine maintenance. The corrugated tank automatically manages oil expansion and contraction. You won't need to check or replace oil under normal operating conditions.
Q: What certifications does this product carry?
A: All units pass testing by China's National Transformer Quality Supervision and Inspection Center. We hold ISO 9001:2015, CE, IEC, and CQC energy efficiency certifications. Each transformer includes model registration certificates and complete test reports.
Q: Can you customize the transformer for specific requirements?
A: Absolutely. While we offer standardized designs for quick delivery, our engineering team tailors units to your exact specifications. Contact us with your requirements and we'll develop a solution.
Q: What's included with each transformer?
A: Standard accessories include pressure relief valve, 20kV class insulating bushing with grounding device, mounting plate, and base. Optional equipment includes thermometers and drain valves based on your needs.
Q: Which countries do you export to?
A: Our distribution transformers serve customers globally, including Australia, New Zealand, India, Vietnam, Malaysia, Indonesia, Kazakhstan, Egypt, and Kenya. We provide complete technical documentation and installation guidance worldwide.
Q: How long does delivery take?
A: Standard production cycles run 6-30 days depending on specifications and order volume. We'll provide a precise timeline when you contact us with your requirements.
Contact Us
Ready to upgrade your power distribution with S13 type distribution transformer? Email us at lijieelectrical@gmail.com for technical specifications, pricing, and delivery schedules tailored to your project.
