April 27, 2025
With a tight project schedule, the manufacturer delivered on time, and on-site technical personnel provided guidance throughout the entire installation and commissioning process; the collaboration was highly efficient and hassle-free.
S13 type oil-immersed distribution transformer
1. Low loss, fully sealed, non-excitation voltage regulation (5 levels), 24-hour uninterrupted power supply, long annual operating time.
2. Cooling method: ONAN oil-immersed self-cooling.
3. High-permeability cold-rolled grain-oriented silicon steel sheets (0.23mm grade), fully oblique joints, no punching, low noise, low loss.
4. Fully sealed corrugated oil tank: no oil conservator, corrugated plate automatically compensates for oil volume changes; completely isolated from the atmosphere, maintenance-free, prevents oil aging, and extends lifespan.
5. Windings: high-purity oxygen-free copper wire; cylindrical/continuous type, uniform oil channels, strong short-circuit resistance.
6. Applicable scenarios: urban residential areas, commercial complexes, industrial park power distribution rooms; supporting facilities for box-type substations, ring main units, and pole-mounted substations; locations with high requirements for energy saving, maintenance-free operation, and low noise.
7. Standardized design, special requirements can be customized.
Product Description

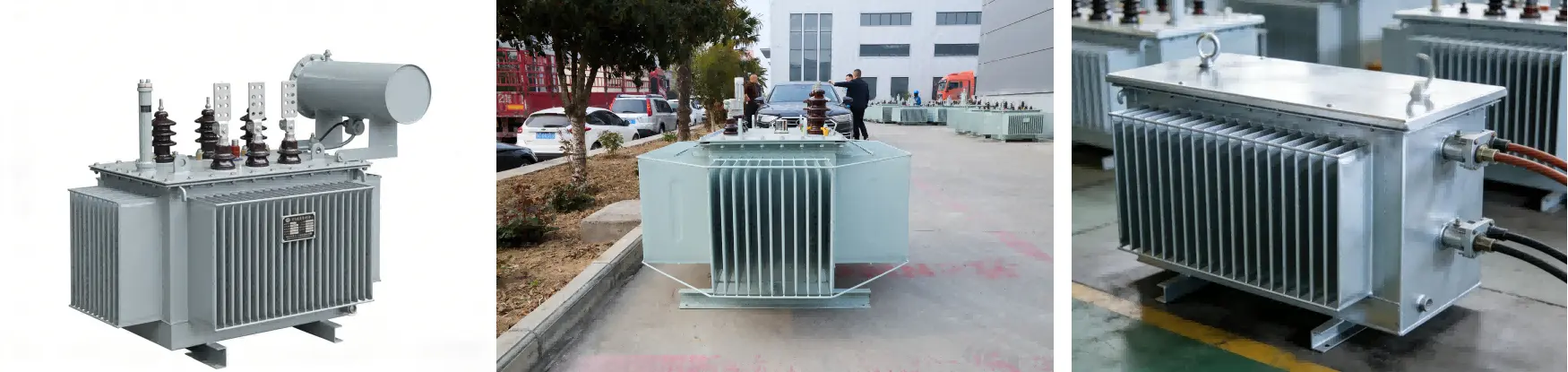

S13 Type Oil-Immersed Distribution Transformer
The S13 type oil-immersed distribution transformer from Lijie Electric delivers exceptional performance with proven results. Our transformers feature noise levels 20% lower than national standards and serve customers across 10+ countries. With production capacity spanning 500,000 square meters across two manufacturing bases, we deliver quality backed by 2,000+ employees including 160+ engineers. This fully sealed, maintenance-free transformer offers rated voltage of 10±2×2.5%/0.4kV, Dyn11 connection group, and ONAN cooling. Energy-efficient design meets international standards including ISO 9001:2015, CE, UL, and IEC certification.
Why Choose Our Oil-Immersed Transformers?
Advanced Energy Efficiency
You'll decrease working costs essentially with our S13 demonstrate. The transformer accomplishes lower no-load and stack misfortunes compared to S11 forerunners. High-permeability cold-rolled grain-oriented silicon steel sheets (0.23mm review) minimize vitality squander. Your office benefits from 24-hour continuous control supply with amplified yearly working time.
Maintenance-Free Design
The completely fixed layered oil tank kills your support cerebral pains. No oil conservator implies the folded plate consequently compensates for oil volume changes. Your transformer remains totally disconnected from climatic defilement. This anticipates oil maturing and amplifies benefit life substantially.
Superior Construction Quality
We utilize as it were high-purity oxygen-free copper wire for windings. The round and hollow continuous-type plan guarantees uniform oil channels all through. You get solid short-circuit resistance and dependable execution. Completely diagonal joints with no punching diminish both commotion and misfortune.
Flexible Customization
Your specific requirements matter to us. Standard configurations include:
- Capacity range: 30-3150kVA
- Frequency: 50Hz or 60Hz options
- Phases: Single-phase or three-phase
- Tap range: ±5%, ±2×2.5%
Production cycles run 6-30 days depending on your specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Level | 6kV, 12kV |
| Rated Voltage | 10±2×2.5%/0.4kV |
| Voltage Regulation | Non-excitation voltage regulation |
| Tap Range | ±5%, ±2×2.5% |
| Capacity Range | 30-3150kVA |
| Frequency | 50Hz, 60Hz |
| Number of Phases | Single-phase, Three-phase |
| Connection Group | Yyn0 or Dyn11 |
| Cooling Method | ONAN (Oil-immersed self-cooling) |
| Insulation Level | AC-35kV, Impulse L1-75kV |
| Max Operating Temperature | 40℃ (customizable) |
| Noise Reduction | 20% below JB/T10088-2004 standard |
Ideal Applications
Your S13 type oil-immersed distribution transformer fits perfectly in multiple scenarios:
- Urban residential areas requiring low noise operation
- Commercial complexes demanding reliable 24/7 power
- Industrial park distribution rooms with high energy-saving requirements
- Box-type substations and ring main unit support
- Pole-mounted substations needing maintenance-free solutions

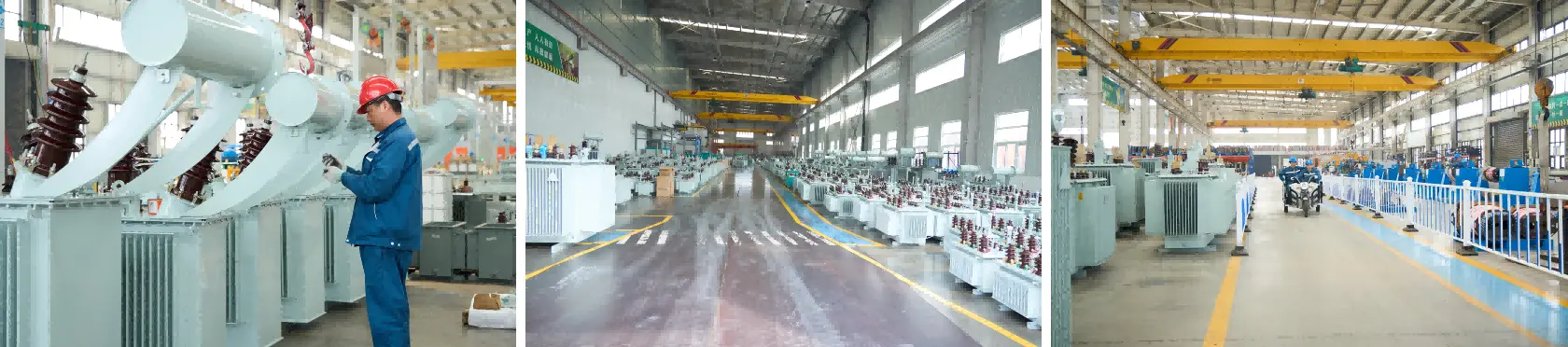

Our Manufacturing Excellence
You're joining forces with a demonstrated industry pioneer. Lijie Electric works two major R&D and fabricating bases in Xuzhou and Nantong, China. Our yearly deals surpass 5 billion RMB, reflecting client believe worldwide.
All items pass thorough testing by the National Transformer Quality Supervision and Review Center. You get comprehensive documentation counting drawings, manuals, and test reports. Our worldwide deals arrange serves Australia, Modern Zealand, India, Vietnam, Malaysia, Indonesia, Kazakhstan, Egypt, Kenya, and beyond.
Quality You Can Trust
We've earned acknowledgment as a "National High-Tech Venture" and "Quality-Trusted Undertaking" by Jiangsu Territory. Your speculation is secured by worldwide certifications counting ISO 9001:2015, CE, UL, and IEC guidelines.
Frequently Asked Questions
Q: What makes the S13 transformer more efficient than older models?
A: Our S13 design incorporates advanced materials and optimized core structure. You'll see significantly reduced no-load and load losses compared to S11 transformers. This translates directly to lower electricity bills and faster ROI.
Q: Does the fully sealed design really eliminate maintenance?
A: Yes. The corrugated oil tank system automatically manages oil volume changes without external intervention. Your transformer remains isolated from atmospheric moisture and contaminants. You won't need routine oil sampling or conservator maintenance.
Q: What's your typical delivery timeline?
A: Standard configurations ship within 6-30 days depending on capacity and customization requirements. We provide visualized production tracking so you always know your order status.
Q: Can you customize transformers for special voltage requirements?
A: Absolutely. We tailor products to your exact specifications. Our engineering team has over 160 specialists ready to design solutions for unique applications.
Q: What after-sales support do you provide?
A: You receive installation guidance, spare parts supply, complete technical documentation, and ongoing technical support. We're committed to your long-term success.
Contact Us
Ready to upgrade your power distribution with S13 type oil-immersed distribution transformer? Email us at lijieelectrical@gmail.com for customized solutions and competitive quotes today.
