S13 type three-phase distribution transformer

1. Low loss, fully sealed, non-excitation voltage regulation (5 levels), 24-hour uninterrupted power supply, long annual operating time. 2. Cooling method: ONAN oil-immersed self-cooling. 3. High-permeability cold-rolled grain-oriented silicon steel sheets (0.23mm grade), fully oblique joints, no punching, low noise, low loss. 4. Fully sealed corrugated oil tank: no oil conservator, corrugated plate automatically compensates for oil volume changes; completely isolated from the atmosphere, maintenance-free, prevents oil aging, and extends lifespan. 5. Windings: high-purity oxygen-free copper wire; cylindrical/continuous type, uniform oil channels, strong short-circuit resistance. 6. Applicable scenarios: urban residential areas, commercial complexes, industrial park power distribution rooms; supporting facilities for box-type substations, ring main units, and pole-mounted substations; locations with high requirements for energy saving, maintenance-free operation, and low noise. 7. Standardized design, special requirements can be customized.

S13 Type Three-Phase Distribution Transformer

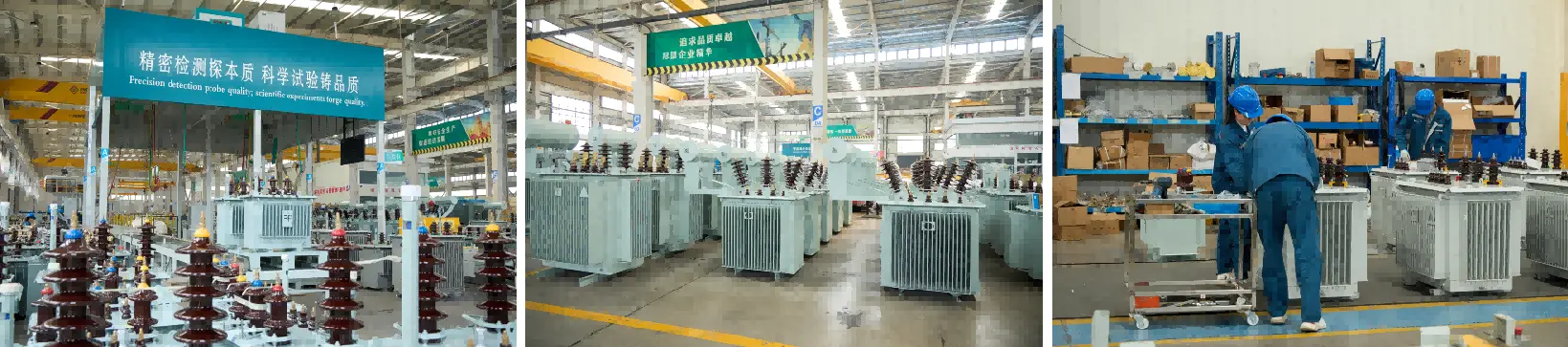

Lijie Electric's S13 type three-phase distribution transformer delivers enterprise-grade performance with ultra-low energy loss and maintenance-free operation. Manufactured at our 500,000 square meter facilities, each unit features fully sealed corrugated tanks, high-purity copper windings, and 0.23mm grain-oriented silicon steel cores. With noise levels 20% below national standards and capacity ranging from 30-3150kVA, our transformers serve over 10 countries worldwide. Backed by ISO 9001:2015, CE, and UL certifications, we guarantee 6-30 day customized delivery with comprehensive technical support.

S13 type three-phase distribution transformer

Why Choose Our Distribution Transformers?

Advanced Energy-Saving Design

You get exceptional efficiency with our latest core technology. The high-permeability cold-rolled silicon steel sheets reduce no-load losses significantly. Your operational costs drop while performance stays consistent. The fully oblique joint construction eliminates punching damage. This means quieter operation and longer service life for your facility.

Maintenance-Free Operation

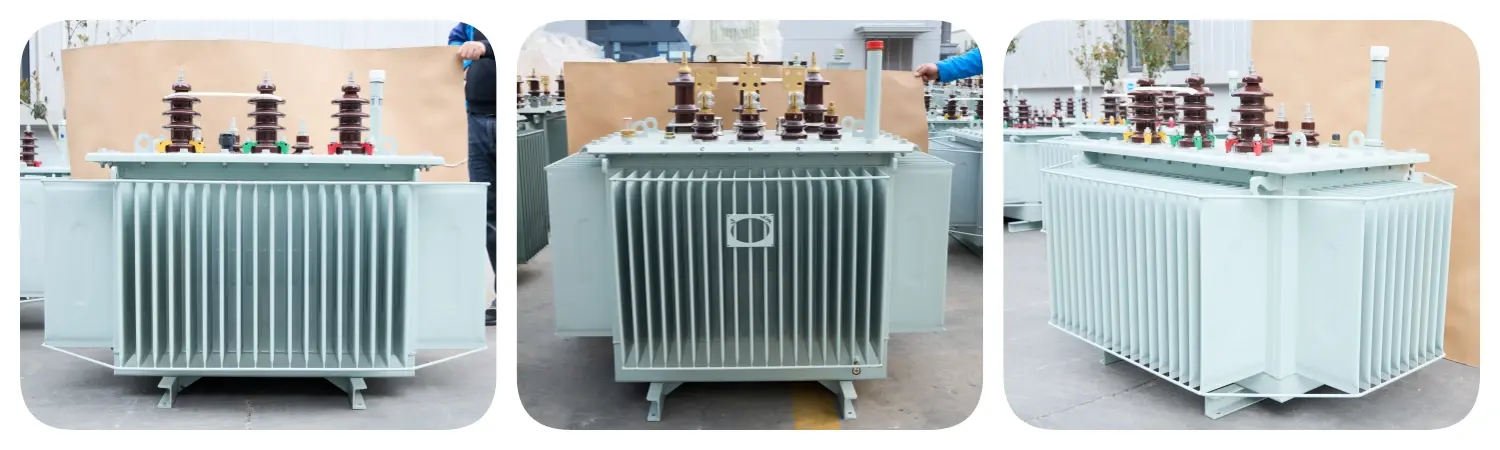

Your maintenance budget stays under control. The fully sealed corrugated oil tank eliminates the need for an oil conservator. Temperature changes? The corrugated plates automatically adjust oil volume. You won't deal with oil aging or atmospheric contamination. This design extends transformer lifespan and reduces downtime to near zero.

Robust Construction Standards

We use only high-purity oxygen-free copper wire for all windings. The cylindrical continuous winding design creates uniform oil channels. Your transformer withstands short circuits better than standard models. Strong mechanical strength protects your investment during power surges and fault conditions.

Technical Specifications

Parameter	Specification
Voltage Level	6kV, 12kV
Rated Voltage	10±2×2.5%/0.4kV
Capacity Range	30-3150kVA
Frequency	50Hz, 60Hz
Connection Group	Dyn11, Yyno
Voltage Regulation	Non-excitation (5 levels)
Tap Range	±5%, ±2×2.5%
Cooling Method	ONAN (Oil-immersed self-cooling)
Insulation Level	AC 35kV / Impulse 75kV
Core Material	0.23mm grain-oriented silicon steel
Winding Material	High-purity oxygen-free copper

S13 type three-phase distribution transformer

Ideal Applications

Urban and Commercial Settings

Your residential complex needs quiet, reliable power. Our S13 type three-phase distribution transformers operate 20% quieter than national standards require. Shopping malls benefit from 24-hour uninterrupted supply. Industrial park distribution rooms get maintenance-free operation year after year.

Integrated Power Solutions

You can pair these units with box-type substations seamlessly. Ring main units integrate perfectly with our standardized design. Pole-mounted installations become simpler with our compact engineering. Special requirements? We customize solutions to match your exact specifications.

Why Lijie Electric Stands Out

You're partnering with more than a manufacturer. Our 2,000+ employees include 160 engineers with advanced degrees. Two massive production bases ensure capacity when you need it. Annual sales exceeding 5 billion RMB prove our market leadership.

International certifications mean global reliability. CE, UL, and IEC approvals open doors to any market. Our quality control follows GB/T 27922-2021 after-sales standards. Every unit passes National Transformer Quality Supervision testing.

S13 type three-phase distribution transformer

Frequently Asked Questions

What makes the S13 model more efficient than older transformers?

The product uses upgraded core materials and optimized wire structures. Compared to S11 models, it reduces no-load losses and noise by 20%. The fully sealed design prevents oil degradation, maintaining peak efficiency throughout its lifespan.

How long does delivery take for customized specifications?

Standard configurations ship within 6 days. Complex customizations require 15-30 days depending on your requirements. We maintain transparent production tracking so you know exactly when your order arrives.

Do you provide installation support?

Yes, we supply complete technical documentation including drawings, manuals, and test reports. Our team offers installation guidance and spare parts supply. After-sales support continues throughout your transformer's operational life.

What warranty coverage do you offer?

All transformers come with comprehensive quality assurance meeting international standards. Specific warranty terms depend on your application and location. Contact us for detailed coverage information tailored to your project.

Can these transformers handle harsh climates?

Absolutely. Standard models operate in temperatures up to 40℃. Need different environmental specifications? We customize thermal management for extreme conditions. Our global installations span tropical and desert climates successfully.

Contact Us

Ready to upgrade your power distribution with S13 type three-phase distribution transformer? Email us at lijieelectrical@gmail.com for technical specifications and competitive quotes today.
