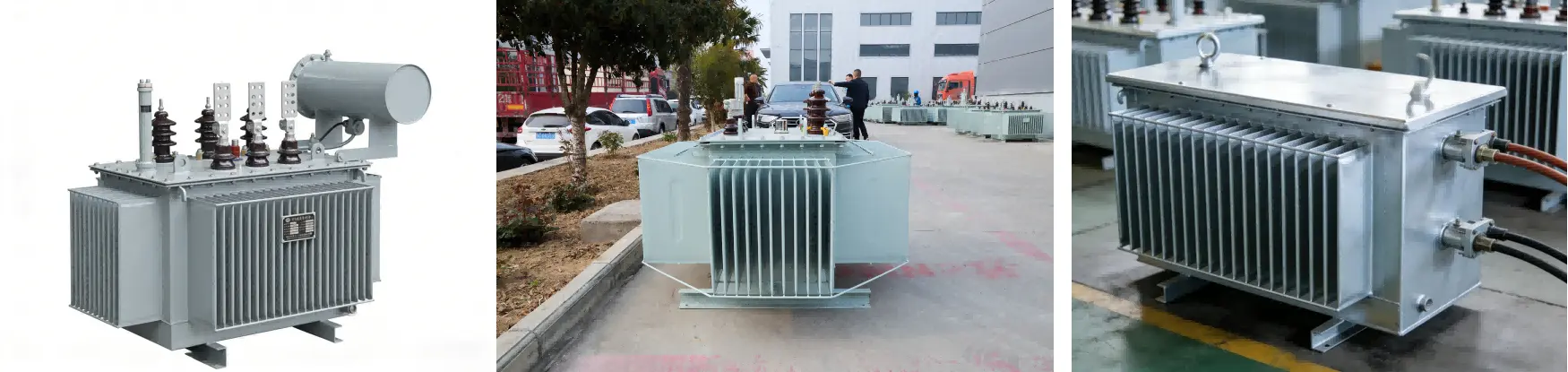

S22 type power transformer

S22 Type Power Transformer: Advanced Energy-Efficient Distribution Solution

The S22 type power transformer from Lijie Electric Power Technology Group delivers exceptional Level 1 energy efficiency performance. With no-load loss reduced by 20% compared to S13 models and load loss decreased by 10-15%, you'll see immediate operational savings. Our transformers feature 0.23mm high-permeability grain-oriented silicon steel cores and oxygen-free copper windings, ensuring reliability across 30-3150kVA capacity range. Backed by our 500,000 square meter manufacturing facility and 160+ engineers, we provide enterprise-grade solutions meeting ISO 9001:2015, CE, UL, and IEC standards with 6-30 day customization cycles.

Why Choose Our Energy-Efficient Distribution Transformers?

Superior Energy Savings

Your electricity bills matter. Our transformers use advanced core technology with five-stage step joints and non-overlapping yoke processes. This design reduces energy waste considerably compared to older models.

The foil-type low-voltage coil construction minimizes heat generation. You get more power delivered where you need it, with less lost to resistance.

Reliable Performance You Can Trust

We build transformers that work day after day without interruption. The fully sealed oil-immersed design means minimal maintenance requirements for your facility.

Your operations stay running smoothly. Our ONAN self-cooling system handles thermal management automatically, requiring no external intervention.

Flexible Configuration Options

Every project has unique requirements. We offer both Yyn0 and Dyn11 connection groups to match your specific application needs.

Choose from 6kV or 12kV voltage ratings. Select single-phase or three-phase configurations. Need special tap ranges? We provide ±5% or ±2×2.5% options to optimize voltage regulation.

Technical Specifications

Key Technical Advantages

Advanced Core Technology

We use 0.23mm high-permeability grain-oriented silicon steel sheets in our core construction. This premium material choice directly impacts your bottom line through reduced no-load losses.

The five-stage step joint design optimizes magnetic flux distribution. Combined with our non-overlapping yoke process, you benefit from approximately 40% lower no-load loss compared to S11 models.

Optimized Winding Design

Our oxygen-free copper wire construction ensures maximum conductivity. The foil-type low-voltage coil configuration reduces load loss by approximately 10% versus national standards.

Optimized ampere-turn balance minimizes stray losses. Your S22 type power transformer operates more efficiently under all load conditions.

Enhanced Structural Engineering

We've optimized the leakage flux path throughout the design. This reduces losses in both the oil tank and structural components.

The fully sealed construction protects internal components from environmental contamination. You get longer service life with fewer maintenance interventions required.

Application Scenarios

Power Grid Transformation Projects

Upgrading existing infrastructure? Our transformers integrate seamlessly into grid modernization initiatives. They meet all current energy efficiency mandates while providing headroom for future requirements.

Industrial Facilities

Manufacturing plants, processing facilities, and production lines benefit from our reliable power distribution. The product handles demanding industrial loads with consistent performance.

New Energy Installations

Solar farms, wind installations, and hybrid energy systems require dependable transformation equipment. We support renewable energy infrastructure with suitable voltage and capacity configurations.

Public Buildings and Infrastructure

Hospitals, schools, government facilities, and commercial complexes need uninterrupted power. Our maintenance-free design reduces operational overhead while ensuring continuous service.

Quality Certifications

Your peace of mind matters. All our transformers undergo rigorous testing at the National Transformer Quality Supervision and Inspection Center and Wuhan High Voltage Research Institute.

We hold international certifications including ISO 9001:2015, CE, UL, and IEC compliance. Our products meet GB/T 27922-2021 after-sales evaluation standards, backed by CQC and PCCC energy efficiency certification.

Manufacturing Excellence

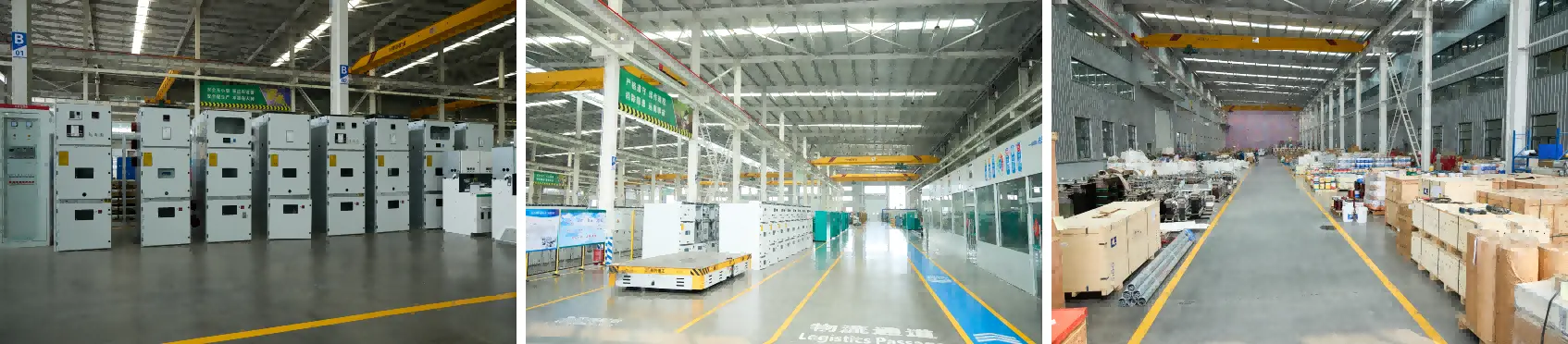

Lijie Electric Power Technology Group operates two major manufacturing bases in Xuzhou and Nantong, spanning 500,000 square meters. Our 2,000+ employee team includes over 160 doctoral and master's degree holders.

With annual sales exceeding 5 billion RMB, we're recognized as a "National High-Tech Enterprise" and "Specialized, Refined, and New 'Little Giant'" enterprise by Chinese authorities.

Customization Services

We understand standard solutions don't always fit unique requirements. Our engineering team works with you to customize specifications, connection configurations, and physical dimensions.

Production cycles range from 6-30 days depending on customization complexity. We provide complete technical documentation including drawings, manuals, and test reports.

Frequently Asked Questions

Q: What makes the S22 transformer more efficient than previous models?

A: We use thinner 0.23mm silicon steel sheets, advanced core joint technology, and oxygen-free copper windings. These improvements reduce no-load loss by 20% versus S13 models and load loss by 10-15% below national standards.

Q: Can these transformers operate in harsh outdoor environments?

A: Yes. The fully sealed oil-immersed design protects against environmental contamination. Standard units operate up to 40℃, with customization available for more extreme conditions.

Q: What voltage configurations do you offer?

A: We provide 6kV, 10kV, and 12kV primary voltages with 0.4kV secondary. Both Yyn0 and Dyn11 connection groups are available depending on your application requirements.

Q: How long is the delivery time for custom specifications?

A: Standard configurations ship within 6 days. Complex customizations require up to 30 days. We provide visualized production tracking so you know exactly where your order stands.

Q: What after-sales support do you provide?

A: We offer installation guidance, spare parts supply, comprehensive technical documentation, and ongoing technical support. Our service meets GB/T 27922-2021 evaluation standards.

Contact Us

Ready to reduce your energy costs with a high-efficiency S22 type power transformer? Reach out today: lijieelectrical@gmail.com
