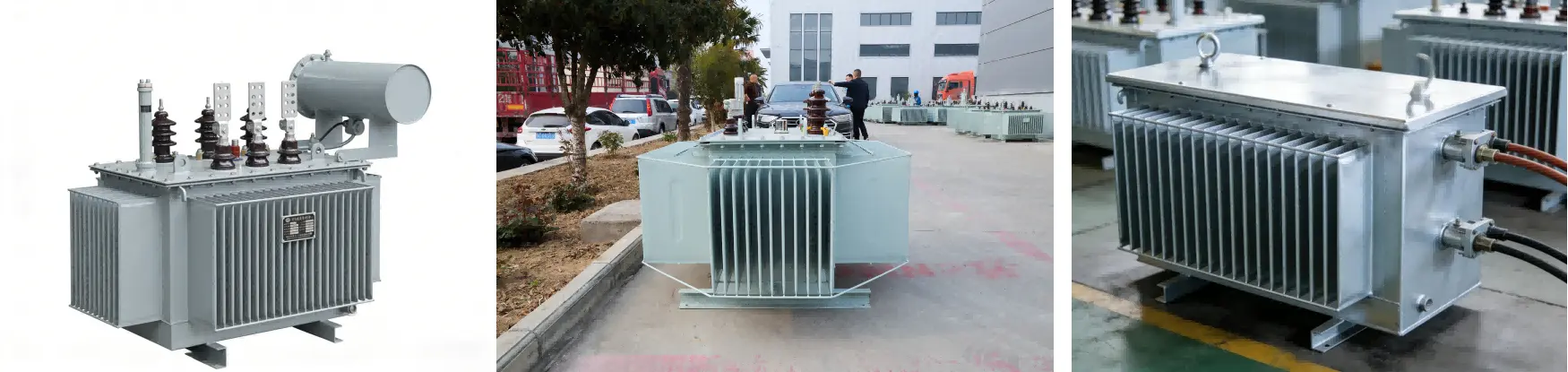

S(B)H15 Amorphous Alloy Distribution Transformer
1. Voltage Rating: 10kV / 0.4kV 2. Voltage Regulation Method: No-load voltage regulation (no-load voltage regulation) 3. Tap Range: ±2×2.5% or ±5% 4. Connection Group: Dyn11 (preferred), Yyn0 5. Cooling Method: ONAN oil-immersed self-cooling 6. Capacity Range: 30-2500kVA 7. No-load Loss: The core uses amorphous alloy material, and the no-load loss is only 20%~30% of that of an 8-piece S11 silicon steel transformer of the same capacity, resulting in significant energy savings. 9. Load Loss: Low loss and low carbon emissions, meeting the requirements of power grid energy conservation and loss reduction, and dual-carbon goals.
10. Energy efficiency standard: GB 20052 Level 1 energy efficiency.
11. Usage environment: Outdoor/Indoor.
12. Standardized design, customizable.
Product Description
S(B)H15 Amorphous Alloy Distribution Transformer: Advanced Energy-Saving Solution
The S(B)H15 Amorphous Alloy Distribution Transformer from Lijie Electric Power Technology Group delivers exceptional performance with Level 1 energy efficiency. Our transformer reduces no-load losses by 70-80% compared to traditional silicon steel models. With capacity ranging from 30-2500kVA and voltage ratings of 10kV/0.4kV, this oil-immersed self-cooling transformer meets GB 20052 standards. Manufactured at our 500,000 square meter facilities by over 160 expert engineers, each unit undergoes rigorous testing to ensure reliability. Production cycles range from 6-30 days with full customization available.
Why Choose Amorphous Alloy Technology?
Traditional transformers waste electricity even when idle. Your facility pays for this continuously.
Our amorphous alloy core changes everything. The special metal composition reduces magnetic resistance dramatically. This means your transformer consumes less power 24/7.
Think about it: transformers run constantly. Even small efficiency gains add up to substantial savings over years of operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 30-2500kVA |
| Voltage Rating | 6kV, 10kV, 12kV / 0.4kV |
| Energy Efficiency | GB 20052 Level 1 |
| Frequency | 50Hz, 60Hz |
| Phases | Single-phase, Three-phase |
| Connection Group | Dyn11 (preferred), Yyn0 |
| Cooling Method | ONAN (Oil-immersed Natural Air Natural) |
| Tap Range | ±5%, ±2×2.5% |
| Voltage Regulation | No-load voltage regulation |
| Insulation Level | AC 35kV withstand, 75kV impulse |
| Operating Temperature | Maximum 40℃ outdoor (customizable) |
| Standards Compliance | ISO 9001:2015, CE, IEC |
Key Benefits for Your Operations
Dramatic Energy Savings
You'll notice the difference immediately on your electricity bills. No-load losses drop to just 20-30% of conventional transformers. That's real money saved every single day.
Environmentally Responsible
Lower energy consumption means reduced carbon emissions. You're meeting sustainability goals while cutting costs. It's a win-win situation.
Reliable Performance
Our transformers operate efficiently under varying load conditions. Whether at full capacity or light load, performance remains consistent.
Flexible Applications
We design each unit for your specific requirements. Indoor or outdoor installation. Standard or custom specifications. You get exactly what your project needs.
Ideal Applications
Rural Power Distribution Networks
Rural areas experience long no-load periods, especially overnight. The S(B)H15 Amorphous Alloy Distribution Transformer excels here. Your energy savings reach their maximum potential with extended light-load operation.
Residential Communities
Day-night stack changes are critical in lodging regions. Our transformer adjusts consistently. Inhabitants get solid control whereas you minimize operational costs.
Industrial Parks and Commercial Districts
Irregular utilization designs cruel visit light-load operation. Conventional transformers squander vitality amid these periods. Our nebulous amalgam innovation keeps up proficiency notwithstanding of stack level.
Small and Micro Enterprises
Budget things for developing businesses. Lower transformer misfortunes specifically make strides your foot line. Contribute in hardware that pays for itself through vitality savings.
Manufacturing Excellence

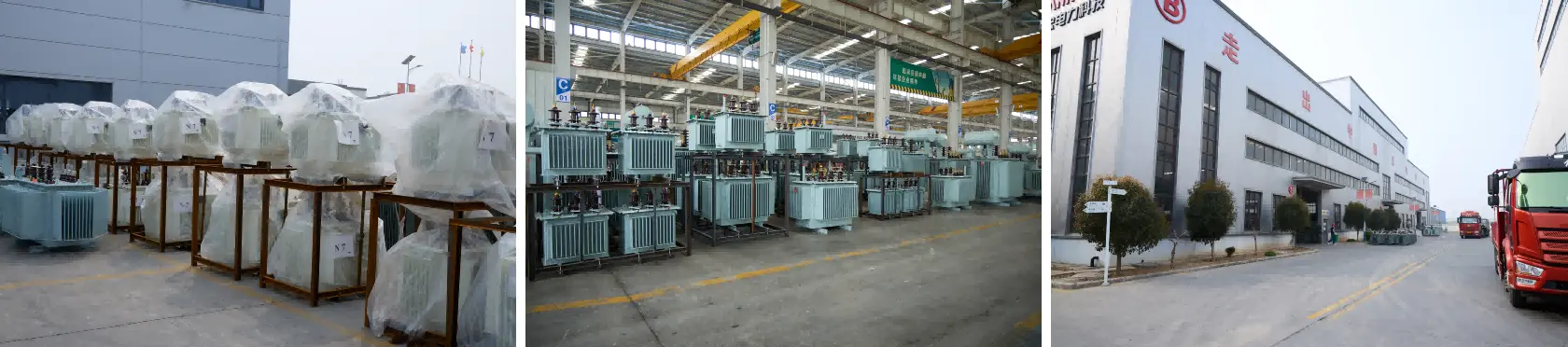

Lijie Electric Control Innovation Gather works two progressed fabricating bases. Our offices span 500,000 square meters with cutting-edge equipment.
Over 2,000 representatives bring skill to each transformer. More than 160 hold doctoral or master's degrees in engineering.
Every item passes testing by the National Transformer Quality Supervision and Assessment Center. We keep up certifications counting ISO 9001:2015, CE, UL, and IEC standards.
Our quality-first approach earned acknowledgment as a "National High-Tech Undertaking" and "Specialized, Refined, and Modern 'Little Giant'" company.
Complete Support Services
You're not fair buying a transformer. You're picking up a long-term partner.
We give comprehensive specialized documentation: drawings, manuals, and test reports. Establishment direction guarantees appropriate setup. Save parts stay accessible all through your transformer's lifecycle.
Our worldwide arrange serves clients over Asia, Africa, and Oceania. Wherever your venture area, we provide back.
Frequently Asked Questions
How much can I actually save with an amorphous alloy transformer?
Savings depend on your usage pattern. Rural applications with long no-load periods see the greatest benefits—often recovering the investment within 3-5 years through reduced electricity costs alone.
What's the lifespan compared to traditional transformers?
With proper maintenance, you can expect 25-30 years of reliable service. The amorphous alloy core doesn't degrade like silicon steel, maintaining efficiency throughout its life.
Can you customize the transformer for special requirements?
Absolutely. We tailor voltage ratings, capacity, tap ranges, and environmental specifications to your exact needs. Share your requirements and we'll design the optimal solution.
What about installation in extreme climates?
Our transformers operate reliably in diverse conditions. For temperatures exceeding 40℃ or other challenging environments, we modify designs accordingly. Just specify your operating conditions.
How long does delivery take?
Production cycles range from 6-30 days depending on specifications and customization level. We'll provide an accurate timeline once we understand your requirements.
Contact Us
Ready to reduce your energy costs with S(B)H15 Amorphous Alloy Distribution Transformer? Reach out to discuss your transformer needs: lijieelectrical@gmail.com
