S(B)H15 Distribution Transformer China Manufacturers

1. Voltage Rating: 10kV / 0.4kV 2. Voltage Regulation Method: No-load voltage regulation (no-load voltage regulation) 3. Tap Range: ±2×2.5% or ±5% 4. Connection Group: Dyn11 (preferred), Yyn0 5. Cooling Method: ONAN oil-immersed self-cooling 6. Capacity Range: 30-2500kVA 7. No-load Loss: The core uses amorphous alloy material, and the no-load loss is only 20%~30% of that of an 8-piece S11 silicon steel transformer of the same capacity, resulting in significant energy savings. 9. Load Loss: Low loss and low carbon emissions, meeting the requirements of power grid energy conservation and loss reduction, and dual-carbon goals. 10. Energy efficiency standard: GB 20052 Level 1 energy efficiency. 11. Usage environment: Outdoor/Indoor. 12. Standardized design, customizable.

S(B)H15 Distribution Transformer - Energy-Efficient Power Solution

The S(B)H15 distribution transformer from Lijie Electric delivers exceptional performance. Our amorphous alloy transformers achieve GB 20052 Level 1 energy efficiency with no-load losses just 20%-30% of conventional S11 silicon steel transformers. With capacity ranging from 30-2500kVA and voltage ratings of 10kV/0.4kV, these units combine advanced amorphous alloy core technology with fully sealed, maintenance-free design. Backed by our 500,000㎡ manufacturing facilities and a team of over 160 engineers, we've helped customers across 15+ countries reduce operational costs significantly.

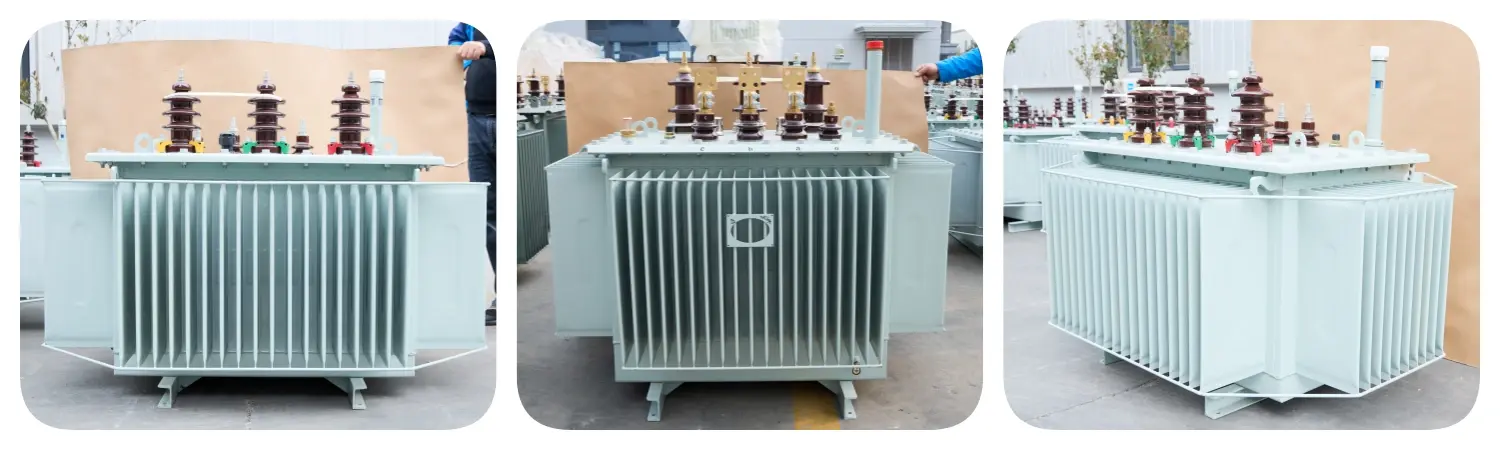

S(B)H15 distribution transformer

What Makes Our Amorphous Alloy Transformers Different?

Advanced Core Technology

You get superior magnetic properties with our amorphous alloy core material. This special structure dramatically reduces iron losses and eddy current losses. Your energy conversion efficiency improves while your operating costs drop.

Exceptional Energy Performance

The product stands out in low-load scenarios. It's perfect for rural power grids and distribution areas where transformers run at partial load or no-load for extended periods. You'll see substantial savings on your electricity bills year after year.

Built for Longevity

Your investment stays protected with our fully sealed corrugated oil tank design. The transformer oil never contacts air, preventing moisture ingress and oxidation. You won't need frequent maintenance, and the unit keeps performing reliably for decades.

Technical Specifications

Parameter	Specification
Energy Efficiency Rating	Level 1 (GB 20052)
Voltage Rating	6kV, 10kV, 12kV
Low Voltage	0.4kV
Capacity Range	30-2500kVA
Frequency	50Hz / 60Hz
Phases	Single-phase, Three-phase
Voltage Regulation	No-load tap changer
Tap Range	±5%, ±2×2.5%
Connection Group	Dyn11 (preferred), Yyn0
Cooling Method	ONAN (Oil Natural Air Natural)
Insulation Level	35kV AC withstand, 75kV impulse (L1)
Operating Environment	Indoor/Outdoor, Max 40℃
Standards Compliance	IEC, ISO 9001:2015, CE, UL

S(B)H15 distribution transformer

Key Benefits for Your Operations

Ultra-Low Energy Consumption

You'll instantly take note the distinction in your control bills. Our shapeless combination center decreases no-load misfortunes by 70-80% compared to conventional transformers. This implies genuine investment funds each single day, whether your transformer runs at full stack or sits sit out of gear overnight.

Maintenance-Free Design

Forget around exorbitant schedule upkeep plans. The completely fixed structure keeps contaminants out and unwavering quality in. You can introduce these units outside or on posts and take off them running unattended for years.

Quiet and Cool Operation

Your neighbors will thank you. The amazing excitation execution of the nebulous amalgam center creates negligible noise—far underneath national measures. Moo temperature rise implies cooler, more secure operation indeed amid top demand.

Fast ROI

With altogether lower organize misfortunes all through the year, you'll recoup your speculation rapidly. The financial benefits proceed collecting over the transformer's whole benefit life.

Environmental Responsibility

You're contributing to carbon decrease objectives. Moo misfortunes cruel lower carbon outflows, making a difference your organization meet maintainability targets whereas complying with vitality preservation controls.

Reliable Performance

High overload resistance and excellent heat dissipation make our S(B)H15 distribution transformer dependable in demanding conditions. The advanced insulation system handles temperature variations effortlessly.

Why Choose Lijie Electric?

Fabricating Excellence

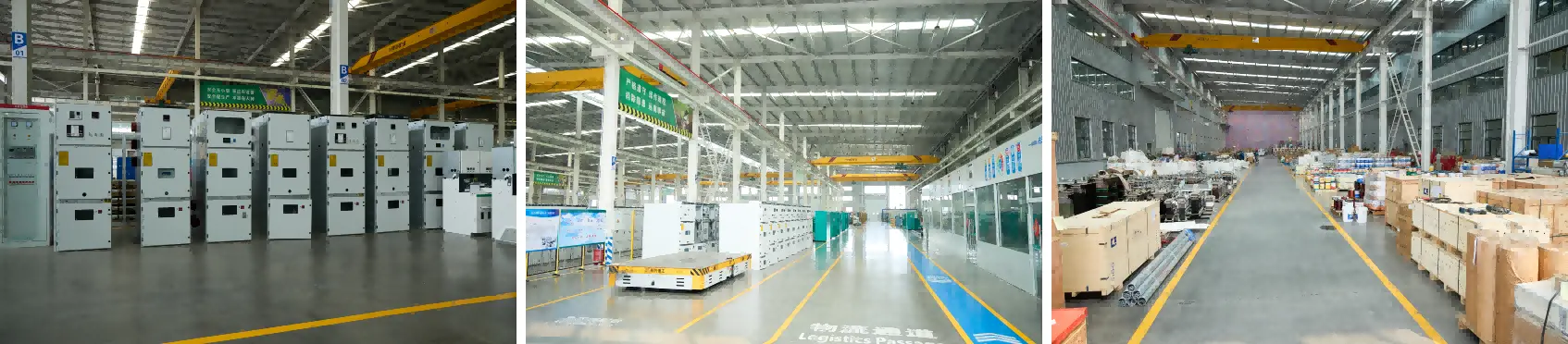

Our two generation bases in Xuzhou and Nantong span 500,000 square meters. With over 2,000 workers counting 160+ advanced-degree engineers, we keep up strict quality control at each generation stage.

Proven Track Record

We're recognized as a National High-Tech Undertaking and "Specialized, Refined, and Modern 'Little Giant'" company. Our yearly deals surpass 5 billion RMB, reflecting the believe thousands of clients put in our products.

International Quality Standards

All transformers experience thorough testing at the National Transformer Quality Supervision and Assessment Center. We hold ISO 9001:2015, CE, UL, and IEC certifications, guaranteeing your hardware meets worldwide standards.

Flexible Customization

Need particular necessities? We customize items to your correct details with generation cycles of 6-30 days. Whether you require uncommon voltage evaluations or special association arrangements, we can accommodate.

Global Back Network

We serve clients over Asia, Africa, Oceania, and past. Our comprehensive benefit incorporates establishment direction, specialized documentation, save parts supply, and responsive after-sales bolster.

S(B)H15 distribution transformer

Frequently Asked Questions

Q: What's the fundamental contrast between S(B)H15 and ordinary transformers?

A: The S(B)H15 employments an shapeless combination center instep of conventional silicon steel. This diminishes no-load misfortunes by 70-80%, making it distant more energy-efficient, particularly in low-load or no-load conditions.

Q: How long does establishment take?

A: Establishment regularly takes 1-2 days depending on location conditions. We give nitty gritty specialized drawings, manuals, and can offer farther or on-site direction to guarantee smooth setup.

Q: Can these transformers handle unforgiving open air environments?

A: Completely. The completely fixed plan secures against dampness, clean, and temperature vacillations. They're evaluated for open air utilize in temperatures up to 40℃ and can be customized for more extraordinary conditions.

Q: What capacity ought to I select for my application?

A: It depends on your stack necessities. Our specialized group can offer assistance you calculate the right capacity based on your current and anticipated control needs. We offer sizes from 30kVA to 2500kVA.

Q: How much can I actually save on energy costs?

A: Savings vary by usage patterns, but customers typically see 40-60% reduction in transformer-related energy losses compared to older models. The transformer pays for itself through energy savings within 3-5 years.

Q: What warranty and support do you provide?

A: We offer comprehensive warranty coverage and lifetime technical support. Our team responds quickly to any questions or service needs, and we maintain spare parts inventory for fast delivery.

Ready to Reduce Your Energy Costs?

Contact our technical team at lijieelectrical@gmail.com to discuss your specific requirements for S(B)H15 distribution transformer and receive a customized solution.
