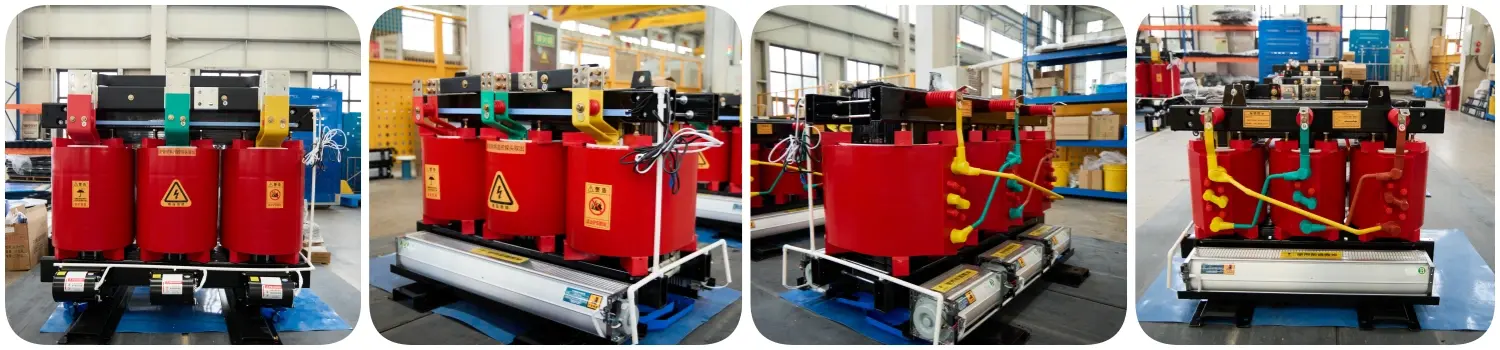

SCBH19 type amorphous alloy transformer

SCBH19 Type Amorphous Alloy Transformer: Ultra-Low Loss Distribution Solution

The SCBH19 type amorphous alloy transformer from Lijie Electric delivers exceptional performance for your critical power distribution needs. Our flagship model achieves GB 20052-2024 Class I energy efficiency with no-load losses reduced by up to 75% compared to conventional transformers. With capacity options from 30kVA to 3150kVA and advanced vacuum pressure casting technology, you get reliable, flame-retardant protection for your infrastructure. Backed by our 500,000-square-meter manufacturing base and over 160 technical experts, this three-phase dry-type solution operates at ≤55dB(A) noise levels while maintaining partial discharge below 5pC.

Why Choose Our Amorphous Alloy Distribution Transformers?

Superior Energy Efficiency

You spare essentially on working costs with our iron-based nebulous amalgam center innovation. The extraordinary lace fabric decreases attractive misfortunes drastically. Your office benefits from lower power utilization year after year.

Enhanced Security Features

Fire security things in your basic operations. Our epoxy gum cast development gives fabulous fire retardancy. The H-class cover (180℃) withstands tall temperatures. You get peace of intellect with IP20/IP30/IP40 assurance grades appropriate for different environments.

Whisper-Quiet Operation

Noise contamination disturbs your touchy situations. Our item works at surprisingly moo sound levels. Clinics, information centers, and private ranges keep up comfortable acoustic conditions.

Flexible Configuration Options

Your project has unique requirements. We offer:

• Voltage ratings: 10kV/0.4kV
• Dyn connection groups
• No-excitation voltage regulation ±2×2.5%
• AN (air self-cooling) or AF (forced air cooling) methods

Technical Specifications

Ideal Applications for Your Projects

Data Centers & IT Infrastructure

Your servers require continuous, clean control. Moo halfway release characteristics ensure delicate electronic hardware. Compact impressions fit your space-constrained server rooms.

Healthcare Facilities

Hospitals request outright unwavering quality. Noiseless operation doesn't irritate patients. Fire-resistant plan meets strict building codes.

Commercial High-Rises

Modern buildings require proficient control dissemination. Our transformers handle lift frameworks, HVAC, and lighting loads successfully. You decrease your carbon impression whereas assembly green building certifications.

Transportation Hubs

Airports, metro stations, and rail terminals advantage from strong development. Our nebulous center transformers withstand requesting ceaseless operation plans.

Grid Modernization Projects

Utility companies upgrade aging infrastructure with our energy-saving solutions. The SCBH19 type amorphous alloy transformer helps you meet government efficiency mandates.

Why Partner with Lijie Electric?

Manufacturing Excellence

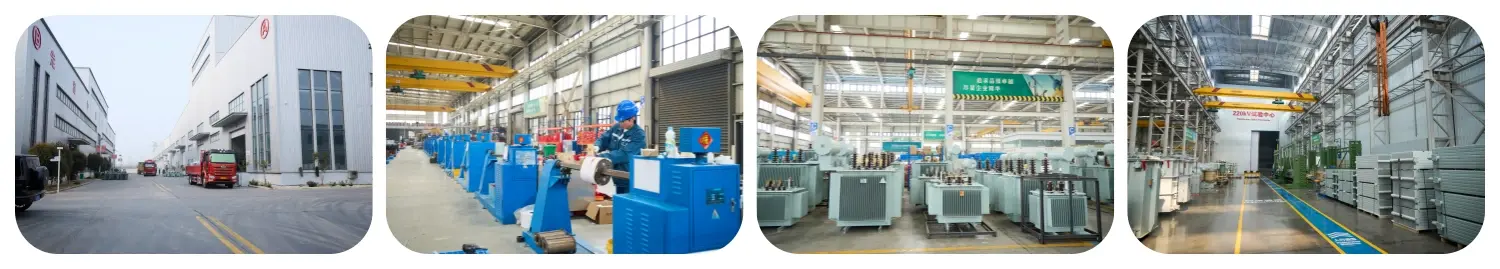

We work two progressed generation bases crossing 500,000 square meters. Our 2,000+ workforce incorporates specialized engineers with doctoral and master's degrees. Yearly deals surpassing 5 billion RMB illustrate our showcase leadership.

Quality You Can Trust

Your speculation merits security. We hold ISO 9001:2015, CE, UL, and IEC certifications. Each transformer passes thorough testing at National Transformer Quality Supervision and Assessment Center facilities.

Customization Capabilities

Standard items do not continuously fit. We tailor details to your correct prerequisites. Generation cycles extend from 6 to 30 days depending on complexity.

Global Benefit Network

We bolster clients over Australia, Unused Zealand, India, Vietnam, Malaysia, Indonesia, Kazakhstan, Egypt, Kenya, and past. You get comprehensive specialized documentation, establishment direction, and save parts supply.

Frequently Asked Questions

Q: What makes amorphous alloy transformers more efficient than silicon steel models?

A: Amorphous metal has a non-crystalline atomic structure that reduces magnetic hysteresis losses. You get 70-80% lower no-load losses, which means continuous energy savings throughout the transformer's 30+ year lifespan.

Q: Can this transformer operate in harsh environmental conditions?

A: Absolutely. Our vacuum pressure casting encapsulates windings completely. The design resists moisture, dust, and corrosive atmospheres. Various protection grades suit your specific installation environment.

Q: How does the noise level compare to oil-immersed transformers?

A: Our dry-type design with optimized core construction keeps noise at or below 55dB(A). That's quieter than normal conversation, making it suitable for occupied buildings.

Q: What maintenance does the product require?

A: Very minimal. The dry-type construction eliminates oil changes. You perform periodic visual inspections and electrical testing. Lower maintenance costs add to your total ownership savings.

Q: Do you provide installation support?

A: Yes. We supply complete technical drawings, operation manuals, and test reports. Our engineers offer remote guidance or on-site commissioning assistance based on your needs.

Q: What warranty coverage do you offer?

A: We stand behind our manufacturing quality with comprehensive warranty protection. Specific terms vary by model and application. Contact us for detailed warranty information.

Ready to Upgrade Your Power Distribution?

Transform your facility's energy efficiency with proven SCBH19 type amorphous alloy transformer technology. Contact our technical team at lijieelectrical@gmail.com to discuss your specific requirements today.
