Understanding S11 Oil Immersed Transformers: Key Features and Benefits
Jun 30, 2026
To power enterprises, industries, and power plants, the S11 type oil-immersed distribution transformer has been proven safe. This group of transformers solves oil degradation, high maintenance costs, and energy loss for procurement managers and electrical engineers worldwide with fully sealed corrugated tank technology and optimized electromagnetic design. S11 versions convert voltage reliably and last longer than normal designs due to better insulation and cooling systems.
Introduction to S11 Oil-Immersed Distribution Transformers
Technical Specifications and Capacity

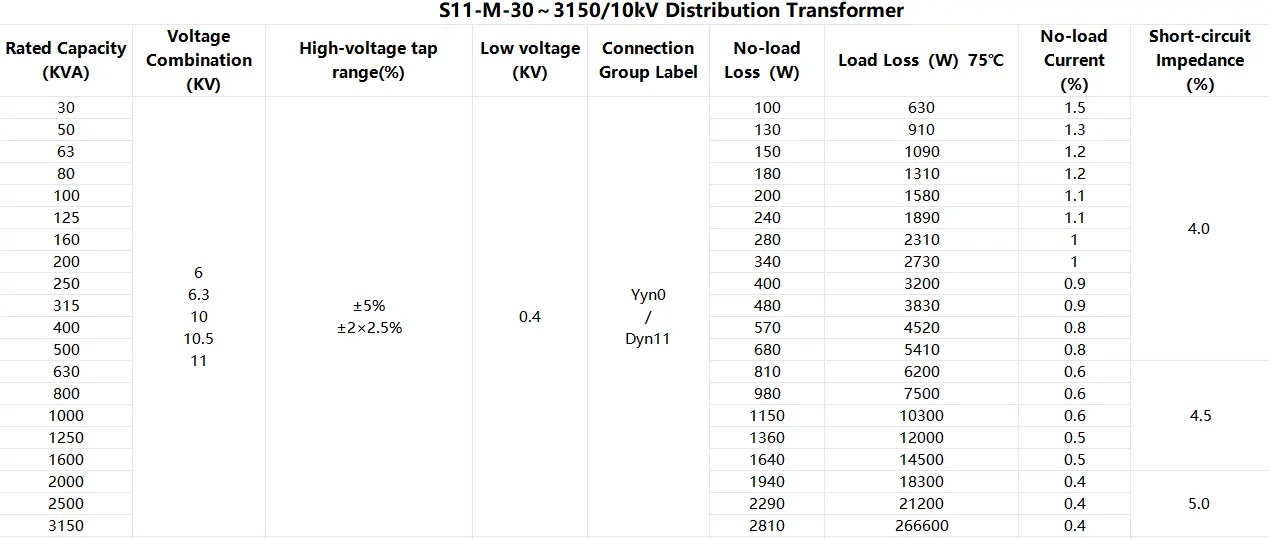

The S11 series operates from 30kVA to 3,150kVA at 6kV–12kV. You may pick between single-phase and three-phase systems with 50Hz or 60Hz frequency, depending on your grid specifications. Substation demands can be fulfilled by Yyn0 or Dyn11 connection groups. The tap range of ±5% or ±2×2.5% enables non-excitation voltage regulation, ensuring consistent output during load variations. The insulation class fulfills high industrial safety regulations with an AC-35kV power frequency withstand voltage and an L1-75kV shock withstand voltage.
Role in Power Distribution Infrastructure
S11 type oil-immersed distribution transformer converts high-voltage transmission levels into voltages utilized by industrial equipment, company buildings, and residential lines, forming medium-voltage distribution networks. The durable construction allows for outdoor usage in temperatures up to 40℃, and the oil-immersed self-cooling mechanism maintains a consistent temperature without extra pumps or fans. This passive cooling technology reduces operating noise to around 45dB, making S11 units ideal for substations in places with noise restrictions.
Long-term building project procurement teams benefit from the S11's 25–30-year lifespan. A corrugated tank's form eliminates the need to raise the core often. This reduces downtime and repairs. Production facilities utilize routine, type, and special testing for quality assurance. National inspection facilities verify batch uniformity for large-scale deployments.
Key Design Features and Efficiency Benefits of S11 Transformers
Best electromagnetic materials, innovative winding architecture, and sealed heat management distinguish the S11 range. Together, these parts reduce no-load loss by 30% over S9 models. This immediately reduces energy expenses.
High-Permeability Core Materials
S11 type oil-immersed distribution transformer cores are produced from cold-rolled grain-oriented silicon steel with numerous lap joints. This material reduces magnetic flux cycle hysteresis loss. This reduces no-load loss to fulfill North American and European energy efficiency criteria. A tight core with mechanical reinforcements enhances short-circuit resistance. This is crucial for industrial facilities with quick load spikes or harmonic distortion.
Optimized Winding Configuration
Copper wires without oxygen are utilized in low-voltage windings. They form two-layer cylinders or spirals. High-voltage windings are multi-layered cylindrical with longitudinal oil lines. The temperature stays steady even when the load is high because these channels help turbulent heat escape. The pure copper and winding form provide a low impedance voltage, which improves voltage control and reduces frictional losses during steady operation.
Fully Sealed Corrugated Tank Technology

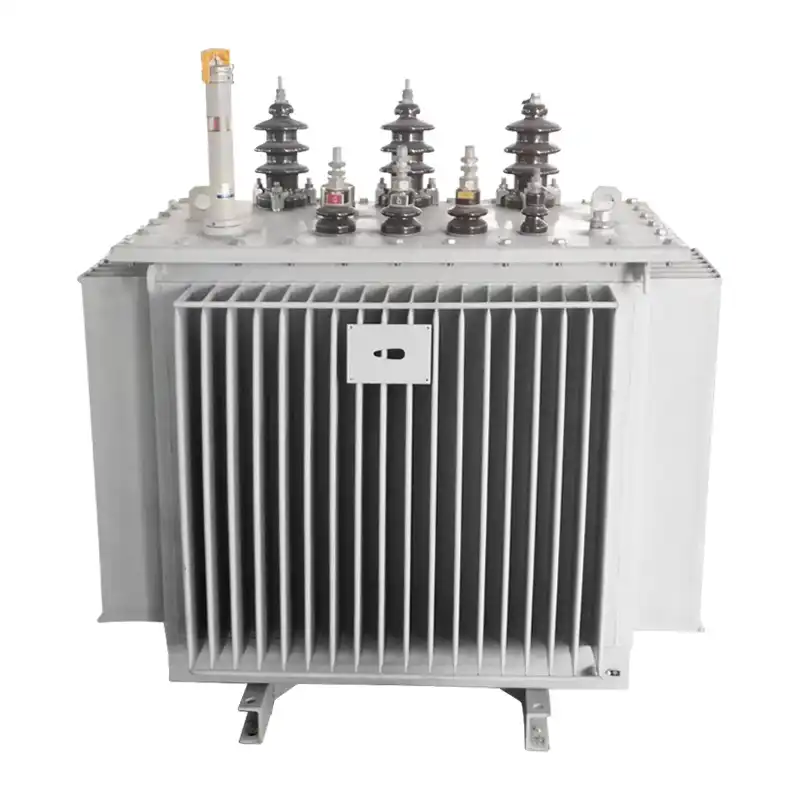

The fully sealed S11-M casing of the S11 type oil-immersed distribution transformer distinguishes it. Ribbed sides absorb oil volume fluctuations without stabilizers like elastic expansion joints. This design protects the insulation from flying particles, moisture, and oxygen, which damage the insulation in normal transformers. Keeping the oil environment separate allows S11 units to last five years or more, whereas non-sealed variants just need annual checks.
In harsh weather, S11 oil-immersed transformers outperform dry-type transformers. The oil layer protects coastal areas from salt spray and desert areas from sand. Dry-type devices operate well indoors but lack the heat capacity and contamination protection needed for continuous outside use.
Measurements of energy savings are beneficial. Average no-load and load losses for a 1,000kVA S11 transformer at 50% load are 12,500 watts, while equivalent S9 transformers lose over 15,000 watts. Over 20 years, this 2,500-watt differential will save 438,000 kWh. This will save environmental groups money and lessen their carbon impact.
Maintenance, Troubleshooting, and Longevity of S11 Transformers
Effective repair plans affect oil-immersed distribution equipment reliability and lifespan. Even though the S11's protective design reduces inspections, it still needs frequent checks to ensure it's operating effectively and to detect early wear and tear.
Routine Inspection Best Practices
Hotspots produced by weak connections or winding faults can be identified via thermal imaging. Operators should monitor top oil temperature gauges during heavy loads to ensure they stay within the manufacturer's range. Insulation fails before it becomes too hot; temperature patterns can help plan maintenance.
Common Operational Issues and Troubleshooting
S11 type oil-immersed distribution transformer: Most voltage instability is caused by faulty tap settings or external grid changes. Technicians should check tap locations against load demands and make any required modifications during planned downtime. Constant voltage decrease when a load is added may indicate too much winding resistance, which should be examined internally.
Overheating occurs when ambient temperatures exceed design limitations or when dust and material build up on cooling fins. Remove things from around the tank and allow airflow to restore thermal efficiency. Turn off the internal burning produced by winding fires and see an expert.
Strange noises like humming or buzzing above the baseline may indicate loose core laminations or strong magnets. Small shaking is typical, but abrupt rises should be investigated to prevent equipment wear. Tightening core clamps or transferring loads usually fixes the issue.
Strategies to Maximize Service Life
Install surge arresters to prevent lightning-caused overvoltages and load management to prevent long-term overloading. Anti-vibration mounts reduce mechanical stress in earthquake-prone structures.
Online monitoring lets control systems track temperature, load, and oil status in real time. Predictive analytics enables you to increase tool life by predicting wear and tear tendencies. Industrial park case studies reveal that well-maintained S11 type oil-immersed distribution transformer units often last 30 years without substantial maintenance.
Choosing and Procuring S11 Oil-Immersed Transformers for Business Needs
Technical needs, budget, and vendor reliability must be considered while buying a transformer. To ensure that their purchases will fit with the project and save money, procurement managers must consider many factors.
Matching Capacity to Load Profiles
Three-phase variants are excellent for major industries and utility systems, while single-phase models are best for household distribution and small enterprises. The connection group depends on how downstream equipment is grounded and works with others. Dyn11 neutral grounding and harmonic mitigation are used in North American lines.
Cost-Benefit Analysis Framework
The original purchase price is a modest percentage of the entire ownership cost. Less energy use affects long-term company expenditures. Compare producers' no-load and load losses to save money. Using a 500kVA S11 type oil-immersed distribution transformer with 1,200-watt no-load loss instead of a competitor's 1,500-watt unit constantly saves 7,884 kWh per year, lowering energy bills and carbon credits.
The cost of repairs and maintenance is considered. Sealed designs reduce checking and annual oiling. Five- to ten-year guarantees cover manufacturing defects, and extended service agreements allow you to budget for repairs.
Evaluating Supplier Credentials
Reputable manufacturers maintain ISO 9001 for quality management, IEC 60076 for electrical performance, and UL or CE for government approval. Production facilities have automated winding machines, vacuum oil-filling stations, and high-voltage testing rooms.
Wholesale purchases of S11 type oil-immersed distribution transformers can save money and gain priority production slots, which is crucial for large projects with tight deadlines. Eight to sixteen weeks are needed for customisation. Standard voltage and capacity choices arrive faster, while unique designs take longer to plan and produce.
Installation and After-Sales Support
Full installation support includes base design, rigging, and system startup. Manufacturers offering "turnkey" alternatives handle shipment, placement, and electrical connections. This reduces project risk. Technical assistance hotlines, replacement parts, and emergency repair delivery are included in after-sales service packages to address problems swiftly.
Conclusion
The S11 type oil-immersed distribution transformer is energy-efficient, easy to repair, and long-lasting. Its fully sealed circular tank design eliminates oil contamination and frequent maintenance issues with previous equipment. S11 models are economical for utilities, manufacturers, and infrastructure builders due to their reduced no-load loss, sturdy winding construction, and superior insulator strength. Matching capacity selection to load profiles and working with certified vendors gives procurement teams dependable power conversion assets that endure decades at low cost.
FAQ
What distinguishes the S11 from older transformer models?
The S11 line's completely sealed corrugated tanks with cold-rolled grain-oriented silicon steel cores reduce no-load loss by 30% over the S9. Seals prevent oil from oxidizing and absorbing water; maintenance checks can be done every three to five years instead of once a year.
How often does an S11 transformer require oil testing?
Manufacturers recommend testing dielectric strength and moisture every three years. The sealed atmosphere prevents oil deterioration, allowing longer intervals than conventional designs. After overheating, lightning, or mechanical damage, test the goods immediately.
What delivery timelines should we expect for bulk orders?
The average setup takes 8-12 weeks to ship following confirmation. Custom voltage grades, link groups, and environmental coatings take 14–16 weeks. Building projects are delivered on time because large suppliers prioritize orders of 10 or more units.
Do S11 transformers comply with North American standards?
IEC 60076-approved equipment satisfies the US-standard IEEE C57.12.00. UL and CE certifications verify product safety and performance. This simplifies import and wins the North American and European grid operators' approval.
Partner with Lijie Electric for Reliable S11 Distribution Solutions
Lijie Electric Power Technology Group has been developing high-quality goods for over 20 years and gives complete technical assistance to ensure their S11 type oil-immersed distribution transformers satisfy your demands. Our ISO 9001, IEC, UL, and CE-approved 500,000-square-meter Xuzhou and Nantong plants employ cutting-edge manufacturing lines and rigorous quality requirements. We carry capacities from 30kVA to 3,150kVA to promptly meet urgent work and huge requests.
Our engineering staff collaborates with procurement managers and electrical experts to ensure specs are optimal for voltage levels, tap ranges, and weather conditions, whether you require conventional three-phase equipment or unique single-phase devices for specific needs. We supply legal transformers with comprehensive warranties and fast customer support to infrastructure developers, EPC contractors, and industrial producers across North America. Contact our technical specialists at lijieelectrical@gmail.com or browse our product listings at lijie-electrical.com to discuss your project. As a trusted S11 type oil-immersed distribution transformer supplier, we deliver the reliability and performance your operations depend on.
References
1. International Electrotechnical Commission (IEC), "IEC 60076: Power Transformers – General Requirements and Test Procedures," Geneva, Switzerland, 2018.
2. Institute of Electrical and Electronics Engineers (IEEE), "IEEE C57.12.00: Standard for Liquid-Immersed Distribution, Power, and Regulating Transformers," New York, USA, 2020.
3. National Electric Power Certification Center, "Technical Specifications for Oil-Immersed Distribution Transformers in High-Efficiency Applications," Beijing, China, 2019.
4. Smith, R. J., "Transformer Engineering: Design, Technology, and Diagnostics," CRC Press, Boca Raton, Florida, 2017.
5. Kulkarni, S. V., and Khaparde, S. A., "Transformer Engineering: Design and Practice," Marcel Dekker, New York, USA, 2004.
6. Wuhan High Voltage Research Institute, "Comprehensive Testing and Evaluation of Low-Loss Power Transformers," Technical Report Series, Wuhan, China, 2021.
