S11 type 35KV oil-immersed power transformer

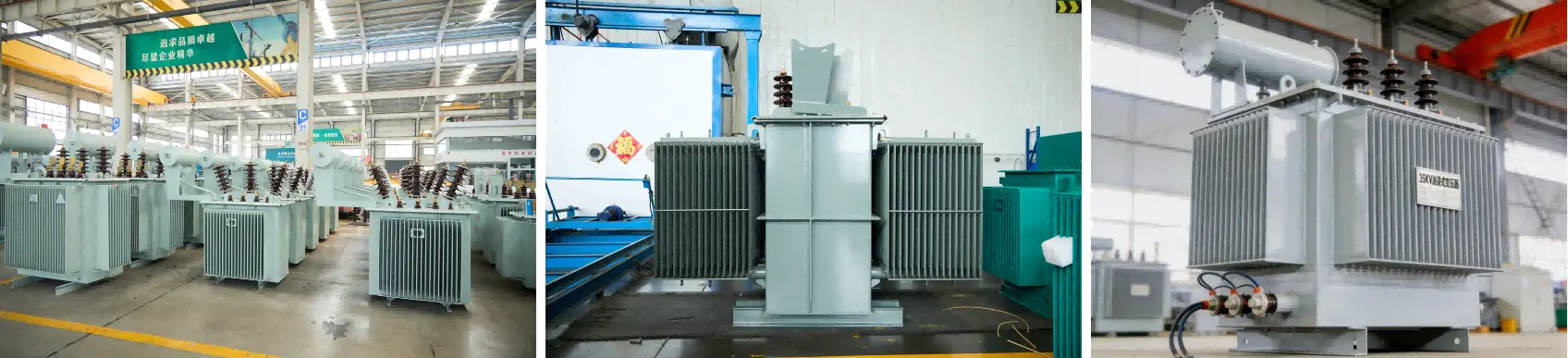

S11 Type 35KV Oil-Immersed Power Transformer

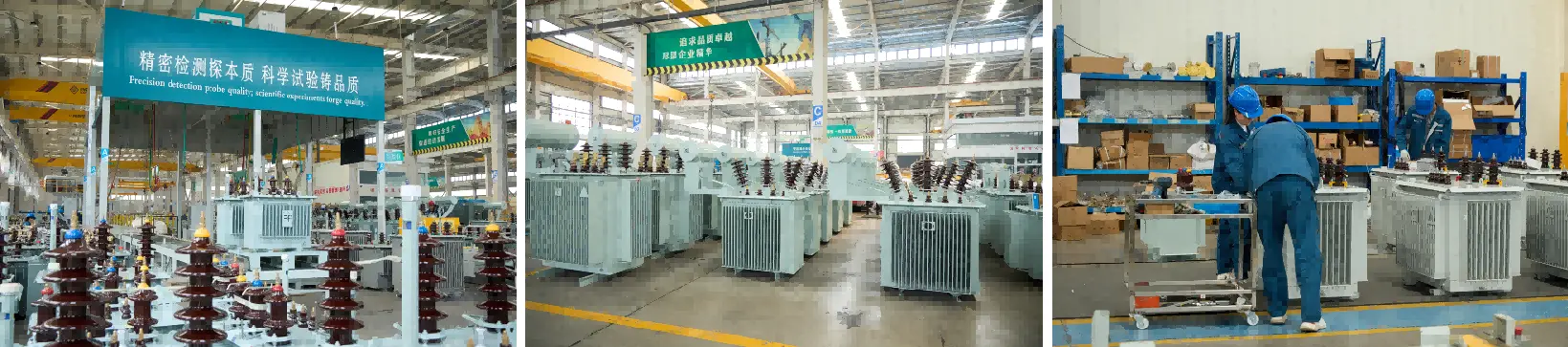

When you need dependable high-voltage power distribution, the S11 type 35KV oil-immersed power transformer from Lijie Electric delivers proven performance. Manufactured at our 500,000-square-meter facilities in Xuzhou and Nantong, this transformer meets GB 20052-2020 Level III energy efficiency standards. With capacity ranging from 630 to 31,500kVA and adjustable voltage taps of ±5%, ±2*2.5%, it's engineered for 35kV power distribution networks, industrial parks, and county power supply systems. Backed by our team of 160+ engineers and annual sales exceeding 5 billion RMB, you get enterprise-grade reliability.

Why Choose Our 35KV Oil-Immersed Transformer?

Superior Energy Efficiency

You'll reduce operating costs significantly with our advanced core design. We use high-permeability cold-rolled silicon steel sheets with shear burrs under 0.02mm. The full bevel joint construction eliminates punching and overlapping, minimizing no-load losses and noise.

Your transformer operates quietly and efficiently, meeting modern energy standards.

Built for Durability

Our oxygen-free copper windings provide exceptional electrical performance. The rounded pad corners create uniform electric fields. For units 12,500kVA and above, unified integral support plates ensure consistent coil height. This design enhances short-circuit resistance, protecting your investment.

The corrugated oil tank structure reduces acoustic reflection, lowering noise levels. You get a cleaner, quieter installation.

Maintenance-Free Design

The capsule-type oil conservator slows oil aging dramatically. Our pointer-type oil level gauge eliminates false readings. The sealed construction isolates transformer oil from air, virtually eliminating routine maintenance needs.

You spend less time on upkeep and more time on operations.

Transportation Resilience

The robust frame structure with plate clamps and side beams creates six-point rigid positioning. Your product withstands transportation impacts without requiring core lifting inspection at the destination. This saves you considerable installation time and labor costs.

Technical Specifications

Core Components

High-Performance Core

The core construction uses full oblique joints and stepped lap joints. Double-H adhesive stacking binds the three columns and two joints into a solid, flat assembly. This reduces no-load current and transformer noise.

Robust Windings

Oxygen-free copper conductors minimize load losses. Reinforced internal supports prevent deformation under stress. The mechanical strength withstands sudden short circuits reliably.

Advanced Tank Design

Integral steel plate folded into corrugated structures by precision press machinery. The design improves heat dissipation and reduces maintenance requirements. Special sealing processing eliminates traditional leak points.

Applications

Your S11 type 35KV oil-immersed power transformer performs excellently in:

• 35kV power distribution network branches
• Small and medium-sized industrial parks
• County-level power supply systems
• Manufacturing facilities requiring stable high-voltage power
• Mining operations and heavy industry
• Commercial complexes with substantial power demands

Frequently Asked Questions

What capacity ought to I select for my facility?

Capacity choice depends on your add up to stack prerequisites and future extension plans. Our designing group can analyze your control utilization designs and suggest the ideal capacity between 630-31,500kVA. Contact us with your stack details for personalized guidance.

How long does conveyance take?

Production cycles run from 6 to 30 days depending on details and customization prerequisites. We keep up visualized generation following so you continuously know your arrangement status.

What certifications do these transformers carry?

Our items hold ISO 9001:2015, CE, and IEC certifications. They pass testing by the National Transformer Quality Supervision and Assessment Center and Wuhan Tall Voltage Inquire about Established. Vitality proficiency is certified by CQC and PCCC.

Can you customize specifications?

Absolutely. We tailor voltage appraisals, association bunches, impedance values, and working temperatures to your prerequisites. Our R&D group collaborates with you to make the idealize solution.

What after-sales back do you provide?

You get total specialized documentation counting drawings, manuals, and test reports. We offer establishment direction, save parts supply, and progressing specialized back all through the transformer's operational life.

Is the transformer appropriate for unforgiving environments?

The fixed oil tank plan ensures inside components from natural defilement. The standard working temperature is 40℃ most extreme, but we can customize for extraordinary conditions. The strong transportation outline guarantees astuteness indeed in challenging coordination scenarios.

Global Trust, Local Service

Lijie Electric serves clients over Australia, Modern Zealand, India, Vietnam, Malaysia, Indonesia, Kazakhstan, Egypt, and Kenya. Our "Quality To begin with, Technology-Driven, Service-Oriented, Integrity-Based" logic guides each item we manufacture.

With two major fabricating bases and comprehensive quality control, you get steady fabulousness in each unit.

Contact Us

Ready to enhance your S11 type 35KV oil-immersed power transformer power distribution reliability? Reach out to our team at lijieelectrical@gmail.com for technical specifications and quotations.
