35kV Distribution Transformer - China Manufacturers

1. Voltage Rating: Rated high voltage 35 (38.5/37.5/36.5/33) KV; Rated low voltage 0.4 KV 2. Voltage Regulation Method: Off-load voltage regulation or on-load voltage regulation 3. Tap Range: ±5%, ±2*2.5% 4. Capacity Range: 50-2500kVA 5. Frequency: 50Hz, 60Hz 6. Number of Phases: Three-phase 7. Connection Group Designation: Yyno or Dyn1 8. Impedance Voltage: Conforms to the specifications in the technical parameter table (or as required by the user) 9. Operating Environment: Maximum indoor temperature not exceeding 40℃ (or as required by the user), relative humidity 100%, installation altitude not exceeding 1000M (or as required by the user) 10. Cooling method: AN/AF (or as per customer requirements) 11. Insulation level: Power frequency withstand voltage AC-70kV, impulse withstand voltage LI-170kV 12. Insulation heat resistance class: F 13. Insulation system temperature (°C): 155; Maximum temperature rise (K): 100

SC(B)11 Type 35kV Distribution Transformer - Reliable Power Solution for Your Network

The SC(B)11 type 35kV distribution transformer from Lijie Electric delivers exceptional performance. Our enterprise-grade solution features a capacity range of 50-2500kVA and operates with insulation heat resistance class F, withstanding power frequency voltage up to AC-70kV and impulse voltage up to LI-170kV. With two manufacturing bases covering 500,000 square meters and over 160 engineers driving innovation, we ensure your transformer meets the highest quality standards. This epoxy resin cast dry-type transformer offers maintenance-free operation and can run at 150% rated load under forced air cooling, delivering reliability you can count on.

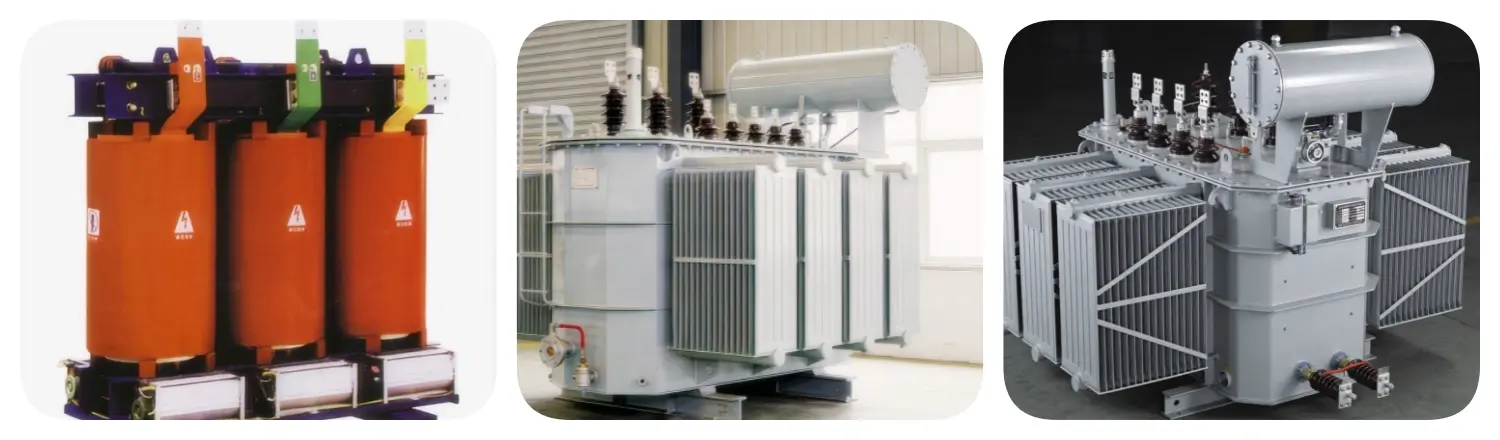

SC(B)11 type 35kV distribution transformer

Why Choose Our 35kV Distribution Solution?

You need equipment that performs flawlessly in demanding conditions. Our transformers combine advanced engineering with practical design to meet your operational needs.

Safety First Design

Safety isn't negotiable in your facility. These transformers are flame-retardant, fireproof, and pollution-free. You can install them directly at your load center without environmental concerns. The complete temperature protection and control system monitors operation continuously, giving you peace of mind.

Built for Harsh Environments

Your operation doesn't stop when conditions get tough. Our product excels in challenging environments with excellent moisture resistance. It operates normally at 100% humidity. After shutdown, you won't need pre-drying procedures—just restart and continue operations.

Cost-Effective Operation

Your budget matters. These transformers deliver low overall operating costs through:

Zero maintenance requirements
Simple installation process
Low loss performance
Reduced noise levels during operation
Strong heat dissipation capabilities

The copper foil winding design (indicated by "B") ensures efficient power transmission while minimizing energy waste.

Technical Specifications

Here's what you get with our transformer solution:

Parameter	Specification
Voltage Rating (High)	35kV (38.5/37.5/36.5/33kV)
Voltage Rating (Low)	0.4kV
Capacity Range	50-2500kVA
Frequency	50Hz / 60Hz
Number of Phases	Three-phase
Connection Group	Yyn0 or Dyn11
Tap Range	±5%, ±2×2.5%
Voltage Regulation	Off-load or On-load
Cooling Method	AN/AF (or customized)
Insulation Class	F (155°C)
Maximum Temperature Rise	100K
Power Frequency Withstand	AC-70kV
Impulse Withstand	LI-170kV
Operating Temperature	Max 40°C indoor
Installation Altitude	Up to 1000m (customizable)

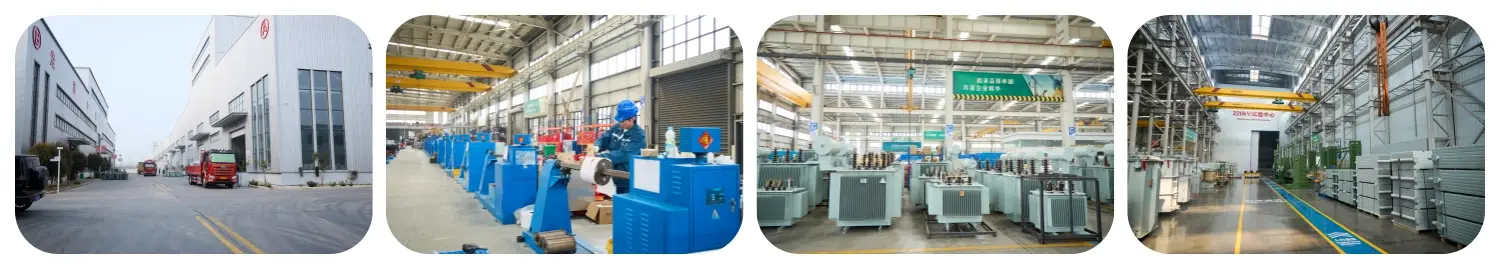

SC(B)11 type 35kV distribution transformer

Key Performance Advantages

Moo Halfway Release: Your framework remains cleaner with negligible electrical interference.

Enhanced Stack Capacity: Beneath constrained discussion cooling, the transformer handles 150% appraised stack efficiently.

International Benchmarks: We've accomplished certifications counting ISO 9001:2015, CE, UL, and IEC compliance.

Flexible Customization: Your particular prerequisites matter. We customize items to your details with generation cycles extending from 6 to 30 days.

Production Excellence You Can Trust

Our manufacturing capability sets us apart. With annual sales exceeding 5 billion RMB and recognition as a National High-Tech Enterprise, we deliver SC(B)11 type 35kV distribution transformer quality consistently. Every unit undergoes rigorous testing at the National Transformer Quality Supervision and Inspection Center and Wuhan High Voltage Research Institute.

The advanced equipment at our Xuzhou and Nantong facilities ensures precision manufacturing. Our visualized production tracking system keeps you informed throughout the process.

Global Service Network

Whether you're in Australia, Modern Zealand, India, Vietnam, Malaysia, Indonesia, Kazakhstan, Egypt, or Kenya, we back your operations. Our comprehensive benefit incorporates establishment direction, specialized documentation, save parts supply, and responsive after-sales support.

SC(B)11 type 35kV distribution transformer

Frequently Asked Questions

Q: Can this transformer work in high-humidity environments?

A: Completely. The item capacities regularly at 100% relative mugginess. You won't require pre-drying after shutdown, which spares you time and operational hassle.

Q: What makes this transformer maintenance-free?

A: The epoxy gum cast development dispenses with schedule upkeep needs. The strong separator framework and fixed plan avoid weakening, lessening your long-term working costs significantly.

Q: How rapidly can you convey a customized unit?

A: Generation cycles run from 6 to 30 days depending on your determinations. We keep up productive workflows to meet your venture timelines without compromising quality.

Q: What cooling alternatives are available?

A: Standard cooling is AN/AF (Discuss Natural/Air Constrained). We moreover customize cooling strategies based on your particular establishment environment and stack requirements.

Q: Is specialized bolster accessible after installation?

A: Yes. We give comprehensive back counting establishment direction, total specialized documentation, test reports, and continuous after-sales benefit to guarantee ideal performance.

Partner With Proven Expertise

Your control conveyance foundation merits a producer committed to brilliance. Our 2,000+ representatives and people-oriented administration approach guarantee we provide arrangements that surpass desires. The item speaks to decades of advancement and quality craftsmanship.

Contact Us

Ready to enhance your SC(B)11 type 35kV distribution transformer power distribution system? Reach out to our team at lijieelectrical@gmail.com for technical consultation and customized solutions today.
