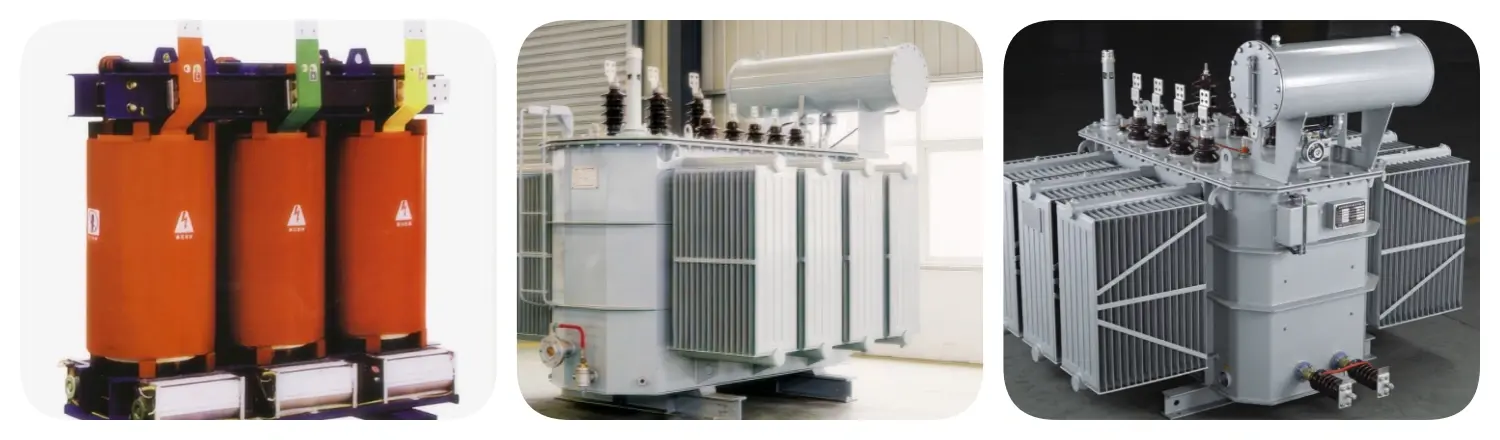

SC(B)18 type 35KV power transformer
1. High performance and low loss, a replacement product for the Type 9 series.
2. Uses silicon steel sheets, significantly reducing magnetic flux density and magnetostriction of the silicon steel sheets during operation, thus reducing noise.
3. High-voltage coil structure improves the distribution of interlayer voltage and capacitance, enhancing the product's resistance to atmospheric and operational overvoltages, while also improving the electric field distribution, further reducing partial discharge.
4. Can be configured with a temperature control system and air-cooling device, automatically activating the fan cooling device when the load is too high, improving the equipment's overload capacity.
Product Description
SC(B)18 Type 35KV Power Transformer - High-Efficiency Solution for Modern Power Distribution

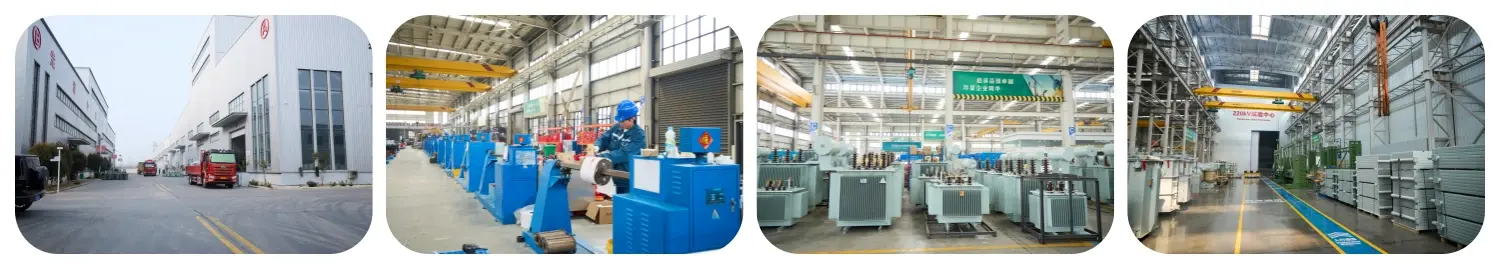

When you need reliable power distribution equipment, the SC(B)18 type 35KV power transformer from Lijie Electric delivers exceptional performance with measurable efficiency gains. This next-generation transformer reduces no-load losses by over 30% compared to traditional models, featuring advanced silicon steel core technology that lowers noise levels to below 58dB. Our state-of-the-art manufacturing facilities spanning 500,000 square meters produce these units with precision engineering, backed by our team of 160+ qualified engineers. With proven reliability in demanding applications like the Beijing Olympic venues, you're choosing a solution trusted by major infrastructure projects worldwide.
What Makes This Transformer Different?
You merit gear that works more brilliant, not harder. This substitution for the Sort 9 arrangement brings cutting edge designing to your control system.
Lower Working Costs
The plan decreases attractive flux thickness essentially. Your power bills will thank you. The progressed silicon steel sheets minimize center misfortunes amid operation.
Quieter Performance
Reduced magnetostriction implies less operational clamor. Your office remains calmer whereas keeping up full control capacity.
Enhanced Security Features
The high-voltage coil structure moves forward voltage dissemination over layers. This plan makes a difference your framework withstand barometrical surges and operational overvoltages more effectively.
Smart Cooling System
Temperature control actuates consequently when loads increment. The cleverly air-cooling gadget kicks in absolutely when required, boosting your over-burden capacity without manual intercession.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 35KV |
| Product Series | SC(B)18 Type |
| Core Material | Premium Silicon Steel Sheets |
| Noise Level | ≤58dB |
| Loss Reduction | 30%+ vs. conventional models |
| Standards Compliance | GB6450, GB/T10228, IEC726 |
| Cooling Method | AN/AF (Natural Air/Forced Air) |
| Temperature Control | Automatic activation system |
| Overload Capacity | 150% under forced cooling |
| Moisture Resistance | 100% humidity operation |
| Insulation Class | F/H Class available |
| Installation Type | Indoor/Outdoor options |
Key Benefits for Your Operations
Fire Security You Can Check On
This dry-type plan is actually flame-retardant and pollution-free. You can introduce it specifically at your stack center without stressing around fire dangers or natural contamination.
Minimal Upkeep Required
Your upkeep group has sufficient to do. This transformer needs for all intents and purposes no schedule upkeep. Establishment is clear. Generally working costs remain strikingly low.
Weather-Resistant Design
Moisture won't moderate you down. The unit works regularly indeed at 100% stickiness conditions. After shutdown, you can restart without pre-drying procedures.
Triple-Low Execution
- Low energy losses save money monthly
- Low partial discharge extends service life
- Low noise keeps your environment comfortable
Advanced Protection System
A complete temperature monitoring and control package watches over operations continuously. You get reliable protection that safeguards your investment 24/7.
International-Grade Reliability
Operational studies of deployed units confirm performance matching international advanced levels. The SC(B)18 type 35KV power transformer has proven its worth across diverse applications.
Why Choose Lijie Electric?
Our annual sales exceed 5 billion RMB for good reason. We've earned recognition as a "National High-Tech Enterprise" and "Specialized, Refined, and New 'Little Giant'" enterprise through consistent quality delivery.
Certifications That Matter
- ISO 9001:2015 Quality Management
- CE European Conformity
- UL Safety Certification
- IEC International Standards
- CQC and PCCC Energy Efficiency
Flexible Production
Require customization? We adjust items to your details with generation cycles extending from 6 to 30 days. Our visualized generation following keeps you educated throughout.
Global Benefit Network
We back clients over Australia, Modern Zealand, India, Vietnam, Malaysia, Indonesia, Kazakhstan, Egypt, Kenya, and past. Establishment direction, specialized documentation, save parts, and after-sales bolster come standard.
Frequently Asked Questions
Q: Can this transformer handle outdoor installation?
A: Yes, with proper enclosure selection. The moisture-resistant design performs excellently in humid environments, making outdoor applications feasible when appropriately protected.
Q: What's included with my purchase?
A: You receive complete technical documentation including drawings, operation manuals, and factory test reports. Installation guidance and spare parts supply are available.
Q: How does the automatic cooling system work?
A: Built-in temperature sensors monitor operating conditions continuously. When load increases beyond preset thresholds, fans activate automatically to maintain safe operating temperatures.
Q: Is the product suitable for renewable energy projects?
A: Absolutely. The low-loss design and excellent overload capacity make it ideal for wind farms, solar plants, and other renewable installations where efficiency matters.
Q: What's your warranty coverage?
A: We provide comprehensive warranty coverage backed by our commitment to quality-first philosophy. Specific terms vary by project requirements and can be discussed during consultation.
Q: Can I visit your manufacturing facility?
A: We welcome facility visits at our Xuzhou and Nantong bases. Contact us to schedule a tour and see our production capabilities firsthand.
Contact Us
Ready to upgrade your SC(B)18 type 35KV power transformer power distribution system? Reach out to our technical team at lijieelectrical@gmail.com for detailed specifications and pricing.
