35KV Oil-Immersed Power Transformer - China Manufacturers

1. Voltage rating: 35KV; 2. Adjustable voltage (without excitation); 3. Tap range: ±2*2.5%; 4. Capacity range: 630-31500kVA; 5. Frequency: 50Hz, 60Hz; 6. Number of phases: Single-phase, Three-phase; 7. Noise level: ≤50dB(A) (1000kVA); 8. Structure: Corrugated tank (small capacity), flat tank (large capacity); 9. Connection group designation: Dyn11 (preferred) or Yd11; 10. Impedance voltage: Conforms to the specifications in the technical parameter table (or as required by the user); 11. Operating environment: Maximum outdoor temperature not exceeding 40℃ (or as required by the user). 12. Cooling method: oil-immersed self-cooling, oil-immersed air cooling. 13. Intelligent and flexible: IoT intelligent adaptation, flexible installation scenarios.

S22 Type 35KV Oil-Immersed Power Transformer

Lijie Electric's S22 type 35KV oil-immersed power transformer represents the benchmark in energy-efficient power distribution for modern industrial applications. Our transformer achieves GB 20052-2020 first-level energy efficiency standards, reducing no-load losses by 43% compared to S11 models. With capacity ranging from 630kVA to 31,500kVA, this solution delivers exceptional performance across 35kV distribution networks, renewable energy facilities, and industrial parks. Manufactured at our 500,000-square-meter facilities in Xuzhou and Nantong, each unit undergoes rigorous testing and meets international certifications including ISO 9001:2015, CE, and IEC standards. Our engineering team has optimized every component to ensure ultra-low loss operation, extended service life exceeding 35 years, and industry-leading reliability for your critical power infrastructure.

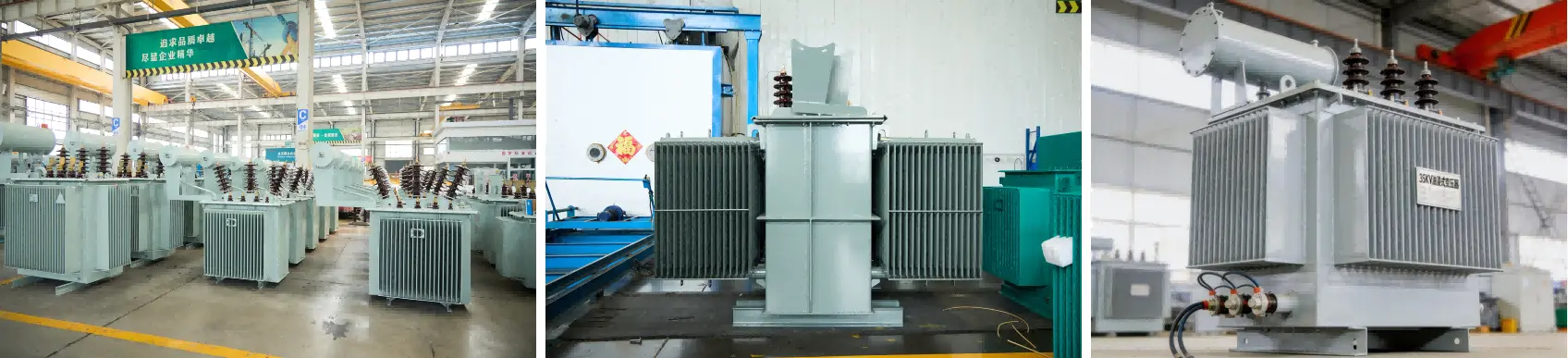

Medium-sized power transformer

Why Choose Our 35KV Oil-Immersed Transformers?

Exceptional Energy Efficiency

Your operational costs matter. Our transformers cut vitality utilization essentially. The no-load misfortune remains at ≤800W for 1000kVA units—that's 10% less than S20 models. You'll spare over 2,200kWh yearly per transformer. Each kilowatt spared deciphers specifically to your foot line.

Built for Requesting Environments

Harsh conditions do not stage these units. The IP67-rated oil tank and C5-M erosion resistance handle coastal salt splash, mechanical contamination, and high-altitude establishments up to 3,000 meters. Temperature extremes? No issue. Our transformers work dependably in open air situations coming to 40℃.

Whisper-Quiet Operation

Noise contamination influences your working environment quality. At ≤50dB(A) for 1000kVA models, our transformers run 8dB(A) calmer than national benchmarks. That's comparable to ordinary discussion levels. Your group and neighbors will appreciate the difference.

Superior Security Standards

Safety isn't debatable. The H+ lesson separator framework withstands temperatures up to 200℃. Lightning drive security comes to 170kV crest. Short-circuit resistance handles 2.5 times appraised current for 2 seconds. Halfway release remains underneath 2pC, guaranteeing long-term unwavering quality.

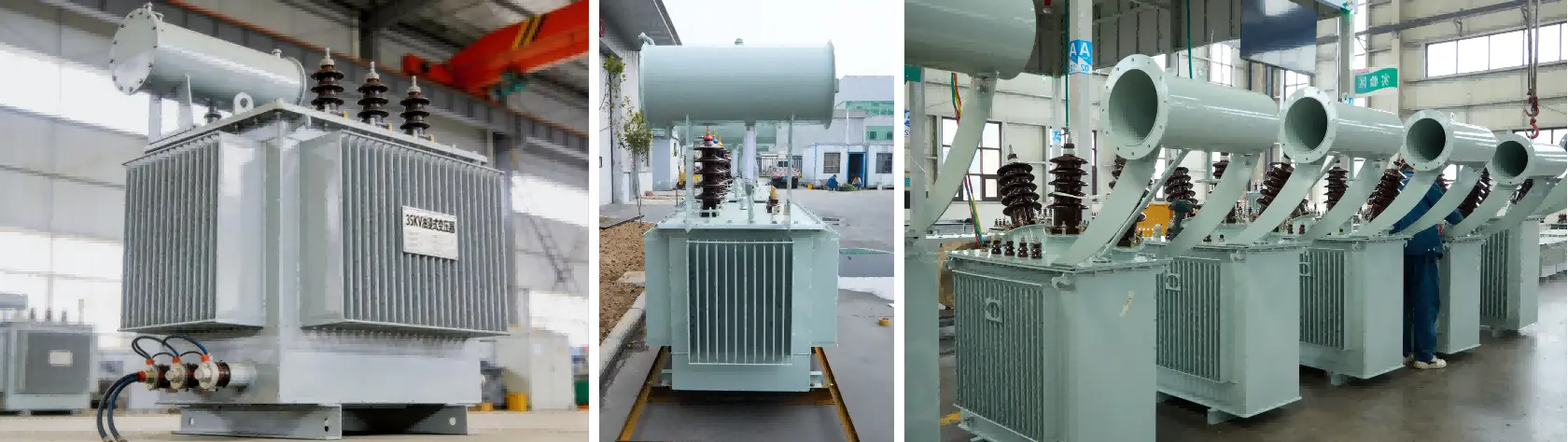

Medium-sized power transformer

Technical Specifications

Parameter	Specification	Details
Capacity Range	630-31,500 kVA	Supports customized capacities for specific applications
Voltage Rating	35kV ±2×2.5%	High-side voltage with no-load tap adjustment
Low Voltage Options	10kV, 6kV, 0.4kV	Flexible configurations for diverse requirements
Connection Group	Dyn11 (preferred), Yd11	Dyn11 optimized for harmonic interference resistance
Cooling Method	ONAN, OFAF	Self-cooling ≤2500kVA; Air cooling ≥3150kVA
Frequency	50Hz, 60Hz	Compatible with global power standards
Short-Circuit Impedance	6.5% (±10%)	Conforms to GB/T 1094.5 standards
Insulation Class	H+ (200℃)	Exceeds 35-year operational lifespan
Noise Level	≤50dB(A) @ 1000kVA	3dB(A) quieter than S20 models
Temperature Rise	Winding ≤65K, Oil ≤55K	Stable operation in high-temperature environments
Protection Rating	IP67, C5-M	Suitable for coastal and industrial environments
Altitude Capability	≤3,000m	High-altitude compatible design

Key Advantages That Set Us Apart

Load-Bearing Voltage Regulation

Continuous control supply remains ensured indeed amid tap changes. Your operations never skip a beat.

Adaptive to Complex Loads

The Dyn11 association bunch handles nonlinear loads from recurrence converters, charging stations, and variable speed drives. Consonant impedances remain minimized whereas impartial line steadiness remains optimal.

Smart Network Compatible

IoT integration capabilities let you screen execution remotely. Prescient upkeep gets to be conceivable. You pick up real-time experiences into transformer wellbeing and stacking conditions.

Superior Fabric Standards

Every component meets or surpasses national and universal necessities. Our quality control handle guarantees consistency over generation clusters. The result? Transformers that perform dependably year after year.

Flexible Establishment Scenarios

Whether you require layered tanks for compact establishments or level tanks for higher capacities, we've got you secured. Both plans optimize warm administration whereas minimizing impression.

Ideal Applications

Your S22 type 35KV oil-immersed power transformer fits perfectly in:

35kV distribution network trunk lines
Large-scale solar and wind energy facilities
Industrial manufacturing complexes
Mining operations requiring robust power distribution
Commercial developments with high power demands
Infrastructure projects in challenging environments

Frequently Asked Questions

Q: What makes the S22 demonstrate more productive than past generations?

A: Progressed center materials and optimized winding plan diminish misfortunes altogether. You get 43% lower no-load misfortunes versus S11 models and 10% advancement over S20 variants.

Q: How long does generation and conveyance take?

A: Standard models transport inside 6-30 days depending on capacity and details. Custom arrangements may require extra time for building validation.

Q: Can you customize voltage combinations for particular requirements?

A: Completely. Our designing group works with you to coordinate correct voltage proportions, tap ranges, and association bunches to your application needs.

Q: What kind of after-sales bolster do you provide?

A: You get comprehensive specialized documentation, establishment direction, save parts accessibility, and progressing specialized bolster all through the transformer's operational life.

Q: Are these transformers reasonable for renewable vitality projects?

A: Yes. The low-loss plan and vigorous development make them perfect for sun powered ranches, wind offices, and half breed vitality establishments where proficiency and unwavering quality are paramount.

Q: How does the clamor level compare to other manufacturers?

A: Our transformers work 8dB(A) underneath national standard limits. This speaks to significant enhancement over ordinary advertise offerings.

Backed by Manufacturing Excellence

Lijie Electric works from two state-of-the-art offices traversing 500,000 square meters. Our group incorporates over 160 engineers with progressed degrees. Yearly generation bolsters deals surpassing 5 billion RMB. We've earned acknowledgment as a National High-Tech Venture and "Small Monster" producer. Each transformer experiences testing at the National Transformer Quality Supervision Center and Wuhan Tall Voltage Investigate Institute.

Our worldwide impression amplifies over Australia, Modern Zealand, India, Southeast Asia, Central Asia, and Africa. Thousands of establishments around the world demonstrate the unwavering quality of our arrangements.

Get Your Custom Solution Today

Our technical team is standing by to discuss your S22 type 35KV oil-immersed power transformer specific requirements. Contact us at lijieelectrical@gmail.com for detailed specifications and quotations.
