Elevate Energy Efficiency with S18 type 35KV oil-immersed power transformer

The S18 type 35KV oil-immersed power transformer is a big step forward in high-level energy efficiency technology. It was made for current power distribution networks that have to cut costs on energy and meet carbon neutrality goals at the same time. This transformer meets the requirements of GB 20052-2020 and has a no-load loss decrease of more than 20% compared to older S11 and S13 series units. This means lower running costs and longer equipment lifecycles.

Transformers that use less energy are now required by utilities, companies that create renewable energy, and manufacturing sites in the United States. More and more people want solid 35kV distribution equipment that is both efficient and long-lasting. This has led to new technologies in oil-immersed transformer design. Working with power companies and industrial partners has shown us a consistent pattern: companies that buy high-efficiency transformers like the S18 type get their extra costs back within three to five years just by saving money on energy. At the same time, these transformers make the grid more stable and reduce the number of times they need to be serviced.

The S18 type 35KV oil-immersed power transformer's technical design is discussed, along with its performance benefits in real-world situations, procurement strategies for finding approved suppliers, and upkeep procedures that guarantee decades of reliable service.

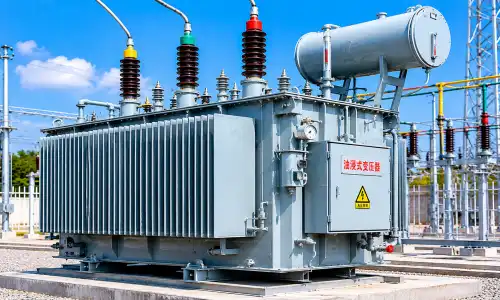

Understanding the S18 Type 35KV Oil-Immersed Power Transformer

Core Architecture and Working Principle

Advanced cold-rolled grain-oriented silicon steel cores and improved winding configurations that reduce eddy current losses are used in the S18 type 35KV oil-immersed power transformer. The oil-immersion design does two things: it provides better dielectric shielding strength and lets heat escape quickly through natural airflow. Mineral oil flows through the curved tank and soaks up heat from the core and windings before letting it out through the walls of the tank. This passive cooling system keeps things running smoothly even when they're fully loaded all the time, without the need for forced air systems.

Hermetically Sealed Tank Technology

Because the corrugated tank structure is completely sealed, it is not exposed to the air. This keeps wetness and oil from getting in, which can damage insulation over time. This sealed design increases the operating life expectancy beyond 25 years with minimal interventional maintenance. This solves a major problem for utilities that are in charge of handling geographically dispersed substations where regular service is hard to arrange and costs a lot of money.

Voltage Regulation and Insulation System

The strong shielding system uses high-quality transformer oil and multi-layer paper wraps on the windings to keep the dielectric strength even when the temperature changes. The structure of the windings can handle short-circuit mechanical stresses, which is important for industrial settings where quick changes in load or transient problems happen all the time. This means that there will be fewer unexpected power outages and lower replacement costs over the transformer's useful life.

Performance and Efficiency Optimization of S18 35KV Transformers

Addressing Energy Loss Challenges

The core materials and coil arrangements of traditional 35kV distribution transformers aren't very good, which causes them to waste electricity and heat. Every year, utilities that use old equipment lose a lot of energy, which can be very expensive, especially in big distribution networks that serve industrial zones or green energy farms. The S18 type 35KV oil-immersed power transformer directly faces these problems by using new developments in material science and precise engineering.

The transformer cuts down on load loss by 10 to 15 percent thanks to a copper wire design that reduces resistive heating. Compared to S13 series units, no-load losses drop by more than 20%. This is made possible by better silicon steel core materials that have lower magnetic hysteresis. All of these changes add up to measured gains in efficiency that build up over decades of use. Based on load profiles and power rates, testing data from sites in solar farms and industrial parks show that each unit can save anywhere from $15,000 to $40,000 a year on energy costs.

Enhanced Oil Circulation and Thermal Management

The corrugated tank form gives the heat more surface area to escape while keeping the tank's size small enough to fit in substations with limited room. Better oil circulation patterns keep the temperature evenly spread, avoiding hot spots that speed up the breakdown of insulation. Temperature rise tests show that winding temps stay below 65K even when the transformer is running at full load all the time. This gives the transformer thermal space for short periods of overloading that happen during times of high demand.

Real-World Performance Validation

Case studies from 100MW wind farms show that switching from older S11 transformers to S18 type 35KV oil-immersed power transformers cut distribution losses by 18% and made power factor adjustment better. Chemical factories say that power stability has improved and harmonic distortion has gone down. This means that they can better control their processes and have fewer equipment breakdowns. These results from real life back up the technical specs and show a clear return on investment that procurement managers and project engineers can both relate to.

Comparing S18 Type with Other 35KV Transformer Options

Oil-Immersed vs. Dry-Type Transformers

When looking at different choices for medium-voltage transformers, dry-type units are easier to install and pose less of a fire risk. The S18 type 35KV oil-immersed power transformer oil-immersed design has better cooling and thermal mass, so it works consistently even when the load changes, which is popular in renewable energy uses. When overloading, oil-immersed transformers handle it better than dry-type ones, whose insulation wears out faster when they are used beyond their nameplate values. In industrial settings where dust, chemical vapors, or salt spray could damage dry-type insulation systems, the covered oil tank also protects better against these natural threats.

Lifecycle Cost Comparison

A study of the total cost of ownership shows that even though S18 type 35KV oil-immersed power transformers may cost 15-20% more at first, the higher-efficiency choice is much more cost-effective over their entire life. Less energy loss means savings every year that cover the price increase in the first year of operation. The fully sealed design allows for a service life expectancy of 25 years or more, which removes the need for expensive rebuilding in the middle of its useful life, which happens with regular transformers that need oil changes and gasket replacements. When looking at 10- or 20-year project timelines, procurement teams always find that investment in first-level energy saving units leads to lower total ownership costs that can be measured.

Competitive Positioning Against S13 and S20 Series

The S18 type 35KV oil-immersed power transformer model is strategically placed between the widely used S13 line and the new S20 technology. Compared to S13 units, the S18 type 35KV oil-immersed power transformer has much lower losses and better thermal performance, and it can still work with base equipment that is already in place. Compared to S20 transformers, the S18 type 35KV oil-immersed power transformer has a more developed and proven technology, more suppliers, and a more reasonable price. This makes it the best choice for large-scale buying projects where batch stability and supply chain reliability are very important.

Procurement Considerations for S18 Type 35KV Oil-Immersed Transformers

Certification and Compliance Requirements

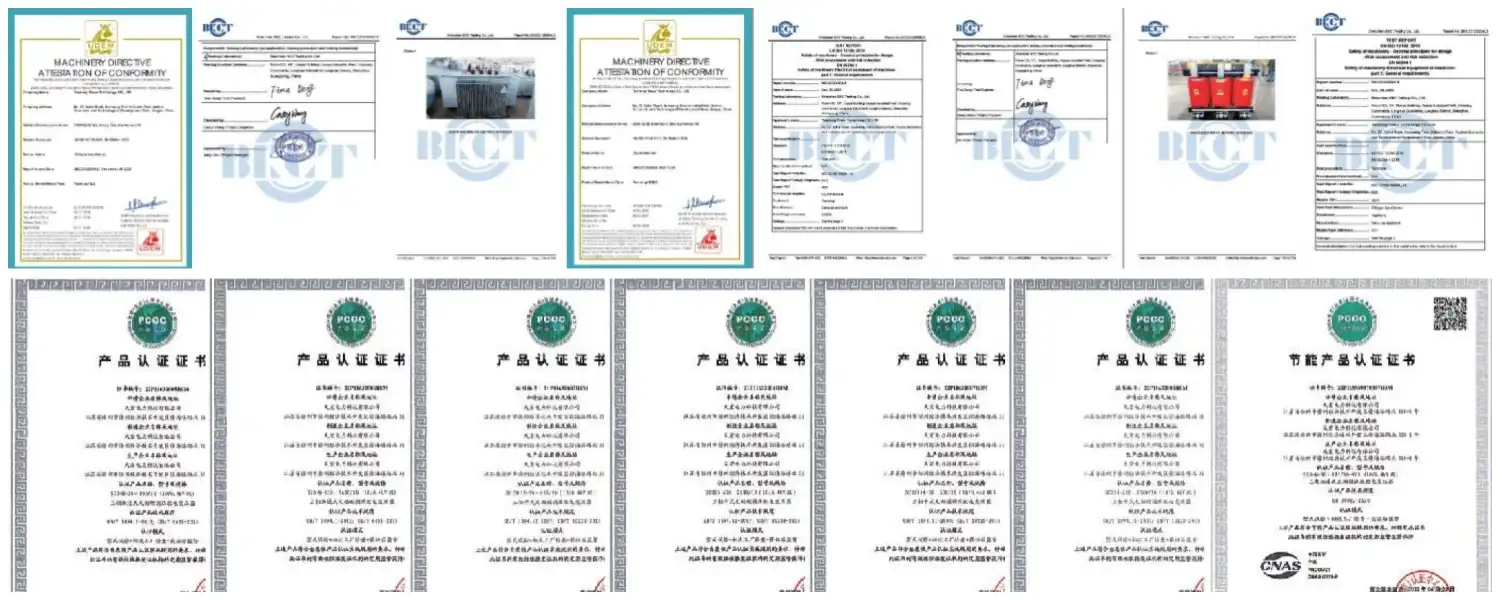

When buying oil-immersed power distribution equipment for use in the U.S., it has to be checked against a number of safety standards. The S18 type 35KV oil-immersed power transformer has to be certified with ISO 9001:2015, which means that the methods used to make it meet international standards for quality management. IEC 60076 compliance makes sure that the electrical performance traits match up with testing methods that are used all over the world. For certain uses, CE licensing means that the product meets European safety standards, while UL approval meets the needs of the North American market. Specifications for buying things should clearly state that they need proof that they meet IEEE C57 standards and ANSI test methods for medium-voltage transformers.

Supplier Evaluation Criteria

To find a trustworthy S18 type 35KV oil-immersed power transformer provider, you need to look at more than just unit price. A manufacturing capacity assessment makes sure that the supplier can meet the project deadlines for big orders. This is very important for utilities that are modernizing their power grids or developers who are building green energy facilities that need to be ready for business on a certain date. Production sites that cover 500,000 square meters and have their own testing labs show that the company is serious about making things, not just trading things without enough scientific knowledge.

It's just as important to be able to provide technical help. Field application engineering help from suppliers helps make sure that transformer specs are best for each load profile and location. After-sales service infrastructure, such as having extra parts on hand and warranties that last for 24 to 36 months, keeps products from breaking down too soon, which could throw off project plans and budgets.

Delivery Lead Times and Order Volumes

Usually, standard S18 type 35KV oil-immersed power transformers with common voltage ratios and capacity rates ship 8 to 12 weeks after the purchase order is confirmed. Lead times may go up to 14 to 16 weeks for custom setups that need special tap changers or better rust protection. When you place a lot of orders for big infrastructure projects, you may be able to get better prices and dedicated production runs that make sure each batch is the same. This is especially helpful when you're putting dozens or hundreds of units in different substations and need to keep track of spare parts that can be swapped out easily.

Navigating International Sourcing

A lot of high-quality medium-voltage transformers come from well-known Chinese companies that have been selling to customers around the world for decades. To successfully source from foreign providers, you need clear design paperwork, such as thorough technical drawings, testing requirements, and processes for quality inspection. Payment plans usually include 30% down payments, with the rest due upon review before shipping. This protects both parties and makes sure that everyone is responsible. Hiring third-party inspection services is a good way to make sure that made units meet specs before they are shipped internationally. This lowers the risk of expensive non-conformance issues being found during commissioning.

Maintenance and Troubleshooting of S18 35KV Oil-Immersed Transformers

Routine Inspection Protocols

Systematic repair plans are needed to make sure that S18 type 35KV oil-immersed power transformers work for as long as possible. Visual checks are done once a month to look for oil leaks around the edges of the tank and joints. This makes sure that the system stays sealed. Every three months, thermal imaging scans look for strange patterns in temperatures that could mean there are problems with internal connections or uneven loads that need to be looked into. Through chemical analysis of oil samples, dissolved gas analysis (DGA) tests done once a year can find problems before they get too bad. This allows for forecast maintenance that stops big problems from happening.

Oil Quality Management

The dielectric and temperature qualities of transformer oil have a direct effect on how well it cools and insulates. Breakdown voltage (BDV), moisture content, and acidity levels are tested every 12 months for the first five years of operation. After that, they are tested every 24 months once stable performance is established. The hermetically sealed corrugated tank design keeps oxygen and moisture from contacting the oil, which slows down its degradation. This means that the oil usually doesn't need to be replaced during the transformer's entire service life, which saves a lot of money on maintenance costs compared to designs with breathers that need to process or replace the oil on a regular basis.

Common Operational Issues and Solutions

Even when the plan is strong, practical problems can still happen. Most oil leaks happen at the points where two bushings meet or where two tanks seam together. This can be because of bad-fitting techniques or damage that happened during shipping. Fixing holes right away stops water from getting in and damaging insulating systems quickly. Unusual noise levels could mean that the core laminations are loose or that there are magnetostriction effects when the load is harmonic. To find out what's causing the problems, a thorough vibration study is needed.

When a transformer gets too hot, it's usually because there isn't enough air flow around the tank or it's been overloaded for too long, exceeding the nameplate values. By installing portable temperature tracking systems, you can get real-time alerts when winding temperatures get close to dangerous levels. This lets you lower the load before the insulation is damaged permanently. These tracking features work well with the S18 type 35KV oil-immersed power transformer's smart-ready design, which lets you add optional remote communication modules that connect to SCADA systems for centralized control of the grid.

Conclusion

When it comes to current power distribution networks, the S18 type 35KV oil-immersed power transformer meets important goals by being very energy efficient, very reliable, and very cost-effective over its entire life. Its hermetically sealed design and improved core materials make it work better than older equipment while still having the durability and fault tolerance needed for industrial and utility uses. When looking at different medium-voltage transformer choices, procurement teams should think about more than just the original capital costs. They should also think about how much energy they will save and how much they will save on maintenance costs over 25 years or more. The technology has been used in challenging situations, such as integrating green energy and providing power to heavy industries. This shows that it can work in a variety of settings and under a variety of loads.

FAQ

What distinguishes the S18 from earlier S13 series transformers?

The S18 type 35KV oil-immersed power transformer has advanced silicon steel cores and better winding designs than the S13, which means it has about 20% less no-load losses and 10-15% less load losses. The hermetically sealed corrugated tank gets rid of the need for oil upkeep, which S13 transformers usually need every 5 to 7 years. This cuts down on lifetime costs by a large amount.

Can the S18 transformer operate reliably in high-humidity coastal environments?

The fully sealed tank design with C4 or C5-M grade anti-corrosion layers keeps salty air and water from getting into the internal parts. Installations near industrial areas on the coast show steady performance without faster corrosion or insulation degradation. This makes the S18 type 35KV oil-immersed power transformer suitable for marine settings where regular transformers have shorter lifespans.

What noise levels can facilities expect from S18 transformers?

Noise levels are kept between 45 and 55 decibels (A) by using vibration-damping materials and precise core stacking methods. Because it makes little noise, the S18 type 35KV oil-immersed power transformer can be used in urban substations, business developments, and industrial parks where noise rules set strict limits on equipment levels.

How does the S18 handle renewable energy load fluctuations?

The S18 type 35KV oil-immersed power transformer can handle the changing loads that come with solar and wind systems because it has a strong thermal mass from being soaked in oil and better cooling capabilities. The transformer handles sudden changes in load without letting temperatures swing too much, which would speed up the aging of insulation. This ensures stable performance across the wide range of operating conditions typical in green energy applications.

Partner with Lijie Electric for Your S18 Type 35KV Transformer Requirements

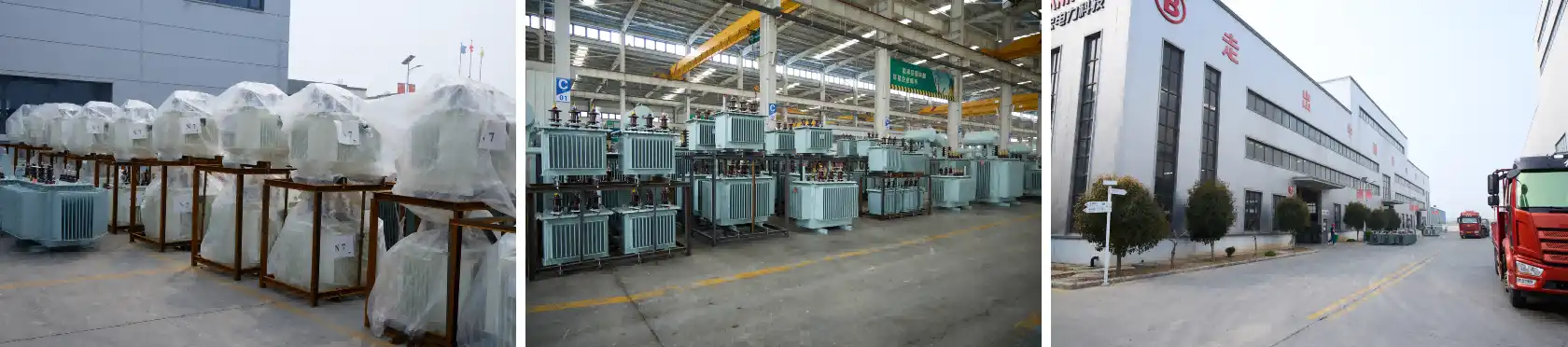

Lijie Electric Power Technology Group has been making transformers for more than 20 years and can help you with your power delivery tasks. Over 2,000 skilled workers, including more than 160 engineers with advanced degrees, work at our two production bases, which cover a total area of 500,000 square meters and are committed to always coming up with new products. If you choose Lijie Electric to make your S18 type 35KV oil-immersed power transformer, you can use production methods that are ISO 9001:2015 certified, get full IEC/CE/UL certifications, and be sure that they can provide you with transformers for large-scale infrastructure operations.
