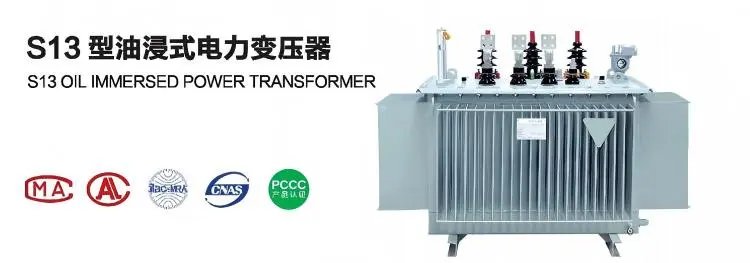

S13 Oil Immersed Transformer: The Ultimate Guide to Efficiency, Reliability and Application

When electricity infrastructure demands reliable and efficient distribution equipment, the S13 type oil-immersed distribution transformer works well. This cutting-edge liquid-dielectric power part works with voltage systems from 6kV to 35kV. The S13 series reduces no-load losses by 25–30%, building on the S11 series' achievements. Its totally sealed corrugated tank designs reduce maintenance and allow machines to survive over 30 years in ideal conditions.

Understan

ding Global B2B Procurement Trends in Transformer Supply

Electricity tool purchases have altered significantly in recent years. Utilities, renewable energy providers, and industrial manufacturers now prioritize lifecycle cost analysis over purchasing price. New business studies demonstrate that spreading a lot of high-energy-efficiency transformers across distribution networks may save expenses by 15–20% a year.

Engineering teams now view transformer requirements differently thanks to digital procurement technologies. Design schools may now evaluate no-load losses, impedance voltage characteristics, and thermal values from diverse sources using real-time performance data. Because creators are always coming up with new innovations, efficiency requirements rise above regulatory minimums.

The Role of Certification in Cross-Border Transactions

For multinational projects to run effectively, equipment must fulfill certain criteria. ISO 9001, IEC 60076, CE, and UL certifications allow the S13 type oil-immersed distribution transformer to be utilized in many sites without costly re-engineering. When coordinating installs in many countries, procurement managers appreciate this compliance flexibility.

Supply chain resilience is now crucial. Large-scale building projects using prefabricated substations or green energy can't wait for late delivery. Manufacturers with over 500,000 square meters and 2,000 employees may supply enormous volumes of items at once, which helps them execute projects on time. These operating measures affect supplier selection during competitive bidding.

Key Challenges in Industrial Procurement and How to Overcome Them

Transformer purchasing teams often struggle to meet timelines and budgets. Changes in the supply chain create unpredictable price rises, notably for electrical steel and high-grade insulators. Quality control in large manufacturing batches is another issue, especially for projects requiring dozens of identical parts.

Mitigating Technical Risk Through Performance Validation

S13 type oil-immersed distribution transformers must operate continuously for decades without maintenance. Procurement rules increasingly necessitate extensive testing before adoption. Today, validation requires dissolved gas analysis (DGA), partial discharge readings below 100pC, and pressure leak testing at 0.05MPa for eight hours. Quality control prevents important systems from failing early.

Customization solves another problem. A wind farm and a mine may need different voltages, yet they both use 30–3150kVA. Manufacturers with adaptable connection group names (e.g., Yyn0 or Dyn11) and tap ranges (±5% or ±2×2.5%) provide buying teams with flexibility without compromising key requirements.

Experienced providers employing clear contact mechanisms can reduce these issues. Project managers may adjust installation timelines using particular manufacturing schedules, real-time production statistics, and delay alerts. This collaborative approach transforms supplier relationships into long-term partnerships.

Technological Innovations Driving Procurement Efficiency

The S13 type oil-immersed distribution transformer enhances material science, improving operating efficiency. High-permeability grain-oriented silicon steel with multi-step mitered joints reduces excitation current by 70% compared to earlier varieties. Compared to previous S11 designs, a 1000kVA unit working 24/7 can save 15,000–20,000 kWh per year.

Advanced Cooling and Sealing Technologies

ONAN cooling systems feature double-purpose corrugated radiator fins. The larger surface area allows heat to escape, keeping the windings' temperature constant even under heavy load. Transformer oil may expand and contract with temperature without producing internal pressure that could harm seals due to the curved tank shape.

The totally sealed construction prevents oil oxidation and water infiltration, which decreases insulation over time. Traditional oil-filled transformers needed oil every 5–7 years. Sealed S13 type oil-immersed distribution transformers, on the other hand, maintain their insulating strength without oil servicing. This eliminates upkeep, lowering the overall cost of ownership, especially for remote locales.

Another tech advancement that affects shopping is noise reduction. Urban substations near homes have strict noise limits. S13 type oil-immersed distribution transformers are 3–5dB quieter than national norms due to superior core tightness and vibration-reducing mounting techniques. This low-noise characteristic allows additional building sites, offering project designers more equipment placement alternatives.

Building Trust and Transparency in Supplier Relationships

Long-term supplier partnerships are better than single transactions. Transformer performance must be consistent over successive batches when utilities plan multi-year grid upgrading initiatives. Suppliers must have documented quality control methods and trackable production records to develop confidence.

Transparency Through Testing and Documentation

Every transformer from reputable manufacturers has test documents. These files contain no-load loss, load loss confirmation, dielectric withstand test results (AC-35kV power frequency, L1-75kV impulse), and temperature increase proof data. National transformer quality monitoring centers use third-party testing to offer independence and enable buying teams to trust the standards.

By communicating, project delays can be avoided. Early in the design process, collaborative suppliers help engineering teams with specific impedance voltage demands or non-standard working environments, such as installations over 1000m or temperatures around 40°C. This proactive technical guidance ensures that units are produced to meet application requirements without costly modifications after delivery.

Ethical purchasing is becoming significant in supplier ratings. Companies with environmental management certifications and ethical material purchases meet their green aims. Working with recognized sources reduces stakeholder scrutiny and helps publicly owned utilities and renewable energy firms meet environmental targets.

How Our Solutions Support Global Procurement Success

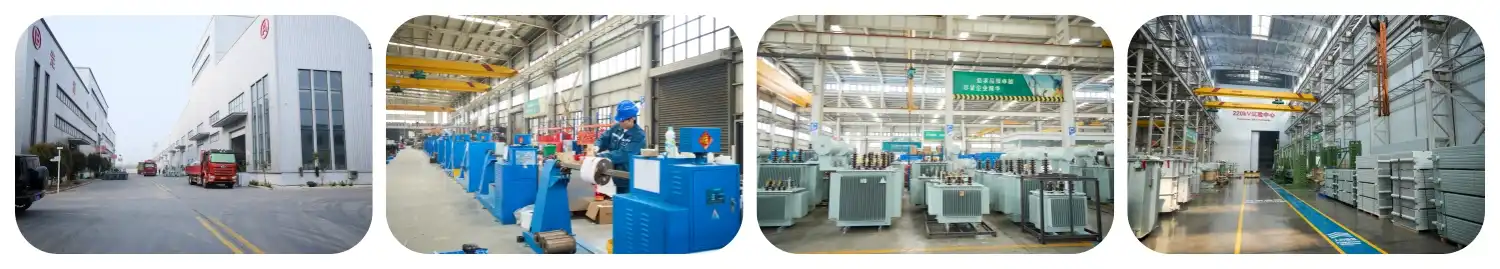

Transformers are more than tools, and Lijie Electric knows that. It also implies buying durable pieces for infrastructure that must last decades. Our 500,000-square-meter Xuzhou and Nantong facilities have high-tech production lines to maintain large order quality. More than 160 advanced-degree engineers in our R&D department help us improve our goods to meet industry requirements.

Power companies, renewable energy initiatives, and heavy industry in North America and elsewhere can employ our S13 type oil-immersed distribution transformers. Each unit undergoes national control center-approved testing before shipping. This ensures IEC, CE, and UL compliance. This bundle of certificates speeds up international project approval and purchases.

We have anything from a single three-phase 1000kVA unit for a business development to fifty transformers for regional grid growth. Our technical support staff works with design engineers to ensure that installations meet power levels, frequency (50Hz/60Hz), and climatic conditions. Our clients enjoy how our pricing is straightforward and includes the initial purchase price and any subsequent expenditures. Clear ROI predictions help procurement teams choose investments.

Technical Specifications Driving Performance

Understanding S13 type oil-immersed distribution transformer features helps buying teams choose them for their work. These devices can handle 6kV to 12kV. They range in size from 30kVA single-phase to 3150kVA three-phase. The non-excitation voltage control technology, with tap ranges of ±5% or ±2×2.5%, allows for voltage adjustments without power interruption, ensuring reliability during load changes.

Insulation class grades indicate electrical stress reliability. The S13 series can undertake power frequency testing at AC-35kV and impulse voltage up to L1-75kV, which is higher than most distribution network requirements while maintaining safety. For setups with changeable industrial loads or renewable energy sources with variable output, this powerful insulation system, oxygen-free copper windings, and Class A insulation paper provide great short-circuit resistance.

Installation settings are flexible with operating environment freedom. Standards allow temperatures outside 40°C; hard conditions can increase this range. The oil-immersed self-cooling design manages temperature loads without ventilation. This reduces equipment costs and eliminates fan-cooled system technical failures.

Real-World Applications Across Industries

Distribution transformers link power networks to energy users, making them crucial. In renewable energy, S13 type oil-immersed distribution transformers boost solar inverter or wind turbine output voltage to grid levels. They can withstand weather-dependent production load variations. Energy supply efficiency improves project costs due to its low-loss qualities.

Steel mills, mines, and chemical facilities use these generators to power their process equipment. Mining transformers face dust, severe temperatures, and mechanical vibrations from neighboring mining activities. The sealed tank design keeps impurities out, and its sturdy construction can withstand extreme climates.

Small substations with S13 type oil-immersed distribution transformers in prepared shelters are becoming more common in urban infrastructure projects. These "turnkey" choices speed up installation in industrial parks, business hubs, and apartment complexes. They're ideal for high-density areas with restricted access and difficult servicing activities because they're quiet and low-maintenance.

Conclusion

Engineers have refined the S13 type oil-immersed distribution transformer throughout time. Its great energy efficiency, maintenance-free sealed construction, and long history of dependability satisfy power infrastructure and procurement specialists. When choosing suppliers, prioritize those with all the relevant certificates, a large output capacity, and clear quality control systems. These factors ensure that the chosen transformers will last 30 years. This protects project budgets from unforeseen repairs and downtime.

FAQ

How does S13 efficiency compare to S11?

The S13 type oil-immersed distribution transformer has 25–30% less no-load losses than the S11 series. Due to core material adjustments and magnetic circuit design improvements, this is conceivable. Distribution transformers that are constantly on have lower running costs due to this efficiency boost. No-load current lowers by up to 70%, meeting Level 2 energy conservation guidelines and helping utility programs reduce system-wide loss.

Can S13 transformers handle tough conditions?

Oil-immersed self-cooling allows ordinary S13 type oil-immersed distribution transformers to tolerate temperatures beyond 40°C. Specialized designs can tolerate locations beyond 1000 meters, although bushings may need to be derated or modified to accommodate decreased air density. Sealed design keeps salt spray out and increases equipment life in severe coastal environments.

Which certifications should buying teams verify?

ISO 9001 for quality management systems, IEC 60076 for technical performance requirements, and regional clearances like CE for Europe or UL for North America are vital. Check individual transformer models, not just the business, for approvals. Request authorized third-party lab reports that meet criteria. When buying in bulk, batch uniformity is crucial.

Partner with a Trusted S13 Type Oil-Immersed Distribution Transformer Manufacturer

Lijie Electric can assist you in acquiring a transformer due to its technical and production expertise. Power plants, green energy projects, and industrial sites in North America and abroad have used our services effectively. As a leading provider of S13 type oil-immersed distribution transformers, we can provide experienced assistance, numerous design choices, and a reliable delivery schedule that meets your project requirements. Our National High-Tech Enterprise and Specialized "Little Giant" status indicates our commitment to quality and ability to satisfy tough uses. Please contact our engineering team at lijieelectrical@gmail.com to discuss your voltage, volume, and safety demands. We provide specs, test papers, and lifetime cost breakdowns to assist buyers in making educated decisions. These transform complex technological demands into sourcing solutions.
