Why Choose S(B)H15 Oil-immersed Amorphous Transformer?

Choosing the right power transformer is a big choice that will have long-lasting effects on how well the business runs, how much energy it uses, and how environmentally friendly it is. The S (B) H15 Series Oil-immersed Amorphous Alloy Transformer is a great option because it cuts no-load losses by up to 80% compared to regular silicon steel transformers. This amorphous core technology changes the way power distribution equipment controls energy use in a basic way. This makes it a smart choice for utilities, renewable energy projects, industrial manufacturers, and EPC companies who want to save money right away and keep the system running for a long time.

Key Specifications and Core Features of S(B)H15 Oil-immersed Amorphous Transformers

The technical concept behind the S(B)H15 series is a big step forward in distribution transformer technology. It solves the most important problems that purchasing managers and electrical engineers have.

Understanding Amorphous Alloy Core Technology

The core of this transformer is made of an amorphous mixture of iron, silicon, and boron that was made using rapid freeze-solidification methods. This material is not like regular solid silicon steel; it has an atomic structure that is not organized, which makes it easy to magnetize and demagnetize. Because of this, hysteresis losses during operation are cut down by a huge amount. When electricity runs through the transformer, the amorphous alloy core reduces the amount of energy that is wasted as heat. This makes the transformer more efficient from the moment it is installed.

Technical Specifications That Matter

The S(B)H15 line is usefully flexible and can be used in a wide range of situations. Ratings for voltage range from 6kV to 12kV, and ratings for capacity range from 30kVA to 2500kVA, which means they can power everything from small factories to big utility substations. These units get Level 1 energy efficiency scores, which is the best level possible, and show clear improvements in performance. The Dyn11 link group name offers better harmonic resistance, which safeguards sensitive equipment further down the line. The transformer works with both 50Hz and 60Hz frequencies, so it can easily connect to power systems around the world. This means it can be used for global EPC projects that need IEC, CE, and UL clearances.

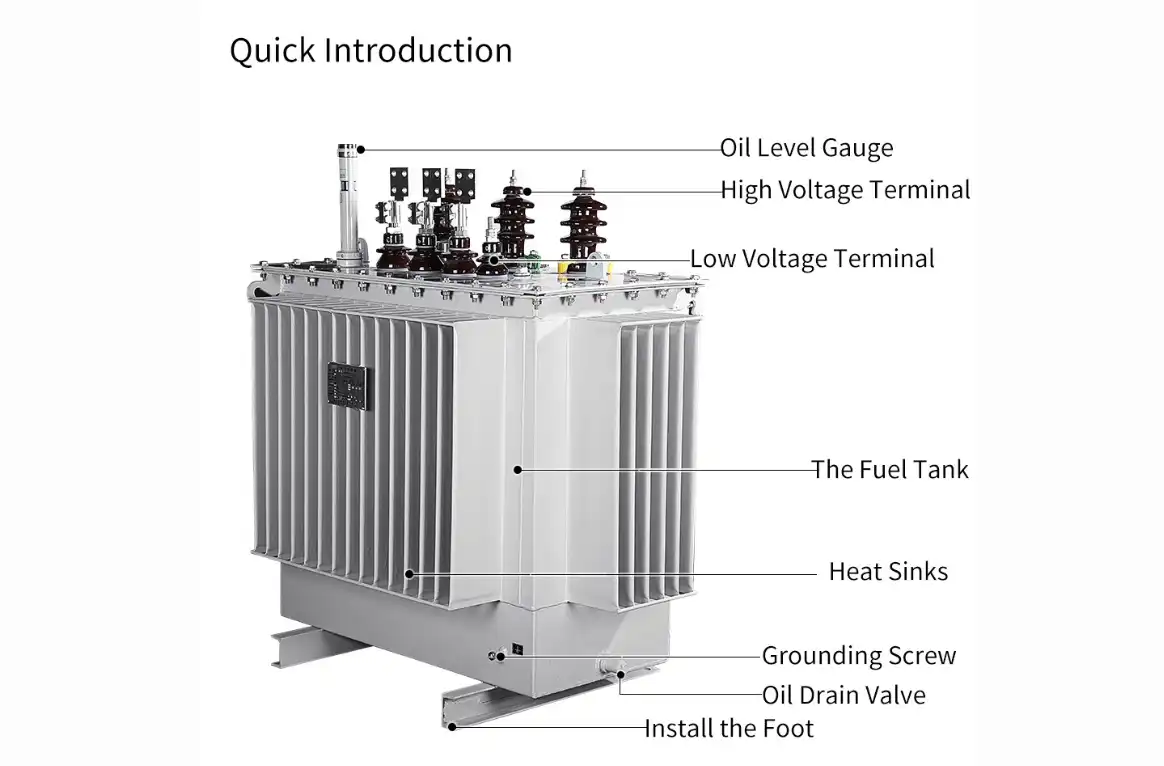

Advanced Oil-Immersed Cooling System

The fully sealed oil-immersed design of the S (B) H15 Series Oil-immersed Amorphous Alloy Transformer gets rid of the upkeep problems that come with letting air and water in. Oil movement automatically gets rid of the heat that is generated during operation, so the machine stays at its best temperature even when the load changes. The sealed tank design with curved cooling fins takes care of thermal growth without any help from outside. This self-cooling feature keeps working properly in temperatures as high as 40℃, making it ideal for tough outdoor setups in a range of climates.



Advantages Over Conventional Transformers: Why S(B)H15 Stands Out

Measurable practical measures make the differences between amorphous alloy and standard silicon steel designs clear right away when comparing transformer technologies.

Ultra-Low No-Load Loss Performance

No-load losses occur continuously whenever a transformer is energized, regardless of the power demand. Traditional S11-series transformers experience significant core magnetic losses, which become a major source of energy waste in distribution networks where transformers often operate under partial-load conditions. The S (B) H15 Series Oil-immersed Amorphous Alloy Transformer reduces these no-load losses by 70% to 80%, directly lowering energy consumption, carbon emissions, and operating costs. This high level of efficiency can save a 500kVA unit operating 8,760 hours per year thousands of dollars in electricity expenses, allowing the investment in an S (B) H15 Series Oil-immersed Amorphous Alloy Transformer to achieve a rapid return.

Comprehensive Cost Analysis

Amorphous alloy transformers may cost more to buy at first than regular units, but a total lifetime cost study shows that they are much more cost-effective in the long run. Lower working temperatures make insulation systems last longer, which lowers the risk of them breaking down too soon. Lessened thermal stress on internal parts means that they need less upkeep over their 30-year working life. Every year, you save more and more energy, and within three to five years, you usually get your money back. Purchasing managers who look at the total cost of ownership instead of the initial capital cost see these devices as smart investments.

Operational Reliability and Stability

Utility networks, industrial sites, and renewable energy installations all require equipment that operates reliably and minimizes unexpected failures. The S (B) H15 Series Oil-immersed Amorphous Alloy Transformer features an enhanced coil structure that improves short-circuit resistance, helping protect the unit from electrical faults that could damage conventional transformers. Its low temperature rise characteristics reduce thermal stress on insulation materials, allowing them to maintain their dielectric strength throughout the transformer's service life. These reliability advantages are particularly valuable for remote locations where maintenance access is limited, and service interruptions can be costly.

Environmental and Sustainability Benefits

All industries are feeling more and more pressure from regulators to reduce their carbon footprints. The S (B) H15 Series Oil-immersed Amorphous Alloy Transformer helps companies be more environmentally friendly by giving them a way to measure their progress. If people use less energy, CO2 pollution from power plants will go down directly. The efficient core design needs less cooling power, which has an even smaller effect on the environment. For businesses that want to get ESG compliance and green building approvals, these transformers provide the proof of environmental commitment that clients are asking for more and more.



Procurement Considerations for B2B Clients: How to Buy S(B)H15 Transformers Smarter

When buying specialized electrical equipment, it's important to think about how well it will work with other equipment, how well the provider can do the job, and how the equipment will be supported in the long run.

Matching Technical Requirements to Applications

To choose the right transformer, you must first accurately evaluate the electrical factors. Voltage levels must match the distribution system that is already in place, and capacity ratings should be able to handle both present loads and expected growth. The non-excitation voltage control method with ±5% or ±2×2.5% tap settings lets you change the voltage to get the best results without turning off the transformer. To make sure that safety devices work properly with impedance voltage specs, engineering teams should check them against system standards. Because connection group names affect harmonic performance, Dyn11 is better for setups with loads that don't behave in a straight line.

Evaluating Supplier Credentials

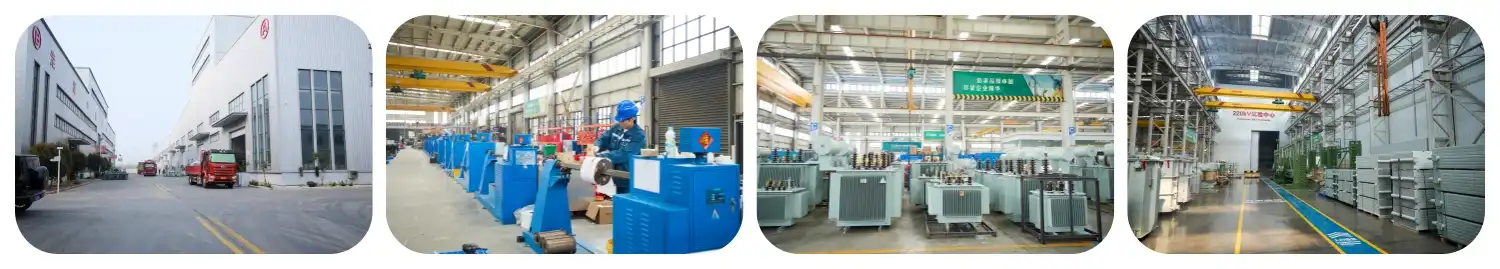

Working with well-known makers guarantees access to tried-and-true technology and dependable help. Lijie Electric has two advanced production sites that cover 500,000 square meters. It employs more than 2,000 pros, including more than 160 engineers with master's and doctoral degrees. This level of technical depth helps with both regular product lines and engineering that is made just for a specific purpose. Following foreign quality standards is shown by ISO 9001:2015 certification, CE and UL approval, and IEC compliance. Being named a "High-Tech Enterprise" and a "Specialized, Refined, and New 'Little Giant'" on a national level shows that the company can innovate, which is important for new grid technologies.

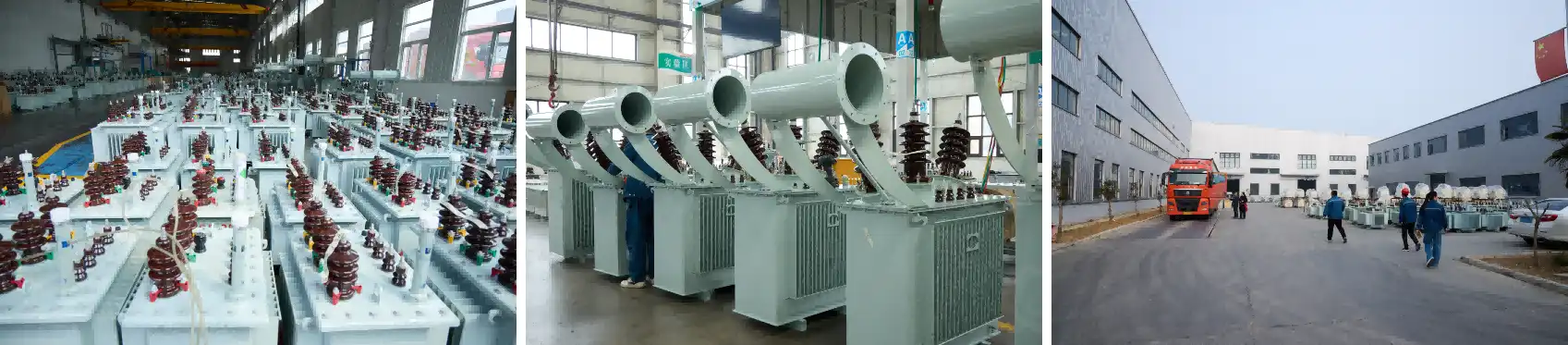

Customization and Large-Scale Supply Capability

S (B) H15 Series Oil-immersed Amorphous Alloy Transformer, For big building projects, suppliers need to be able to handle large amounts of work while keeping quality high across batches. Because specs, such as voltage ratings and cooling setups, can be changed, transformers can be easily integrated with the needs of a particular project. Large orders can still be filled by well-known makers who stick to tight delivery plans that are necessary to keep projects on schedule. Over the many decades that distribution equipment has been used, operational risks have been reduced by extended warranties and written after-sales service routines.

Maintenance, Lifespan, and Operational Best Practices

Using the right repair procedures and operating methods is key to getting the most out of transformers and making their work lives longer.

Routine Inspection and Oil Quality Management

Because the S (B) H15 Series Oil-immersed Amorphous Alloy Transformer is designed with a sealed structure, it requires less maintenance than many conventional transformer types. However, regular inspections are still necessary to ensure optimal performance and long-term reliability. Visual inspections should be carried out annually to check for oil leaks, unusual discoloration, and any damage to the tank or sealing components. Oil samples should be analyzed every three to five years to assess dissolved gas levels and identify potential internal issues at an early stage. Maintaining proper oil levels and keeping cooling fins free from obstructions will help preserve thermal efficiency. By following these straightforward maintenance practices, operators can maximize the service life and operating efficiency of the S (B) H15 Series Oil-immersed Amorphous Alloy Transformer while avoiding costly downtime and repairs.

Environmental Considerations

The life and effectiveness of a transformer depend a lot on where it is installed. Enough air flow around the unit keeps the area from getting too hot, which puts stress on cooling systems. External surfaces and links are kept in good shape by keeping them out of direct weather, especially near the coast, where the salt air is harmful. Fire safety standards are met by keeping things away from flammable materials. Stable fixing bases stop shaking and the mechanical stress that could damage parts inside over time.

Noise Control and Operational Monitoring

The S(B)H15 design naturally makes less noise than other transformers, but installations close to sensitive areas might benefit from extra noise-reducing measures. The magnetic qualities of the amorphous core lower magnetostriction noise, which makes the process quieter. Regularly checking load trends helps find strange situations before they get worse and cause crashes. Temperature monitors and protective switches let you know early on when problems are starting to happen, so you can fix them before they cause long outages.

Conclusion

The S (B) H15 Series Oil-immersed Amorphous Alloy Transformer has strong benefits in all important areas of buying, including using less energy, being more reliable, having lower operating costs, and being better for the environment. The very low no-load losses mean that utilities that are in charge of large distribution networks can see a clear gain in grid performance. Industrial sites get a quick return on their investments because they use less energy and don't need as much upkeep. Equipment that meets high-performance standards and is in line with environmental goals is helpful for renewable energy projects. This line of transformers is a smart choice for businesses that need reliable, low-cost power distribution options because it has advanced amorphous core technology, strong oil-immersed cooling, and all the necessary certifications.

FAQ

What makes amorphous alloy transformers more efficient than silicon steel models?

Amorphous alloys are easier to magnetize and demagnetize than solid silicon steels because their atomic structures are not as ordered. This basic difference in materials cuts hysteresis losses by 70% to 80%, which directly lowers the amount of energy used when the load is not on. Since the efficiency advantage lasts for as long as the transformer does its job, it saves more energy over time than the difference in starting costs.

Can S(B)H15 transformers be customized for specific industrial applications?

You can change things like the voltage rates, the capacity specs, the tap ranges, the link arrangements, and the environmental protection levels. Manufacturing that is flexible can meet the needs of mining activities, the use of renewable energy, big industry loads, and compliance with foreign standards. Technical advice during the specification phase makes sure that the best setup is chosen for each application's individual needs.

How do I choose between oil-immersed and dry-type transformer technologies?

Transformers that are bathed in oil, like the S(B)H15 series, cool more efficiently, can handle more overload, and work better outside and with higher voltages. Dry-type units are better for installing inside occupied buildings because they don't use lubricating oil, which can cause fires. The best technology for a project depends on a number of factors, including the environment, where it will be installed, how much power it needs, and how much upkeep the user wants.

Partner with Lijie Electric for Your Distribution Transformer Needs

Lijie Electric is ready to help you buy a transformer by providing you with a wide range of technical knowledge and solid production skills. As a top producer of S (B) H15 Series Oil-immersed Amorphous Alloy Transformers with yearly sales of more than 5 billion RMB, we offer tried-and-true solutions backed by international certifications and decades of experience in the field. Our engineering team works with clients to come up with the best specs for difficult projects, and our well-established supply chain makes sure that big orders are delivered on time. Email our experts at lijieelectrical@gmail.com to talk about your needs, get cheap quotes, or ask for full technical documentation. You can see all of our products at lijie-electrical.com, and you can learn how our amorphous metal transformer technology can help you reach your sustainability goals while also lowering your running costs.

References

1. IEEE Standard C57.12.00-2015, "IEEE Standard for General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers," Institute of Electrical and Electronics Engineers, 2015.

2. International Electrotechnical Commission, "IEC 60076-11: Power Transformers - Part 11: Dry-type Transformers," IEC Publications, 2018.

3. McLyman, W.T., "Transformer and Inductor Design Handbook," Fourth Edition, CRC Press, 2017.

4. Heathcote, M.J., "J & P Transformer Book: A Practical Technology of the Power Transformer," Thirteenth Edition, Newnes Publishing, 2007.

5. National Electrical Manufacturers Association, "NEMA TP 1-2016: Guide for Determining Energy Efficiency for Distribution Transformers," NEMA Standards Publication, 2016.

6. Zhang, Y. and Chen, W., "Amorphous Alloy Core Distribution Transformers: Energy Efficiency and Economic Analysis," Journal of Electrical Engineering Technology, Volume 12, Issue 3, 2019.
