SC(B)18 type epoxy resin cast transformer
1. Voltage Rating: 10kV
2. Capacity Range: 30kVA～3150kVA
3. Phase/Frequency: Three-phase, 50Hz
4. Connection Group: Dyn
5. Voltage Regulation Method: No-excitation voltage regulation ±2×2.5%
6. Insulation Class: Class H (180℃)
7. Cooling Method: AN (self-cooling) / AF (air-cooling)
8. Protection Class: IP20, IP23, IP30, IP40
9. Energy Efficiency Class: GB 20052-2020 Level 1 Energy Efficiency
10. Partial Discharge: ≤5pC (at 1.73 times rated voltage)
Product Description

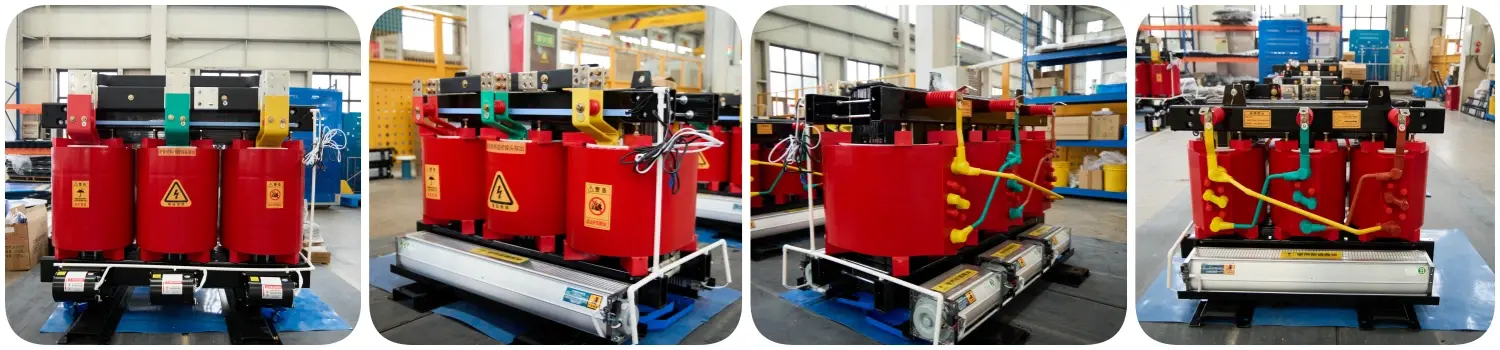

SC(B)18 Type Epoxy Resin Cast Transformer: Advanced Energy-Efficient Power Solution

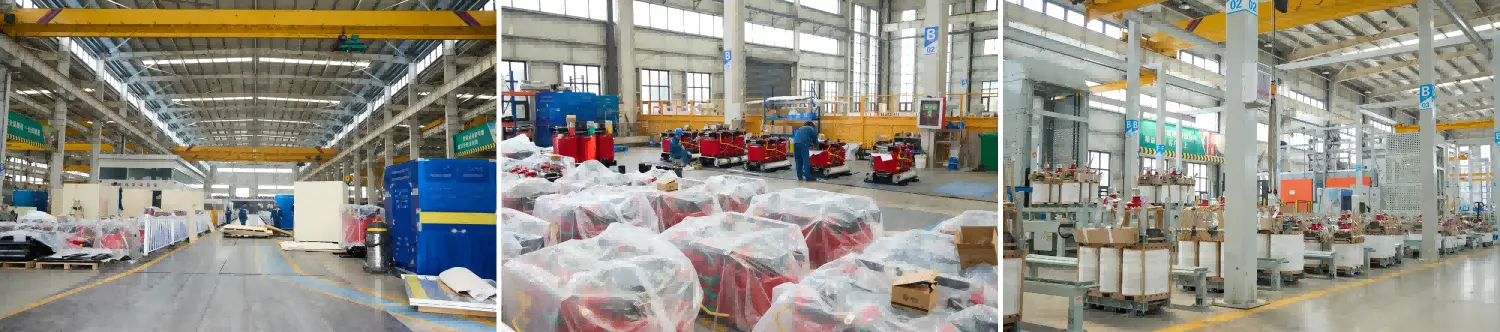

The SC(B)18 type epoxy resin cast transformer from Lijie Electric represents the latest generation in dry-type transformer technology. With H-class insulation and advanced epoxy resin vacuum casting, this transformer delivers Level 1 energy efficiency per GB 20052-2020 standards. Our enterprise-grade solution serves capacities from 30kVA to 3,150kVA at 10kV voltage rating, featuring ultra-low partial discharge (≤5pC), exceptional fire resistance, and proven reliability. Backed by our two 500,000 m² manufacturing bases and a team of 160+ engineers, we ensure consistent quality that meets ISO 9001:2015, CE, UL, and IEC certifications.
Why Choose Our Epoxy Resin Cast Transformers?
You require control gear that won't let you down. Our transformers combine cutting-edge innovation with commonsense benefits that ensure your investment.
Superior Vitality Performance
Your power costs matter. This item accomplishes the most elevated vitality effectiveness rating accessible, decreasing operational costs altogether over its amplified benefit life.
Enhanced Security Features
Fire security keeps you compliant and secured. The epoxy tar casting gives fabulous fire resistance, making these units perfect for establishments where security is non-negotiable.
Quiet Operation
Noise contamination influences your working environment. Our low-noise plan guarantees these transformers work discreetly, reasonable for clinics, schools, and office buildings where acoustics matter.
Robust Short-Circuit Protection
Unexpected electrical occasions happen. The vacuum casting prepare makes a strong, strong winding structure that withstands mechanical push amid brief circuits, minimizing downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 10kV |
| Capacity Range | 30kVA – 3,150kVA |
| Phase/Frequency | Three-phase, 50Hz |
| Connection Group | Dyn |
| Voltage Regulation | No-excitation ±2×2.5% |
| Insulation Class | H (180℃) |
| Cooling Method | AN (self-cooling) / AF (air-cooling) |
| Protection Class | IP20, IP23, IP30, IP40 |
| Energy Efficiency | GB 20052-2020 Level 1 |
| Partial Discharge | ≤5pC @ 1.73× rated voltage |
Ideal Applications for Your Industry
Information Centers & IT Infrastructure
Your servers require continuous, clean control. These transformers provide steady execution for cloud computing centers, IDC offices, and server rooms where unwavering quality straightforwardly impacts trade continuity.
Commercial & Private Buildings
Modern buildings request present day arrangements. High-end office complexes, shopping centers, and high-rise private towers advantage from the compact plan and security features.
Healthcare & Education
Patient care and learning situations require reliable control. Clinics, schools, and colleges depend on these transformers for basic operations and life-safety systems.
Transportation Center points
Rail transit, subway systems, and airports can't afford power failures. Our SC(B)18 type epoxy resin cast transformer provides the reliability transportation infrastructure demands.
Industrial Facilities
Precision manufacturing requires precision power. Industrial parks, electronics factories, and high-tech production facilities benefit from stable voltage regulation and low harmonic distortion.
Frequently Asked Questions
Q: What makes the SC(B)18 distinctive from more seasoned transformer models?
A: The SC(B)18 speaks to the most up to date era with Level 1 vitality effectiveness, essentially lower misfortunes, and improved natural execution compared to past eras. You'll see quantifiable decreases in vitality consumption.
Q: How long does conveyance ordinarily take?
A: Generation cycles extend from 6 to 30 days depending on your determinations and arrange volume. We keep up straightforward following all through the fabricating process.
Q: Can you customize transformers for uncommon requirements?
A: Completely. Our building group works with you to tailor voltage appraisals, association arrangements, and security levels to coordinate your correct venture needs.
Q: What certifications do these transformers hold?
A: All units are tried by the National Transformer Quality Supervision and Assessment Center, with ISO 9001:2015, CE, UL, and IEC certifications guaranteeing worldwide compliance.
Q: What kind of back do you give after installation?
A: We offer comprehensive specialized documentation, establishment direction, save parts supply, and progressing specialized back. Our benefit logic emphasizes long-term association.
Q: Are these transformers suitable for harsh environments?
A: With multiple IP protection classes available (IP20 through IP40) and robust epoxy resin construction, these units adapt to various environmental conditions while maintaining performance.
Your Partner in Power Solutions
Ready to upgrade your power infrastructure with a SC(B)18 type epoxy resin cast transformer? Contact our technical team at lijieelectrical@gmail.com for specifications and quotations today.
