What Makes S22 35KV Oil-Immersed Transformer High Efficiency?
Jul 5, 2026
The S22 type 35KV oil-immersed power transformer is very efficient thanks to careful choice of materials, improved magnetic circuit design, and precise production methods. This transformer has no-load losses that are about 43% lower than the S11 series and 10% lower than the S20 series. This is because it uses cold-rolled grain-oriented silicon steel cores that have been laser-scribed. Its fully sealed corrugated tank design keeps oil from breaking down by keeping it away from oxygen and moisture in the air, so it works the same way for as long as it's used. With its better temperature management, lower core losses, and improved insulation systems, the S22 is the best way to distribute power in difficult industrial settings while using the least amount of energy.

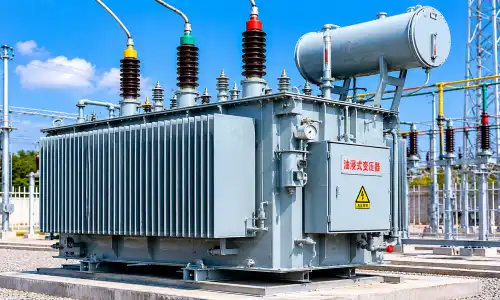

Understanding the Working Principle of S22 35KV Oil-Immersed Transformers
Insulating oil in oil-immersed transformers does two things: it cools the transformer and keeps electricity from flowing through it. When the transformer has to handle big industrial loads, it loses electricity and heats up the core and windings. The covering oil takes in this heat and moves it around through natural airflow or forced cooling systems, sending the heat out into the surroundings. This cooling action keeps parts from getting too hot, which could shorten the life of the transformer and make it less effective at delivering electricity.
Enhanced Magnetic Flux Optimization
Advanced Oil Circulation Systems
The S22 uses two different cooling methods depending on how much capacity it needs. Units from 630KVA to 2500KVA use oil-immersed self-cooling (ONAN), which keeps the right temperatures for operation through natural oil flow. Transformers with a rating of 3150KVA or more have oil-immersed air cooling (OFAF), which increases the efficiency of heat transfer by 45% at peak load. This adaptive cooling method keeps the S22's temperature stable even when the load changes. This makes it useful for a wide range of situations, from steady-state grid distribution to dynamic industrial processes where the load changes often.
Comparison with Dry-Type Alternatives
In medium-voltage situations, oil-immersed designs are clearly better than dry-type transformers. The better heat transfer properties of the liquid cooling medium allow for smaller designs with the same power ratings. The shielding oil in the S22 also stops arcs when there are problems inside the device, which makes it safer to use. According to data from installations around the world, oil-immersed transformers consistently have service lives of more than 30 years. This means that they work much better than dry-type alternatives in harsh environments like coastal areas and industrial zones with high pollution levels.
Key Technical Specifications Driving High Efficiency
Premium Insulating Oil Properties
Mineral shielding oil that meets IEC 60296 standards is used in the S22. This oil has better heat transfer and electrical strength. This oil works the same way at temperatures ranging from -40°C to +105°C, so it always cools effectively, no matter what the temperature is outside. Regular testing of dissolved gases confirms that the sealed tank design keeps oil from oxidizing, which keeps the breakdown voltage above 70kV for the entire life of the transformer. This stability in oil quality directly leads to long repair times and continued energy performance.
Cooling System Engineering
The S22 type 35KV oil-immersed power transformer’s curved tank design greatly increases the surface area for oil-to-air heat exchange, so smaller volume units don't need to use external heaters. This ability to self-cool cuts down on the wasted energy that comes from forced cooling equipment. Testing for temperature rise shows that at full load, the increases in winding temperature stay below 65K and the increases in top oil temperature stay below 55K. This easily meets the requirements of GB/T 1094.2. Because of these thermal properties, the S22 type 35KV oil-immersed power transformer can safely operate in environments up to 40°C without losing its rated performance.
International Standards Compliance

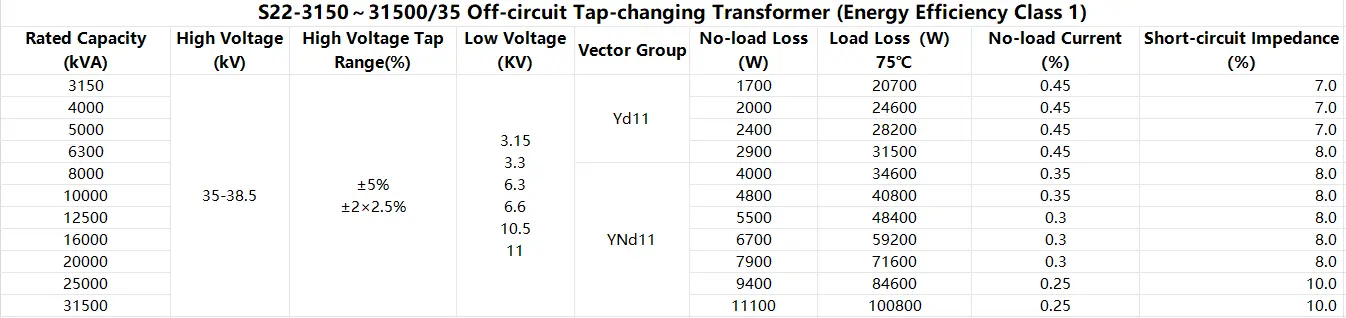

The S22 meets all of the requirements for GB 20052-2020 Grade 1 energy efficiency, which is the highest level of efficiency for distribution transformers in China. For this certification, no-load losses at 1000KVA must stay at or below 800W, and load losses at rated current must not go over 7200W. The transformer not only meets US standards, but it also meets IEC 60076 standards and has CE approval for European markets. This multi-standard compliance lets procurement professionals know that the S22 meets efficiency rules in many different countries.
Advantages of S22 35KV Oil-Immersed Transformers Over Alternatives
The most measurable benefit of the S22 type 35KV oil-immersed power transformer is that it lowers energy costs. If you use a 1000KVA unit all the time, the 43% less no-load losses compared to the S11 series means you save more than 2200kWh a year. When used in a large infrastructure project with many transformers, these efficiency gains add up to big cost savings over the typical 30-year service life. Financial modeling shows that the extra money spent on S22 technology pays for itself in three to five years just by cutting down on energy use.
Reduced Maintenance Requirements
Traditional breath-type transformers need silica gel breathers and conservator tank maintenance, but the fully sealed corrugated tank design gets rid of those needs. This sealed design stops moisture from getting in, which speeds up the breakdown of insulation and extends the time between oil filtering and regeneration procedures. Maintenance records from industrial installations show that the S22 type 35KV oil-immersed power transformer needs 60% fewer service interventions than older generation equipment. This cuts down on both the direct costs of maintenance and the time lost due to planned downtime.
Enhanced Safety and Environmental Protection
Many safety measures are built into the S22 to make it both reliable and safe for the environment. The IP67-rated tank sealing keeps oil from leaking even when there is bad weather or seismic activity. When certain conditions are met, pressure relief devices safely release internal pressure during fault situations. This keeps the structure of the tank from bursting. The H+ class insulation system can handle temperatures of up to 200°C, which gives it a large thermal cushion when there is a sudden overload. This design focuses on safety and complies with strict environmental rules about using oil-filled electrical equipment in sensitive locations near water sources and crowded areas.
Optimal Installation and Maintenance Practices to Sustain Efficiency
Choosing the right site for the S22 type 35KV oil-immersed power transformer has a big effect on how well and how long a transformer works. The placement site should have enough space for air to flow naturally around the curved tank surface so that it works as well as possible for cooling. The foundation design has to take into account the transformer's working weight plus its oil capacity. This makes sure that the transformer is stable and doesn't put mechanical stress on the connections and joints. For fault current routes to work and to protect against lightning-caused spikes, grounding devices need resistance below 4 ohms.
Oil Quality Monitoring Protocols
For transformers that are submerged in oil, predictive maintenance is based on regular analysis of the dissolved gases. Testing every 12 months for stable installations and every 6 months for critical applications lets you find faults early on through their unique gas signatures. Hydrogen, acetylene, ethylene, methane, carbon monoxide, and carbon dioxide are some of the most important gases that are checked. Trending analysis finds problems like partial discharge, corona, heat deterioration, and cellulose degradation before they become too bad for the generator to handle. To get reliable results, oil samples should be taken out using IEC 60567 procedures.
Critical Component Inspection
In an S22 type 35KV oil-immersed power transformer, a power factor measurement and a visual check for cracks or tracking on porcelain surfaces are part of assessing the condition of a bushing. To keep the voltage stable under load, the tap switch device needs to be oiled and the contacts checked once a year. For units with an OFAF cooling system, routine maintenance includes greasing the fan motor bearings, checking the tension of the belt, and calibrating the temperature sensor. To ensure the tank sealing remains effective throughout its operational range, the torque must be checked regularly to maintain the integrity of the gaskets around manholes and inspection ports.
Procurement Considerations for the S22 35KV Oil-Immersed Transformer
Aligning technical specifications starts with accurately describing the load. Professionals in procurement have to look at both the steady-state power needs and the expected load growth over the life of the transformer. The S22's wide range of capacities, from 630KVA to 31,500KVA, makes it suitable for a wide range of uses, from single-building distribution to big industrial park substations. The choice of voltage mix relies on the infrastructure that is already in place. The most common options are 35kV/10kV and 35kV/0.4kV, which cover most utility and industry needs. The Dyn11 link group is better at blocking harmonics for nonlinear loads that are common in modern buildings with charging stations and variable frequency drives.
Supplier Evaluation Criteria
Volume Procurement and Warranty Considerations
Framework deals protect prices and set priorities for production schedules, which are both good for big projects. Manufacturers can get the best deals on materials and plan their production better when they have volume agreements. This cuts costs and lets them offer competitive prices to key customers. Full warranty programs that cover problems with the way the product was made for 24 months after it is put into service protect your finances during the important early operational phase. Extended protection choices meet the needs of specific clients who want long-term promises of asset performance.
Conclusion
FAQ
How much power does the S22 line of transformers handle?
The S22 series has capacities ranging from 630KVA to 31,500KVA, which makes it suitable for medium to large distribution needs. This range is big enough for substations that serve factories, shopping malls, and utility distribution networks. You can get custom capacity configurations to meet load needs that aren't covered by standard ratings.
How does the S22's efficiency compare to that of older transformers?
The S22 series cuts no-load losses by 43% compared to the S11 series. This means that each 1000KVA unit saves more than 2200kWh of energy each year. Compared to the newer S20 series, the S22 still has 10% lower no-load losses and 4% lower load losses, showing that improved engineering is always making things more efficient.
In what kinds of environments can the S22 work?
The protected tank with an IP67 rating and the C5-M rust resistance classification allows it to work in difficult settings, such as seaside areas with salt spray, industrial zones with a lot of pollution, and places up to 3000 meters above sea level. The sealed design keeps insulating oil from getting into the environment, so it works the same way in all kinds of weather.
Partnering with Lijie Electric for Your S22 Transformer Requirements
If you need an S22 type 35KV oil-immersed power transformer, Lijie Electric can help. They have been making transformers for more than 20 years. Our engineering team is made up of more than 160 experts with advanced degrees. They make sure that every design includes the newest methods for improving reliability and efficiency. We keep a full list of certifications, such as CQC certification for energy efficiency, PCCC product certification, IEC approval for foreign projects, and UL listing for use in North America. This wide range of certifications makes it easier to get projects approved for purchase that involve multiple countries and need to meet the standards of those countries. We are a reliable S22 type 35KV oil-immersed power transformer supplier that can meet tight project deadlines for large-scale deployments, thanks to our 2,000-person workforce and annual production capacity that supports sales of more than 5 billion RMB. Email our expert sales team at lijieelectrical@gmail.com to talk about your unique transformer needs and get full specs that are made to fit your application. We'd love the chance to show you how our manufacturing skills and dedication to customer satisfaction can help you reach your building goals.
