How S18 Type 35KV Oil-Immersed Power Transformer boosts efficiency?

In terms of power distribution technology, the S18 type 35KV oil-immersed power transformer is a big step forward. Its advanced silicon steel cores and improved winding configurations make it much more efficient. Compared to older models, this new transformer cuts no-load losses by more than 20% and load losses by 10-15%. This solves the major problem of rising running costs in medium-voltage networks. The S18 type 35KV oil-immersed power transformer is becoming a valuable tool for utilities, industrial makers, and green energy integrators as procurement managers, electrical engineers, and project leads look for ways to balance initial investment with long-term cost savings. This transformer is certified as a Tier 1 energy-efficient product by the GB 20052-2020 standard. It was designed to meet both the needs of saving money and protecting the environment. This guide looks at the technical innovations that make it more efficient, compares its performance to other technologies, and gives important buying advice for business leaders in the US market who are in charge of big building projects.

Understanding the Efficiency Challenges in 35KV Power Transformers

Energy losses in medium-voltage transformers are still a problem for making operations profitable and long-lasting. Core magnetization losses and resistive heating in copper windings cause traditional 35KV units to lose a lot of energy. These problems get worse after decades of continued service. These mistakes directly raise energy bills and lower the return on capital investments, especially in places like data centers and chemical processing plants that need to be online 24 hours a day, seven days a week.

Managing temperature adds another level of difficulty. During times of high demand, traditional cooling systems have trouble keeping dielectric temperatures fixed, which speeds up the wear and tear on the oil and insulation. This temperature stress not only shortens the life of equipment but also makes it need expensive repairs more often. Unplanned downtime throws off production plans and breaches supply chain agreements, which has a domino effect on costs.

Regulatory forces make these technology problems even more urgent. More and more pressure is being put on utilities and industrial owners to show that they are meeting energy-saving requirements and carbon reduction goals. If equipment doesn't meet current standards, it could become obsolete, and the cost of replacing it over and over again drains capital funds. When you add up older infrastructure, higher energy costs, and tighter environmental rules, you have a strong case for using transformers that improve efficiency without lowering reliability or needing a lot of changes to how things are run.

Core Design Features of the S18 Type 35KV Oil-Immersed Transformer That Enhance Efficiency

The engineering foundation of the S18 type 35KV oil-immersed power transformer is based on new discoveries in material science and better ways to handle heat. The design team at Lijie Electric chose high-grade cold-rolled grain-oriented silicon steel for the core. This type of steel has much lower hysteresis and eddy current losses than regular electrical steel. This choice of metal directly leads to less no-load consumption, which is the amount of energy that is lost even when the transformer doesn't have any extra load on it. Over the course of 30 years, these savings add up to big drops in the total cost of ownership.

Advanced Core and Winding Configuration

Precision manufacturing methods allow for tighter limits when stacking cores, which reduces the amount of air gaps that would normally get in the way of magnetic flux routes. The winding design uses the best conductor cross-sections and layer arrangements to balance the cost of materials with the efficiency of the electricity. This setup keeps the strong ability to withstand short-circuits while lowering the amount of copper that is lost when the load is on. This makes a generator that works well with all kinds of loads, from light use at night to high commercial demand during the day.

Hermetically Sealed Cooling System

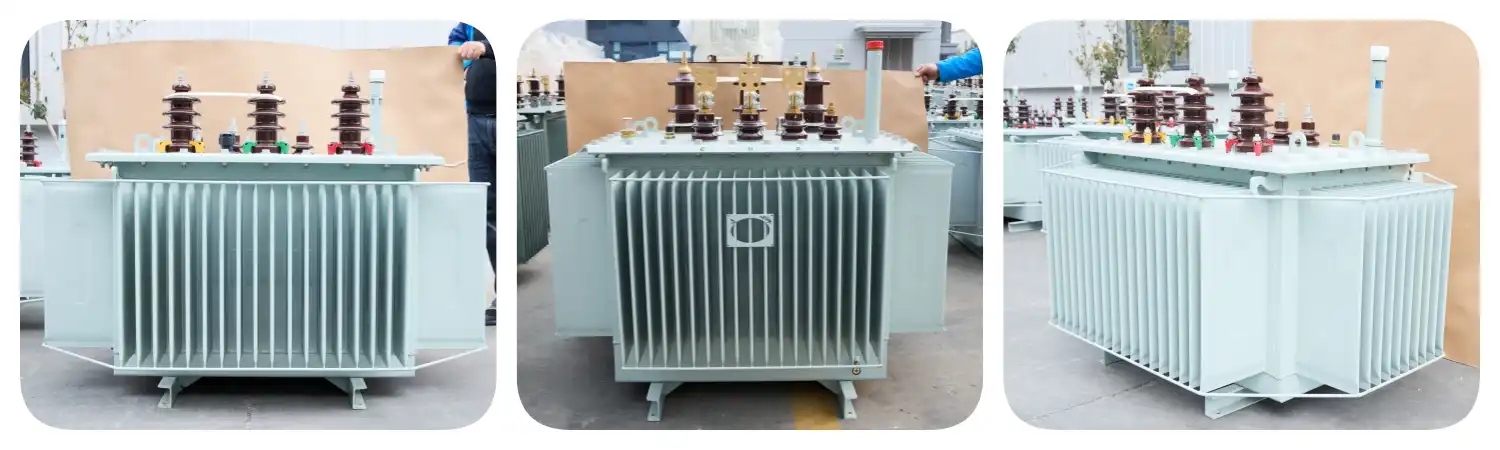

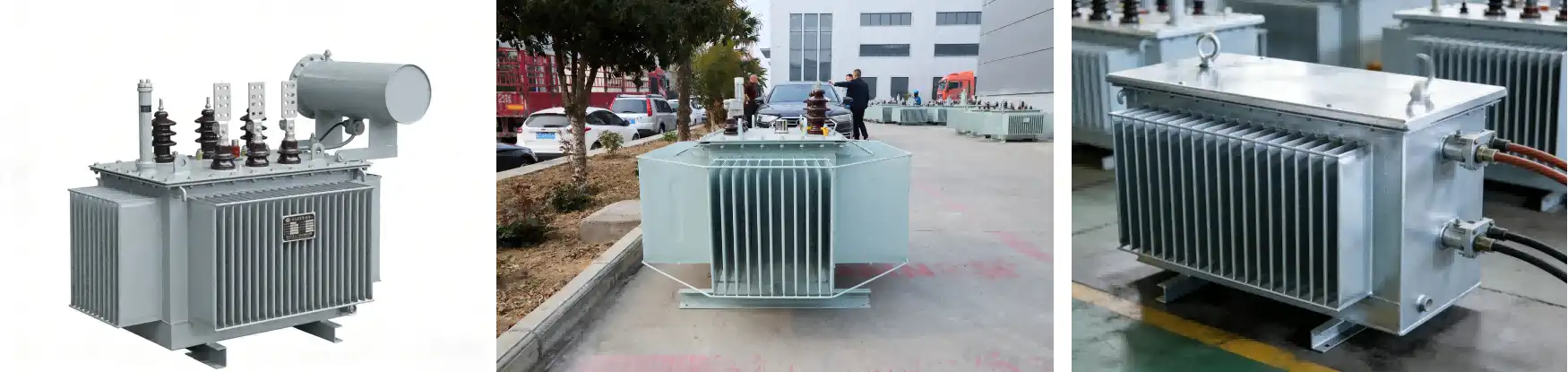

The curved tank shape is very different from the usual conservator-type layouts. The protected system stops moisture and rust from getting in, which are two main reasons why insulation breaks down. The curved surface makes it easier for heat to escape without making the unit bigger. This keeps the temperature stable even when it's overloaded for a long time. This passive cooling system doesn't need any extra fans or pumps, which means it will last longer and need less upkeep.

Superior Insulation Technology

When you combine high-quality mineral oil mixtures with multiple layers of solid shielding, you get dielectric strengths that are out of this world. The design of the insulation takes into account the voltage stress patterns that happen during regular operation, short-term overvoltages, and lightning strikes. This all-around method makes sure that the system works the same way in all kinds of environments, from the high humidity of coastal areas to the extreme temperatures of industrial sites in the middle of the country. Because the insulation system is so strong, it can be used for more than 25 years, which is in line with how long-term owners plan their projects.

Performance Comparison: S18 Type vs Other Transformer Options

When you compare the S18 type 35KV oil-immersed power transformer to older and newer technologies, you can see that it has clear benefits in a number of areas. The S18 type 35KV oil-immersed power transformer has 20–25% less overall losses than the widely used S11 series transformers when normal utility load rates are used. This gap gets bigger in partial load situations that happen a lot in green energy uses. This is because the S18 type 35KV oil-immersed power transformer’s lower no-load consumption gives it more benefits than it should. A utility with 50 units can expect to save more than 200 MWh of energy each year, which will save the utility a lot of money over the life of the equipment.

Lifecycle Cost Analysis vs Dry-Type Units

While dry-type transformers can be installed more easily indoors or in places that are sensitive to the climate, they are not as efficient as more modern oil-immersed designs in the 35KV class. When comparing units of the same size over 25 years, the S18 type 35KV oil-immersed power transformer has 15–18% lower total purchase costs. This benefit comes from better heat management that keeps efficiency high even when the load changes. Dry-type units, on the other hand, lose efficiency more quickly when they are used close to their rated capacity for long periods of time. The oil-immersed design naturally cools, and it doesn't need to use energy for forced air.

Real-World Performance Data

Implementations of industrial parks in a variety of industries back up the S18 type 35KV oil-immersed power transformer’s potential benefits. During its first year of operation, a 100 MVA plant that serves an automobile factory complex had 12% less distribution losses than the S13 units that were replaced. Similarly, a project to integrate a wind farm that used S18 type 35KV oil-immersed power transformers for 35KV collection showed great steadiness even when the output changed. It kept its efficiency above 98.5% even when the load ranged from 30% to 110% of its rated capacity. The transformer's ability to provide steady performance in difficult situations where older equipment would break down more quickly is shown by these case studies.

Practical Tips for Maximizing Efficiency with S18 35KV Oil-Immersed Transformers

To keep up peak performance, you need to follow strict operating procedures that are in line with what the S18 type 35KV oil-immersed power transformer was designed to do. Setting up a thorough repair plan will protect your investment and make sure that the energy gains last as long as the transformer does.

Oil Quality Monitoring Programs

Every 12 months, dissolved gas research lets you know about problems before they get worse and affect performance or dependability. Monitoring changes in oxygen, moisture, and breakdown voltage lets you plan maintenance in advance, which stops small problems from getting worse and costing a lot to fix. The sealed design of the S18 type 35KV oil-immersed power transformer makes the oil service life much longer, but it still needs to be tested on a regular basis to make sure the insulation is still good, and the temperature stays stable. A lot of owners use automated oil tracking sensors that send data in real time to centralized control systems. This lets them respond right away to problems.

Thermal Management Best Practices

The S18 type 35KV oil-immersed power transformer’s cooling system works quietly, but making sure there is enough space around the curved tank helps it get rid of heat as quickly as possible. Installations should follow the minimum spacing rules set out in IEC standards and avoid anything that could block the flow of electricity and cause hot spots. When the temperature outside is high, you might want to add more shade or make the airflow better so that the tank's surface doesn't absorb as much heat from the sun. These easy steps keep the transformer's thermal range during times of high demand in the summer, when system stability is at its most important.

Load Management Strategies

The S18 type 35KV oil-immersed power transformer’s efficiency curve stays flat over a wide range of loads, but running constantly above 90% of its maximum capacity speeds up insulation aging. Load-shedding during times of high demand saves health in the long run without affecting the reliability of the grid. For installations with changing loads, like green energy plants, timing the operation of the transformer with predictions for generation is the best way to get the most out of it while still allowing for changes in output. Modern SCADA interface makes load balancing automatic, which takes advantage of the S18 type 35KV oil-immersed power transformer’s operating freedom.

Predictive Maintenance Integration

With IoT-enabled tracking tools, the S18 type 35KV oil-immersed power transformer goes from being a passive asset to an intelligent part of the grid. Sensors that measure the temperature of the windings, their vibration patterns, and their partial discharge activity give a full picture of their health. Machine learning systems look at these streams of data to guess how much longer something will work and suggest the best time to fix it. This means that maintenance is no longer based on set plans, but on what conditions are present. This approach cuts down on checks that aren't needed and finds problems early on, before they affect operations. This increases both efficiency and dependability.

Procurement Insights for B2B Clients Interested in S18 Type 35KV Oil-Immersed Transformers

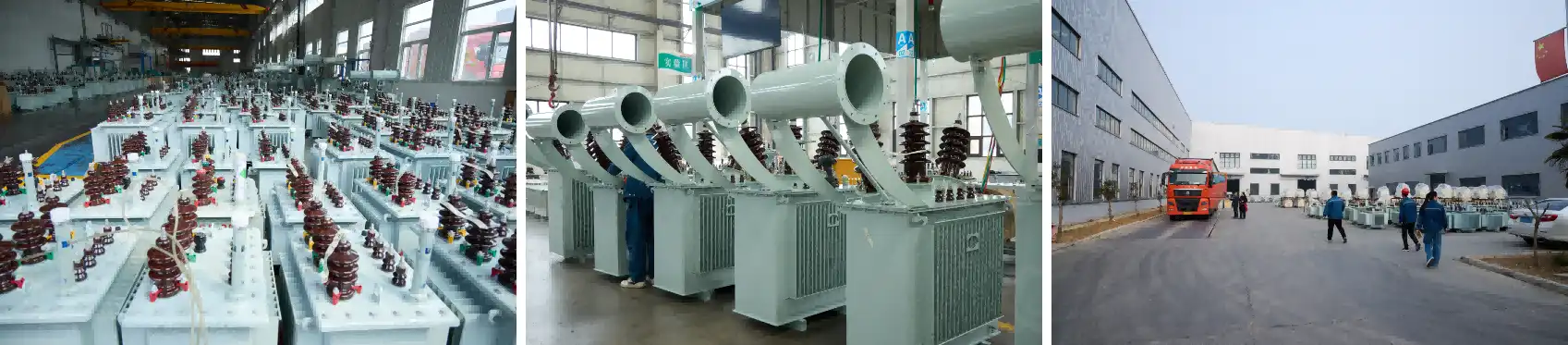

To find the best provider for the S18 type 35KV oil-immersed power transformer and get good terms, you need to carefully look at their professional skills, quality systems, and business flexibility. Lijie Electric has two factories that together cover 500,000 square meters. This means that they can produce enough for large-scale projects, which is important to think about when you need to buy more than 50 units.

Certification and Compliance Verification

Make sure that any potential sellers are currently certified to ISO 9001:2015 and can give you test reports on S18 type 35KV oil-immersed power transformers that were done by approved labs. For installations in Europe, the S18 type 35KV oil-immersed power transformer should have CE marking, and for installations in North America, it should have UL approval. Ask for testing procedures that include regular tests for dielectric, temperature rise, and short-circuit resistance. Global interoperability is ensured by IEC 60076 compliance paperwork, which also makes technical reviews easier for projects that span multiple countries. Lijie Electric's goods have a lot of different kinds of certifications, such as the GB 20052-2020 Tier 1 energy efficiency designation and the PCCC approval from the National Electric Power Approval Center.

Pricing Structure and Total Cost Considerations

In addition to unit prices, when figuring out the total landed cost for the S18 type 35KV oil-immersed power transformer, you should also look at transportation costs, installation help, and the availability of extra parts. When you commit to a large order, you can often get savings ranging from 8 to 15%, based on the size of the job and how flexible the delivery plan is. Customization needs for specific voltage ratios, connector setups, or environmental protection grades may raise the base price by 10–20%, but the extra cost is worth it because the benefits to operation are worth it. To get accurate NPV estimates, you should ask for specific lifetime cost forecasts that include energy savings, upkeep needs, and estimated replacement times.

Warranty and Technical Support Terms

Standard insurance coverage for the S18 type 35KV oil-immersed power transformer should last at least 24 months after the product is put into service, and there should be clear reaction times for technical questions and dispatching field service. Leading makers, like Lijie Electric, offer choices for longer warranties and project engineering help during the installation and testing stages. Make sure that English-language literature, online diagnostic tools, and a list of spare parts located in regional delivery networks are all available. These service parts are very important when handling systems that are spread out geographically or when working in places where there aren't many expert resources available locally.

Supplier Financial Stability and Track Record

Check out the manufacturer's list of completed projects and examples of S18 type 35KV oil-immersed power transformer setups used in similar situations. Lijie Electric's yearly sales of more than 5 billion RMB and good exports to more than 15 countries show that the company is financially stable and can get things done. Ask for customer references and do your research on how well projects have been completed in the past, how reliable deliveries have been, and how quickly you can get help after the sale. If a supplier has been around for a long time and is well known in the market, you can be sure that their warranty obligations will be met and that they will provide expert help for the entire transformer's many-decade working life.

Conclusion

The S18 type 35KV oil-immersed power transformer improves efficiency by using improved core materials, better heat management, and strong insulation systems that fix performance problems that have been present in medium-voltage equipment for a long time. It cuts no-load losses by 20% or more and improves load efficiency by 10-15%. These changes directly lead to lower running costs and better sustainability measures. The fully sealed design means that it will work for more than 25 years with little upkeep, and the fact that it meets international standards makes it easier to use in a variety of legal settings. The S18 type 35KV oil-immersed power transformer is a great option for procurement workers who need to balance upfront investment against long-term value. It combines technical success with financial goals and environmental responsibilities.

FAQ

What operational lifespan can procurement teams expect from the S18 transformer?

If you follow the right care steps for the S18 type 35KV oil-immersed power transformer, like checking the oil and keeping an eye on the temperature, the S18 type 35KV oil-immersed power transformer should last for 25 to 30 years. The tightly sealed curved tank design stops oil from oxidizing and water from getting in, which are the main things that shorten the life of a transformer. This longer life span lowers the yearly cost of capital and makes planning for long-term assets easier.

How does the S18 achieve superior energy efficiency compared to S11 or S13 models?

The S18 type 35KV oil-immersed power transformer works better because it has high-quality silicon steel cores that keep magnetization losses to a minimum and precision-wound wire designs that lower resistive heating. These changes to the materials and the way they are made cut down on no-load energy use by more than 20% and load energy loss by 10-15%. This means that less energy is wasted overall in all working situations.

Can the S18 be customized for specific voltage ratios or environmental conditions?

Lijie Electric can make a lot of changes to the S18 type 35KV oil-immersed power transformer, like using non-standard voltage setups, better protecting sites from corrosion near the coast, and making them stronger in high-risk seismic zones. Our engineering team works with clients to make sure that the specs meet their individual business needs while still meeting economy, performance, and legal requirements.

Partner with a Trusted S18 Type 35KV Oil-Immersed Power Transformer Manufacturer

With 500,000 square meters of production space, Lijie Electric has been making S18 type 35KV oil-immersed power transformers for 40 years and has cutting-edge research and development (R&D) skills. Our 160+ engineering professionals make sure that every S18 type 35KV oil-immersed power transformer meets strict quality standards that have been proven by ISO 9001:2015, CE, UL, and IEC certifications. We know that big infrastructure projects need reliable supply lines, quality that doesn't change, and quick expert help. Our S18 type 35KV oil-immersed power transformer for sale has been shown to improve efficiency and comes with a full warranty and global service options. It can be used to power industrial buildings, improve utility distribution networks, or connect green energy systems. Purchasing managers looking for a reliable S18 type 35KV oil-immersed power transformer provider will find that our large production scale, technical knowledge, and customer-focused service build partnerships that last beyond the delivery of the first piece of equipment. Email our team at lijieelectrical@gmail.com to talk about your project needs and find out how Lijie Electric changes the way power is distributed.

References

1. International Electrotechnical Commission. (2018). Power Transformers – Part 1: General Requirements and Test Methods. IEC 60076-1 Standard Publication.

2. Zhang, L., & Chen, M. (2021). Energy Efficiency Improvements in Medium-Voltage Oil-Immersed Transformers: Material Science and Design Innovations. Journal of Electrical Engineering Technology, 16(4), 1847-1859.

3. National Institute of Standards and Technology. (2020). Lifecycle Cost Analysis Framework for Industrial Power Distribution Equipment. NIST Technical Publication Series.

4. American Society for Testing and Materials. (2019). Standard Guide for Dissolved Gas Analysis in Transformer Insulation Systems. ASTM D3612-02 Reapproval.

5. IEEE Power and Energy Society. (2022). Guide for Loading Mineral-Oil-Immersed Transformers and Step-Voltage Regulators. IEEE C57.91 Standards Document.

6. Renewable Energy Integration Consortium. (2023). Best Practices for Transformer Selection in Variable Load Applications: Solar and Wind Power Systems. Technical Report Series on Grid Infrastructure.
