The Critical Importance of S18 type 35KV oil-immersed power transformer in Today’s Power Systems

The S18 type 35KV oil-immersed power transformer has become an important part of modern electrical infrastructure in a time when power stability and energy economy are key to business success. This advanced transformer is a Tier 1 energy-efficiency product under GB 20052-2020. It has much lower no-load and load losses than older S11 and S13 models, and it is very reliable in a wide range of demanding situations, such as integrating renewable energy and maintaining critical power supply networks in cities.

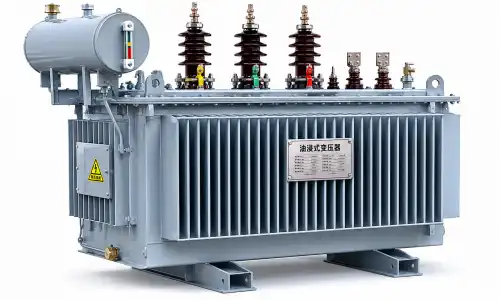

Understanding the S18 Type 35KV Oil-Immersed Power Transformer

The S18 is the newest generation of medium-voltage distribution technology. It was designed to work with 35kV grids, where speed and durability are very important.

Core Functions and Design Philosophy

At its core, the S18 transformer has advanced silicon steel cores and precisely tuned winding designs. Compared to older generations, this engineering method cuts no-load losses by more than 20% and load losses by 10–15%. Mineral or biodegradable shielding fluids are used in the oil-immersed design to handle heat loads and provide better dielectric strength. The laminated core assembly, copper or aluminum windings organized in concentric patterns, a fully sealed corrugated tank that keeps air out, and built-in safety systems with Buchholz switches and pressure release mechanisms are some of the most important parts.

Typical Applications Across Industries

The S18 technology has been shown to work well in a variety of working settings. These transformers handle the natural load changes that come with renewable energy sources while keeping voltage profiles stable in organized solar and wind farms with capacities ranging from 50MW to 100MW. Especially in chemical processing, car manufacturing, and electronics production, industrial parks rely on the S18's steady power supply and small noise footprint. Its small size and quiet operation make it perfect for urban building projects in free trade zones and central business areas. It meets strict environmental standards without lowering performance.

Key Specifications That Matter

When procurement pros look at the S18, they should pay attention to a few key factors. The 35kV voltage grade meets the needs of the sub-transmission network, connecting high-voltage transmission to neighborhood distribution. Noise levels are usually between 45 and 55 dB(A), which is achieved by carefully packing the cores and using materials that reduce shaking. The fully sealed corrugated tank design makes sure that it will last more than 25 years with very little upkeep. This solves one of the biggest problems in managing the lifecycle of a transformer.

Advantages of S18 Type 35KV Oil-Immersed Power Transformers Over Alternatives

Understanding how different transformers work is important when looking at your choices for medium-voltage uses, so you can make an informed choice regarding the S18 type 35KV oil-immersed power transformer.

Performance Comparison with Legacy Models

As you move from S11 to S13 to S18, you can see that operating effectiveness is getting better. Even though S11 transformers worked well for many years, their higher core losses meant that a lot of energy was wasted over their normal 20–30-year lives. The S13 generation debuted cold-rolled grain-oriented silicon steel with high permeability. However, the S18 generation pushes the limits even more with improved magnetic circuit design and lower eddy current losses. In real life, a building with ten S18 units instead of the same number of S11 units can expect to save more than 15% on energy costs every year, which will directly affect both running costs and goals for reducing carbon emissions.

Enhanced Cooling and Longevity

When it comes to this voltage class, oil absorption is better at managing heat than dry-type options. The dielectric fluid moves naturally through convection, moving heat from the core and windings to the tank's surface, where heaters release it into the air. This ONAN (Oil Natural Air Natural) cooling method doesn't use pumps or fans, so there are no technical places where it could fail. The sealed tank design stops oil rust and moisture from getting in, which are two main reasons why insulation wears out. This makes the parts last much longer than usual.

Compliance and Environmental Considerations

In today's global supply lines, you have to meet foreign standards. The S18 design meets the requirements of IEC 60076 and has the necessary CE and UL clearances for usage across borders. Environmental compliance includes more than just working efficiency. It also includes C4/C5 grade anti-corrosion coatings for tough seaside or industrial settings. FR3 natural ester fluids can be used to make units unique in situations where fire safety or biodegradability are very important. This gives you options without affecting the electrical performance.

Procurement Insights for Global B2B Clients

To choose the right S18 type 35KV oil-immersed power transformer, you have to weigh the scientific needs against the practicalities of business and the needs of a long-term relationship.

Aligning Technical Specifications with Operational Needs

When electrical engineers look at an S18 type 35KV oil-immersed power transformer, they should begin by analyzing the load curve. Capacity selection is based on estimates of peak demand, power factor features, and expected growth paths. The S18's strong winding design can handle short-circuit mechanical pressures, which is very important for industrial settings with big motor loads or welding equipment. Temperature rise limits, usually 65K for hot spots on the windings, make sure that the system stays safe even when it's overloaded for a long time, which is allowed by IEC 60076-7 standards.

Identifying Reliable Supply Partners

Different transformer makers' quality is still a real worry for buying managers. Established suppliers like Lijie Electric show their dedication by holding a number of certificates, such as ISO 9001:2015 for quality management, CQC for energy efficiency verification, and PCCC for product approval. The ability to make things is important. Facilities with dedicated testing labs, vacuum impregnation systems, and climate-controlled assembly areas make goods that are always reliable. The annual production capacity shows how big the business can grow for multi-phase projects that need to be delivered in batches and on tight deadlines.

Pricing Structures and Total Cost Considerations

In lifetime economics, the unit price is just one part of the whole. Over the course of 25 years, energy losses often outweigh the original capital costs by three to five times. This means that efficiency standards are important from a financial point of view. Bulk buying for big projects usually comes with 10–15% volume savings and lets you change the specifications for things like how the tap changers are set up, how security devices are integrated, and how the environment is adapted. Payment terms based on project benchmarks, like a deposit, production finish, pre-shipment inspection, and launching, protect both parties and make it easier to handle cash flow.

Maintenance and Operational Best Practices

To get the most value out of your S18 type 35KV oil-immersed power transformer assets, you need to pay close attention to routine upkeep and performance tracking.

Routine Inspection and Testing Schedules

When done once a year or every six months, dissolved gas analysis (DGA) can find small problems before they become big ones. Different types of failure are shown by different gas concentrations. For example, high hydrogen levels indicate partial discharge, while high ethylene and acetylene levels indicate heat or electrical problems, respectively. Testing for oil breakdown voltage makes sure that the dielectric strength stays above the 30kV baseline limits. Every three months, the integrity of the tank, the state of the bushings, and the function of any extra equipment should be checked visually. Thermal imaging scans can find hot spots that mean connections aren't working right, or there are problems inside the tank.

Troubleshooting Common Operational Issues

When there is a harmonic load, acoustic irregularities often mean that the core laminate is weakening or that there are magnetostriction effects. A drop in efficiency could happen if the wound resistance goes up because of insulation or moisture absorption. These factors are constantly tracked by modern tracking systems, which send out alerts when deviations go beyond set limits. The S18 type 35KV oil-immersed power transformer features a completely sealed design, which reduces many common failure modes, but it is still important to follow proper loading procedures and avoid operating for longer than the nameplate rating in order to meet design lifespan goals.

Maintenance Case Example

S18 transformers were used as step-down units for 35kV collection systems in a 100MW solar farm in the southwestern United States. By doing quarterly DGA tests and yearly thermographic scans, the workers were able to see that one unit was slowly losing moisture in the third year. By reconditioning the oil in a timely manner, the dielectric qualities were returned before damage to the insulation happened. This saved the company up to $150,000 in replacement costs and prevented unplanned downtime during peak production season. This proactive method shows how systematic repair practices can protect investments and keep the business making money.

Future Trends and Innovations in Oil-Immersed Transformers

The transformer business is always changing to adapt to new grid problems and the need for sustainability, which is affecting energy systems around the world.

Advanced Materials and Smart Monitoring

More loss reductions could be achieved through research into amorphous metal cores, but uses above 10kV classes are currently limited by the difficulty of producing them. Nano-enhanced insulation fluids show better thermal transfer and dielectric strength, which could lead to smaller designs that are still reliable. When IoT devices and edge computing platforms are combined, passive assets are turned into smart grid components that give real-time health checks and warnings of impending failures that make the best use of upkeep resources.

Sustainability and Carbon Reduction Initiatives

The push to be carbon neutral increases the need for transport equipment that is very efficient. Replacing old S11 transformers with S18 units makes a real difference in meeting the regional grid loss reduction goals required by the dual carbon policies. Life cycle reviews are becoming more and more important in purchasing decisions. These look at more than just operating efficiency. They also look at things like how recycled the materials are and how they will be disposed of at the end of their useful life. Environmental, social, and governance factors affect B2B buying choices, so companies that invest in green production sites and sustainable supply lines have an edge over their competitors.

Market Evolution and Strategic Implications

As the use of green energy grows around the world, there will always be a need for efficient S18 type 35KV oil-immersed power transformer units that can handle different generation trends. As industries become less centralized, they need flexible, scalable systems that can support gradual capacity growth. Supply chain managers look for relationships with makers that can show they have a lot of production capacity, the technical know-how to make changes, and responsive customer service networks after the sale. Because of the way the market works, sourcing tactics that are only based on cost don't work as well as those that are backed by established players with track records and full-service environments.

Conclusion

The S18 type 35KV oil-immersed power transformer meets important needs in modern power systems: it is very energy efficient, which lowers costs and carbon emissions; it has a sealed tank that lasts a long time, which reduces the amount of maintenance that needs to be done; and it works reliably in a wide range of settings, from heavy industry to renewable energy. Based on current standards, its Tier 1 efficiency rate makes it a good investment for the future that meets both instant technical needs and sustainability goals. People who work in procurement who need reliable distribution systems will find that the S18 gives them real value throughout the whole project lifecycle.

FAQ

What distinguishes the S18 from the earlier S11 and S13 transformer series?

The S18 has improved silicon steel cores and better winding design than the S11 models, which results in over 20% less no-load losses and 10–15% less load losses. The S18 has a better magnetic circuit design and better sealing technology than the S13. This makes it last longer (25+ years) and meet tougher GB 20052-2020 Tier 1 economy standards.

Can the S18 transformer operate reliably in harsh environmental conditions?

The completely sealed corrugated tank design keeps out water and other contaminants, and the C4/C5 anti-corrosion coatings protect the outside surfaces in seaside or industrial settings with a lot of dampness or chemical exposure. There are temperature tolerance settings that allow operation from -25°C to +50°C without any loss of function.

How does the S18 handle renewable energy load fluctuations?

The strong construction of the windings and the thermal control system allows for quick changes in load that happen with solar and wind power. Low stimulation current reduces reactive power use when the load is light, and high thermal durability allows for short overloads without damaging the insulation or speeding up the aging process.

What monitoring capabilities integrate with modern grid management systems?

Optional smart tracking packages, such as vibration sensors, multi-point temperature measurement, and dissolved gas analysis interfaces, can be added to standard setups. Communication standards like Modbus, DNP3, and IEC 61850 make it possible to connect to SCADA systems for distant diagnosis and planning of preventative maintenance.

Partner with Lijie Electric for Your S18 Type 35KV Transformer Requirements

Lijie Electric Power Technology Group has been making transformers for more than 20 years and has 500,000 square meters of high-tech production sites in Xuzhou and Nantong that they use to make their products. We are a manufacturer of S18 type 35KV oil-immersed power transformer products, and we can fully customize voltage ratios, tap designs, and environmental changes. We are also certified by ISO 9001:2015, CE, UL, and IEC. We work with procurement managers, electrical engineers, and project leaders who need a trusted source for large quantities of transformers with consistent quality across multiple deliveries. You can email our technical team at lijieelectrical@gmail.com to talk about your unique project needs, get full specifications, and find out how our manufacturing capabilities and engineering support can help you improve your power infrastructure. You can find detailed information about our products and case studies that show our dedication to long-term relationship success at lijie-electrical.com.

References

1. IEEE Standards Association. (2019). IEEE Standard for Mineral Insulating Oil in Electrical Apparatus. IEEE Std C57.106-2015, Institute of Electrical and Electronics Engineers.

2. International Electrotechnical Commission. (2011). Power Transformers – Part 1: General Requirements. IEC 60076-1:2011, International Electrotechnical Commission Technical Committee 14.

3. National Institute of Standards and Technology. (2020). Energy Efficiency Standards and Analysis for Distribution Transformers. NIST Technical Note 2145, U.S. Department of Commerce.

4. Zhang, L., & Liu, Y. (2021). Comparative Analysis of Oil-Immersed Transformer Loss Reduction Technologies in Medium Voltage Applications. Electric Power Systems Research, 195, 107156.

5. World Energy Council. (2022). Grid Infrastructure Modernization and Efficiency Improvements: Global Perspectives. World Energy Council Technical Report Series.

6. Transformer Reliability Working Group. (2018). Life Cycle Cost Assessment Methodologies for Power Transformers. CIGRE Technical Brochure 738, International Council on Large Electric Systems.
