Promotion and Application of S18 type fully sealed distribution transformer

A significant advancement in oil-immersed power distribution technology is the S18 type fully sealed distribution transformer. It addresses critical operating issues for power utilities, renewable energy providers, and industry manufacturers. This high-tech equipment's vacuum-injected, corrugated tank eliminates the need for an oil guard. A totally enclosed chamber protects transformer oil from oxygen and moisture. The S18 line is more dependable, cheaper to maintain, and lasts longer for tough grid and industrial purposes. Its energy efficiency exceeds Level 1, and losses are 10–20% lower than S13 versions.

This S18 type fully sealed distribution transformer technique addresses oil deterioration and moisture intrusion. These two issues degrade shielding and speed equipment breakdown in older systems.

Technical Specifications and Core Design

Our S18 type fully sealed distribution transformer model operates from 30kVA to 3,150kVA at 6kV–12kV. It works in single- and three-phase systems. The non-excitation voltage control system handles voltage fluctuations in various load scenarios with tap ranges of ±5% or ±2·2.5%. Yyn0 and Dyn11 connection group names work with different grid designs. These transformers function with 50Hz and 60Hz rates, making them compatible with the global power system.

The shielding system can handle 35kV AC power frequency and 75kV L1 impulse voltages. This protects against fast overvoltages common in utilities and industries. The oil-immersed self-cooling system exploits the corrugated tank's increased surface area to swiftly dissipate heat, maintaining it at the proper temperature even under steady load without cooling equipment.

Working Principle and Efficiency Innovations

Corrugated fins stretch and contract to adjust to oil volume changes over temperature cycles, enabling the totally sealed design. Breathing devices that let airborne contaminants into the generator oil are eliminated. High-permeability, grain-oriented silicon steel cores between 0.18 and 0.23 mm thick decrease magnetic hysteresis and eddy current losses. An S18 type fully sealed distribution transformer with precision-wound copper or aluminum windings has 25–30% reduced no-load losses than an S13.

All items meet stringent national and international standards, including GB/T 1094 and IEC 60076. To maintain safe operation for over 30 years, the design manages partial discharge values below 100pC for dielectric stability. Lifetime-cost-focused buying managers have a reduced total cost of ownership.

Advantages and Applications of S18 Fully Sealed Distribution Transformers

The sealed design idea has practical applications in various industries, especially when dependability and minimal maintenance are vital for purchase.

Core Operational Benefits

Moisture removal stands as the primary advantage of the S18 type fully sealed distribution transformer. Traditional transformers with conservators exchange air as temperatures change. Humidity damages cellulose insulation and accelerates oil oxidation. While functioning, the S18 type fully sealed distribution transformer's hermetic seal keeps oil pure. This makes insulation last longer and reduces the need for costly oil testing and filters. Longer maintenance durations save manpower and reduce downtime for firms with tight production schedules.

Noise reduction represents another critical benefit. These transformers are 5–10dB quieter than national regulations due to their sealed tank and optimum core clamping. They are ideal for hospitals, schools, and residential areas in cities that need to manage noise pollution. In small spaces like basement vaults and integrated substations, where real estate costs affect project profitability, small footprints allow installation.

Real-World Application Scenarios

Power providers in densely populated cities employ S18 type fully sealed distribution transformers at pad-mounted and vault sites for reliability. Underground systems are constantly at risk of flood or rainwater pollution, but the sealed design prevents it. Remote places are challenging to service; regional distribution businesses benefit from the operation's lack of upkeep.

Steel industries, chemical facilities, and mines need transformers that can withstand dust, acidic air, and large temperature variations. The corrugated tank's anti-corrosion treatment and protective structure shield the inside from coastal salt spray and processing plant chemical fumes. These facilities have longer service durations and better uptime than oil-filled units.

Rural solar farms and wind farms use self-sufficient equipment. The S18 type fully sealed distribution transformer is ideal for step-up usage at generating sites because it works well with harmonic distortion, which is common in green energy systems with several inverters. The transformer can function in outside temperatures up to 40°C without cooling, which is useful for offshore wind farms and desert solar panels.

Comparing S18 Fully Sealed Transformers with Market Alternatives

When buying teams compare oil-immersed S18 type fully sealed distribution transformers to other varieties, they can make wise selections that suit company goals and stay under budget.

Performance Metrics Against S11 and S13 Models

Legacy S11 transformers were initially cheaper; however, they use more energy each year due to increasing no-load and load losses. S13 models improved this, while S18 type fully sealed distribution transformer models are much more efficient due to superior magnetic materials and winding procedures. Energy savings from decreased energy waste can offset the increased equipment expenses for a normal 1,000kVA installation working at 75% load factor in 3 to 5 years, especially in high-power areas.

Sealed systems have superior load stability. Without oil oxidation, dielectric strength remains constant over decades, unlike conservator-equipped devices, which degrade insulation with time and require more diagnostic testing and replacement cycles.

Sealed Oil-Immersed Versus Dry-Type Transformers

Dry-type transformers are ideal for businesses in safe buildings since mineral oil might cause fires. They are 1% to 2% less efficient and can't tolerate overloads since they can't cool themselves with air like oil-immersed versions. S18 type fully sealed distribution transformers handle heat better and reduce fire danger with advanced oil mixes and pressure release systems.

Oil-covered technology is preferred by noise profiles. Dry-type units' magnetostriction and cooling fans are noisier, which might be bothersome. Vibration-isolated mounting and the S18 type fully sealed distribution transformer's oil bath decrease noise.

These systems differ due to climate change resistance. Dry-type transformers don't operate well in humid coastal locations or dusty workplaces because air particles make cooled air difficult to circulate. The S18 type fully sealed distribution transformer's hermetic seal works in all conditions, making it ideal for harsh industrial and outdoor environments.

Procurement Insights: Buying and Maintaining S18 Transformers

Know what suppliers can accomplish, how much they charge, and how they assist projects throughout their lives to sell items. This will help you finish the project and maintain assets.

Supplier Selection and Commercial Considerations

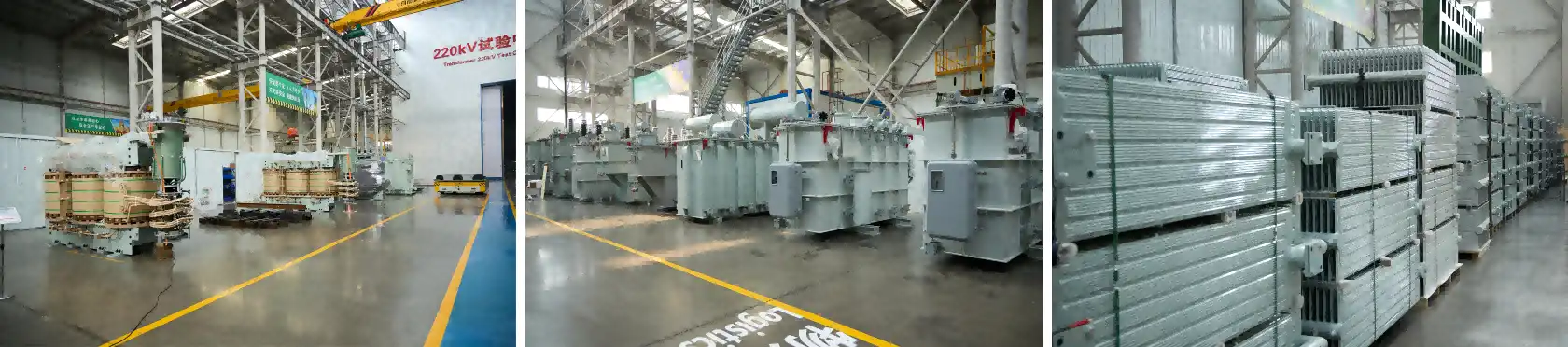

Only authorized producers that can manage huge orders can work on massive building projects. The main Lijie Electric Technology Group plants are in Xuzhou and Nantong, China. They cover 500,000 square meters and can produce enough S18 type fully sealed distribution transformer units annually for hundreds of projects. Over 2,000 employees, including 160 advanced-degree engineers, provide steady manufacturing and technical adaptability.

Foreign projects must meet certification criteria. CE and UL certificates and ISO 9001:2015 Quality Management System certification ensure the product meets European and North American standards. For EPC professionals who work in numerous areas, IEC accreditation for 10kV and 35kV power transformers ensures they meet worldwide grid requirements.

Lead times vary based on order volume and customization complexity. Standard configurations ship in 8–12 weeks, while unique designs with unusual tap patterns or impedance values may take 14–16 weeks. Early in project timeframes, procurement managers should confirm delivery schedules and define plant testing criteria with suppliers.

Warranty periods and post-sale support affect long-term asset management strategies. Comprehensive 24-36-month manufacturing defect warranties and skilled installation and operational assistance reduce project risk. Regional service networks or agreements with local specialist service providers assist suppliers in providing continuing repair support.

Maintenance Optimization Through Design

The S18 type fully sealed distribution transformer makes maintenance distinct from normal transformers. It takes longer between a normal oil sample and dissolved gas analysis, reducing lab expenses and field technician needs. Corrugated tank designs eliminate conservatory maintenance such as desiccant replacement and breathing device cleaning. This reduces annual maintenance by 40–60%.

Online tracking tools provide condition-based maintenance schedules. SCADA systems use temperature, partial discharge, and load tracking sensors. This helps utility firms and manufacturing managers remotely monitor their assets and arrange maintenance depending on how they're operating.

Trusted Brands and Supplier Selection for S18 Transformers

Finding producers with a track record, good quality control, and sustainability aims is the best method to ensure that purchase selections match short-term project demands and long-term corporate goals.

Quality Assurance and Manufacturing Excellence

Through comprehensive testing, Lijie Electric Technology Group explains how to develop amazing goods. The National Transformer Quality Supervision and Inspection Center and Wuhan High Voltage Research Institute perform routine, type, and special testing on every S18 type fully sealed distribution transformer. These independent validations ensure performance standards are met before equipment leaves the plant.

The tank is solid under high pressure for 24 hours during pressure and leakage tests, preventing oil leaks throughout the transformer's lifespan. Lightning impulses indicate that the insulating system can manage air overvoltages, according to IEC norms. Before shipping, high-accuracy power testers verify Level 1 energy efficiency. This involves measuring no-load and load losses.

Automated winding machines, vacuum oil-filling systems, and climate-controlled factory assembly spaces provide consistent production. This reliability is crucial for projects with dozens or hundreds of units that must behave similarly. Changes in specifications might make the grid unstable and maintenance tougher.

Certifications and Global Market Presence

Chinese officials declared Lijie Electric a "National High-Tech Enterprise" and a "Specialized, Refined, and New 'Little Giant'" enterprise, indicating its ability to innovate and dominate the market. CQC energy efficiency and PCCC product certifications demonstrate a business's commitment to power company environmental performance and operating safety requirements for the S18 type fully sealed distribution transformer.

The company's presence in Australia, New Zealand, Southeast Asia, Central Asia, and Africa proves it can manage various rules and weather circumstances. As an exporter, you learn about diverse cultures and logistics, which helps foreign EPC businesses accomplish projects in nations with complex supply chains.

Customers get timely professional advice for the life of their instruments with GB/T 27922-2021 certification for after-sales service excellence. These services are supported by "Quality First, Technology-Driven, Service-Oriented, and Integrity-Based" thinking. These long-term ties make infrastructure development function.

Conclusion

Advanced magnetic materials, hermetic closure technology, and thermal management answer some of the biggest current power distribution difficulties in the S18 type fully sealed distribution transformer. Due to its 10–20% better efficiency than S13 models, lesser maintenance, and longer service life, utilities, industrial facilities, and green energy projects save a lot on ownership costs. The sealed construction resists moisture and performs well in harsh situations like salt spray and desert heat. The S18 type fully sealed distribution transformer is durable, fulfills all laws, and has a long lifespan that saves money, making it a suitable choice for infrastructure purchasing teams. It will ensure grid stability and operations for decades.

FAQ

How does the sealed design improve reliability compared to traditional transformers?

Airtight seals prevent moisture and oxygen from entering transformer oil. This prevents insulation breakdown and oil oxidation, older systems' key failures. The corrugated tank can tolerate temperature rise without breathing equipment, keeping oil pure throughout the S18 type fully sealed distribution transformer's life.

What capacity range best suits industrial versus utility applications?

Factory workers employ 315kVA to 1,600kVA units to power manufacturing machines and process loads. Utility distribution applications range from 30kVA for single-phase service in the country to 3,150kVA for grid substations in heavily populated residential and business districts.

Can S18 transformers handle renewable energy system harmonics?

Yes, some S18 type fully sealed distribution transformer designs employ superior wrapping and core materials to tolerate harmonic distortion in inverter-based power systems. Buying something with the proper impedance ensures compatibility with renewable energy systems. This prevents resonances that harm equipment or degrade power quality.

Partner with a Trusted

Manufacturer

After 40 years of transformer manufacture, Lijie Electric Technology Group has modern production facilities and quality control to ensure its S18 type fully sealed distribution transformers fulfill the highest project requirements. Our engineering team and procurement professionals choose the best transformers for power grid, commercial, and green energy usage that are technically compatible, cost-effective, and compliant with all regulations. Every item meets ISO 9001:2015, CE, UL, and IEC requirements, ensuring reliability and consistency for building projects. Contact us at lijieelectrical@gmail.com to discuss your needs, acquire technical details, or get quotations for upcoming works. Visit lijie-electrical.com to examine all our goods and understand how our transformer solutions aid global grid upgrading and industrial efficiency objectives.

References

1. IEEE Standard C57.12.00-2015, "Standard for General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers," Institute of Electrical and Electronics Engineers, New York, 2015.

2. International Electrotechnical Commission, "IEC 60076-1:2011 Power Transformers – Part 1: General," IEC Central Office, Geneva, Switzerland, 2011.

3. Zhang, W., and Liu, H., "Comparative Analysis of Energy Efficiency in Oil-Immersed Distribution Transformers," Journal of Electrical Engineering Technology, Vol. 15, No. 3, 2020, pp. 1247-1258.

4. National Electric Power Certification Center, "Technical Guidelines for Fully Sealed Distribution Transformer Selection and Application," China Electric Power Press, Beijing, 2019.

5. Thompson, R., "Life Cycle Cost Analysis of Distribution Transformer Technologies for Grid Applications," Electric Power Systems Research, Vol. 182, 2020, pp. 106-118.

6. American National Standards Institute, "ANSI C57.12.90-2016 Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers," ANSI, Washington, D.C., 2016.
