What are the key features of SC(B)12 35KV oil-immersed transformer?

The SC(B)12 type 35KV oil-immersed transformer is a strong technical answer that is widely used in business, utility, and industrial settings to distribute power efficiently. Choosing the right generator has a big effect on how reliable it is, how much energy it uses, and how much it costs to maintain over time. This guide is for procurement managers, electrical engineers, distributors, and EPC contractors who want to learn more about 35KV oil-immersed transformers so they can make smart buying decisions that meet global industry standards and operational needs. We give companies that want to invest in stable medium-voltage power infrastructure a road map by looking at key technical standards, performance qualities, and buying issues.

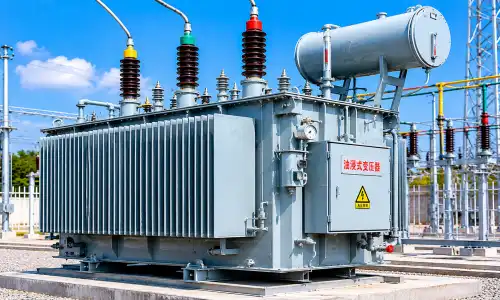

This high-performance power distribution unit is the SC(B)12 35KV oil-immersed transformer. It was made for medium-voltage utility and industrial grids. The S12 label stands for a certain level of efficiency that is higher than the S11 standards. It focuses on lowering no-load losses and improving cooling. This equipment fixes important problems in the industry, like grids that lose too much energy over time, loads that change quickly, and the need for high dielectric strength in 35KV step-down uses. It offers a strong, airtight solution that stops oil from oxidizing and water from getting in, ensuring long-term dependability.

Understanding the SC(B)12 35KV Oil-Immersed Transformer

Core Operating Principles

SC(B)12 type 35KV oil-immersed transformer is designed with insulating oil used in oil-immersed transformers to help get rid of heat and keep electricity safe. This makes voltage regulation safe and effective. The oil does two things: it acts as an insulator between the high-voltage parts and lets natural airflow cool the parts. The magnetic core, windings, oil tank, and cooling systems are some of the most important parts. They are all designed to meet strict 35KV voltage standards. Cold-rolled grain-oriented silicon steel is used in the magnetic core, which reduces eddy current losses and increases magnetic flux density. Its design meets well-known standards like IEC 60076 and the IEEE C57 series, ensuring reliable performance across a wide range of operating environments.

Technical Standards and Compliance

Knowing these technical details helps business-to-business clients decide if a product meets performance and legal standards. The rating of 35KV is designed to work with sub-transmission levels, which are between high-voltage transmission and localized distribution. You can use this line of products to directly lower 20kV and 35kV grid power to 400V distribution power or 10kV transmission power for engineering projects. Transformers must meet safety, environmental, and performance standards set by power utilities, renewable energy developers, and industrial manufacturers around the world. This is made possible by international certifications like CE, UL, and IEC.

Key Features and Performance Metrics of SC(B)12 Transformers

Advanced Winding Technology

In the SC(B)12 type 35KV oil-immersed transformer, the high-voltage winding is made with chopped glass fiber felt and high-quality conductors. A world-class Heydrich vacuum casting machine is used to cast it under pressure. This effectively stops partial discharge, with a level of less than 5pC—a key indicator of better insulation integrity that lowers the risk of internal arcing and stops partial discharge. An automatic box-winding machine is used to wind the low-voltage winding, which has high-quality foil wires. The foil winding machine has a hydraulic tension winding device for foil wire that saves energy, high-precision detection with an accuracy of ±0.5mm, and advanced argon arc welding technology, all of which are very important for making sure the quality of the coil winding. These ways of making things help make sure that the electrical performance and material strength are always the same.

Superior Energy Efficiency and Loss Reduction

Advanced insulation materials and fault avoidance features are built into the SC(B)12 line to improve safety and lower working risks. The S12 efficiency level cuts no-load losses by about 20% compared to S11 models, which means that over a 20-year lifetime, running costs are much cheaper. These transformers are great for big industrial loads because they can handle a lot of weight and use very little energy. Their improved oil-cooling methods, such as ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced) designs, help lower temperature stress and upkeep needs, which makes the whole system more reliable. Because it is safe, efficient, and easy to service, the 35KV oil-immersed transformer is a good choice for businesses that want to manage their power in a way that is both environmentally friendly and saves money.

Environmental Resilience and Protection Features

The SC(B)12 type 35KV oil-immersed transformer has a multi-layer anti-corrosion covering that meets the C4 or C5-M standard. This means it can be used in coastal places with a lot of dampness and keeps salty mist out. The fully sealed tank design keeps oil from going bad and keeps wetness from getting into it. Standard units come with a Buchholz switch, a pressure release valve, and a signal thermometer that can be used to check for internal flaws and temperature state in real time. These safety devices allow for planned maintenance and quick fault finding, which cuts down on unplanned downtime. Under normal ONAN conditions, the fully sealed design keeps the oil from aging. This means that dissolved gas analysis is usually all that is needed instead of regular oil changes, which lowers the cost of maintenance over the life of the machine.



Comparing SC(B)12 35KV Oil-Immersed Transformers with Other Solutions

Oil-Immersed vs. Dry-Type Transformers

There are important differences between SC(B)12 oil-immersed transformers and dry-type options when it comes to how they handle heat, how they affect the environment, how much noise they make, and how long they last. Most of the time, oil-immersed models can handle more load and get rid of heat better, which makes them perfect for heavy-duty settings like steel mills and chemical plants that need stable 35KV/10KV or 35KV/0.4KV conversion to handle high-surge motor starts. While dry-type transformers are better for indoor setups because they are less likely to catch fire, oil-immersed units work better outside in tough, high-load circumstances.

Performance Benchmarking Across Manufacturers

By looking at certifications and warranties that come with products from top manufacturers and comparing their quality, procurement teams can make sure that the supplies they choose meet operational needs and legal requirements. This ensures that the supplies will work reliably for a long time in global markets that are very competitive. The SC(B)10, SC(B)11, SC(B)12 type 35KV oil-immersed transformer, SC(B)13, SC(B)14, and SC(B)18 series power transformers from Lijie Electric are low-noise, low-loss units that have passed regular, type, and special tests by the National Transformer Quality Supervision and Inspection Center and the Wuhan High Voltage Research Institute. As a result, they have been given official product model registration certificates. This strict approval method makes sure that quality and consistency are maintained across large amounts, which eases procurement managers' worries about stability and dependability.

Procurement Considerations for SC(B)12 35KV Transformers

Supplier Evaluation Criteria

Buyers should judge suppliers based on price, delivery times, warranty coverage, and customer service after the sale. Customization options and terms for ordering in bulk make it easier to meet a wide range of industrial needs, including SC(B)12 type 35KV oil-immersed transformer applications. To make sure delivery is on time and doesn't cost too much, shipping logistics that are tailored for international clients are very important. For example, export procedures and packaging standards must be streamlined. Lijie Electric has two main factories in Xuzhou and Nantong that cover a total of 500,000 square meters and make more than 5 billion RMB in sales every year. This large-scale production capacity allows for ongoing bulk delivery instead of small-batch production, which meets the needs of EPC projects and infrastructure improvements for large-scale supply capability.

Certification and Quality Assurance

There are several steps to the checking process in procurement quality control. Important parts of a checkup include standard tests on the insulation, such as power-frequency resist voltage and generated overvoltage tests, which check the stability of the insulation. Breakdown voltage, moisture content, and acidity levels are all checked in an oil quality analysis. By measuring the partial discharge, you can be sure that the transformer works without any internal arcing. Temperature rise testing proves that the transformer can keep up its rated kVA without going over the oil or windings' thermal limits. For pressure leak checks, the tank is under pressure for 24 hours to make sure the airtight seal is still intact. Lijie Electric's 10kV and 35kV power transformers have been certified with the ISO 9001:2015 Quality Management System, the CE and UL certifications, and the IEC certification. This makes sure that they meet the international standards that global procurement teams look for.

Cost-Benefit Analysis

Putting suppliers with full installation instructions and maintenance services at the top of the list can greatly increase operational uptime and return on investment, especially when specifying equipment such as SC(B)12 type 35KV oil-immersed transformer. The unit price, how well it saves energy, and upkeep costs are all part of the total lifetime cost. It is possible to see how much money S12 models save over decades of use because they cut no-load costs by 20%. Large building and renewable energy projects' procurement managers know that investing in high-efficiency transformers up front pays off in the long run by lowering the amount of power used and increasing the equipment's lifespan.



Troubleshooting and Lifespan Optimization

Common Failure Modes and Prevention

Electrical overloads, mechanical wear, and external pressures are some of the most common reasons why SC(B)12 type 35KV oil-immersed transformer fails. All of these problems can be avoided with regular upkeep. Overloading with electricity can damage the insulation around the windings, and mechanical wear can damage the bushings and tap changers. Environmental stresses, like oil oxidation and water getting in, weaken the dielectric strength. Testing the oil, inspecting, and following preventative maintenance schedules on a regular basis can extend the life of a transformer and keep it working well. Dissolved gas analysis gives an early warning of internal problems so that they can be fixed before they become very bad.

Maintenance Best Practices

Using these strategies not only cuts down on unexpected downtime but also makes it easier to handle assets, giving industry owners who invest in sustainable power infrastructure a clear return on their investment. As part of routine maintenance, oil levels are checked visually, leaks are looked for, temperature signs are watched, and safety devices are tested to make sure they work. Every year, testing should include checking the winding resistance, analyzing the oil, and measuring the insulation resistance. The SC(B)12 models' fully sealed design means they need less upkeep than units with breathers. This lowers long-term operational costs and ensures stable performance across big batches, as well as an expected operational lifespan.

Application Scenarios for SC(B)12 35KV Oil-Immersed Transformers

The SC(B)12 type 35KV oil-immersed transformer is used in three main high-demand situations. Heavy industrial buildings like chemical plants and steel mills need stable voltage conversion with a lot of power to handle motor starts with a lot of spikes. These transformers are used in renewable energy hubs like wind farms and solar PV stations so they can handle harmonic distortions and cycle loads in high-UV outdoor settings. Remote mining operations benefit from the hermetically sealed design, which ensures reliable performance in high-altitude, dusty environments where maintenance access is limited. This keeps the power going to the equipment used for extraction and processing. These uses show how flexible and reliable 35KV oil-immersed transformers can be in tough operating situations.

Conclusion

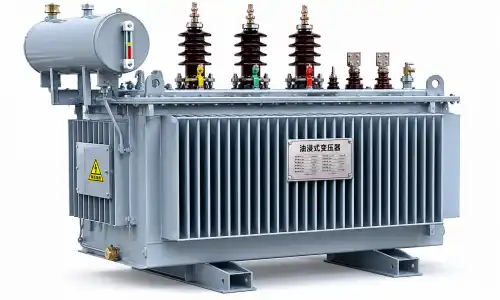

The SC(B)12 type 35KV oil-immersed transformer has a great mix of energy efficiency, operational reliability, and environmental toughness. Its advanced winding technology, superior loss reduction, and fully sealed design meet important buying needs in heavy industry, green energy projects, and power companies. Purchasing managers should look for suppliers that have a history of making things, international certifications, and a lot of support after the sale. This transformer is a good investment for companies that want to construct a long-lasting power system that meets global standards and operational needs because it has low lifecycle costs and strong performance characteristics.

FAQ

How long does a SC(B)12 35KV oil-immersed transformer usually last?

These transformers are made to work safely for 20 to 30 years with the right care. The building keeps oil from breaking down, and regular study of dissolved gases lets upkeep be planned ahead of time, which extends the life of the system.

If you compare the S12 to the S11, how efficient is it?

The S12 series cuts no-load losses by about 20%, which lowers operational costs by a large amount over a 20-year period. This improvement comes from using better core materials and more modern production methods that waste less energy.

Can this transformer be used in coastal areas with a lot of humidity?

Yes, the 35KV oil-immersed type has a multi-layer anti-corrosion coating that meets the C4 or C5-M standard. It also has a fully sealed tank that keeps salty mist out, so it can be used in tough seaside areas.

What kinds of customization choices are there for different business uses?

Voltage ratios, tap changer configurations, and cooling systems can all be changed by manufacturers to fit the needs of a specific project. Lijie Electric can make changes for grid, commercial, and green energy uses, making sure that the technology works with a range of operating requirements.

Partner with Lijie Electric for Reliable SC(B)12 35KV Oil-Immersed Transformers

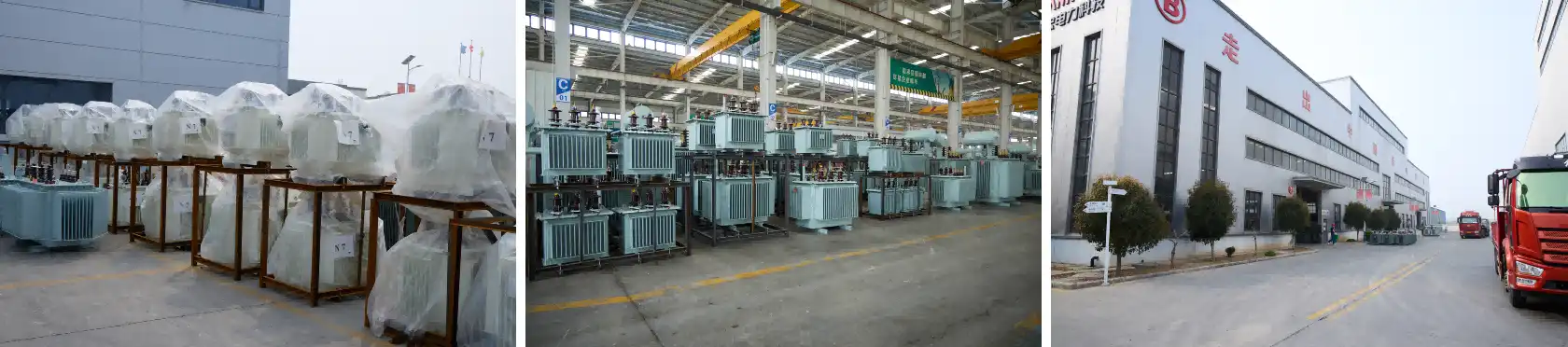

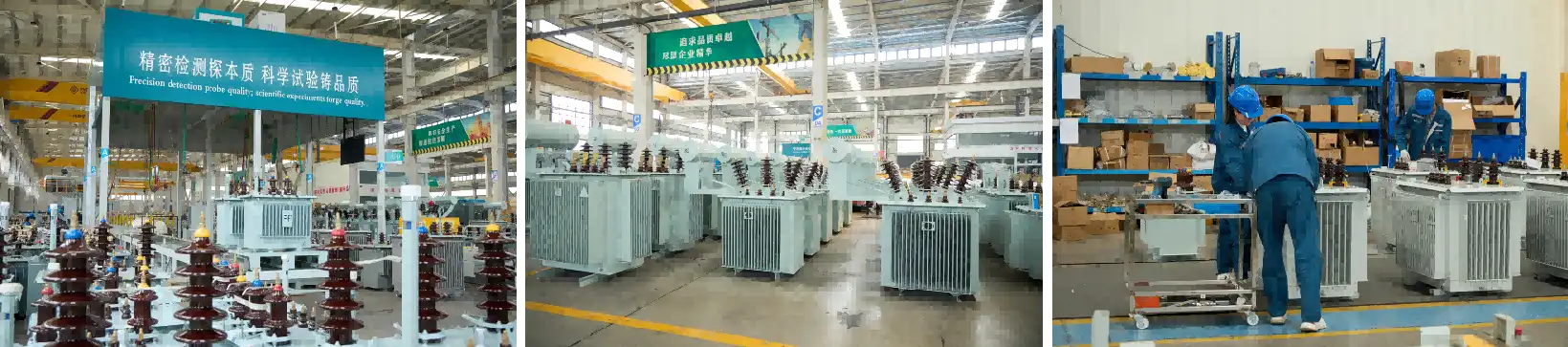

With more than 2,000 employees and 500,000 square meters of manufacturing space, Lijie Electric is a reliable supplier of SC(B)12 type 35KV oil-immersed transformers. Our goods are certified by IEC, CE, and UL, which means they meet foreign standards. We offer full help after the sale, expert advice, and customization options that fit with the way you make buying decisions. Check out our list of certified products or email our team at lijieelectrical@gmail.com to get quotes that are specific to your business needs. Visit lijie-electrical.com to see our full selection of power distribution options and learn how our ISO 9001:2015-certified production processes give our B2B clients around the world the best value and performance.

References

1. IEEE C57.12.00-2015, Standard for General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers. Institute of Electrical and Electronics Engineers.

2. IEC 60076-1:2011, Power transformers – Part 1: General. International Electrotechnical Commission.

3. GB/T 6451-2015, Three-phase oil-immersed power transformers with 10 kV voltage level and below. Standardization Administration of China.

4. Heathcote, M.J. (2007). J & P Transformer Book: A Practical Technology of the Power Transformer. Elsevier Science.

5. Kulkarni, S.V., & Khaparde, S.A. (2004). Transformer Engineering: Design and Practice. Marcel Dekker.

6. Harlow, J.H. (2012). Electric Power Transformer Engineering. CRC Press.
