How Does S20 35KV Oil-Immersed Power Transformer Improve Efficiency?

The S20 type 35KV oil-immersed power transformer is more efficient because it uses better core materials, better winding design, and better thermal management. This transformer has about 10-15% less no-load losses than older types because it is made with high-permeability cold-rolled grain-oriented silicon steel and uses precise manufacturing methods. The fully sealed curved tank structure better gets rid of heat and keeps water out, which increases the tank's useful life. With its intelligent monitoring features and Level 1 energy efficiency certification, the S20 helps power utilities, industrial facilities, and renewable energy installations save money over the course of their lifetime, even in harsh operating conditions.

Introduction

The total cost of ownership for middle and large-scale power distribution projects is largely based on how efficient the transformers are. Even small improvements in efficiency add up to big savings in energy and less damage to the environment over the course of a normal 30-year operational time. We know that procurement managers, electrical engineers, and project leaders are under more and more pressure to meet stricter regulation standards while balancing upfront capital costs with long-term operational costs.

Problems like these are solved in the S20 type 35KV oil-immersed power transformer by using new materials, improving its structure, and smart design features. This article looks at the specific engineering strategies that make the S20 better than other options in terms of how well it uses energy, how reliable it is, and how much it costs over its lifetime. If you are in charge of grid infrastructure, industrial complexes, or projects that integrate green energy, knowing these technical differences will help you make better purchasing choices that will help your company reach its efficiency goals.

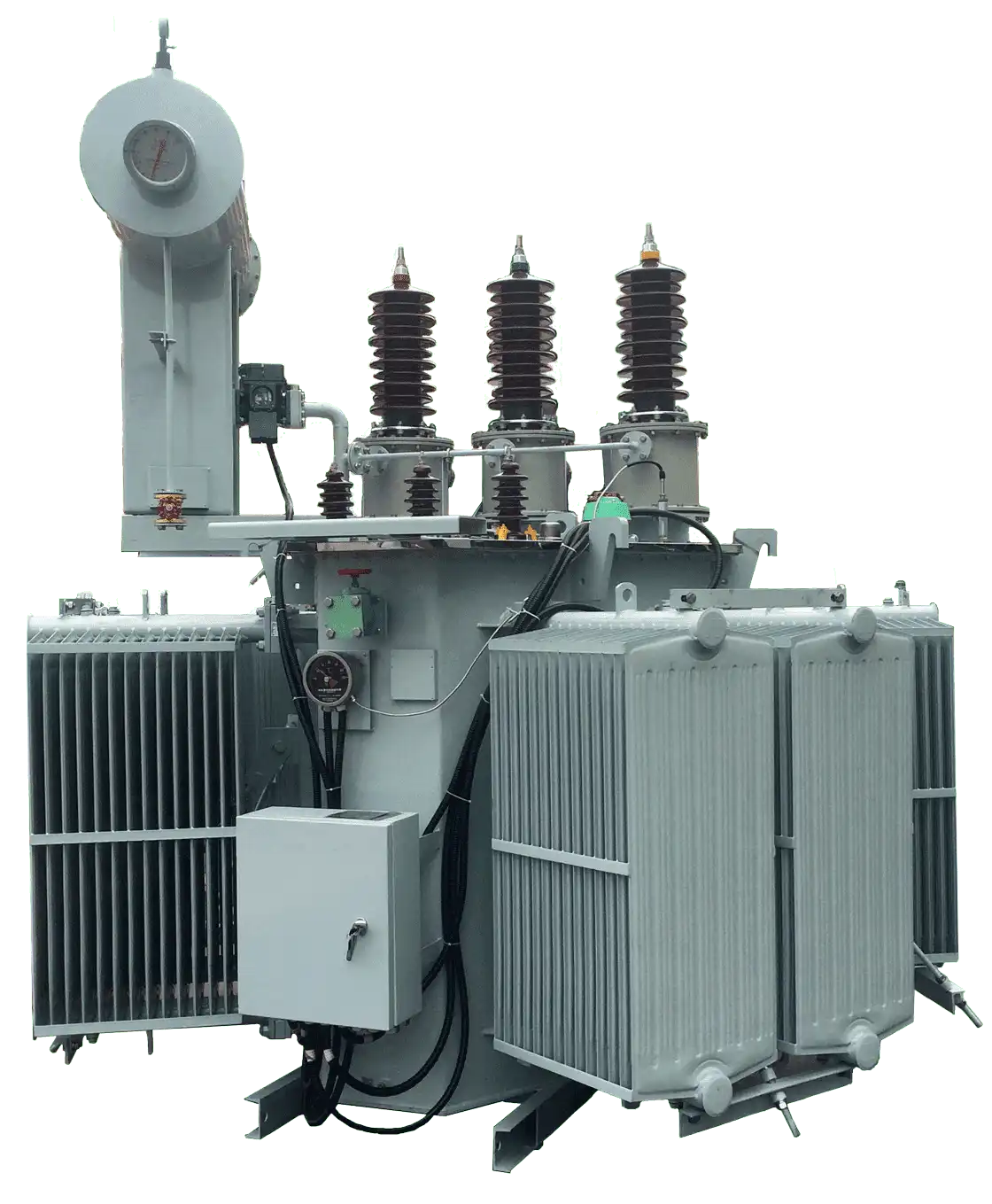

Understanding the S20 35KV Oil-Immersed Power Transformer

Since it was made to meet the changing needs of modern power distribution networks, the S20 type 35KV oil-immersed power transformer is a big step forward in medium-voltage transformer technology. With capacities ranging from 630kVA to 31,500kVA and a rating of 35KV, this line of transformers can be used in a wide range of situations while still meeting high standards of performance.

Technical Specifications and Design Philosophy

The S20 type 35KV oil-immersed power transformer series can work at either 50Hz or 60Hz, and it comes in both single-phase and three-phase versions. The voltage can be changed, and there is a ±2 2.5% range for no-load tap changing. This lets the voltage be optimised without stopping the machine. The connection group names are based on Dyn11, which is the recommended setup. If needed, Yd11 can be used to meet specific grid needs.

The structure is different depending on the capacity. Smaller units have curved tanks, which let the heat expand naturally without the need for separate coolers. Larger capacity transformers, on the other hand, have flat tanks, which make them more stable mechanically. For 1000kVA units, noise levels in both configurations are at or below 60dB(A), so they can be installed in places that don't like noise, like urban substations and industrial parks next to residential areas.

Material Quality and Manufacturing Standards

High-quality cold-rolled grain-oriented silicon steel is used in the core construction. Its magnetic properties have been optimised to directly lower hysteresis and eddy current losses. Precision production with tight dimensional standards is used to make winding wires. This makes sure that the current flows evenly and resistive losses are kept to a minimum. High-quality mineral insulating oil with flash points above 135°C effectively transfers heat and keeps electricity from flowing. The vacuum drying process keeps the moisture content below 0.5%, which stops insulation from breaking down too soon.

This transformer meets all of the requirements set out in GB1094 Power Transformers standards and IEC60076 international standards. It also goes above and beyond what is required by GB/T6451-2008. At our 500,000-square-meter factories in Xuzhou and Nantong, we use computer-controlled core assembly, automatic winding equipment, and strict testing methods approved by the National Transformer Quality Supervision and Inspection Center.

Performance Bottlenecks and Efficiency Challenges in 35KV Transformers

Traditional transformers that are submerged in oil lose energy in a number of ways that add up over the course of their useful life. Knowing about these wastes helps explain why more advanced designs, like the S20 type 35KV oil-immersed power transformer, make a noticeable difference in performance.

Core and Copper Losses

Core losses happen all the time when the transformer is turned on, no matter what the load is. When the magnetic flux changes, older types of silicon steel lose more hysteresis and generate more heat. Copper losses, which are related to the square of the load current, go up a lot when winding resistance goes up because the conductors are too small or the coil shape isn't right.

No-load losses for the S11 series and earlier models are usually 15 to 20 percent higher than what current energy efficiency standards call for. Even though these percentages don't seem like much, they add up to a lot of wasted energy over thousands of hours each year. When energy prices are this high, a 50kVA change in no-load loss for a single transformer can cost operators a lot of money over ten years.

Thermal Management Limitations

Not enough heat dissipation speeds up the ageing of insulation and makes transformers less reliable. Normal cooling systems that only use natural oil flow have a hard time keeping safe working temperatures when they are under a lot of stress or when the temperature outside is high. When internal temperatures go above the design limits, chemicals in insulation paper break down more quickly, shortening its useful life and raising the risk of failure.

These thermal problems are made worse by moisture getting in through poor sealing. Even a small amount of water in insulating oil weakens its qualities and encourages partial release, which finally causes catastrophic failure. To keep the dielectric strength at a good level, workers have to sample and filter the oil more often, which means more maintenance needs to be done.

How the S20 35KV Transformer Improves Efficiency?

Multiple engineering advances are built into the S20 type 35KV oil-immersed power transformer series to carefully address each major loss process. This leads to measurable efficiency gains that have been proven through rigorous testing.

Advanced Core Design and Materials

We use grain-oriented silicon steel with a high permeability and an optimised magnetic domain structure. When compared to normal grades, this choice of material lowers the magnetic flux density needed for a given output. This directly lowers core losses by 10 to 15 percent. Precision step-lap core construction reduces the amount of air gaps at lamination joints, which is where magnetic flux concentration usually causes warmth and efficiency losses.

The process of making it includes computer-controlled cutting that keeps the lamination measurements the same and special heating treatments that make the magnetic properties better. These improvements make sure that the core works close to its most efficient level across the entire load range, rather than losing performance at low loads, which is where a lot of transformers spend a lot of time.

Optimized Winding Configuration

The S20 type 35KV oil-immersed power transformer's conductor sizes balance current density and physical measurements to reduce resistance losses as much as possible without using too much material. Interleaved high-voltage and low-voltage coils are used in the winding design to lower leakage reactance and improve magnetic coupling efficiency. Compared to standard designs, this geometric optimisation cuts copper losses by more than 5%.

Transposition techniques make sure that the current flows evenly across parallel conductors, which stops circulating currents that would otherwise generate more heat. The mechanical clamping system keeps the windings together even when there are short-circuit forces up to 25 times the rated current. This keeps the investment safe from damage caused by grid disturbances.

Enhanced Thermal Management Systems

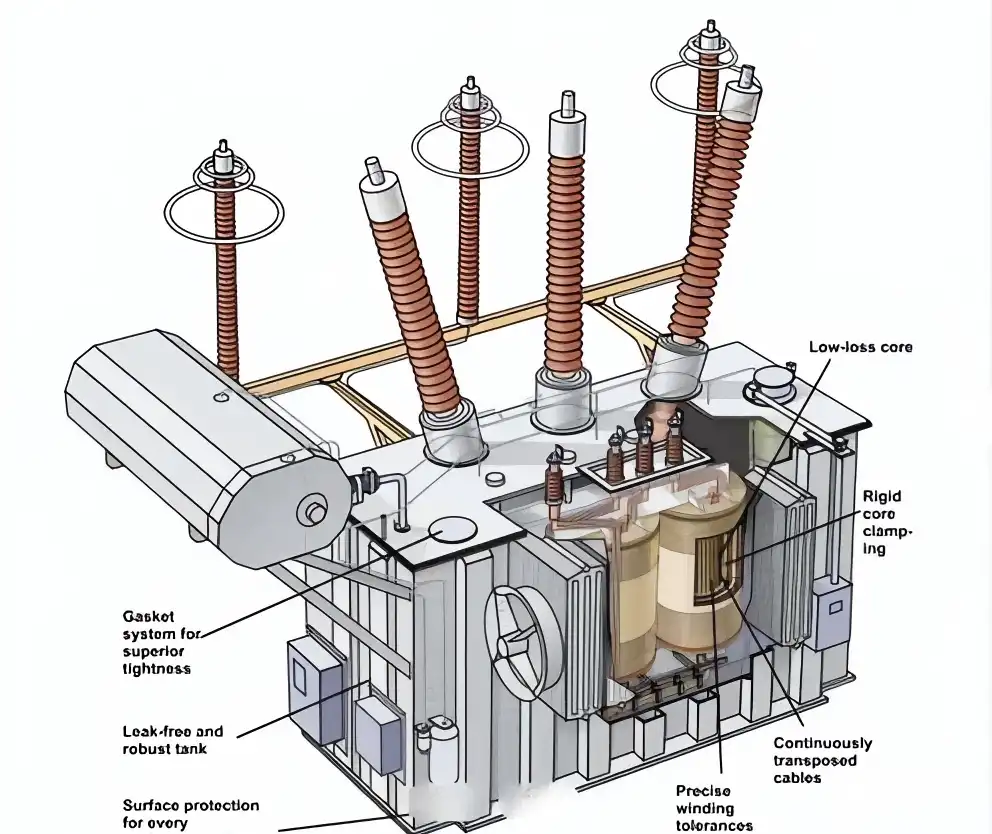

In addition to holding oil, the fully sealed curved tank form has other uses as well. Corrugations make the surface area for heat radiation bigger while also allowing for thermal expansion through elastic deformation. This means that in many setups, there is no need for conservator tanks or the upkeep that comes with them. This airtight closing keeps out moisture and oxidation, which increases the service life of the oil and lowers the risk of poisoning.

For standard uses, oil-immersed self-cooling (ONAN) is one way to cool things down, and for an S20 type 35KV oil-immersed power transformer, this natural convection cooling is typically sufficient for continuous rated operation, though forced-oil air-cooling (ONAF) options are available for higher ambient temperatures or extended overload conditions. For larger units or higher ambient temperatures, oil-immersed air cooling (ONAF) is another. The improved oil circulation pattern, which was improved using computational fluid dynamics modelling, ensures that heat moves quickly from the windings to the tank surfaces. Monitoring the internal temperature allows for planned repair plans that stop damage from thermal stress before it happens.

Quality Control and Performance Validation

In the plant, every S20 type 35KV oil-immersed power transformer goes through a lot of tests, such as regular electrical tests, temperature rise checks, and impulse voltage withstand tests. Our buildings are certified to ISO 9001:2015 and have Enterprise Metrology Qualification recognition, which makes sure that measurements are correct during the quality control process.

The Wuhan High Voltage Research Institute has confirmed that the efficiency metrics meet Level 1 energy efficiency classifications. These approvals give procurement teams an objective third-party check of performance claims, which helps them make secure specification decisions for important infrastructure projects.

Practical Advantages and Applications for B2B Clients

The S20 type 35KV oil-immersed power transformer's new technologies lead to real practical benefits that change the cost of the project, the reliability of the system, and the amount of upkeep needed over the transformer's lifetime.

Extended Service Life and Reduced Maintenance

Compared to other designs, the hermetically sealed construction practically doubles the amount of time without maintenance. Field experience shows that outdoor service lives are longer than 30 years, which is 50% longer than S11 models. This durability comes from keeping the inside parts safe from weather damage, which makes standard open-conservator designs age faster.

Lower lifecycle costs are directly linked to less maintenance, as there is less need for oil sampling, breather replacement, and filtration interventions. The protected design is especially useful in remote sites where getting service would cost a lot and stop the system for a long time.

Application Versatility Across Industries

Power companies benefit from the S20 type 35KV oil-immersed power transformer's ability to handle changing loads in distribution networks that serve both residential and business areas. The smart monitoring compatibility helps with grid modernisation efforts and lets you do online tests that make managing assets more efficient.

Companies that make things for steel mills, chemical plants, or mines need transformers that can work in tough environments and handle loads that are high in harmonics from things like variable frequency drives and arc furnaces. To meet the needs of these tough applications, the S20 type 35KV oil-immersed power transformer's strong construction and high short-circuit resistance make it reliable.

Renewable Energy Installations

Renewable energy systems, like solar farms and wind power plants, have irregular load patterns that make it hard for traditional transformer designs to work. The S20 type 35KV oil-immersed power transformer handles these changes while keeping efficiency high across the load spectrum. This helps meet goals for renewable integration without affecting the stability of the system or the life of the equipment.

Environmental and Regulatory Compliance

When the operating noise is less than 60dB(A), it can be installed in sensitive areas where sound levels are limited. The improvements in efficiency directly lower the carbon emissions caused by transportation losses. This helps companies stick to their environmental goals and follow the rules in places where carbon pricing or emissions reporting is required.

IEC60076 compliance makes sure that the product works with global technical standards, and CE and UL certifications make foreign deployment easier. This complete set of certifications makes the specification process easier for EPC contractors working on global projects and in a wide range of markets.

Making the Right Procurement Decision: Choosing S20 35KV Transformers

To choose the best generator, you have to look at more than just the initial buy price. When looking at the S20 type 35KV oil-immersed power transformer through the lens of its total cost of ownership, it offers great value.

Comparative Performance Analysis

When compared to S11 models or other products on the market, the S20 type 35KV oil-immersed power transformer shows clear improvements in several important performance areas. Losses with no load go down by about 10 to 15 percent, and losses with load go up by more than 5 percent. These improvements in efficiency add up over decades of use, saving money on energy costs that often exceed the difference in price in the first few years of service.

The longer period without maintenance cuts down on labour costs, eliminates the need for replacement parts, and keeps system downtime to a minimum. Improving reliability lowers the chance of unplanned outages that stop work, damage sensitive equipment, or throw off production schedules.

Procurement Considerations for Volume Orders

Our manufacturing capacity and annual sales of more than 5 billion RMB allow us to meet the needs of large projects and keep to schedules for delivery. Volume procurement programs offer better price structures that make projects more affordable for infrastructure developers and EPC workers who are in charge of installing things at more than one place.

Project timelines are affected by lead times, delivery logistics, and installation support services. Our established distribution network and our ability to sell to more than 15 countries show that our supply chain is reliable enough for complicated, multi-phase deployments.

Technical Support and After-Sales Service

Choosing a transformer provider is more than just buying equipment; it also involves building a professional relationship that will help the asset work well for as long as it is in use. Our team of more than 160 engineers with advanced degrees helps with application building, allows customisation, and provides quick technical support.

The fact that Jiangsu Province named the company a "Specialised, Refined, and New 'Little Giant'" business and a Quality-Trusted business shows how committed we are to making great products and making sure our customers are happy. GB/T 27922-2021 approval for after-sales service systems makes sure that support processes are organised and meet customer needs in a planned way.

Conclusion

The S20 type 35KV oil-immersed power transformer is more efficient thanks to changes in the core materials, winding design, and how heat is managed. Level 1 energy efficiency certification, a longer working lifespan of 30 years, and less upkeep needs all add up to a better total cost of ownership for power companies, industrial facilities, and green energy projects. Its fully sealed corrugated tank design, smart monitoring compatibility, and wide range of international certifications meet the practical needs of today's power distribution networks. When looking for medium-voltage transformers for important infrastructure, the S20 line has been tested thoroughly and has a lot of experience in a wide range of difficult situations.

FAQ

What capacity range does the S20 series cover?

The S20 type 35KV oil-immersed power transformer series comes in both single-phase and three-phase configurations and has capacities ranging from 630kVA to 31,500kVA. It can be used for a wide range of projects, from small industrial substations to large utility distribution projects.

How does noise performance compare to alternative transformer types?

The S20 type 35KV oil-immersed power transformer keeps noise levels at or below 60dB(A) for 1000kVA units by using damping materials, precision core stacking, and improved mechanical design. This means it can be used in noise-sensitive areas where dry-type transformers would normally be recommended.

Can the S20 operate in extreme environmental conditions?

The design works in temperatures up to 40°C outside by default, and there are customisation choices for places with harsher temperatures. The construction is hermetically sealed, and the C4/C5 grade anti-corrosion coatings make it possible to use it in environments with a lot of moisture and salt spray with little performance loss.

What customization options support specific project requirements?

You can change the impedance voltage, vector group setup, cooling methods, and safety schemes to fit the needs of your project. Our engineering team works with clients to find the best transformer settings for their specific grid conditions, load profiles, or installation limitations.

Partner With Lijie Electric for Your Power Transformer Needs

Our certified facilities, which cover 500,000 square meters, are where Lijie Electric makes high-efficiency S20 type 35KV oil-immersed power transformers. We are a reliable seller that works with power companies, industrial makers, and EPC contractors in 15 countries. The transformers we sell are Level 1 energy-efficient and last 30 years. With ISO 9001:2015, IEC, CE, and UL certifications to back them up, our engineering team offers application support, customisation options, and quick expert service.

Get in touch with our experts at lijieelectrical@gmail.com to talk about your project needs, get full technical specs, and look into big discounts for buying S20 transformers. If you go to lijie-electrical.com, you can find product documentation, application guides, and case studies that show how well the products have worked in tough installations. We offer full pre-sale advice, coordination of plant acceptance testing, and structured after-sales support to make sure that your transformer investment gives you the best value over its entire lifecycle.
