Dry-Type Transformers Improve Electrical Safety in Data Centers and Commercial Buildings

When managing power infrastructure in a data center or commercial building, electrical safety is not a preference — it is a requirement. A dry-type transformer addresses this need directly by eliminating the flammable dielectric fluid found in oil-filled units and replacing it with air convection or solid epoxy resin insulation. The result is a power distribution solution that carries substantially lower fire risk, requires less maintenance overhead, and aligns with modern building codes and environmental regulations. For procurement engineers and project managers evaluating transformer options today, understanding how this technology works — and why it performs better in occupied or high-density environments — is a practical starting point.

Understanding Dry-Type Transformers and Their Role in Electrical Safety

What Makes This Technology Fundamentally Safer

Learn about Dry-type Transformers and how they help keep electricity safe.

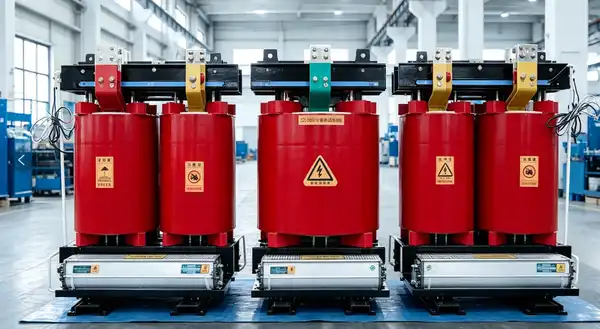

One of the most common types of Dry-type Transformer is the cast resin transformer, which wraps its windings in vacuum-impregnated epoxy resin. This building has insulation classes of F (155°C) or H (180°C), which means it can work reliably under high temperatures without giving off dangerous gases or burning waste. IEC 60076-11, which controls Dry-type Power Transformers around the world, says that these units must be able to put out fires on their own and be resistant to water and other contaminants.

This is very important in a data center where computer rooms are always running, and fire control systems are expensive to keep up. The National Fire Protection Association (NFPA) says that electrical distribution equipment is one of the main reasons why buildings catch fire in businesses. This risk is directly reduced by switching from oil-filled units to ones that are air-cooled or encased in resin.

In vacuum cast resin models, partial discharge levels usually stay below 10 pC. This means that the dielectric is very strong and the insulation will stay stable over time, which is very important in sensitive electrical settings.

Comparative Analysis: Dry-Type Versus Other Transformer Technologies for B2B Buyers

How Different Technologies Stack Up in Practice

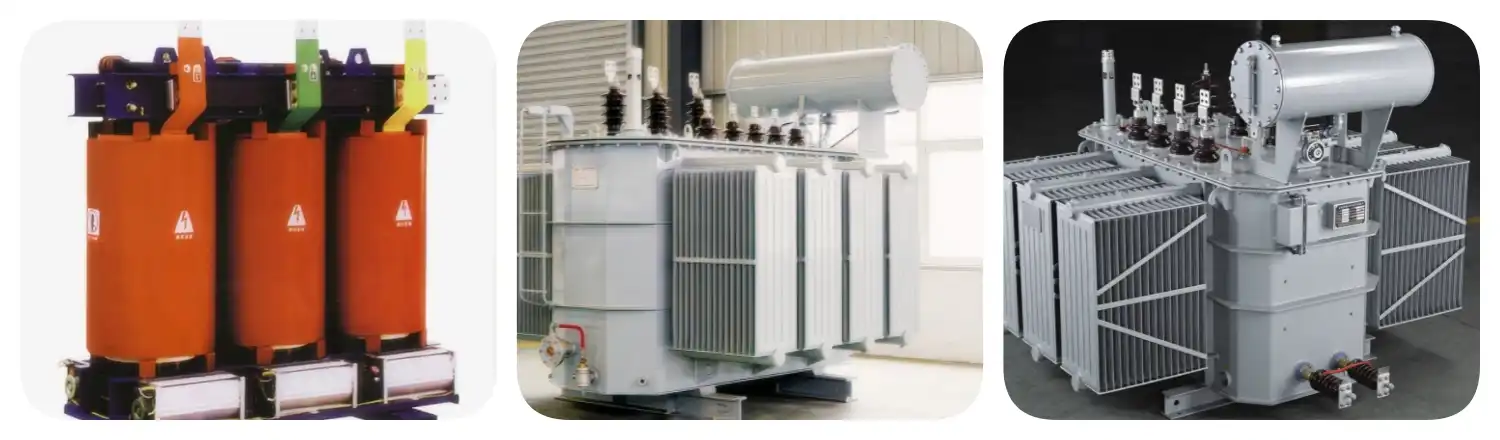

There are four types of transformers that procurement workers often look at: oil-filled, cast resin, VPI (vacuum pressure infused), and amorphous core. Each has different trade-offs when it comes to safety, efficiency, environmental impact, and upkeep.

Here is an organized comparison to help you make smart choices about where to buy:

• Oil-filled transformers have a high thermal capacity and lower unit prices for big ratings, but they need containment pits, regular oil samples, and fire control systems. These add a lot of compliance and cost layers to commercial buildings in cities or data centers inside.

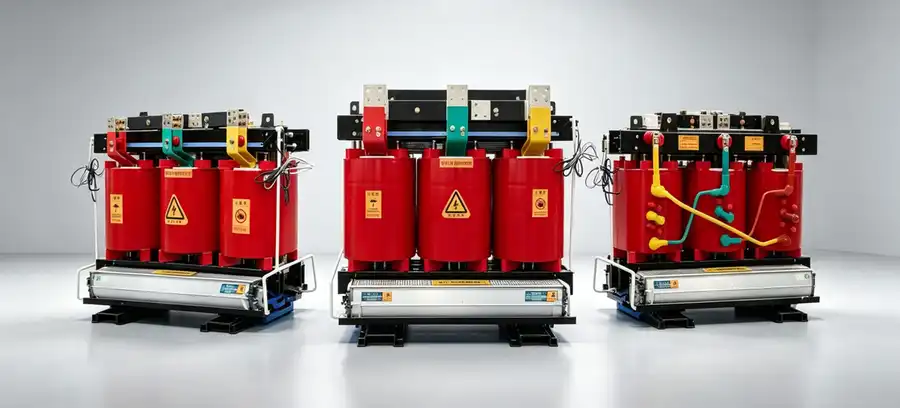

• Cast resin dry-type units have a small size (20–30% smaller) and don't need much upkeep compared to oil-filled units. Their self-extinguishing epoxy construction makes them perfect for indoor uses where fire safety rules must be followed.
• VPI dry-type transformers are cost-effective when used in mild conditions because they only use resin impregnation instead of full encapsulation. They are a little less resistant to water, though, than full-cast plastic forms.
• Amorphous core transformers are great at lowering no-load loss—up to 70–80% less core losses than regular silicon steel—which makes them a great choice for places where constant power use drives up long-term energy costs.

These differences have a direct effect on the total cost over the whole lifecycle. It may cost more up front for a cast resin unit than for a VPI model, but after 25 to 30 years of use with little maintenance, the total cost is usually less. This difference decides which vendor procurement managers choose by balancing beginning capital against operational budgets that last for decades.

Key Considerations When Procuring Dry-Type Transformers for Data Centers and Commercial Buildings

Matching Technical Specifications to Facility Requirements

The power profile, load density, and space limitations of the building are the first things that help you choose the right unit. Most data centers need step-down configurations to go from 13.8 kV or 4.16 kV to voltages that can be used, while most commercial buildings work within the ≤35 kV distribution range.

Besides making sure that the voltages are compatible, buying teams should also look at the following factors before choosing a supplier:

• Insulation class and temperature rise rating: Insulation in Class F or H with 100K or 115K temperature rise ratings makes sure that the system can handle high loads without degrading.
• Enclosure protection rating: IP23 or IP31 enclosures keep out accidental touch and some moisture in machinery rooms or semi-open setups.
• Certification portfolio: The unit meets safety standards in all foreign areas because it is compliant with IEC 60076-11, UL 1561/1562, and IEEE C57.12.01.

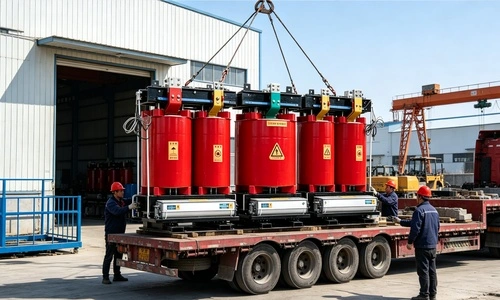

• Lead time and batch supply capability: For large commercial rollouts and data center builds, delivery schedules need to be known ahead of time. Schedule risk is lower when the supplier has dedicated manufacturing capacity and a history of completing large orders on time.
• Customization responsiveness: Voltage ratios, tapping patterns, and size limits that aren't standard often come up in retrofit jobs. For suppliers with in-house tech teams, meeting these needs can be done quickly.

Companies like Siemens, ABB, and Schneider Electric have built up large reference collections for use in business and key infrastructure settings. Comparing their product datasheets for a dry-type transformer with the load profile of your building is a useful way to make sure they meet your needs before you start looking for other providers.

Maintenance and Safety Protocols to Maximize Transformer Lifecycle and Performance

Preventive Maintenance That Protects Long-Term Investment

When compared to oil-filled units, air-cooled distribution transformers need less maintenance, which is a real operational benefit. It is not possible to take samples of, filter, or replace the dielectric fluid. But regular upkeep is still needed to keep the insulation in good shape and keep the cooling working well for another 25 to 30 years.

Thermal performance, material soundness, and connection quality should all be checked on a regular basis. A useful structure for care includes:

• Annual visual inspection of the winding surfaces, terminal connections, and condition of the enclosure once a year for surface contamination, mechanical damage, or signs of water getting in.
• Infrared thermography is used on powered units to find temperature differences in windings or bus connections early on, before they become problems.
• Cooling pathway clearance — making sure that ventilation holes in the enclosure stay clear. When airflow paths are blocked, temperatures can rise quickly and drop below freezing.
• Insulation resistance testing every three to five years gives a number that shows how good or bad the dielectric is, letting you know early on when it's starting to break down.

Modern resin-encapsulated dry-type transformer units come with temperature tracking systems that let facility managers keep an eye on real-time thermal data and move quickly when something goes wrong, which increases both service life and reliability.

Case Studies and Industry Insights: Success Stories in Data Center and Commercial Installations

Demonstrated Results in Critical Environments

Results that have been shown in tough situations. An upgrade job in 2022 at a mid-tier colocation data center in the southeast of the United States swapped out old oil-filled pad-mounted transformers for cast resin units with a rating of 2,500 kVA, 13.8 kV–480Y/277 V. The project got rid of the facility's containment pit infrastructure, lowered the cost of fire suppression maintenance, and raised the power usage effectiveness (PUE) by reducing load losses.

In commercial real estate, a mixed-use urban development in Chicago chose twelve electrical rooms with Dry-type Distribution Units to serve loads from stores, offices, and homes. The choice was made because of local fire code rules that say oil-filled equipment can't be in occupied buildings, the small size of the enclosures that could fit into limited mechanical room layouts, and the 30-year warranty that the chosen provider gave.

These results back up what procurement data is showing more and more: resin-encapsulated air-cooled transformers consistently deliver measurable value in settings where uptime, safety compliance, and space efficiency all come together.

Conclusion

Due to their usefulness in engineering, Dry-type Transformers are now commonly used in data centers and other business buildings. Their lack of flammable insulating fluid, ability to meet strict international standards, small installation size, and low upkeep requirements all address the main concerns of electrical engineers, building managers, and buying teams at the same time. If you are designing a new critical facility or making changes to an existing distribution system, choosing a cast resin or air-cooled unit that meets the requirements of IEC 60076-11 and UL certification is a technically sound, cost-effective choice that has been used successfully in the past.

FAQ

Can dry-type transformers be installed outdoors?

Standard cast plastic parts are made to be put in places inside. For outdoor use, enclosures with the right IP ratings—usually IP44 or higher—are needed to keep windings safe from rain, humidity, and particles. Some manufacturers make weatherproof housing options that let you use the unit outside for longer without affecting the insulation system inside.

How does maintenance differ from oil-filled transformers?

Oil-filled units need to have their dielectric fluid sampled, filtered, and sometimes replaced on a regular basis. They also need containment infrastructure for managing spills. Air-cooled resin units don't need to be managed in terms of fluids. Thermal inspections, connection torque checks, cooling route opening, and regular insulation resistance tests are what maintenance is mostly about.

What noise levels should I expect in a commercial building?

Depending on the rating and load conditions, cast resin transformers usually make noise levels between 45 and 65 dB(A), which is about the same as an office. Anti-vibration mounting pads and sound barriers can help reduce transmission noise even more in places like hospitals and offices that are sensitive to it.

Are these units compliant with US building codes?

Most places in the US will accept units that are certified to UL 1561 or UL 1562 and meet the installation requirements of NFPA 70, which is the National Electrical Code. Always check local changes with the body that has control (AHJ).

Partner with Lijie Electric for Reliable Dry-Type Transformer Supply

Lijie Electric makes a wide range of Dry-type Transformers that meet IEC, UL, and CE standards and are designed for use in data centers, commercial buildings, and big infrastructure projects. As a well-known Dry-type Transformer producer with over 160 engineers on staff and yearly sales of more than 5 billion RMB, we offer custom solutions backed by strict quality control. You can talk to our technical team about your project needs and get a fair price by emailing lijieelectrical@gmail.com or visiting lijie-electrical.com.
