What Makes S18 Oil-Immersed Transformer More Energy Efficient?

Because it has an advanced core material composition, a corrugated fully sealed tank design, and an optimised magnetic circuit structure, the S18 type oil-immersed distribution transformer uses energy more efficiently than other types. The S18 type oil-immersed distribution transformer has 10% to 20% less no-load losses than older S13 types because it uses high-grade cold-rolled grain-oriented silicon steel and precise bonding. Its fully sealed oil-immersed cooling system stops moisture and rust from getting in. This keeps the dielectric properties stable over decades of use, reducing energy loss. Following the GB 20052-2020 Tier 1 energy-saving standards will help power companies and factories save money over the course of their entire life.

Understanding the Design and Specifications of the S18 Oil-Immersed Transformer

To figure out how efficient a S18 type oil-immersed distribution transformer is, you need to know how the core is designed and what its specs are. The S18 type oil-immersed distribution transformer is a big step forward in the building of distribution equipment because it combines tried-and-true oil-immersed technology with new discoveries in material science.

Core Construction and Material Selection

The S18 type oil-immersed distribution transformer's complex core is made from high-quality cold-rolled grain-oriented silicon steel. This material has amazing magnetic qualities and lower hysteresis losses. When we put together cores, we use a multi-step overlapping joint method that cuts down on air gaps and magnetic flux leaks. Each layer is treated with a laser to further reduce the formation of eddy currents. This is an important step in getting the low no-load loss numbers that make this S18 type oil-immersed distribution transformer series stand out.

Technical Specifications and Voltage Classes

The S18 type oil-immersed distribution transformer can work with voltages between 6kV and 12kV and has a power range of 30kVA to 3,150kVA. This makes it useful for a wide range of situations, from small industrial sites to big utility substations. The S18 type oil-immersed distribution transformer has tap ranges of ±5% or ±2X2.5% and non-excitation voltage control, which lets the voltage be adjusted precisely during installation. It works with both single-phase and three-phase power systems at normal frequencies of 50Hz and 60Hz and has connection group names like Yyno and Dyn11.

Fully Sealed Corrugated Tank Design

The curved tank shape of the S18 type oil-immersed distribution transformer is what really makes it stand out. Unlike other systems that use oil conservators, this fully sealed method keeps the insulating oil from coming into contact with the air at all. The curved fins do two things: they make the structure much stronger against changes in internal pressure, and they also make the surface area for transferring heat much larger. This technical choice gets rid of the problems of rust and moisture absorption that usually shorten the life and efficiency of S18 type oil-immersed distribution transformers.

Power frequency voltages of up to AC-35kV and lightning impulse voltages of L1-75kV can't hurt the insulation system. It meets the IEC 60076 standards that foreign buying teams need. Vacuum oil filling and strict dielectric testing methods are part of our manufacturing process. These steps make sure that every unit that leaves our plant has no internal problems. All of these parts of the design work together to keep the S18 type oil-immersed distribution transformer running at its best for its projected 30-year lifespan.

Core Factors Driving Higher Energy Efficiency in S18 Transformers

Transformers are energy efficient because they reduce loss processes in a planned way. The S18 type oil-immersed distribution transformer has the best speed in its class thanks to focused improvements in a number of technical areas.

Advanced Magnetic Circuit Optimization

Our engineering team improved the design of the magnetic circuit so that the core material had the lowest amount of flux density. Lowering the flux density immediately lowers hysteresis losses, which are the amount of energy lost when magnetic domains reconnect. When compared to thicker materials used in past transformer generations, the carefully controlled silicon steel laminations, which are only 0.27 mm thick, greatly reduce the formation of eddy currents.

Winding Technology and Resistance Minimization

The S18 type oil-immersed distribution transformer uses optimised coil arrangements with copper that is highly conductive and has larger cross-sectional areas. This method reduces I²R losses when the load is on. During the construction process, the winding geometry is carefully thought out to balance the needs for electrical performance and thermal management. Precise layer insulation and controlled coil tension during production stop hot spots that would otherwise make insulation break down faster and resistance rise over time.

Oil-Immersed Cooling System Superiority

Using natural airflow principles, the ONAN (Oil Natural Air Natural) cooling method works amazingly well. When the S18 type oil-immersed distribution transformer is under load, the heat from the windings moves to the oil around them. The hot oil naturally rises, and the cooler oil naturally falls, making a pattern of constant movement. The large surface area of the curved tank effectively transfers this heat to the outside world. This passive cooling system doesn't make any noise, doesn't need any upkeep, and works much better than dry-type transformers under long-term heavy loads.

We tested these designs at our Xuzhou plant and found that when the load is the same, oil-immersed designs keep the turning temperatures 15-20°C lower than similar dry-type units. When the working temperature is lower, the electrical resistance goes down, and the insulation lasts longer.

Acoustic Performance and Mechanical Stability

Most of the noise in transformers comes from magnetostrictive effects in the core material. The S18 type oil-immersed distribution transformer has special anti-vibration fixing pads and high-pressure locking systems that keep the core from moving while it's working. At full load, sound levels stay below 45dB, which is quieter than a normal office. This sound control helps save energy in a roundabout way by showing the best core compression and lowest mechanical losses.

These benefits in performance last as long as the system is in use because of regular upkeep. Because it is sealed, the sealed design doesn't need to check the oil quality as often as other transformers do. The minimum maintenance plan includes visual inspections of the outside, checks on the state of the bushings, and tracking of the temperature profile. Our clients in remote sites really like that this feature doesn't need any upkeep. It lowers the total cost of ownership while keeping the system running at its best year after year.

Comparing S18 Transformers with Other Transformer Types in Energy Efficiency

Understanding how competitors are positioned helps buying teams choose the right tools. The S18 type oil-immersed distribution transformer is at a certain level of efficiency that combines performance, cost, and suitability for a given purpose.

S18 Versus S13 Series Performance

The S13 transformer worked well for many years, but it meets older standards for economy. When we look at the measured losses, the S18 type oil-immersed distribution transformer has 10% to 20% lower no-load losses and about 15% lower load losses at the same levels. This improvement comes from using better core materials and more efficient manufacturing methods. For a 1,000kVA unit that runs all the time, this efficiency gain saves between 8,000 and 12,000 kWh per year, which is a big amount over 25 years.

Oil-Immersed Versus Dry-Type Considerations

Dry-type transformers are better in places where fire safety is important and in places inside where protection is not needed. But designs that are submerged in oil, like the S18 type oil-immersed distribution transformer, are better at managing heat. Mineral oil has a much higher electrical strength than air, which lets designers make smaller forms that can handle short-circuits better. Our field data from mining operations and heavy industry use shows that oil-immersed transformers always have lower lifetime costs when you look at how much energy they use, how often they need to be replaced, and how reliable they are.

Market Position and Customer Feedback

The S18 type oil-immersed distribution transformer is often chosen for grid modernisation projects by utility companies that are replacing old equipment. Because the S18 type oil-immersed distribution transformer meets current energy-saving standards, it won't become useless too soon as standards change. Engineering experts choose tools for green energy setups like the S18 type oil-immersed distribution transformer because it can handle changes in load that happen in solar and wind applications without losing any efficiency. Because the sealed design can't be harmed by environmental pollution, it's very useful in marine, desert, and industrial settings where normal transformers age more quickly.

Practical Applications and Benefits for B2B Clients

The S18 type oil-immersed distribution transformer solves practical problems that happen in the real world in many different fields. Understanding the context of an application helps match the skills of an S18 type oil-immersed distribution transformer to the needs of the buying process.

Power Distribution Network Modernization

Grid managers are under more and more pressure to cut down on transmission losses while keeping the grid reliable. The S18 type oil-immersed distribution transformer helps reach these goals by making things more efficient in ways that can be measured. When urban substations are being upgraded, the small size and low acoustic signature make it possible to place in tight spaces near homes. The design that doesn't need to be maintained is good for rural electricity projects because getting service to remote areas can be hard and cost a lot.

Industrial and Manufacturing Facilities

Heavy companies need power to be delivered continuously with changing loads. Transformers are put through heat stress in places like steel mills, chemical plants, and mines that show where the design was weak. According to IEC 60076-7 rules, the S18 type oil-immersed distribution transformer's strong cooling system keeps its performance stable even when it is overloaded for a long time. Clients who run production cycles 24 hours a day, seven days a week say that their new transformer setups have led to fewer unplanned breakdowns and longer periods of time between machine service.

Renewable Energy Integration

Voltage and load changes caused by wind and solar systems put stress on delivery equipment. The S18 type oil-immersed distribution transformer can handle these changing working conditions without losing performance thanks to its low excitation current and thermal longevity. Inverter systems that are linked to the grid need transformers that can handle harmonic content. The S18 type oil-immersed distribution transformer's design parameters specifically address these current power quality issues that older transformer types never thought of.

Lifecycle Cost Analysis

Improving energy efficiency has measurable cash benefits. Take a look at a standard 1,500kVA S18 type oil-immersed distribution transformer unit that works at 70% of its full capacity for 8,000 hours a year. At $0.10/kWh energy rates, the 20% loss reduction compared to an S13 equals about $4,500 a year. Over the course of 25 years, the total amount of money saved on energy costs is close to $112,000. This is a lot more than the small price increase for more energy-efficient tools. The S18 type oil-immersed distribution transformer always gives better return on investment when buying teams look at the total cost of ownership, which includes the price of the machine, installation, energy use, upkeep, and disposal.

During the specification process, our expert support team works with clients to make sure that the transformer parameters are exactly right for the application needs. Customisation choices include different winding configurations for loads that are harmonic, better seismic resistance for areas with a high risk of earthquakes, and different insulation fluids for better fire safety or environmental protection.

Installation and Maintenance Guide to Maximize Energy Efficiency

The energy benefits built into S18 type oil-immersed distribution transformers are kept safe by following the right installation and upkeep procedures. Even the best equipment doesn't work as well if it wasn't installed correctly or if it wasn't maintained properly.

Site Selection and Environmental Considerations

The working temperature has a direct effect on the performance of an S18 type oil-immersed distribution transformer. The best places for a site should be those that have good airflow and don't absorb too much heat from the sun. If you have to place the generator outside, you might want to turn it so that it doesn't get too much direct sunlight during peak temperature hours. Make sure that there are enough gaps around the corrugated tank sides so that air can flow freely around them. Stay away from places where the transformer might be exposed to corrosive air, though the S18 type oil-immersed distribution transformer's protected design protects it well from external contaminants.

Installation Best Practices

To prepare the foundation, you need flat, stable areas that can hold the weight of the S18 type oil-immersed distribution transformer plus any moving parts that might happen during a problem. Make sure that all of the electrical connections meet the pressure requirements. Loose terminations cause resistive heating, which loses energy and can be dangerous. Before turning on the unit, make sure that the tap settings match the power needs of the spot. Initial energisation should follow the manufacturer's instructions, which include making sure that the phases are properly rotated and that the load is balanced across three-phase setups.

Ongoing Maintenance Protocols

In comparison to regular transformers, the S18 type oil-immersed distribution transformer's sealed design makes upkeep a lot easier. As part of recommended care, the outside should be inspected every three months to look for oil leaks, physical damage, or strange rust patterns. Infrared thermography scans done once a year find hot spots that are starting to form in terminations or bushing connections before they break. During times of high load, keep an eye on the atmospheric and top-oil temperatures to make sure the cooling system stays working as it should.

Oil analysis is only needed when technical problems point to problems inside the company. The fully sealed design stops moisture and rust from getting in, which is why regular oil tests are needed in most designs. This benefit for maintenance lowers running costs and makes sure that the efficiency traits stay the same over the life of the S18 type oil-immersed distribution transformer.

Our technical documentation has thorough troubleshooting tips that answer common questions about how things work. Our global dealer network still offers field service support, so clients can get help right away if they have questions about installation, starting, or improving operations.

Conclusion

The S18 type oil-immersed distribution transformer uses a very small amount of energy because its core materials, cooling systems, and manufacturing perfection are all designed to work together perfectly. Compared to S13 series transformers, it has a 10% to 20% lower loss. This saves money because it uses less energy over many years of dependable service. The fully sealed corrugated tank design makes upkeep easier and keeps interior parts from breaking down in harsh environments. The S18 type oil-immersed distribution transformer meets IEC standards and GB 20052-2020 Tier 1 efficiency requirements, making it a smart investment for utility modernisation, industrial uses, and projects that integrate renewable energy. When choosing a product, buyers look at how much it will cost over its lifetime, how reliable it is, and how environmentally friendly it is.

FAQ

What is the expected service life of an S18 transformer?

The S18 type oil-immersed distribution transformer will work reliably for 25 to 30 years if it is installed correctly and used normally. The fully sealed design stops oil breakdown and moisture entry, which are the main ways that regular transformers age. Thermal management skills make sure that insulation systems stay within the temperature limits that were planned, which keeps their dielectric properties intact for the whole time they are in use.

How does the sealed cooling system prevent efficiency loss?

The curved tank's larger surface area lets heat escape naturally through convection, so no fans or pumps are needed. Isolation from the atmosphere stops moisture from absorbing, which would lower the dielectric strength of the oil and raise internal losses. This method of passive cooling keeps the ideal working temperatures stable on its own, protecting the low-loss features built into the S18 type oil-immersed distribution transformer core and winding design.

Can the S18 be customized for specific voltage or capacity requirements?

Of course. Our tech team works with clients to set up S18 type oil-immersed distribution transformers that are perfect for their needs. Non-standard voltage ratios, specialised impedance values, different connection groups, and capacity rates in the 30-3,150kVA range are all customisation choices. Whether you need single-phase units for certain tasks or three-phase systems for heavy loads in factories, we can change the specs to fit your needs while still meeting the high standards of efficiency that make up the S18 type oil-immersed distribution transformer series.

Partner with a Proven S18 Type Oil-Immersed Distribution Transformer Manufacturer

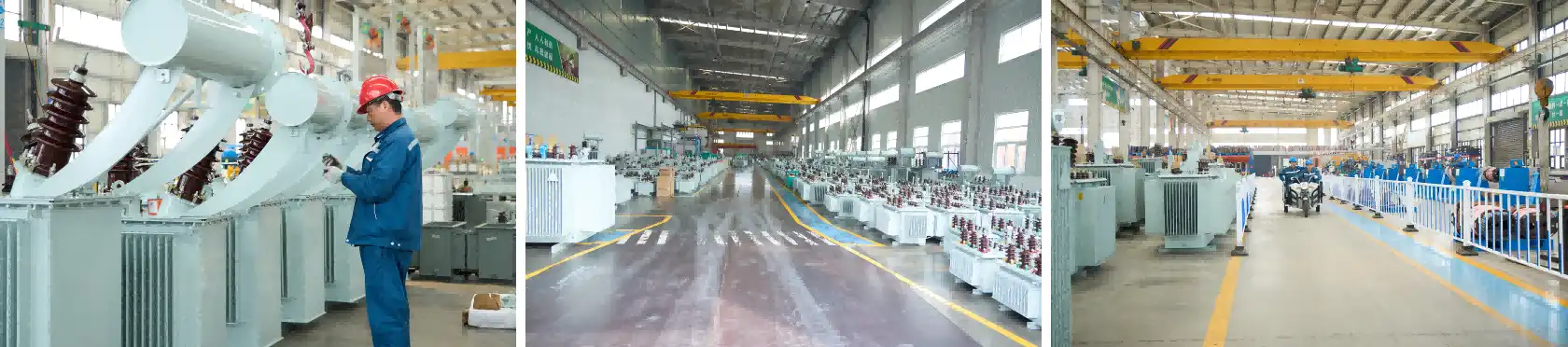

Lijie Electric has been making transformers for more than 20 years and has quality systems that are approved to meet ISO 9001:2015, IEC, CE, and UL standards. Our 500,000-square-meter factories in Xuzhou and Nantong make more than 5 billion RMB a year. They are backed by 2,000 trained workers, 160 of whom have doctoral or master's degrees. If you buy S18 type oil-immersed distribution transformers from Lijie Electric, you can get tried-and-true energy-saving solutions that are backed by strict testing procedures, stable large-scale production capacity, and helpful expert support. Our transformers serve utility operators, industrial facilities, and green energy projects all over North America. They meet strict performance standards for dependability and efficiency. You can email our team at lijieelectrical@gmail.com to talk about your unique needs, get technical specs, or get quotes for bulk purchases. We provide the high-quality planning and dependable supply chain that your important building projects need.
