Supplier of Oil Immersed Power Transformer S13 Series

Picking the right S13 type oil-immersed distribution transformer supplier is one of the most important things to do when looking for solid power distribution tools for big projects. Modern oil-immersed transformer technology has come a long way with the S13 series. It offers better energy efficiency and operational reliability for utility grids, renewable energy installations, and industrial manufacturing facilities. This type of transformer meets important procurement needs, including lower lifecycle costs, reliable performance in tough conditions, and compliance with international standards. This makes it the best choice for purchasing managers and electrical experts who want long-term value and reliable service.

Understanding the S13 Type Oil-Immersed Distribution Transformer

What Sets the S13 Model Apart?

The S13 type oil-immersed distribution transformer is made with high-permeability cold-rolled silicon steel and improved magnetic circuit optimisation. Compared to the S11 series, it cuts no-load losses by about 25–30%. This new technology has a direct effect on the total cost of ownership, especially for purchases of a lot of items, since energy savings add up over 20 to 30 years of use.

Core Technical Specifications

The voltage range for S13 type oil-immersed distribution transformers is between 6kV and 12kV, and their capacity ranges from 30kVA to 3,150kVA. They can be used for both single-phase and three-phase applications. The units have tap ranges of ±5% or ±2×2.5% for non-excitation voltage control. This lets the voltage be precisely adjusted during installation to match grid conditions. Operating speeds can handle both 50Hz and 60Hz systems, making sure that they work with power grids all over the world. Different combinations of connection groups, such as Dyn11 and Yyn0, make them flexible for use in different types of delivery networks.

The insulation system meets strict requirements and can handle power frequency voltages of AC-35kV and impulse voltages of L1-75kV. This is important for high-reliability uses in utility and industry settings. Oil-immersed self-cooling (ONAN) makes sure that heat is effectively removed without the need for external cooling systems. This makes installation easier and upkeep less frequent. Temperatures outside can reach up to 40℃, and these transformers still work reliably, but they can be customised for harsher climates.

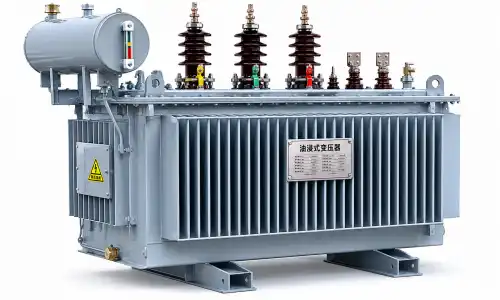

Fully Sealed Corrugated Tank Design

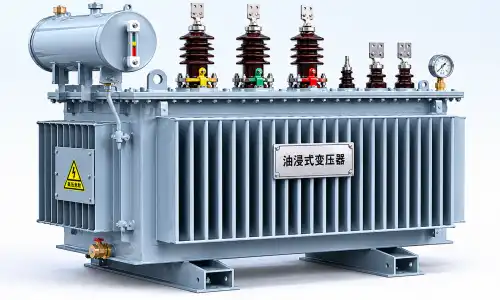

The fully sealed curved oil tank structure is one thing that makes the S13 type oil-immersed distribution transformer stand out. In contrast to older open-type designs, this protected system stops airborne moisture from entering and oil from oxidising. This makes both the shielding oil and the transformer itself last longer. The corrugated tank can stretch and expand, so it can handle changes in the volume of the oil without the need for extra breathers or conservators. This design drastically cuts down on maintenance times because oil replacement isn't needed under normal working conditions. This is a big benefit for remote sites or large-scale deployments where service is hard to get to.

Comparing S13 Transformers with Other Types: Making the Right Choice

Energy Efficiency and Loss Reduction

Energy efficiency is still the most important thing to think about when choosing a transformer. It is claimed that the S13 type oil-immersed distribution transformer line has 25–30% less no-load loss and about 15% less load loss than the S11 types. Over the lifetime of the asset, this means real cost savings. If an S13 unit with a 1,000kVA rating runs nonstop for 20 years, it can save tens of thousands of dollars in electricity costs compared to older models. This is a strong financial case for procurement teams that focus on lifecycle cost management.

The difference in efficiency between S13 type oil-immersed distribution transformer units and S9 units is even bigger. Level 2 energy efficiency standards are required in many places. This compliance makes sure that you can get utility rebates and keeps you from getting fined by the government for using old equipment.

Noise Performance Advantages

Another important difference is noise output. The noise level from an S13 type oil-immersed distribution transformer is 3–5 decibels lower than the national norm, and it is about 20% quieter than an S11 unit. This improvement in noise level is made possible by using precision winding techniques and improved core construction. This makes S13 type oil-immersed distribution transformer models perfect for places that need to be quiet, like hospitals, commercial centers, and residential substations in cities. When purchasing equipment for cities with lots of people, procurement managers often choose quiet designs to follow local environmental rules and keep good relationships with the local community.

Oil-Immersed vs. Dry-Type Transformers

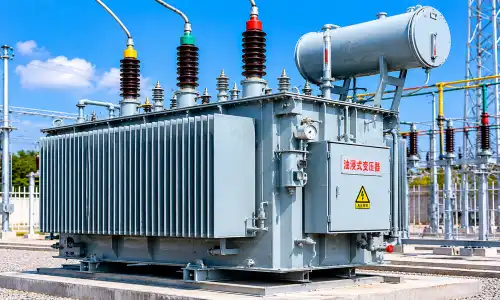

Though dry-type transformers are better for indoor uses that need to be safe from fire, oil-immersed S13 type oil-immersed distribution transformer units work better in harsh outdoor settings because they can handle more overload and last longer. Mineral oil used in S13 type oil-immersed distribution transformers has a flash point higher than 140℃, which makes the risk of fire much lower. Oil-immersed designs are also better for the environment and should be used where there is room because they usually have better cost-per-kVA ratios and need to be replaced less often.

Because of these performance traits, the S13 series is the best choice for grid utilities, industrial plants, and green energy projects that care about longevity, efficiency, and total cost of ownership.

Procurement Guide for S13 Oil-Immersed Distribution Transformers

Specifying Technical Requirements

Clear technical specifications are the first step to a successful procurement. Buyers should be clear from the start about the voltage levels, capacity needs, link groups, and working conditions in the surroundings. S13 type oil-immersed distribution transformers can be customised in terms of resistance voltage, tap configurations, and special bushings for placements at high altitudes or in harsh climates. Electrical engineers should work closely with suppliers to make sure that designs are compatible with load profiles and network security methods.

Compliance with International Standards

For business-to-business purchases, certification compliance is a must. Making S13 type oil-immersed distribution transformers that meet ISO 9001, IEC 60076, CE, and UL standards makes sure that the products are safe, of high quality, and can be used in all foreign markets. If a buyer wants to do a project in North America, Europe, or Australia, they need to make sure that the sellers they are considering have the right regional certifications and can show test results from recognised labs. This extra work keeps you safe from fake goods and makes sure that the guarantee can be enforced.

Bulk Ordering and Delivery Logistics

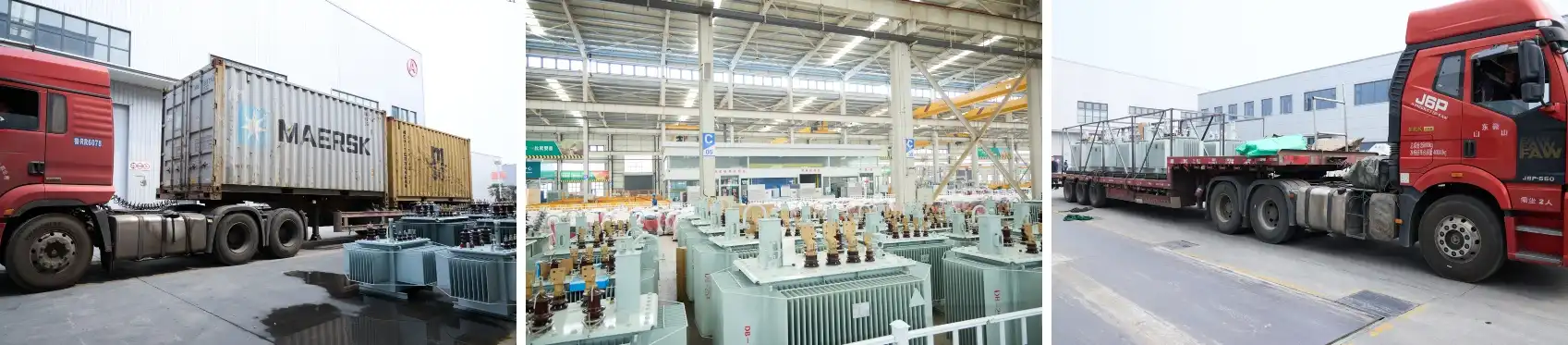

Large-scale utility and infrastructure projects need to be able to reliably get bulk supplies, and for an S13 type oil-immersed distribution transformer, this means working with a manufacturer that has proven production capacity, flexible framework agreements with volume discounts, and dedicated logistics support for sea freight and on-site delivery to remote locations. Leading suppliers keep their production levels high so that they can keep delivery schedules that are in line with project deadlines. When buying a lot of units, negotiating framework agreements with discounts for buying in bulk and guaranteed delivery dates lowers the risk of buying. Experienced sellers offer full transportation support, such as custom packaging for sea freight, organised shipping to remote sites, and qualified service partners who help with installation on-site.

Quality assurance procedures should include factory acceptance testing (FAT), which lets buyers see routine tests, measurements of load loss, and confirmation of dielectric strength before the goods are shipped. This proactive method cuts down on delays in commissioning and makes sure that equipment comes ready to be used right away.

Leading S13 Transformer Manufacturers and Suppliers: Trusted Brands Overview

Evaluating Supplier Credentials

Choosing a famous manufacturer has a direct effect on how well the job goes and how reliable the equipment is. Top-tier suppliers have a lot of research and development (R&D) resources, modern factories with lots of automation, strong quality control systems, and a history of working with major utilities and EPC contractors around the world. Suppliers with ISO 9001:2015 approval and recognition by industry groups guarantee consistent quality in the manufacturing process.

The Lijie Electric Advantage

These traits are shown by Lijie Electric Power Technology Group, which has two large factories in Xuzhou and Nantong, China, that cover a total area of 500,000 square meters. The company has strong R&D and production skills thanks to its more than 2,000 workers, including more than 160 engineers with advanced degrees. Annual sales of more than 5 billion RMB show that the market is confident and that the company has the size to handle big contracts.

The National Transformer Quality Supervision and Inspection Center and the Wuhan High Voltage Research Institute put Lijie's S13 type oil-immersed distribution transformers through a lot of tests. The products have energy efficiency certification from the China Quality Certification Center (CQC) and PCCC certification from the National Electric Power Certification Center. International certifications like CE and UL make deployment around the world easier. Following IEC guidelines for 10kV and 35kV power transformers by the company ensures that they work with foreign project requirements.

Lijie Electric is a trustworthy partner for utilities, green energy developers, and industry manufacturers who need consistent quality over long-term supply deals because of its size, technical knowledge, and wide range of certifications, and our S13 type oil-immersed distribution transformer is a key product in this portfolio, offering reliable performance, energy efficiency, and proven export capability to Australia, India, Central Asia, Southeast Asia, and Africa. The company's exports to Australia, India, Central Asia, Southeast Asia, and Africa show that it can handle foreign projects and provide after-sales support in a range of legal settings.

Operational Efficiency and Testing: Maximizing the Value of Your S13 Transformer

Essential Diagnostic Testing Procedures

To keep performance at its best, you need to use regular testing methods. Insulation resistance testing with megohmmeters checks the integrity of the windings and bushings. For healthy units, readings above 1,000 MΩ are normal. By identifying gases created by thermal or electrical stress using chromatography, dissolved gas analysis (DGA) of insulating oil can find faults before they happen. Routine oil sampling every 12 to 24 months lets you find problems early, which stops major breakdowns and increases the life of the system.

Temperature rise tests that check load capacity make sure that transformers work within their thermal limits in real-world business situations. Measurements of partial discharge below 100pC show that insulation systems are healthy, which is important for long-term dependability in high-voltage uses.

Predictive Maintenance Technologies

IoT monitors are used in modern condition tracking systems to keep real-time records of oil temperature, moisture content, and load profiles. Predictive maintenance strategies are made possible by these systems, which let operators know about problems as they arise before they cause unplanned power outages. By focusing on interventions exactly when they are needed instead of following set schedules, predictive analytics cuts down on maintenance costs.

Taking steps to cut down on noise also makes operations run more smoothly. Acoustic transfer is limited by good base design and vibration isolation. This is especially important in places with lots of people. When combined with the S13 type oil-immersed distribution transformer's naturally low noise levels, these methods make sure that the rules are followed and the community accepts it.

With these operational best practices, S13 type oil-immersed distribution transformers go from being passive infrastructure to being actively managed assets. This increases the return on investment by making the assets last longer and reducing downtime.

Conclusion

The S13 type oil-immersed distribution transformer has been used successfully by utilities, factories, and renewable energy projects that need reliable and efficient power distribution equipment. It has better technical features than earlier models, like fewer losses, less noise, and a sealed design that doesn't need any upkeep. This gives it great lifecycle value. Partnering with providers that can show large-scale production, strict quality control, compliance with foreign certification standards, and a wide range of service offerings is key to successful buying. By carefully comparing technical specs to project needs and choosing well-known brands with a history of reliability, procurement teams can get equipment that works well for decades while keeping the total cost of ownership as low as possible.

FAQ

How does S13 differ from S11 in efficiency?

Compared to S11 transformers, the S13 type oil-immersed distribution transformer model cuts no-load losses by about 25–30%, meeting Level 2 energy saving guidelines. This change is due to better silicon steel materials and better magnetic circuit design, which directly lowers the amount of energy needed for operation and the amount of carbon dioxide released into the atmosphere.

Can S13 transformers operate in high-altitude regions?

S13 type oil-immersed distribution transformer units work successfully at normal elevations, but installations above 1,000 meters might need derating or special bearings. Because the air density drops at higher elevations, it changes how well cooling works and how strong the dielectric is. This means that makers need to be consulted to make sure that the right changes are made for high-altitude operations.

How often does transformer oil require replacement?

The fully sealed corrugated tank design keeps oil from coming into contact with air, which keeps it from oxidising and getting contaminated with water. When the transformer is used normally, the oil usually lasts its whole service life—often 30 years or more—without needing to be replaced. This makes maintenance much cheaper than with older open-type designs.

Partner with Lijie Electric for Your S13 Transformer Requirements

Lijie Electric sells certified S13 type oil-immersed distribution transformers that are made for tough utility, industry, and green energy uses all over the world. Our factories are certified by ISO 9001, IEC, CE, and UL, which means that the quality is the same for both large orders and custom requests. We make procurement easier from the initial specification to commissioning by having the production capacity to handle large-scale projects and technical teams that can help with application guidance. Our engineers work closely with your project teams to make sure that the transformers they design meet all of your needs for power, capacity, and environmental factors. Email our experts at lijieelectrical@gmail.com to talk about your project's needs, get specific quotes, and look into volume discounts for sales of more than one unit. Lijie Electric is a reliable company that makes S13 type oil-immersed distribution transformers and has worked on projects all over the world. They offer low prices, on-time deliveries, and full guarantee support to make sure your project is a success. You can look at our full line of products at lijie-electrical.com and see how our solutions fit in with your operational goals.

References

1. International Electrotechnical Commission. IEC 60076: Power Transformers - General Standards and Testing Procedures. Geneva: IEC Publications, 2018.

2. Chen, W., & Liu, H. Energy-Efficient Power Distribution: Advanced Transformer Technologies for Modern Grids. Beijing: China Electric Power Press, 2020.

3. National Transformer Quality Supervision and Inspection Center. Technical Guidelines for Oil-Immersed Distribution Transformers Rated 35kV and Below. Wuhan: CEPRI Technical Report Series, 2019.

4. Zhang, Y., Wang, J., & Li, S. "Comparative Analysis of S11 and S13 Transformer Series: Energy Efficiency and Lifecycle Cost Assessment." Journal of Electrical Engineering & Technology, vol. 15, no. 3, 2021, pp. 1247-1256.

5. American Society for Testing and Materials. ASTM D3487: Standard Specification for Mineral Insulating Oil Used in Electrical Apparatus. West Conshohocken: ASTM International, 2020.

6. Kumar, R., & Patel, M. Transformer Procurement and Asset Management: A Practical Guide for Utilities and Industrial Users. New York: IEEE Press, 2019.
