Oil-Immersed Transformers Enhance Grid Stability in Utility Applications

When utility engineers and procurement managers talk about what keeps the grid running reliably, the conversation almost always comes back to one workhorse technology: the oil-immersed transformer. These units do more than step voltage up or down — they absorb thermal stress, resist dielectric failure, and sustain performance across decades of continuous service. Whether you manage a regional transmission network, a solar integration project, or a large industrial load center, understanding how liquid-filled power transformers contribute to grid stability is essential for making smart procurement and operational decisions.

Understanding Oil-Immersed Transformers in Utility Applications

How Liquid Insulation Supports Reliable Power Transfer

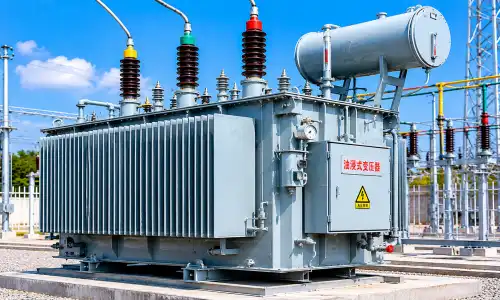

An Oil-Immersed Transformer seals its core and windings inside a steel tank that is full of shielding oil. This oil is usually mineral oil, silicone fluid, or natural ester. Additionally, the oil does two things at the same time: it blocks out high-dielectric energy and moves heat away from the windings to the tank walls and radiators that cool them down. IEC 60076-1 says that mineral oil-based standard power transformers have dielectric strengths greater than 30 kV/2.5 mm. This means that they are good for high-voltage settings outside .

Cooling Methods and Their Impact on Grid Stability

How well a generator handles changes in load is directly related to how it is cooled, which is a very important factor for keeping the grid stable. These are the most common arrangements:

• ONAN (Oil Natural, Air Natural): Passive convection cooling works best in base-load substations where the load profile is known ahead of time. There is no need for extra power, so the total cost of operation is lower.
• ONAF (Oil Natural, Air Forced): When there is a lot of work to be done, fans on the boilers turn on. This raises the temperature ceiling without making any big changes to the infrastructure.
• OFAF (Oil Forced, Air Forced): In these types of units, both the oil pumps and fans run all the time, which lets them handle the most power. They are most often found in 110kV–500kV transmission-class units.

These different levels of cooling make it possible for a single Oil-Immersed Transformer design to adapt to changing grid demand, reducing the chance of thermal trips happening during peak times. Lijie Electric's Oil-Immersed Transformer line includes all three cooling classes, with values ranging from low-voltage units for distribution to 500kV transmission transformers for very high voltage.

Load Balancing and Fault Tolerance

Liquid-filled transformers are better at handling faults because the oil's self-healing insulation feature lets fluid move into tiny holes and stop partial discharge. According to IEC 60076-3, partial discharge levels in units that are well taken care of usually stay below 10 pC. This trait, along with designs that use high-grade silicon steel cores and have low no-load loss, helps keep the voltage stable, which is important for both national grid managers and regional utilities.

Common Challenges and Maintenance Best Practices

Addressing the Three Leading Failure Modes

During its 30-year working life, even the most durable liquid-filled transformer can have problems. The three problems that show up most often in utility maintenance records are oil leaks, insulation degradation caused by water, and buildup of thermal stress. If you don't fix them, each one can significantly shorten the life of the transformer and cause unplanned outages that cost money.

As always, proactive care is the best way to deal with problems. These things should be part of an organized review program:

• Annual dissolved gas analysis (DGA): Checks for early signs of problems like partial discharge and starting warming by looking at the gases that are dissolved in the insulation oil. The standard reading guide is in IEEE C57.104.
• Oil dielectric strength testing every 2–3 years: Done to see how well the oil can keep electricity from breaking down. As per ASTM D877, values below 30 kV mean that the oil needs to be reconditioned or replaced.
• Thermal imaging during peak load seasons: Finds hot spots on bushings, tap changers, and tank welds without having to plan for outages.

These steps lower the cost of lifecycle maintenance, increase the average time between major overhauls, and lower the number of unplanned failures. Now, utilities can use online tracking systems to keep an eye on the temperature of the windings, the level of the oil, and the load current in real time, feeding data straight into asset management platforms.

Comparing Oil-Immersed Transformers with Alternative Technologies

Choosing the Right Technology for Your Application

A lot of the time, procurement experts want to know how liquid-filled designs stack up against dry-type, cast plastic, or air-cooled options. The answer is not based on a single performance metric but on the specifics of the application.

Oil-Immersed Transformers work best in transmission-level, high-capacity, and outdoor settings. They are the best choice for utility substations, wind and solar farm step-up applications, and heavy industrial loads above 2,500 kVA because they can handle continuous overloads, have lower no-load losses, and have better thermal capacity. Grand View Research did a market study in 2022 and found that liquid-filled transformers still make up more than 60% of all transformer installs around the world.

Dry-type and cast resin transformers work well in business settings inside, like data centers and urban distribution points where fire safety rules don't allow oil use. They cost more per kVA and can't handle as much pressure, but they don't need any infrastructure for oil control.

For integrating utility-scale renewable energy—a growing part of Lijie Electric's customer base—Oil-Immersed Transformers used for step-up applications are still the best choice because they are very efficient (often exceeding 99%) and can work with the changing output profiles of solar and wind generation assets.

Procurement Insights: Purchasing Oil-Immersed Transformers for Utilities

What Procurement Managers Should Evaluate

There is more to choosing a provider of liquid-filled transformers for large-scale use than just comparing unit prices. The following should be looked at by procurement teams in charge of large-volume or long-term framework agreements:

• Certification compliance: Check that the ISO 9001, IEC 60076 series, CE, and UL certificates are still valid. Conformance to IEEE C57.12.00 is also important for projects in the U.S. market.
• Customization capability: Voltage level, impedance needs, tap changer configuration, and environmental class vary from grid applications. Check to see if the maker can meet your unique needs within a reasonable amount of time.
• Batch production capacity: For big building projects, ongoing delivery is needed, not small-batch fulfillment. It is safer to do business with suppliers who do all of their own manufacturing, like core stamping, winding, and tank fabrication.
• After-sales service depth: Look at the warranty coverage, availability of spare parts, and on-site commissioning support, especially for projects in remote or international areas.

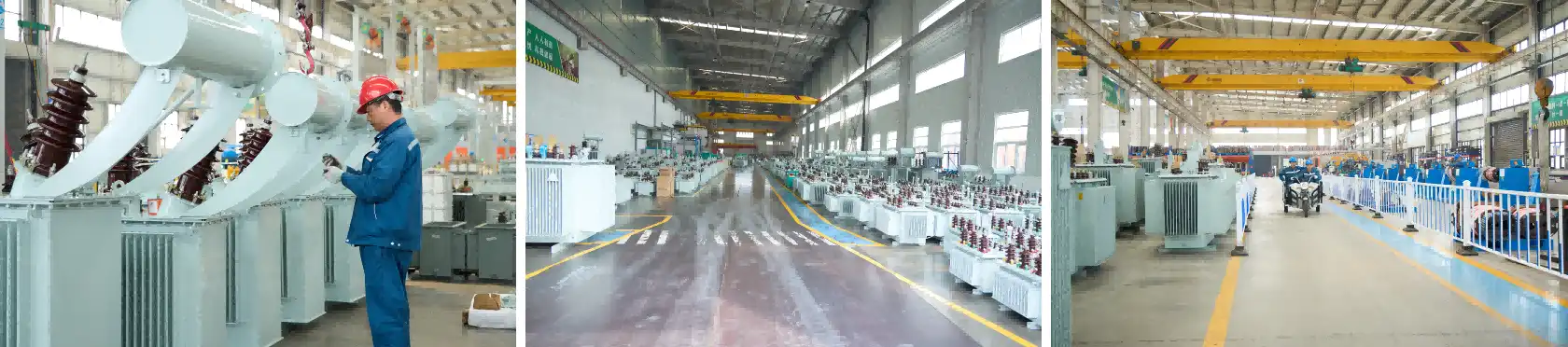

Lijie Electric has two factories in China, one in Xuzhou and one in Nantong. Together, they cover 500,000 square meters and hire over 2,000 people, including more than 160 engineers with doctoral or master's degrees. This scale can handle orders for a wide range of Oil-Immersed Transformer projects and provides the consistent production capacity that utility purchasing managers look for.

Future Outlook: Innovations and Trends in Oil-Immersed Transformers

Smart Monitoring and Eco-Friendly Insulating Fluids

Two new ideas come together in the next generation of liquid-filled power transformers. Mineral oil is being replaced in more and more new systems by natural ester fluids that come from plants. These fluids have flash points above 300°C (compared to about 135°C for regular mineral oil), which makes them safer around fires and more environmentally friendly because they break down naturally.

At the same time, IoT-enabled sensor systems now make it possible to watch the temperature of the winding, the percentage of dissolved gases, and the amount of moisture in the oil in real time. These systems feed information into predictive maintenance programs that can spot problems weeks before they break down. Grid modernization, which includes tracking smart Oil-Immersed Transformers, has been named a national infrastructure priority by the U.S. Department of Energy [6]. This has sped up the adoption rate by both public utilities and private energy providers.

Conclusion

For now, liquid-filled power transformers, including the widely used Oil-Immersed Transformer, are still the most important part of stable utility grids, both technically and financially. They are the most flexible option for transmission, distribution, renewable energy integration, and industrial power systems because they can handle high temperatures, have a high dielectric strength, and can be used across voltage classes. As the science of insulating fluids improves and real-time tracking is added, their performance range keeps growing. If you choose the right manufacturer, one with certified products, a history of on-time batch delivery, and strong technical support, that performance will translate into long-term grid reliability.

FAQ

How often should insulating oil be tested in a utility transformer?

For utility-grade units, it is standard to test the DGA once a year and the dielectric strength every two to three years. High-load or mission-critical transformers may need to be checked more often. For DGA interpretation, follow the rules in IEEE C57.104.

What safety measures apply to oil-filled transformer installations?

Most local fire codes require oil holding pits or bunding systems to keep the soil from getting dirty if the tank breaks. Outside power sources usually have safety features like arc-flash labels, pressure release valves, and Buchholz relay protection.

Can oil-immersed transformers be customized for renewable energy projects?

Yes. Step-up transformers made by companies like Lijie Electric are designed to work with solar and wind power. They have low no-load loss cores, a wide tap range, and can work with the variable-frequency outputs that are common in these types of systems.

What voltage classes are available?

The products that Lijie Electric sells range from distribution transformers with ratings of 35kV or less to transmission-class units with ratings of 110kV, 220kV, and even 500kV or more.

Partner with Lijie Electric for Dependable Liquid-Filled Transformer Solutions

Lijie Electric offers certified Oil-Immersed Transformer options for utility grid security over the long term, ranging from the 500kV transmission class to the distribution class. We are a reliable manufacturer with ISO 9001, IEC, CE, and UL certifications. We can handle large orders, special requirements, and on-time delivery for projects all over the world. You can email our engineering team at lijieelectrical@gmail.com or visit lijie-electrical.com to get detailed advice and a price quote.
