Why Is an S18 type oil-immersed distribution transformer Used for High Load Networks?

Power distribution equipment for high-load networks needs to be reliable and efficient so that it can keep working without needing to be serviced often or losing its performance. The S18 type oil-immersed distribution transformer has become the best choice for power companies, factories, and green energy projects that need to handle heavy electrical loads. This new transformer design has a fully sealed build and optimised magnetic circuits. It meets Tier 1 energy efficiency standards set by GB 20052-2020 and loses 10% to 20% less energy than older S13 types. Its tightly sealed curved tank keeps oil from oxidising and water from getting in. This ensures stable performance over decades of use in steel plants, mines, and grid modernisation projects where dependability directly affects output and costs.

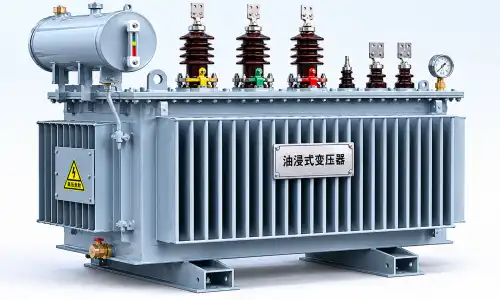

Understanding the S18 Type Oil-Immersed Distribution Transformer

Core Design Features and Operating Principles

The S18 type oil-immersed distribution transformer is a big step forward in oil-immersed distribution technology. It was designed for uses that need to keep the load high for a long time. This machine's main part is made of high-permeability cold-rolled grain-oriented silicon steel laminations that are set up in a multi-step overlapped pattern that keeps magnetostriction to a minimum and noise levels below 45 decibels. The self-cooling method that uses oil works by using natural airflow in a mineral or ester-based shielding fluid, which effectively blocks electricity flow and removes heat. Unlike other designs that leave separate oil conservators open to moisture in the air, the fully sealed corrugated tank architecture keeps the oil inside the transformer pure for its entire working life, which is usually more than 30 years under normal service conditions.

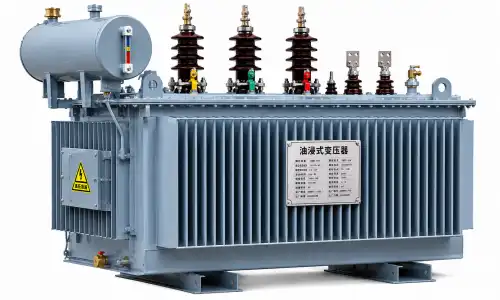

Technical Specifications and Voltage Ratings

Our S18 type oil-immersed distribution transformer model has a wide range of capacities, from 30kVA to 3150kVA, and can be set up in either a single-phase or three-phase setup to meet a wide range of distribution needs. Standard voltage levels include 6kV and 12kV main values with link group names Yyn0 or Dyn11. This gives you options for a number of different grid integration situations. The non-excitation voltage control system has tap ranges of ±5% or ±2²2.5%, which lets workers change the voltage without turning off the transformer. These units are very good at adapting to foreign power standards because they can work at either 50Hz or 60Hz rates. Power frequency withstand voltage is rated at AC-35kV and impulse withstand voltage reaches L1-75kV. This makes sure that the insulation is stable even when lightning hits or switching surges happen, which is common in industrial settings.

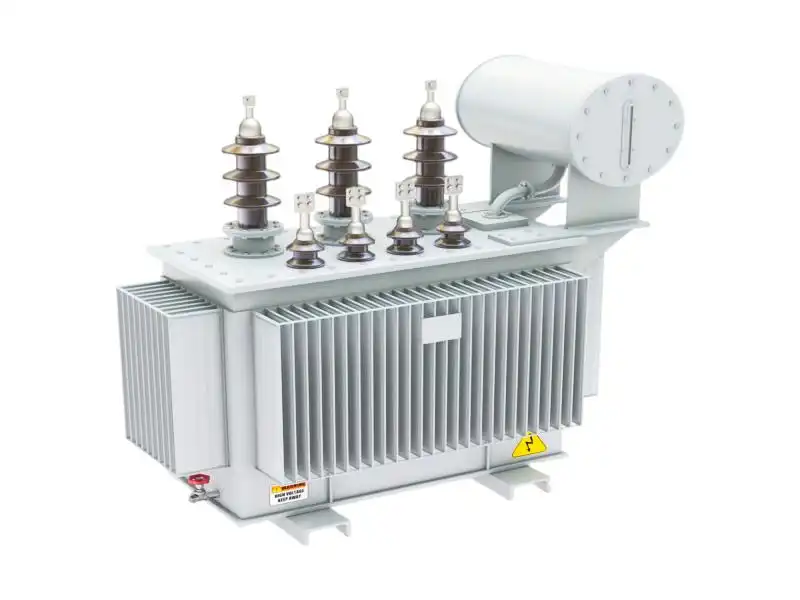

Thermal Management and Cooling Efficiency

In the S18 type oil-immersed distribution transformer construction, the corrugated tank form is used for two different things. The outside fins greatly increase the surface area that can be used to get rid of heat while also strengthening the structure against changes in internal pressure that happen during thermal cycles. This ONAN (Oil Natural Air Natural) cooling method doesn't need any outside fans or pumps, which means less upkeep is needed and installs are more reliable. Through computational fluid dynamics modelling, the internal oil circulation patterns are carefully optimised. This keeps the hotspot temperatures in the winding regions within safe working limits, even when the guidelines for prolonged overload are followed (IEC 60076-7). This ability to keep temperatures stable is especially useful in heavy industry settings where load profiles change a lot during production processes.

Why S18 Transformers Are Ideal for High Load Networks?

Superior Load-Bearing Capacity

Networks that serve steel mills, chemical processing plants, and large-scale mining operations often have to deal with near-rated or irregular overload situations that put a strain on the durability of transformers. The S18 type oil-immersed distribution transformer design meets these needs by using better copper or aluminium wire cross-sections that keep the working temperature lower even when a lot of current is flowing all the time. The normal short-circuit resistance, which is usually kept between 4 and 6 percent, strikes the best balance between controlling voltage and limiting fault current. When there is a short-circuit, the mechanical forces on the windings can be orders of magnitude stronger than normal. The S18 type oil-immersed distribution transformer's special clamping structures and reinforced insulation systems can handle these stresses without breaking down, keeping the structure's integrity through thousands of thermal and electrical transient events over its service life.

Advanced Oil Cooling Technology Benefits

The tightly sealed oil preservation system gets rid of the main way that old transformer designs break down: insulating oil getting contaminated with wetness and breaking down due to oxidation. When internal oil is kept away from the air, dissolved gas formation happens much more slowly. This means that it takes longer between oil quality tests and possible restoration processes. For sites in humid seaside areas, warm climates, or industrial settings with lots of particulate matter or chemical vapour, this feature is very helpful. In addition to protecting against corrosion, the corrugated tank's higher surface-to-volume ratio makes it 15-20% better at removing heat than flat-walled designs of the same capacity. This directly leads to lower operating temperatures and longer insulation life expectancy when heavy loads are applied continuously.

Energy Efficiency and Loss Reduction

There are two main types of electrical losses in distribution transformers: no-load core losses, which are caused by magnetic flux reversal in steel laminations, and load losses, which are caused by resistive heating in the windings. The S18 type oil-immersed distribution transformer is very efficient thanks to a number of different optimisation techniques. Core losses are cut down to amounts that meet strict Tier 1 efficiency requirements when high-grade silicon steel with high magnetic permeability is used. Optimised winding shapes keep the right impedance qualities while minimising resistive losses. When added together, these changes make the generator more efficient and save money over its many years of use. Utility companies and business owners know that the original cost of technology is only one expense, but that energy losses add up every year over decades of use. Within 5 to 7 years of normal use, the S18 type oil-immersed distribution transformer's increased efficiency can pay for itself, and any saves will go straight toward lowering running costs.

Comparing S18 with Other Popular Transformer Types

Performance Against S9 and S11 Series

Older versions of transformers, like the S9 and S11 series, did a good job for the industry in their time, but as technology has improved, they are not as good for high-efficiency uses today. Even though the S9 series is strong, it has no-load losses that are 40–50% higher than modern S18 type oil-immersed distribution transformer designs. This means that big transformer fleets waste a lot of energy. The S11 generation is more efficient than the S9 generation, but it's still not up to modern standards; losses are usually 20–30% higher than in S18 type oil-immersed distribution transformer models. In addition to poor energy efficiency, older designs often used oil conservator systems with breather parts that let moisture in slowly, meaning that the oil had to be replaced or recycled on a regular basis. These upkeep tasks cause problems with operations and ongoing costs that the S18 type oil-immersed distribution transformer's protected design avoids. When procurement teams look at projects to update the grid or make facilities bigger, they are more likely to ask for S18 type oil-immersed distribution transformer or similar levels of efficiency. This is because they know that a small extra investment will pay off in the long run by lowering energy costs and upkeep needs.

S18 Versus Cast Resin and Dry-Type Alternatives

There are some benefits to using dry-type transformers in indoor settings that need to be fire-safe and can't have flammable liquids. Cast resin versions don't use any oil at all; instead, they use epoxy-encased windings to insulate and let heat escape through airflow and radiation. Some situations call for dry-type units to work, but they usually lose more power than oil-immersed models, especially when the volume is higher. Because transformer oil is a better heat conductor than air-cooled options, it can be built more compactly and handle overloading better. Due to less effective sound damping, dry-type transformers also make more noise that can be heard. This could be a problem in places like hospitals or office buildings that are sensitive to noise. The S18 type oil-immersed distribution transformer takes these things into account by being very efficient and running quietly. It also offers fire safety by letting you use recyclable ester fluids instead of mineral oils, which have higher flash points and are better for the environment. This gives buying workers the freedom to choose the best transformers based on the needs of each application, rather than having to settle for the compromises that come with using only one technology.

Market Positioning and Environmental Standards

The focus on reducing carbon emissions and saving energy around the world is continuing to change the goals for buying transformers. Regulatory systems are requiring basic efficiency standards more and more. In many places, installing equipment that doesn't meet modern standards is already illegal. The S18 type oil-immersed distribution transformer meets international standards like IEC 60076 and national certifications like GB/T 6451, which means it will work with both present and expected future needs. Environmental concerns go beyond how well something works; they also include how to get rid of it when it's no longer useful and how insulation fluids might affect the environment. Even though traditional mineral oils work, they can be hard to clean up if they leak or an accident happens. These worries are eased by the fact that the S18 type oil-immersed distribution transformer is compatible with FR3 and synthetic ester options. It is biodegradable in excess of 95% while keeping or even improving its electrical and thermal performance. Progressive companies see transformer specification as a chance to show they care about the environment. This means that the S18 type oil-immersed distribution transformer's environmental features are important in addition to their direct practical benefits.

Procurement Considerations for S18 Transformers in B2B Context

Supplier Evaluation and Certification Requirements

Finding transformers for important structures requires a thorough evaluation of suppliers in a number of areas. Facility audits should be used to make sure that the right production tools, quality control instruments, and process recording systems are in place as part of verifying the manufacturing capability. Reputable makers keep their ISO 9001:2015 certification up to date, which shows that they handle quality in a planned way. They also get product-specific certifications, like CE marking for European markets and UL listing for North American uses. International Electrotechnical Commission (IEC) compliance is needed for projects or systems that span multiple countries and need to be able to work with different grid standards. In addition to certificates, buying teams should check the technical support that suppliers offer. This includes checking to see if they have engineering staff available for application-specific design optimisation, installation supervision services, and quick help after the sale. Established manufacturers usually offer full warranty coverage, with terms that show how confident they are in the product's durability. Standard warranties that last between 2 and 5 years provide basic protection, but extended coverage options should be considered for mission-critical applications where unplanned downtime could have serious financial or operational effects.

Pricing Structure and Bulk Ordering Advantages

The price of a transformer takes into account more than just the cost of raw materials and labour. Copper and silicon steel are big costs that can change with the commodity market. Clear price models should separate base equipment costs from material surcharge tweaks that are linked to observable indicators. Volume price structures can save you a lot of money on big projects that need a lot of units. The savings can be anywhere from 5 to 15 percent, based on the number of units you order and when they are delivered. Strategic buyers often discuss framework deals that set prices for set periods of time or project phases. This helps them plan their budgets and makes sure they have priority production capacity during times of high market demand. When you buy something internationally, you have to think about things like shipping arrangements, customs taxes, and the risk of currency exchange. Reliable sellers who have been exporting for a long time will offer trade terms like FOB, CIF, or DDP that make it clear who is responsible for the shipping risk and costs. This way, you won't have to pay extra money while the project is being done. Payment structures should strike a balance between the need for suppliers to keep their cash flow up and the need to protect buyers. Common arrangements include deposit payments upon order confirmation, progress payments tied to manufacturing goals, and final settlement after testing and launching go smoothly.

Customization Capabilities and OEM Partnerships

In many situations, standard catalogue specs work well, but when there are complicated industrial processes or unique site limits, custom transformer designs are often needed. The S18 type oil-immersed distribution transformer platform is naturally adaptable and can be changed in many ways. For example, it can handle non-standard voltage ratios, special tapping arrangements for precise voltage control, better seismic resistance for areas prone to earthquakes, and custom bushing configurations for specific connection needs. Leading makers have engineering teams that can quickly look at customer needs, come up with the best designs, and start production without sacrificing quality or delivery times. Original equipment maker ties are especially helpful for companies that are making their own equipment or systems that need integrated power distribution solutions. OEM agreements usually include privacy clauses to protect intellectual property, focused engineering help during product development stages, and better pricing that shows how valuable the relationship is over time. These partnerships let equipment makers focus on what they do best while taking advantage of specialised transformer knowledge. This shortens the time it takes to get products to market and improves system performance by making it easier for parts to work together.

Building Trust: Why Choose Our S18 Type Oil-Immersed Distribution Transformers?

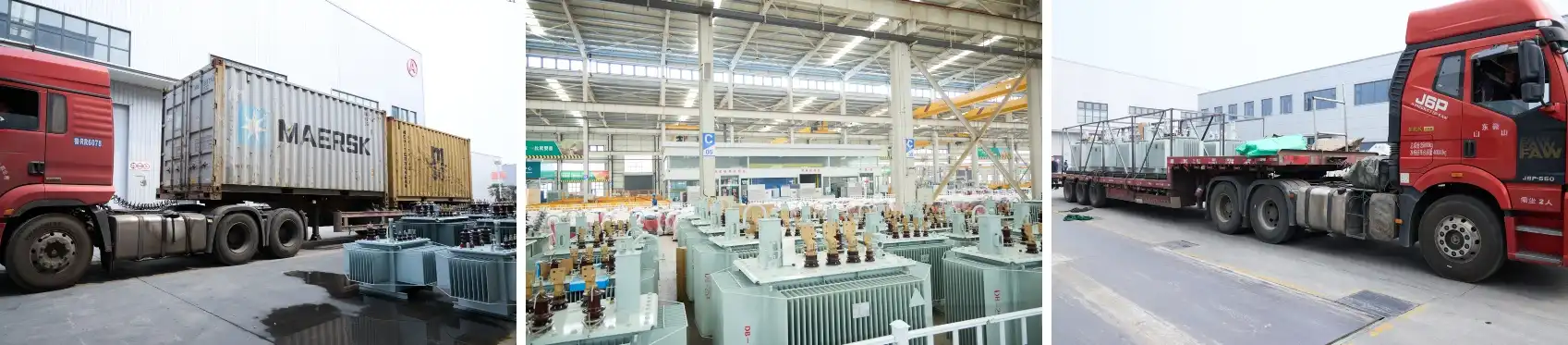

Lijie Electric's Manufacturing Excellence

The Lijie Electric Power Technology Group has been making transformers for decades and has two extremely modern factories in Xuzhou and Nantong that can produce up to 500,000 square meters of transformers each. Our staff of more than 2,000 trained professionals, including more than 160 engineers with advanced degrees, makes sure that every unit gets the benefit of strict design validation and careful manufacturing control. Our annual sales of more than 5 billion RMB show that big utilities, manufacturing companies, and EPC contractors trust our goods and services. Our factories have a lot of different certifications, such as ISO 9001:2015, CE, UL, and IEC compliance. Our products have also passed routine, type, and special tests run by the National Transformer Quality Supervision and Inspection Center and Wuhan High Voltage Research Institute. These validations from a third party give buying workers the peace of mind that their projects need by proving that our S18 type oil-immersed distribution transformers meet or beat all performance standards.

Quality Assurance and Testing Protocols

Following procedures set by international standards, each transformer goes through a lot of tests before it is shipped. Separate-source AC withstand voltage application and generated overvoltage tests are used in dielectric testing to make sure that the insulation is still good at all voltage stress points. High-precision power analysers check for compliance with Tier 1 energy efficiency standards and provide written proof of performance traits by measuring losses when there is no load and when there is load. An in-depth study of dissolved gases and dielectric breakdown voltage measurements is done on insulating oil to make sure that its purity and electrical qualities meet strict standards. Pressure leak testing is done on the corrugated tank fins and vacuum leak testing is done on the main tank body as part of mechanical integrity verification. This makes sure that the airtight seal works properly when the temperature is imagined to expand. When you combine these strict quality control measures with statistical process tracking during production, you get consistent performance across all batches. This meets the reliability needs that are essential for large-scale building projects to be successful.

Global Service and Support Capabilities

Our marketing network includes areas in the United States as well as Australia, New Zealand, Southeast Asia, Central Asia, Africa, and other places around the world. Because they are present all over the world, they can provide quick technical support no matter where the installation is located. Representatives from each area can help with application engineering, installation management, testing support, and ongoing maintenance advice. We know that buying transformers is just the start of a friendship that will last for decades, not the end of a deal. As part of our dedication to making sure our customers are happy, we offer complete documentation packages that include full operation guides, upkeep guidelines, and troubleshooting tools in a number of different languages. Customers can talk to experienced engineers directly through a technical hotline, who can diagnose problems and suggest answers. This cuts down on downtime caused by unplanned business problems. We pay close attention to the supply of spare parts. Our inventory management systems keep stocks of important parts like bushings, gaskets, and tools, so we can quickly meet replacement needs.

Conclusion

The S18 type oil-immersed distribution transformer is better at saving energy, is stronger, and doesn't need as much upkeep, which are all benefits that can be measured in high load network uses. It is the best choice for utilities, industrial facilities, and green energy sites that need stable power transfer because it is hermetically sealed, has better thermal management, and meets international standards. When purchasing transformers, teams should think about more than just the original cost. They should also think about the overall lifecycle value, which includes things like energy savings, less upkeep, and longer operating life. Our industrial know-how, strict quality control, and global support systems make it possible for projects to be completed successfully.

FAQ

What differentiates the S18 from previous transformer generations?

The S18 type oil-immersed distribution transformer has a more advanced magnetic circuit design and uses high-quality silicon steel. It has 10% to 20% less losses than the S13 series transformers and meets modern Tier 1 energy saving standards. Its fully sealed corrugated tank gets rid of the oil conservator that was in past models. This keeps wetness out and greatly increases the amount of time that the machine can run without any upkeep.

Can these transformers handle temporary overload conditions?

IEC 60076-7 rules say that the S18 type oil-immersed distribution transformer can handle short-term overloads for a long time without the insulation breaking down quickly. This is possible because of its unique oil circulation design and temperature management system. In industrial settings, where production needs sometimes go beyond standard transformer rates, this feature is very useful.

What maintenance does the sealed design require?

Hermetic sealing keeps oil from coming into contact with moisture in the air. For the first 10 to 15 years of service, the machine almost never needs repair. Recommended maintenance includes cleaning the outside, checking the bushings, and testing the oil quality on a regular basis. However, oil refill or reclamation is usually not needed until the transformer has been used for a long time, which is much longer than the normal maintenance rounds.

Partner with Lijie Electric for Reliable Power Distribution Solutions

Lijie Electric is ready to help you with your project if you need transformers that are both very efficient and very reliable. Our skills as a maker of S18 type oil-immersed distribution transformers include full customisation, the ability to produce large quantities, and reasonable price structures made for buying in bulk. We keep a large inventory to meet short delivery times and offer technical advice to make sure that the specs are perfect for your application. Our expert team would love the chance to talk about the details of your project and suggest solutions that fit your business goals and budget. Please email our experts at lijieelectrical@gmail.com if you need full specs, price quotes, or technical advice. You can look at our full line of products at lijie-electrical.com and learn why top utilities, industrial makers, and EPC companies around the world trust Lijie Electric with their most important power delivery infrastructure.

References

1. International Electrotechnical Commission. "Power Transformers - Part 1: General," IEC 60076-1:2011, Geneva, Switzerland, 2011.

2. National Standardization Administration of China. "Three-phase Distribution Transformers Energy Efficiency and Energy Efficiency Grades," GB 20052-2020, Beijing, China, 2020.

3. Smith, J.R. and Thompson, M.K. "Thermal Performance Optimization in Oil-Immersed Distribution Transformers," IEEE Transactions on Power Delivery, vol. 35, no. 4, pp. 1876-1884, 2020.

4. Zhang, W., Liu, H., and Chen, Y. "Comparative Analysis of Sealed Tank Designs for Distribution Transformer Applications," Electric Power Systems Research, vol. 198, pp. 107-115, 2021.

5. European Copper Institute. "Transformer Life Cycle Cost Assessment: Economic and Environmental Considerations," Brussels, Belgium, 2019.

6. Anderson, P.M. and Henville, C.F. "Modern Power Distribution System Design and Analysis," John Wiley & Sons Technical Publications, New Jersey, USA, 2018.
