Is S22 Type 35KV Oil-Immersed Transformer Suitable for Power Grids?

The S22 type 35KV oil-immersed power transformer stands out as a great choice for medium-voltage distribution equipment used in modern power systems. This high-tech unit meets the GB 20052-2020 Grade 1 energy efficiency standards. This makes it a perfect choice for utilities and business owners who want to save money and make their systems more reliable over time. With its fully sealed corrugated tank design and laser-scribed cold-rolled grain-oriented silicon steel core, the S22 model solves important problems that older transformers often have, like grid stability, energy waste, and environmental durability.

Understanding the S22 Type 35KV Oil-Immersed Transformer

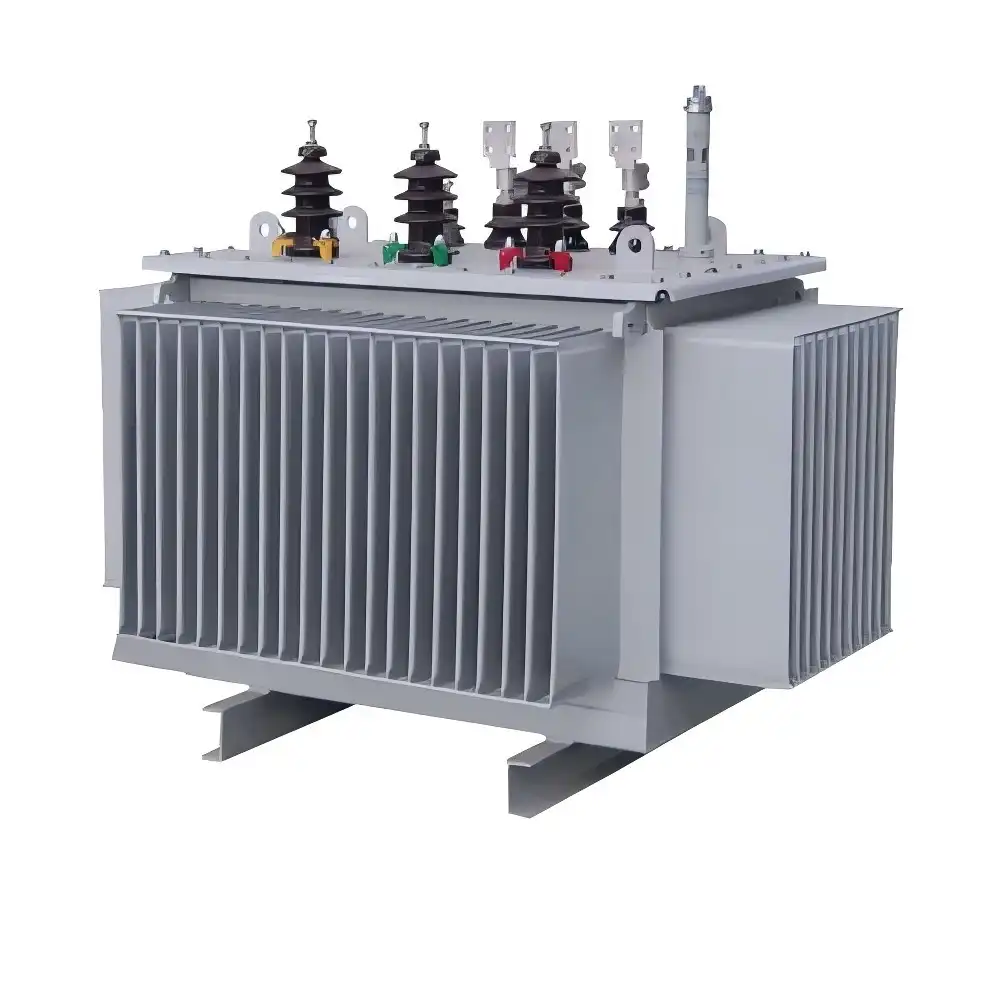

The S22 type 35KV oil-immersed power transformer is a big step forward in the creation of oil-immersed transport technology. Unlike most breath-type designs, this transformer has a corrugated expansion tank that is hermetically sealed, so the mineral oil doesn't come into contact with the air. This isolation stops moisture and oxidation from getting in, which are two main things that make insulation wear out faster over many years of use.

Core Construction and Cooling Architecture

At the center of the S22 type 35KV oil-immersed power transformer is a magnetic core made of high-permeability cold-rolled grain-oriented silicon steel that was treated with laser-scribing methods to reduce the formation of eddy currents. This choice of material directly leads to lower no-load losses. For a 1000kVA unit, no-load losses stay below 800W, which is 43% less than the older S11 series. The windings are made of high-purity electrolytic copper wrapped in two different types of shielding, which makes them very resistant to short circuits. Depending on the capacity, the cooling method changes. Units from 630kVA to 2500kVA use oil-immersed natural air cooling (ONAN), while larger transformers from 3150kVA to 31500kVA use forced air cooling (OFAF), which increases the efficiency of heat transfer by 45% during times of high demand.

Voltage Flexibility and Load Adaptability

The S22 type 35KV oil-immersed power transformer can work with a variety of grid designs because it can change its voltage settings easily. The high-voltage side works at 35kV and has a no-excitation tap control range of ±2±2.5%. This range can be increased to ±3±2.5% for projects that need tighter regulation. There are three types of low-voltage outputs: 10kV, 6kV, and 0.4kV. The most common configurations are 35kV/10kV and 35kV/0.4kV. The preferred Dyn11 connection group works especially well in places with nonlinear loads, like DC fast-charging infrastructure or variable frequency drives in factories, because it reduces harmonic distortion and keeps the neutral line stable.

Durability Specifications

Any grid-class S22 type 35KV oil-immersed power transformer that is supposed to work reliably for thirty years must have insulation that is completely solid. The S22 has an H+ class insulation system that can work continuously at 200°C and has partial discharge levels below 2pC. High-voltage windings can handle 70kV of power frequency voltage for 60 seconds and 170kV of lightning impulse peaks. 10kV low-voltage parts can handle 42kV of power frequency testing. The oil tank can be used in high-salinity coastal areas, polluted industrial routes, and high-altitude sites up to 3000 meters because it can be sealed with IP67 and prevent corrosion with C5-M.

Technical Advantages and Performance in Power Grids

Grid operators and industrial project managers are always under pressure to lower the total cost of ownership (TCO) while keeping power delivery steady. There are measurable benefits to the S22 type 35KV oil-immersed power transformer in a number of performance areas, which have a direct effect on both operational budgets and service reliability.

Energy Efficiency and Loss Reduction

There are two types of energy losses in distribution transformers: no-load losses, which happen all the time, no matter what the demand is, and load losses, which change based on the throughput. At rated current, a 1000kVA S22 type 35KV oil-immersed power transformer has load losses of 7200W, which is 10% better than the S20 generation and 4% better in terms of load loss performance. Over a normal 25-year service life, this efficiency gain saves more than 2,200 kWh of electricity each year per unit. This means that big utilities that manage hundreds of transformers across their distribution network can cut their carbon footprint and running costs by a large amount.

Short-Circuit Resilience and Grid Stability

Faults that cause serious mechanical and thermal pressures happen all the time in distribution transformers. The S22 type 35KV oil-immersed power transformer's short-circuit impedance of 6.5% (±10% tolerance) meets GB/T 1094.5 standards and lets it handle 2.5 times its rated current for two seconds without any damage to its structure. This fault tolerance stops breakdowns from spreading when lightning hits or equipment breaks down. The precision-laminated core construction reduces magnetostriction vibration and noise emissions below 50dB(A) at 1000kVA—8dB(A) quieter than JB/T 10088 national limits and about the same volume as a normal conversation. This is an important thing to think about for transformers that will be installed near homes or noise-sensitive industrial operations.

Thermal Management Under Variable Loads

Adding renewable energy causes random load patterns that make it hard for standard transformer designs to work. The output of wind farms changes depending on the weather, while the output of solar installations changes from zero at night to full capacity during the middle of the day. The S22 type 35KV oil-immersed power transformer can only rise to 65K for the windings and 55K for the top oil layers. This makes sure that it can keep running smoothly even when the temperature outside stays high for a long time. When the load on the OFAF automatically changes the cooling configuration, hotspots don't form, which would shorten the insulation's life and make it more likely to fail.

Procurement Insights and Supplier Evaluation

Finding the right S22 type 35KV oil-immersed power transformer provider means finding a balance between technical requirements, cost, and long-term service promises. Utilities and EPC contractors' procurement teams have to look at more than just the initial purchase price.

Certification Compliance and Quality Assurance

For international projects to go smoothly, strict adherence to regional standards is needed. Besides having specific product approvals, reputable makers of the S22 type 35KV oil-immersed power transformer also keep ISO 9001:2015 quality management certification. For the North American market, UL listing is important for confirming safety, while CE marking makes it easier to export to Europe. Compliance with IEC 60076 ensures that systems can work together with global grid standards. As part of quality control, oil samples should be tested for dielectricity and dissolved gas analysis (DGA). The temperature rise should be checked under full load, and the seal should be tested for 24 hours at 0.05MPa to make sure there are no leaks.

Capacity for Large-Scale Delivery

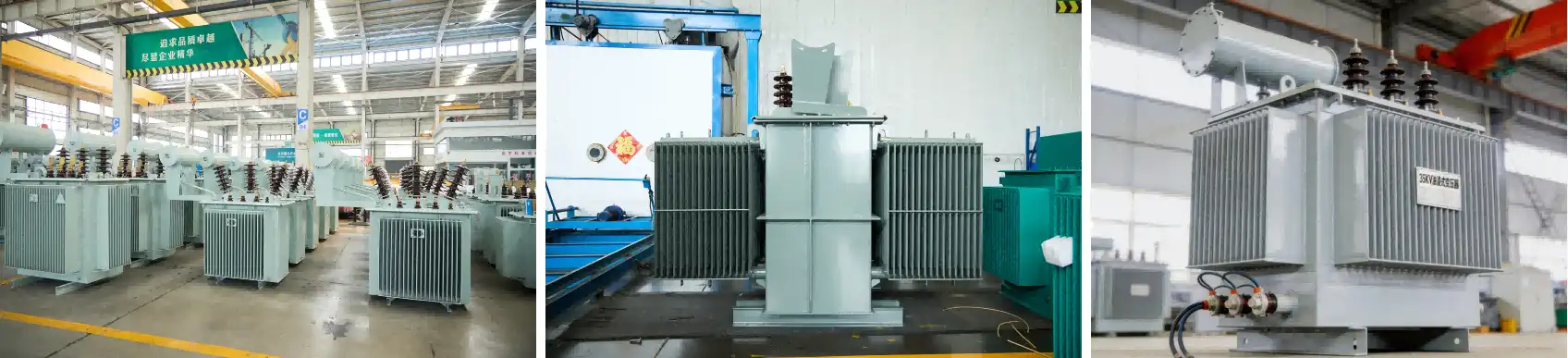

Single-unit purchases are rarely needed for infrastructure projects. A regional program to update utilities might call for 50 to 200 S22 type 35KV oil-immersed power transformers, with delivery dates timed with building goals. Suppliers who don't have enough production capacity cause delays in projects and cost overruns. Manufacturing plants that are bigger than 200,000 square meters and have their own dedicated production lines can make sure that each batch is the same and meet tight deadlines. In Xuzhou and Nantong, Lijie Electric has two large bases that cover a total area of 500,000 square meters. These bases support annual output that is sufficient for utility-scale deployments and keep extra inventory on hand for quick orders.

After-Sales Support and Technical Partnership

S22 type 35KV oil-immersed power transformers have lifespans of 30 years or more, during which they need regular maintenance and, on occasion, changes in the field to meet new grid requirements. Total value is higher for suppliers who offer full after-sales services, such as on-site commissioning, regular oil quality tests, thermal imaging checks, and emergency repair services. Companies with more than 160 engineers with advanced degrees can help with the design of custom applications like transformers that work in harsh climates or in specific industrial processes. Long-term framework agreements with well-known manufacturers lower the risk of buying things and often get better prices for large orders.

Troubleshooting, Safety, and Operational Best Practices

Even S22 type 35KV oil-immersed power transformers that are well-designed need to be regularly checked and sometimes fixed in order to last as long as they were meant to. It's helpful for field engineers to know about common operational problems and tried-and-true ways to find the problem.

Monitoring Oil Quality and Thermal Performance

Since transformer oil is both a coolant and an insulation, its state is a very important sign of the health of the S22 type 35KV oil-immersed power transformer. Dissolved gas research finds the first signs of flaws. For example, high levels of hydrogen show partial discharge, while high levels of acetylene show arcing. When you test the oil breakdown voltage (with acceptable limits above 30kV), you can see if there is moisture contamination or particle buildup. Using thermal imaging during load periods to find strange hot spots on bushings or tank surfaces could mean that OFAF units have problems with their internal windings or don't get enough cool airflow.

Addressing Noise and Vibration Anomalies

Mechanical failures in the S22 type 35KV oil-immersed power transformer often happen before sudden increases in noise or tank vibration. When there are loose core laminations, there is buzzing that gets louder when the machine is under load. In forced-air types, bearing wear in cooling fans causes shaking that isn't regular. Setting up baseline acoustic measurements during commissioning lets operators find changes before small problems become costly outages. The S22 has a naturally low noise floor, which makes it easier to find problems through regular sound level surveys.

Safety Protocols for High-Voltage Environments

Lockout-tagout and arc flash protection rules must be followed to the letter when working near energized S22 type 35KV oil-immersed power transformers. The S22's IP67 sealed enclosure lowers the risk of touch with the outside world, but repair tasks like checking the bushings or taking oil samples need to be turned off and grounded. People doing these jobs need to wear protective gear that is rated for voltage and stay at least as far away from each other as required by NFPA 70E or similar regional safety standards. Testing the transformer's built-in safety features on a regular basis, like pressure relief devices and Buchholz relays in bigger units, stops oil leaks or fires that could be very dangerous when there is an internal problem.

Future Trends and Optimization Opportunities for Power Grids

Decarbonisation rules, the rise of renewable energy, and the development of the digital grid are all bringing huge changes to the electrical distribution sector. To avoid becoming obsolete too soon, investments in S22 type 35KV oil-immersed power transformers that look to the future must account for these changes.

Integration with Smart Grid Infrastructure

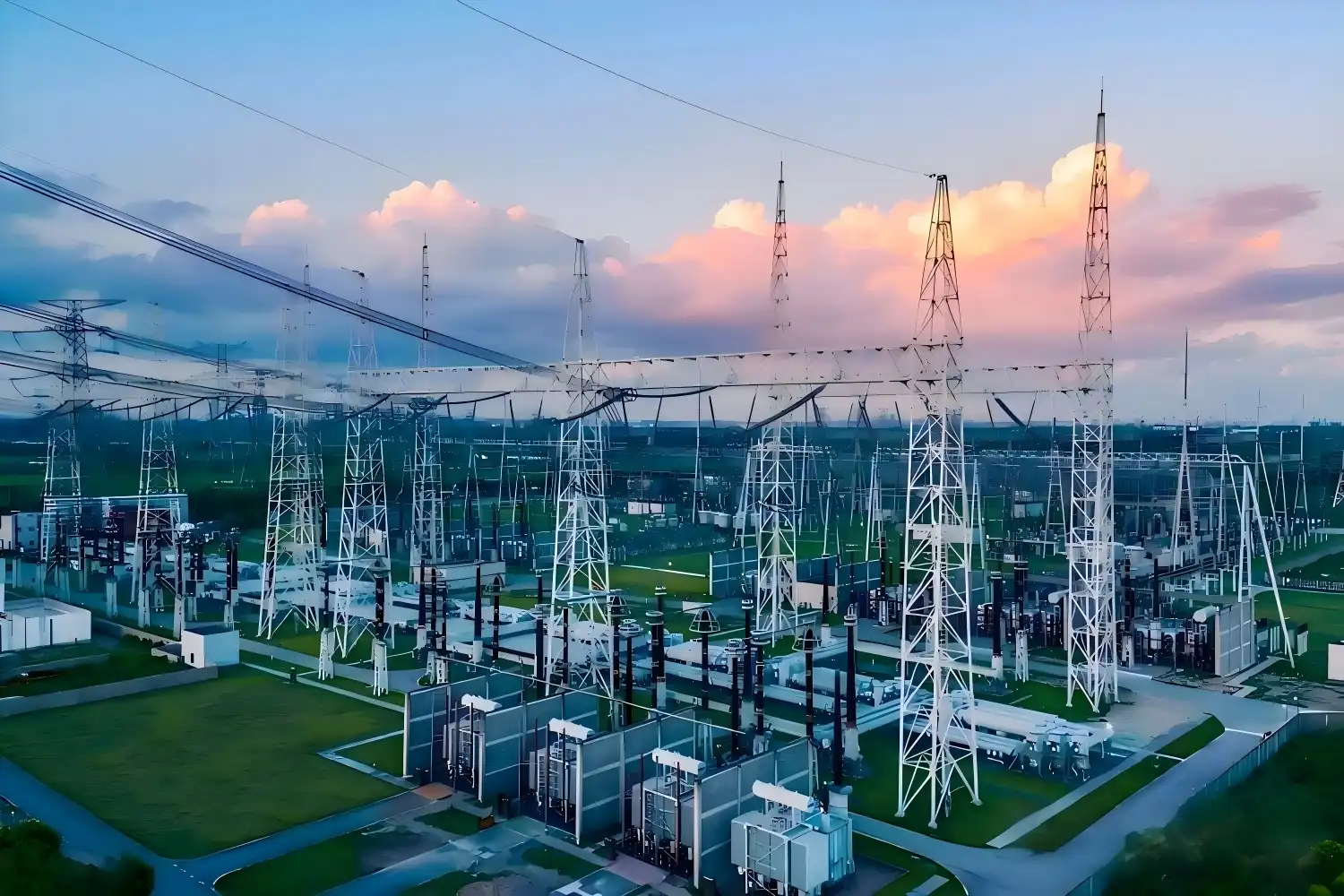

More and more sensors and communication networks are being used in modern substations to allow real-time asset monitoring. Next-generation S22 type 35KV oil-immersed power transformers have temperature probes, current sensors, and Internet of Things (IoT) gateways built right in. These send operational data to central SCADA systems. Because of this connectivity, utilities can use predictive maintenance strategies that plan repairs based on how the equipment is actually working instead of set times. The S22 is designed to work with these upgrades, as it has mounting holes for external monitoring gear and can talk to standard industrial protocols like Modbus and DNP3.

Environmental Sustainability Initiatives

Regulatory pressure to cut greenhouse gas pollution goes beyond business efficiency and includes things like how to handle the end of an S22 type 35KV oil-immersed power transformer's life. Transformers made by responsible companies are made so that their parts can be recycled. Mineral oil, steel tanks, and copper windings can all be reused and recycled. Biodegradable ester fluids are newer products that are more environmentally friendly and safer for fires than mineral oil, but they cost more at first. When utilities look at their long-term environmental goals, they should check to see if their suppliers are committed to the circular economy and if there are eco-friendly oil options that meet S22 standards.

Capacity Expansion and Grid Modernization

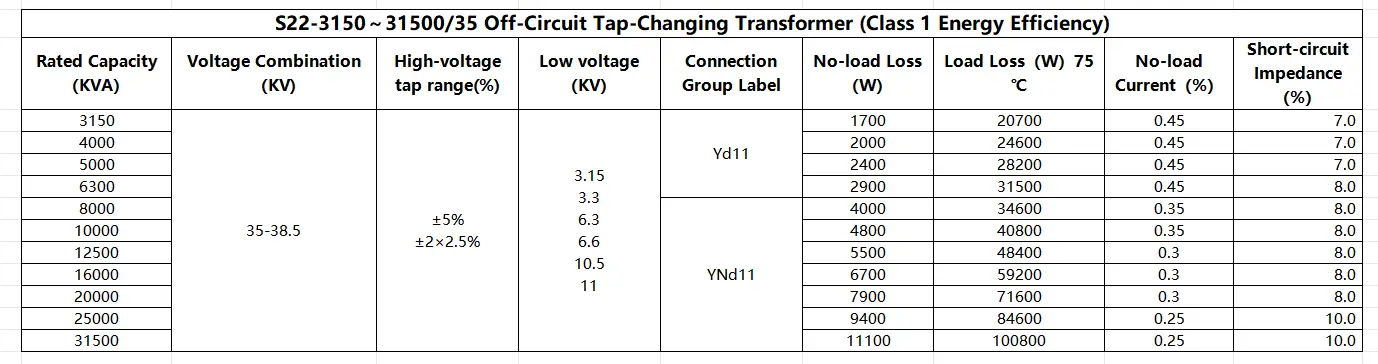

Load growth in many distribution networks is caused by the electrification of heating and transportation. The S22 type 35kV oil-immersed power transformer's power range, from 630kVA to 31500kVA, lets you make small improvements without having to rebuild the whole substation. Planners can use units with low ratings at first, then add more transformers in parallel or switch to models with higher capacities as demand grows. This modular approach lowers the initial cost of capital while still allowing for adaptability to changing industrial development zones or regional growth patterns.

Conclusion

In conclusion, it is clear that the S22 type 35KV oil-immersed power transformer is a good fit for modern power grid applications because it uses less energy, can handle faults well, and can be used in a variety of ways. It meets the requirements of GB 20052-2020 Grade 1 and has been shown to reduce loss by 43% compared to older S11 designs. This means that it will save money and help the environment over many years of service. The S22 is a technically sound solution for utilities, industrial facilities, and EPC contractors that are in charge of medium-voltage distribution projects. It comes with strict quality control and a variety of configuration options that can be used in a wide range of challenging operating environments.

FAQ

How is the S22 generator different from the S20 and S11 generations?

Because it uses better core materials and a magnetic circuit design that works better, the S22 type 35KV oil-immersed power transformer has 10% less no-load losses than S20 models and 43% less losses than S11 units. This saves more than 2,200 kWh of electricity each year per 1000kVA unit.

Can the S22 reliably work in harsh coastal or high-altitude conditions?

Yes, the S22 type 35KV oil-immersed power transformer can be used in high-salinity coastal areas, highly polluted industrial areas, and at heights of up to 3000 meters without losing any performance. It has an IP67 rating for sealing and a C5-M rating for corrosion protection.

How does the Dyn11 connection group help systems that use green energy?

The Dyn11 configuration is better at blocking harmonics for nonlinear loads that are common in solar inverters and wind turbine converters. It keeps the neutral line stable and stops resonance that could damage sensitive electronics.

What kind of quality testing makes sure that transformers are reliable before they are shipped?

As part of full testing for the S22 type 35KV oil-immersed power transformer, lightning impulse resistance is checked, dissolved gas analysis is done, full-load temperature rise is measured, 24-hour pressure seal tests are done, and partial discharge assessments are done to make sure values are below 2pC.

Partner with a Trusted 35KV Transformer Supplier

Lijie Electric Technology Group has been making transformers for more than 20 years and can help you with your power transfer tasks. We are a licensed provider of the S22 type 35KV oil-immersed power transformer. Our ISO 9001:2015, CE, UL, and IEC certifications are backed by tests done at China's National Transformer Quality Supervision and Inspection Center. Our 500,000-square-meter factories in Xuzhou and Nantong make sure that the quality of all of our orders, from single units to utility-scale deployments with more than 200 transformers, is always the same. We offer full technical support, customised voltage configurations, and after-sales service that meets GB/T 27922-2021 standards. Our engineering team includes over 160 experts with advanced degrees and a track record of completing projects in 15 international markets. You can email our team at lijieelectrical@gmail.com to talk about your unique needs, get full technical specs, or set up factory audits to make sure we can meet your production needs.

References

1. National Standards of the People's Republic of China. "GB 20052-2020: Energy Efficiency and Energy Efficiency Grades for Power Transformers." China Standards Press, 2020.

2. International Electrotechnical Commission. "IEC 60076-1: Power Transformers – Part 1: General Requirements." IEC Publications, 2011.

3. Zhang, Wei, and Liu, Hongming. "Comparative Analysis of Loss Reduction Technologies in 35kV Oil-Immersed Distribution Transformers." Journal of Electrical Engineering and Technology, vol. 16, no. 4, 2021, pp. 1847-1856.

4. IEEE Standards Association. "IEEE C57.12.00-2015: Standard for General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers." Institute of Electrical and Electronics Engineers, 2015.

5. Chen, Yunping et al. "Thermal Management and Cooling Optimization in High-Capacity Oil-Immersed Transformers for Renewable Energy Applications." International Journal of Electrical Power & Energy Systems, vol. 128, 2021.

6. National Fire Protection Association. "NFPA 70E: Standard for Electrical Safety in the Workplace – 2021 Edition." NFPA Publications, 2020.
