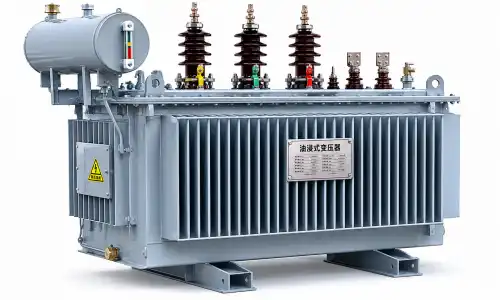

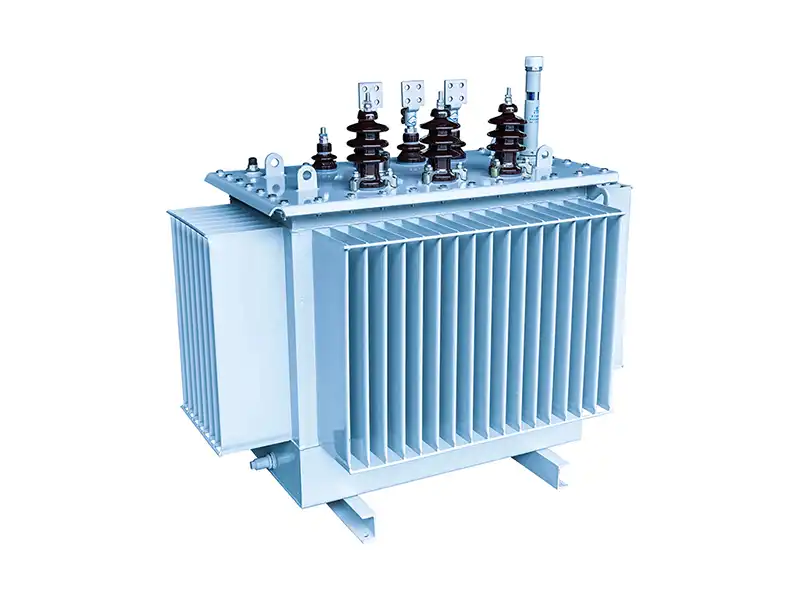

S11 Type Fully Sealed Oil-Immersed Distribution Transformer for Reliable Power Distribution

The S11 Type Fully Sealed Oil-Immersed Distribution Transformer is the smart choice for big power companies, makers of green energy, and industrial manufacturers who need a transformer that uses little energy and doesn't need much upkeep. This high-tech power distribution equipment solves persistent problems in the industry, like oil contamination, frequent maintenance cycles, and insulation wearing out too quickly. It does this by using new corrugated tank technology that keeps insulating oil from being exposed to the air, which makes the equipment last longer than twenty years while still being very reliable.

What is an S11 Type Fully Sealed Oil-Immersed Distribution Transformer?

Core Design Innovation

The curved tank structure of this equipment is what makes it unique; it does away with the need for a traditional oil protector. In contrast to regular oil-immersed units that let air in through breathing devices, the corrugated plates change shape in reaction to changes in temperature, automatically adjusting for changes in oil volume without any interaction from outside air. This sealed area stops moisture and air from getting in, which are two main reasons why dielectrics break down in regular designs.

Structural Components and Working Principles

The core of this S11 Type Fully Sealed Oil-Immersed Distribution Transformer is made of high-quality, cold-rolled, grain-oriented silicon steel. It is put together using either seamless coiling or fully angled joint stacking to keep magnetic flux leaks to a minimum. For low-voltage circuits, the windings use oxygen-free copper wires grouped in double-layered cylindrical shapes. For high-voltage uses, they use multi-layered cylindrical shapes. Along the length of the coil, longitudinal oil lines make it easier for heat to escape while also increasing the insulation's strength. Natural airflow moves the lubricating oil around, moving heat from the core and windings to the corrugated tank surface, where air from the outside cools it down. This oil-immersed self-cooling method works quietly and doesn't need any extra fans or pumps, which adds to the unit's reputation for not needing any upkeep.

Technical Specifications

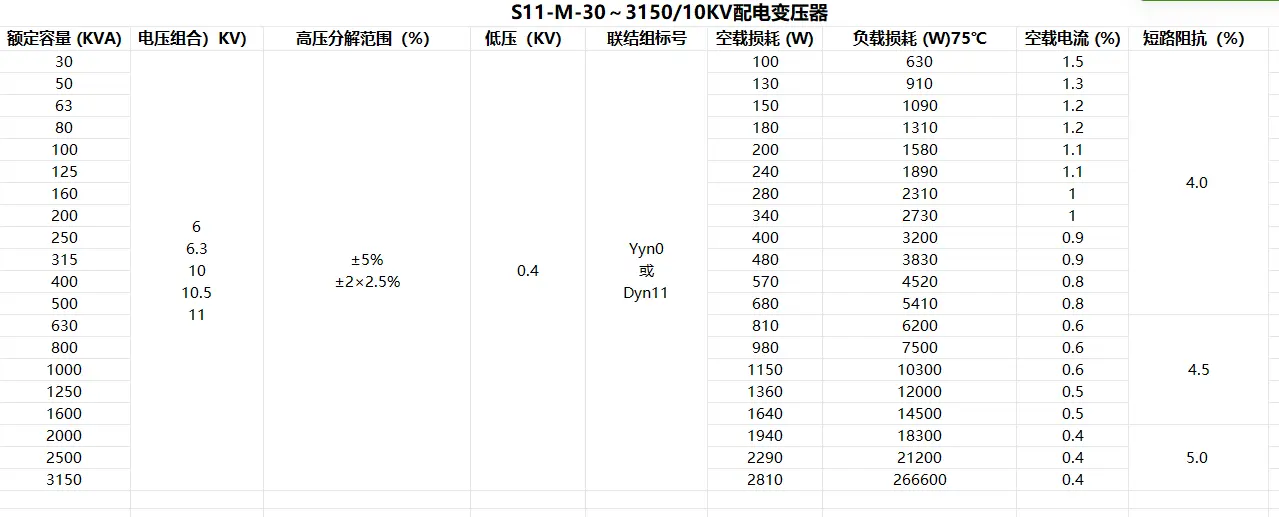

The equipment works with both single-phase and three-phase setups and can handle voltages between 6kV and 12kV. Its capacity goes from 30kVA to 3,150kVA. The units can work with both 50Hz and 60Hz grid standards, so they can be used all over the world. The connection groups are called Yyn0 and Dyn11, and the tap ranges for non-excitation voltage control are ±5% or ±2×2.5%. Power frequency withstand voltage tests at AC-35kV and impulse withstand voltage tests at L1-75kV confirm the stability of the insulation. This makes sure that the system works reliably in places where the temperature outside reaches 40℃.

Key Benefits and Applications of S11 Fully Sealed Transformers in Power Distribution

The fully sealed design has real practical benefits that directly address problems that electrical engineers and supply chain managers have found with buying. By keeping the oil from breaking down through atmospheric separation, these S11 Type Fully Sealed Oil-Immersed Distribution Transformers can go up to twenty years without needing to be serviced, which is a huge savings over the course of their lifetime compared to options with conservators.

Here are the core advantages this design provides:

Energy Efficiency Through Loss Reduction: The luxury silicon steel laminations and smooth coiled core structure cut no-load losses by about 30% compared to older S9 series models. This means that the S11 Type Fully Sealed Oil-Immersed Distribution Transformer will use less energy over its entire life, which helps with the cost control issues that often come up with big building projects. The low magnetic flux density design cuts down on core losses even more, and it keeps the temperature stable even when the load changes.

Acoustic Performance: The noise levels that have been measured always fall below the national limit, which is usually between 45 and 55dB based on the capacity. Precision lamination, secure core binding, and special sound reduction measures built into the mechanical structure make this operation very quiet. This smaller sound footprint is especially helpful for home grids and business systems in cities.

Environmental Resilience: The airtight seal on the corrugated tank gives it an IP54 grade or higher, which protects the inside parts from dust and water spray. The three-proof surface treatment includes coatings that resist salt spray, fungus, and humidity. This makes it possible to use the S11 Type Fully Sealed Oil-Immersed Distribution Transformers in coastal areas and warm conditions, where normal transformers rust quickly. This sealed design keeps the dielectric integrity at industrial mine sites and oil fields where volatile gases can cause contamination.

Short-Circuit Withstand Capability: Windings that are mechanically strengthened, use laminated wood insulation, and have a balanced ampere-turn distribution to offer high resilience during fault situations. The strong mechanical design is paired with deep-filtration transformer oil and anti-aging rubber seals that keep the equipment working smoothly even when it's under electrical stress that would damage lesser equipment.

These advantages collectively solve critical challenges faced by renewable energy integrators managing remote wind and solar installations, where deploying maintenance crews incurs substantial logistics costs. National grid operators benefit from predictable asset performance across large transformer fleets, enabling accurate long-term infrastructure planning. Manufacturing facilities operating continuous processes—steel mills, chemical plants, and mining operations—value the reliability that minimizes unplanned downtime.

Comparing S11 Fully Sealed Oil-Immersed Transformers with Other Transformer Types

When buying teams know how sealed oil-immersed technology stacks up against other designs, they can make smart choices that meet the needs of the individual project. Traditional oil-immersed transformers with conservator tanks let air flow into the system to allow oil to expand, but this adds moisture and oxygen that speed up the ageing of the insulation. Partially sealed designs try to find a middle ground, but they still let infection happen slowly over long periods of time.

Dry-type transformers don't use any oil at all, which makes them safer for use indoors and easier to comply with environmental regulations. However, their limited temperature performance limits their capacity ratings, and the original costs of purchasing them are usually higher than oil-immersed alternatives that can handle the same amount of power. Not having liquid cooling also makes the physical size bigger and the overload tolerance lower.

When put up against models with conservators, the S11 Type Fully Sealed Oil-Immersed Distribution Transformer series shows lower maintenance costs. Conventional units need to have their oil tested, moisture removed, and conservators inspected on a regular basis. These tasks cost a lot of money and cause service interruptions. The totally sealed option gets rid of these ongoing costs and increases the useful life by stopping reactive degradation.

Manufacturers including ABB, Siemens, Schneider Electric, Eaton, and CG produce oil-immersed distribution transformers, each bringing distinct engineering philosophies and regional market strengths, and an S11 Type Fully Sealed Oil-Immersed Distribution Transformer from Lijie Electric stands out through its combination of IEC/CE/UL certifications, large-scale production capacity exceeding 500,000 square meters, and engineering teams that support both batch delivery consistency for utility-scale projects and customization flexibility for specialized industrial applications. Lijie Electric differentiates through a combination of IEC/CE/UL certifications, proven large-scale production capacity exceeding 500,000 square meters across manufacturing facilities, and engineering teams holding advanced technical credentials. This infrastructure supports batch delivery consistency critical to utility-scale projects while maintaining customization flexibility for specialized industrial applications.

Procurement Guide for S11 Type Fully Sealed Oil-Immersed Distribution Transformers

Accurately matching technical specifications is the first step to finding the right transformer. Electrical engineers need to make sure that the voltage class works with the current infrastructure, that the capacity is enough to handle future load growth, and that the resistance voltage factors match up with fault current calculations. The site's altitude, high temperatures, earthquake activity, and pollution level all affect the changes that need to be made to the design, like adding more cooling or using special coatings on the outside.

Supplier evaluation criteria should prioritize certification authenticity, and for an S11 Type Fully Sealed Oil-Immersed Distribution Transformer, this means verifying ISO 9001:2015 for quality management, IEC60076 and GB/T6451 for design and testing standards, and independent test reports from recognized authorities such as the National Transformer Quality Supervision and Inspection Center or CQC to confirm that performance claims are valid. The ISO 9001:2015 quality management system certification is a basic level of assurance. Independent testing authorities, such as the National Transformer Quality Supervision and Inspection Center, the China Quality Certification Center (CQC), and other international bodies, certify that the product meets performance claims. Manufacturers who follow IEC60076 and GB/T6451 show they are dedicated to standard engineering practices that make it easier for projects to be integrated around the world.

Warranty terms and after-sales support infrastructure merit careful examination. Comprehensive coverage for production flaws, clear procedures for expert advice during installation, and an easy-to-reach collection of extra parts are some of the things that set providers apart who can support long-term asset performance. Procurement managers negotiating framework agreements for multi-year projects benefit from contractual terms that include delivery schedule promises and penalties for not following through.

Pricing structures vary based on customization complexity, order volume, and delivery urgency. Bulk purchasing incentives become available for utility-scale deployments requiring dozens or hundreds of identical units. Transportation operations and import taxes have a big effect on the total landed costs of foreign shipments. For cost management, it's helpful for suppliers to have experience with export paperwork and making the best use of containers.

Troubleshooting, Maintenance, and Maximizing Performance

Proactive Fault Identification

For S11 Type Fully Sealed Oil-Immersed Distribution Transformers, thermal tracking is the main way to find out what's wrong. The structure of the tank has signal thermometers that show the temperature all the time and has warning buttons that go off at certain levels. If the temperature rises too quickly compared to the load, it could mean that there are problems with the insulation or that the cooling path is being blocked. Measuring the partial flow during commissioning sets standard signatures that can be used for comparison during later testing periods.

Maintenance Requirements for Sealed Designs

Getting rid of the touch between oil and air completely changes how repair is done. Fully sealed transformers that are working within their set parameters only need to be inspected from the outside, and their termination tightness checked every so often. Conservator-equipped units, on the other hand, need to sample the oil and test for moisture once a year. During production, a vacuum oil-filling process makes sure that there are no air spots. This keeps the dielectric strength high for the entire design life without any need for maintenance.

Performance Optimization Strategies

Load management techniques that increase the life of assets include not operating above their nameplate rates for long periods of time and using demand response programs during peak times. The high thermal buffer built into properly stated units can handle short-term overloads, but long-term overloading leads to damage that builds up over time. Advanced monitoring systems that keep track of how much something is being loaded allow for predictive repair scheduling that is based on real thermal exposure instead of random dates on the calendar.

Conclusion

The S11 Type Fully Sealed Oil-Immersed Distribution Transformer is an advanced technology that solves the known problems with older oil-immersed designs by using a curved tank in a new way. Its lower energy loss, longer periods of time without upkeep, and ability to withstand the environment make it perfect for uses where controlling lifecycle costs and ensuring operational dependability are key factors in purchasing choices. When purchasing managers and electrical engineers are looking at different options for distribution transformers, they should compare sealed oil-immersed technology to project-specific factors like the site's environment, the availability of maintenance resources, and long-term asset management strategies to find the best fit.

FAQ

What distinguishes the S11 sealed design from traditional oil-immersed transformers?

Not having an oil conservator and breathing device stops the S11 Type Fully Sealed Oil-Immersed Distribution Transformer from coming into contact with the air. This stops moisture absorption and oxygen-induced insulation ageing, both of which shorten the life of a normal transformer.

How often does the protective oil need to be changed?

As long as the equipment is used normally and within its rated limits, the sealed environment will keep the oil's quality for the 20–30 years that it is supposed to last, so there is no need to change the oil on a regular basis.

Can these transformers handle temporary overload conditions?

Yes, the design includes thermal reserves that allow short-term overloads. However, if the device is used above its nameplate limit for a long time, built-in temperature sensors should be used to keep an eye on it so it doesn't wear out faster than expected.

What installation considerations apply to coastal environments?

Corrugated tank surfaces can be protected from salt spray by choosing improved anti-corrosion coatings that meet C4 or C5-M standards. The coatings should be washed off every so often to keep them in good shape.

How does the S11 series compare to S13 models?

Both use fully sealed architecture, but S13 units achieve even greater no-load loss reductions to meet stricter energy efficiency standards, albeit at a higher starting cost. This makes the S11 Type Fully Sealed Oil-Immersed Distribution Transformer the best choice for uses that need to balance cost and performance.

Partner with Lijie Electric for Your Power Distribution Needs

Lijie Electric, as an experienced S11 Type Fully Sealed Oil-Immersed Distribution Transformer manufacturer, combines proven engineering capabilities with large-scale production infrastructure supporting projects from conceptual design through commissioning. Our manufacturing facilities spanning 500,000 square meters across Xuzhou and Nantong enable batch delivery consistency critical to utility-scale deployments while maintaining customization flexibility for specialized industrial requirements. With certifications including ISO 9001:2015, CE, UL, and IEC compliance validated by independent testing authorities, we deliver equipment meeting international standards backed by comprehensive technical support. Electrical engineers and procurement managers seeking reliable transformer suppliers for long-term framework agreements can reach our technical team at lijieelectrical@gmail.com to discuss project specifications, delivery schedules, and lifecycle cost optimization strategies. Visit lijie-electrical.com to explore our complete product portfolio and discover how three decades of transformer manufacturing expertise translates into operational advantages for your power infrastructure.
