Reliable Medium Voltage Transformer Supplier Support for Manufacturing and Commercial Power Networks

When a manufacturing plant or commercial facility loses power due to transformer failure, the financial consequences can reach thousands of dollars per hour. Selecting the right medium voltage transformer supplier is one of the most consequential decisions a procurement team can make. From voltage regulation to fault protection, MV transformers operating in the 1kV–35kV range sit at the core of nearly every industrial power distribution system. Getting this decision right means fewer outages, lower lifecycle costs, and equipment that performs for 20–30 years without incident.

Understanding Medium Voltage Transformers and Their Applications

What Counts as Medium Voltage?

Medium voltage transformers handle the distribution of electricity from 1kV to 35kV. They link transmission grids with high voltage to the lower voltage systems that factories, data centers, and other commercial buildings use. Core specs include rated capacity (kVA/MVA), primary and secondary voltage levels, insulation class, and Basic Impulse Level (BIL), which can be anywhere from 60kV to 200kV depending on the severity of the application.

Types Built for Different Environments

There are three main types of transformers that are bought by businesses and industries:

• Dry-type (cast resin): Self-extinguishing and moisture-resistant, best suited for indoor installations in hospitals, shopping centers, and manufacturing floors where fire safety is non-negotiable. Insulation Class H (220°C) allows operation in high-ambient environments.

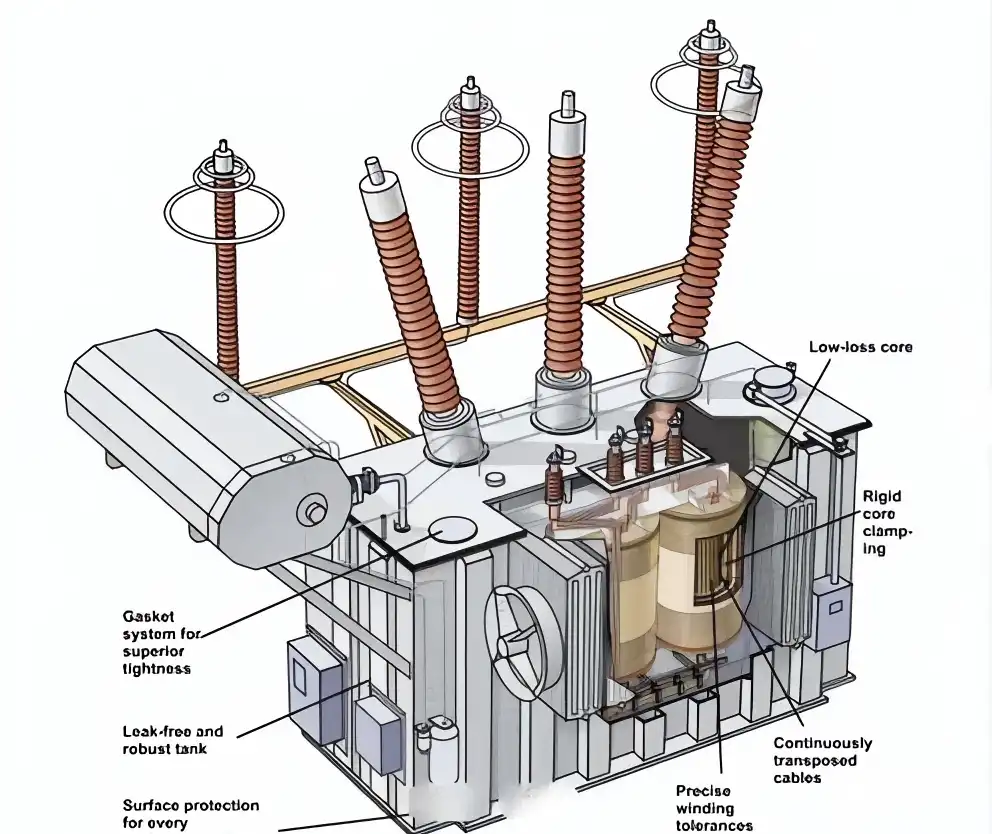

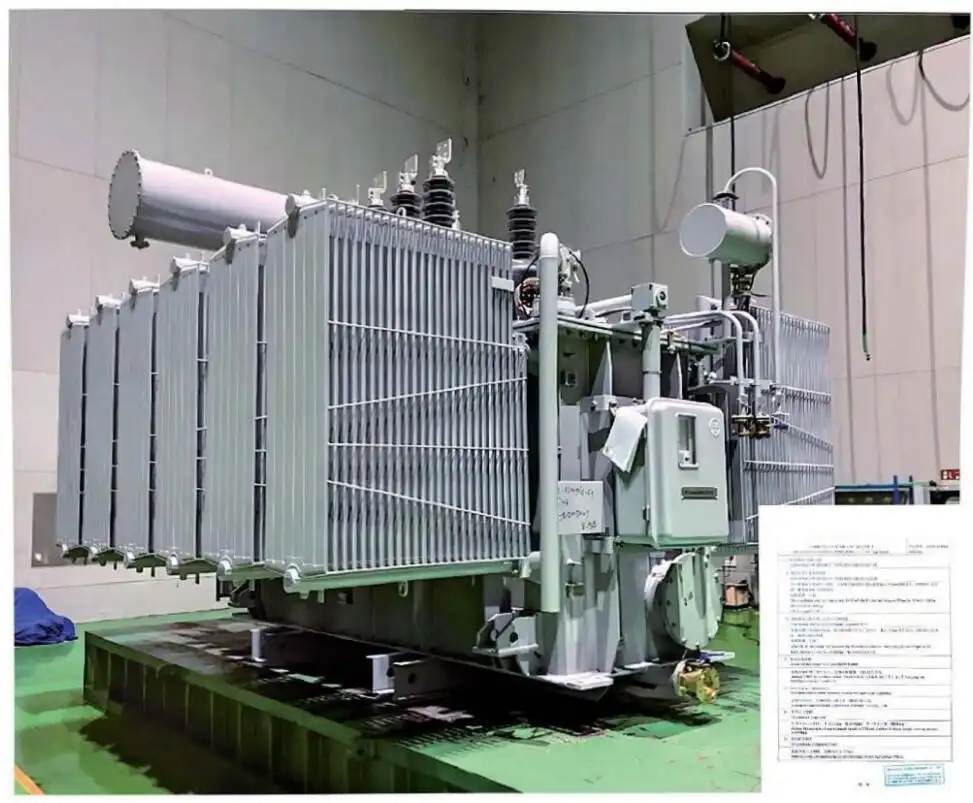

• Oil-immersed: Cost-effective for outdoor substations and utility-scale projects. Dissolved gas analysis (DGA) provides early warning of internal arcing or thermal stress before failure occurs.
• Pad-mounted: Enclosed in tamper-resistant steel cabinets for ground-level installation in commercial parks, urban distribution networks, and renewable energy interconnections.

Because each design is made to handle a certain set of weather and load conditions, it is just as important to match the transformer type to the application as it is to match the voltage level.

Governing Standards You Cannot Ignore

To meet the standards for foreign procurement, products must be in line with IEC 60076, IEEE C57.12.00, and ISO 9001. In the U.S. market, you have to meet the DOE 2016 efficiency guidelines and get UL approval. Grain-oriented silicon steel cores and Vacuum Pressure Impregnation (VPI) or vacuum casting methods are the best ways to get the best dielectric strength and minimize core losses.

How to Choose a Reliable Medium Voltage Transformer Supplier

Evaluate Certifications and Testing Rigor

At the very least, an ISO 9001:2015, IEC compliance, CE, and UL certification should be held by a qualified MV transformer manufacturer. In addition to paper credentials, you should also ask for Factory Acceptance Test (FAT) records that show Voltage Turns Ratio tests, Partial Discharge measurements (standard: < 10 pC), Insulation Resistance (Megger) tests, Temperature Rise tests, and Short-Circuit Withstand tests. These tests show that a unit can handle real fault situations without breaking down with Medium Voltage Transformer Supplier.

Manufacturer vs. Distributor: What the Numbers Say

When you buy directly from a manufacturer instead of going through multiple channels of distribution, the unit cost is usually 10–20% less. It also takes less time to make requests for customizations. Direct communication with the production team is the only way to go for projects that need custom busbar arrangements, tanks that aren't the standard size, or K-factor-rated windings for industrial loads that are very harmonic.

Delivery Capacity and Lead Time Planning

It usually takes 16–32 weeks for custom-engineered MV units to be delivered, which includes full FAT. Standard types can be finished faster by suppliers with big, vertically integrated facilities. Always make sure to ask the supplier if they have buffer stock for common voltage configurations and if they can schedule batch deliveries for project rollouts that happen in stages.

Leading MV Transformer Suppliers: Market Perspective for 2024

The world market for medium voltage transformers is expected to be worth more than USD 28 billion by 2027. This is because of changes in the power grid, the use of green energy, and the growth of industries. In North America, well-known brands like ABB, Siemens, Schneider Electric, GE, and Eaton have strong records for consistent products and large service networks.

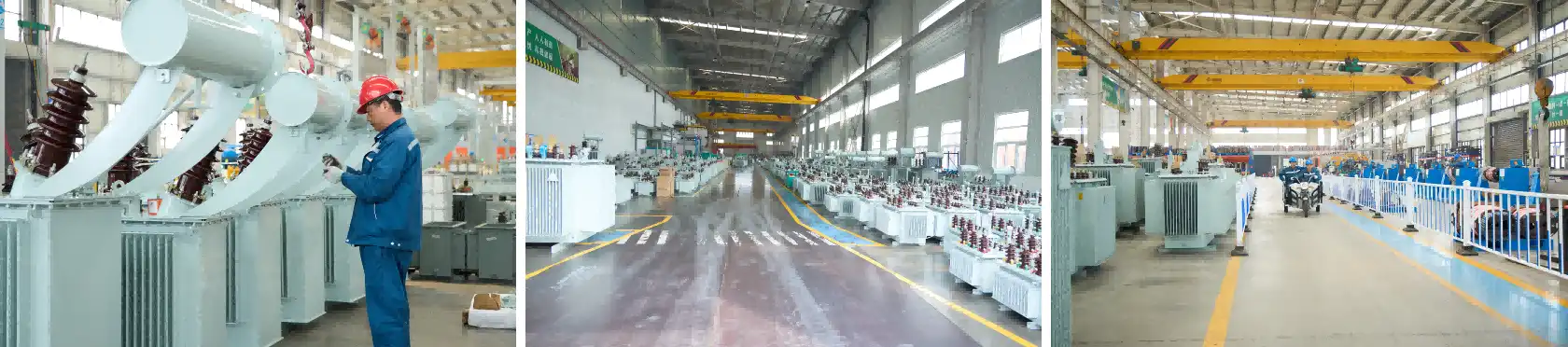

Large Asian makers, especially those with both IEC and UL certifications and a history of exporting to more than one continent, are becoming more well known in the U.S. and other countries' EPC procurement processes. This group is led by Lijie Electric Power Technology Group. Lijie Electric makes transformers ranging from low-voltage units (≤35kV) to ultra-high-voltage models with ratings of 500kV and higher. The company has two factories in China that are each 500,000 square meters and makes more than 5 billion RMB in sales every year.

There are dry-type transformers, oil-immersed transformers, amorphous alloy transformers, prefabricated substations, electric furnace transformers, rectifier transformers, and mining transformers in the product line. These are used by power utilities, steel plants, solar farms, and EPC contractors in more than a dozen countries, such as Australia, the US, Egypt, and Kazakhstan. The National Transformer Quality Supervision and Inspection Center and the Wuhan High Voltage Research Institute have tested all of the items and found them to be of good quality.

Procurement and Post-Purchase Support: What to Expect

Structuring Your Request for Quotation

An effective RFQ contains information about the voltage, capacity (kVA), frequency, insulation class, cooling method (ONAN, AN, AF), standards that apply, the installation area, and when the goods will be delivered. Giving this information up front speeds up the expert review process and cuts down on back-and-forth delays. When you place a large order, ask the supplier if they offer framework agreements with set unit prices and delivery milestones that are spread out over time with a Medium Voltage Transformer Supplier.

After-Sales Support That Protects Your Investment

After the product is delivered, there should be clear instructions on how to install it, help with commissioning, and a warranty period. From the first day of maintenance for oil-filled units, DGA tracking methods should be a part of the plan. Lijie Electric's framework for after-sales service is in line with GB/T 27922-2021, which is the Chinese national standard for evaluating after-sales service for goods. This means that the equipment will get organized help for as long as it is in use.

Custom Solutions for Specialized Applications

It's not always possible for a project to meet the requirements in a brochure. For retrofit setups, unique footprints, certain tap changer configurations, or shelters that can withstand earthquakes are often needed. Working with a company that has more than 160 engineers, some with doctoral and master's degrees, means that calls for technical customization get answers from trained engineers, not just salespeople.

Conclusion

Picking the right MV transformer partner impacts not only the cost of the tools but also the power network's long-term health. Cost, time, and equipment life are more likely to be improved when procurement teams put an emphasis on verifying certifications, keeping full test records, and working directly with manufacturers. The Lijie Electric Power Technology Group has the engineering know-how, production capacity, and international compliance credentials to help power companies, industrial manufacturers, and EPC contractors all over the world. If you need large, certified medium voltage transformers that meet specific requirements for your next project, it's always best to start talking about it early with Medium Voltage Transformer Supplier.

FAQ

1. How do I verify that a supplier meets energy efficiency regulations?

Ask for test results that show the product meets the conditions of DOE 2016 or EcoDesign Tier 2. Most suppliers who use high-grade silicon steel or low-loss amorphous metal cores go above and beyond these standards. Look at the nameplate or FAT report and ask for the no-load loss and load loss numbers.

2. What is the practical difference between cast resin and oil-immersed units?

Cast resin transformers put out fires on their own and work effectively in damp or indoor places without fire control systems. Oil-immersed units are cheaper to buy and are best for outdoor substations, but they need a holding sump, and oil samples need to be taken on a regular basis.

3. What lead times should I plan for in a large project?

Standard setups might be sent out in 8 to 12 weeks. Custom-engineered units with unique dimensions and ratings usually take 16 to 32 weeks, which includes FAT. Always plan for extra time in case something goes wrong with a job.

4. How is quality consistency maintained across large batch orders?

Trustworthy makers test each unit in a batch using the same set of rules. For ISO 9001:2015 certification, process control must be recorded at every stage of output. Before you accept a package, make sure you have Certificates of Conformance and test records for each batch.

5.Can a supplier accommodate IEC and UL certifications simultaneously?

Yes. Suppliers who sell to markets in both Europe and North America usually have both. Lijie Electric's products are approved by both IEC and CE and UL, which means they can be used in EPC projects that need to meet a mix of international standards.

Partner with Lijie Electric — A Trusted MV Transformer Manufacturer for Global Projects

Lijie Electric Power Technology Group has the technical depth, production scale, and certification portfolio that procurement teams need when they are looking for a Medium Voltage Transformer Supplier for big power projects or factories. Lijie Electric can help with your project from engineering advice to on-site commissioning. They have ISO 9001:2015, IEC, CE, and UL certifications, a production area of 500,000 square meters, and a busy global export network. To get a price, email us at lijieelectrical@gmail.com or go to lijie-electrical.com.
