How Does a Pad Mount Transformer Improve Safety in Residential Areas?

When I think about residential power infrastructure, safety is always the first concern that comes to mind. A pad mount transformer — also called a distribution box transformer — plays a central role in keeping communities safe. Unlike traditional overhead setups, a Distribution Box / Pad Mount Transformer sits at ground level inside a locked, tamper-resistant steel enclosure. It steps down medium-voltage electricity (typically 4kV–35kV) to the 120/240V range homes use daily. By moving live electrical components underground and behind sealed cabinets, these units dramatically reduce shock hazards, storm damage risks, and unauthorized access in populated neighborhoods.

Understanding Pad Mount Transformers and Their Safety Features

Learning about Distribution Box / Pad Mount Transformers and how they keep people safe.

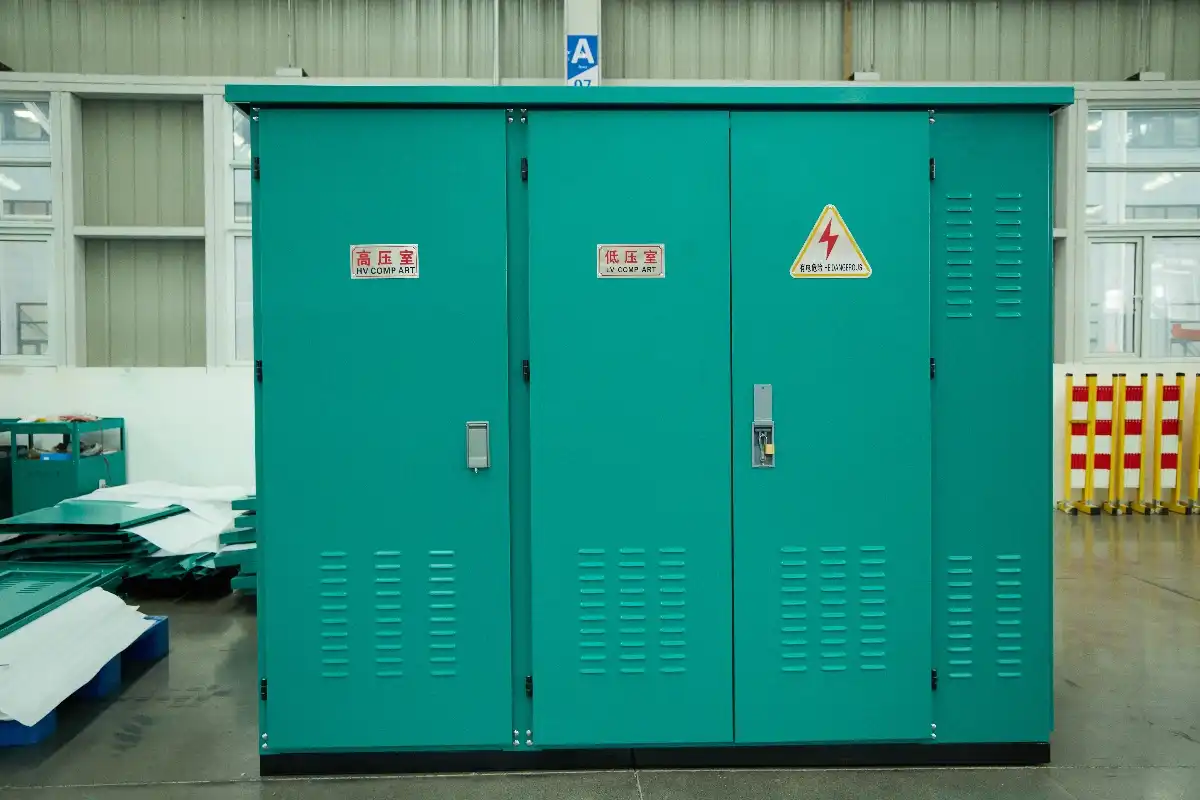

What Sets a Pad Mount Transformer Apart

A Distribution Box / Pad Mount Transformer is put on a concrete pad at ground level and is connected only by lines that go underground. There are no wires that hang from the ceiling or visible conductors. That one choice in design gets rid of a lot of risks that pole-mounted units can't escape. The steel cabinet has a penta-head bolt system that regular tools can't open. This means that curious kids or adults who aren't supposed to be there will have to go through a real physical barrier before they can get to any energized parts.

Core Safety Mechanisms Built Into the Design

That's not all there is to the story. To make a current ground-mount Distribution Box / Pad Mount Transformer safe, the following safety features are built in:

• Sealed, oil-tight tank construction — sealed, oil-tight tank construction keeps dielectric fluid from coming into contact with groundwater or soil. Quality units come with secondary containment trays that catch any accidental seepage before it moves away.
• Integrated fault-interrupting fuses — integrated fault-interrupting fuses—the Bay-O-Net or current-limiting fuse system cuts the Distribution Box / Pad Mount Transformer off from the grid within milliseconds of an internal fault, which stops the spread of an arc flash.
• Solidly bonded grounding system — solidly bonded grounding system: the tank, the neutral wire, and the pad reinforcement are all bound together. This makes sure that any fault current goes to earth instead of going through anyone who touches the cabinet.
• Thermal overload protection — thermal overload protection—sensors that measure the temperature of the windings turn off the unit before the insulation breaks down, which stops the chain of failures that can cause fires.

All of these parts work together as a system. No single safety feature is responsible for all safety; each layer builds on the others. This is why well-designed Distribution Box / Pad Mount Transformer units always have 30-year service lives in home distribution networks.

Safety Advantages of Pad Mount Transformers in Residential Areas

Eliminating the Overhead Line Hazard

Most of the electrical injuries that happen in residential areas are caused by overhead power lines. Downed wires can happen because of wind, ice loading, falling trees, or car accidents, but an underground-fed Distribution Box / Pad Mount Transformer never has to deal with any of these problems. Because of this benefit, the National Electrical Safety Code (NESC) has long said that underground residential distribution (URD) is the best way to set up new neighborhoods.

Weather-related damage is also stopped by the sealed form. Things that damage equipment on poles, like salt spray, UV radiation, and humidity, don't really affect a sealed ground-level cabinet. This is especially helpful for developers who are building communities near the coast or in places with a lot of humidity.

In addition to keeping people safe, the aesthetic benefit also improves the health of the community. Resident satisfaction surveys consistently show that neighborhoods with underground distribution and ground-level transformer pads are happier places to live. Additionally, real estate studies have linked underground utility corridors to measurable increases in property values.

Environmental Containment

If they aren't made well, oil-filled Distribution Box / Pad Mount Transformers can be bad for the environment. Manufacturers you can trust deal with this by offering recyclable ester-based dielectric fluids, full-capture drip trays, and double-sealed drain valves. These containment methods are in line with what the EPA says should be done to stop spills, and they give buying teams the proof they need for reviews of environmental compliance.

Installation and Maintenance Best Practices to Maximize Safety

Site Preparation and Grounding

Sitting correctly is a must. The concrete pad needs to be level, strong, and put in a way that keeps the low-voltage section away from public paths. Most U.S. companies require a minimum of 10 feet of space in front of the high-voltage (HV) door and 3 feet on all other sides. A fall-of-potential test must be done on ground rods before they are turned on to make sure that the soil resistance is less than 25 ohms.

Routine Inspection Protocol

When safety features are maintained on a regular basis, they become real, long-lasting protection. A useful check schedule has the following parts:

• Annual visual inspection — visual review once a year: look for signs of oil seepage around the tank base, cabinet rust, and paint that is peeling or missing bolts.
• Biennial electrical testing — electrical testing that is done every two years, including the megger test for insulation resistance and the turns-ratio proof, finds insulation weaknesses before they become problems.
• Fluid analysis every three to five years — fluid analysis should be done every three to five years. Dissolved gas analysis (DGA) of transformer oil can find early signs of temperature and electrical stress, allowing early action.

All work inside the company must be done by qualified technicians. On the high-voltage side, Distribution Box / Pad Mount Transformer stays on until the upstream switch is opened and locked out. Skipping this step has killed people. Arc flash and lockout/tagout steps from NFPA 70E must be followed to the letter. These rules make equipment last longer and keep maintenance workers and nearby residents safe while the transformer is in use.

Comparison of Pad Mount Transformers with Alternative Solutions

Pad Mount vs. Pole Mount Transformers

Pole-mounted transformers are still commonly used for distribution in rural areas, but they are less safe for homes. When dealing with storms or working on lines, exposed joints at height pose a risk of touch. When units fall during high winds, which doesn't happen very often, they leak oil and energized parts into the public area. Distribution Box / Pad Mount Transformer designs get rid of both of these problems.

Oil-Filled vs. Dry-Type Configurations

Dry-type Distribution Box / Pad Mount Transformers don't use any toxic dielectric fluid because their windings are made of cast-resin or air. They work well in electrical rooms inside apartment buildings and businesses where there is a low risk of fire. But oil-filled Distribution Box / Pad Mount Transformer units can handle overloads better and have lower lifecycle costs at medium voltage ratings. This makes them the best choice for outdoor residential distribution. The choice depends on where the work will happen, the load profile, and the fire rules in the area.

When a Distribution Box Configuration Fits Best

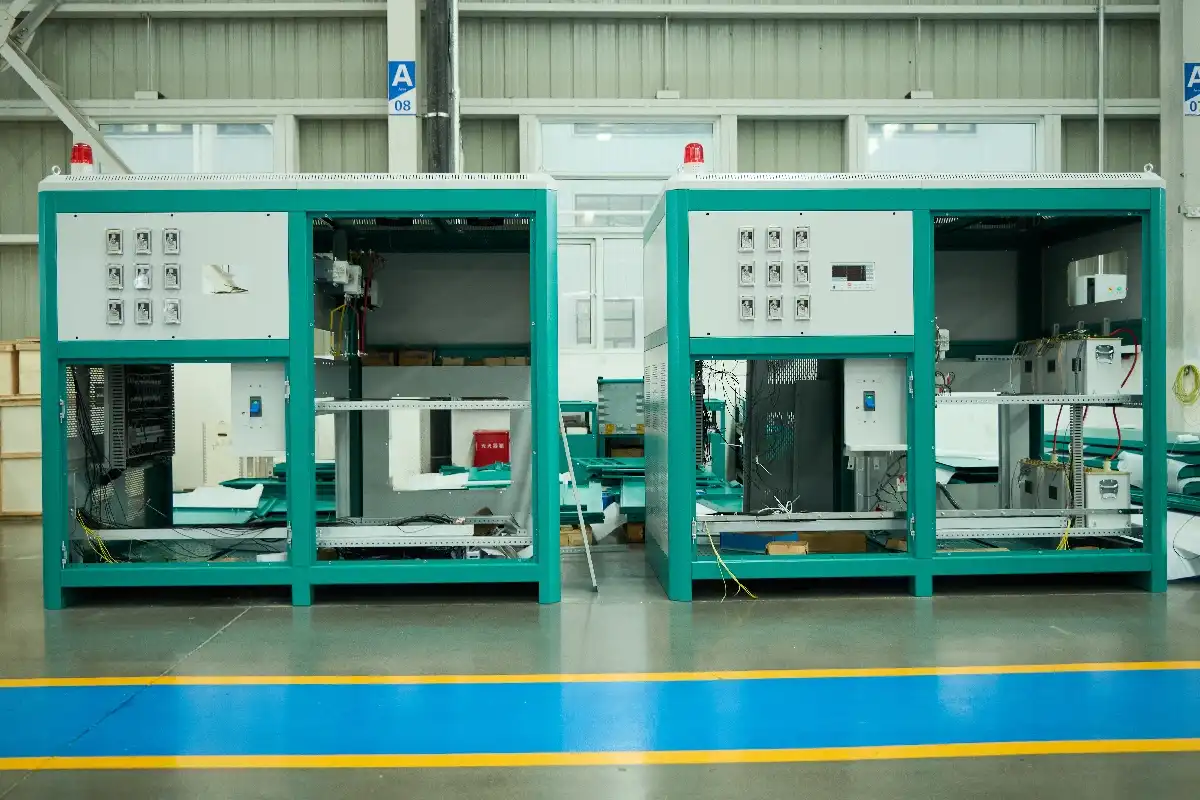

When space is limited in industrial parks and densely populated cities, a small Distribution Box / Pad Mount Transformer that combines the switching, security, and transformation functions into one enclosure has the smallest size and the lowest cost to install. This set-up is often used in projects that combine green energy sources. In these cases, the step-up transformers that serve solar panels need to be protected from UV light and have strong enclosures so they can be used outside.

Procurement Considerations for Safe and Reliable Pad Mount Transformers

When choosing a Distribution Box / Pad Mount Transformer supplier, you need to look at more than just the catalog specifications. The people who work in procurement should check that the quality system approval is ISO 9001:2015, that the type-test reports are IEC 60076, and that the compliance paperwork for U.S. projects is IEEE C57.12.00. If a product has a CE or UL mark, it means that independent labs have checked that it meets recognized safety standards, not just that the manufacturer says it does.

The freedom to customize is just as important. Because of site-specific voltage ratios, kVA ratings, and secondary configurations, a manufacturer who doesn't have real engineering flexibility will have to make choices that hurt reliability in the long run. Another important factor is the consistency of the bulk supply. Large housing projects and utility framework contracts need reliable delivery dates for multiple production batches, not just one prototype-quality unit.

After-sales assistance, such as the availability of spare parts, the ability to do diagnostics remotely, and the ability for technical staff to respond on-site, decides whether a 30-year equipment lifespan is realistic.

Conclusion

Distribution Box / Pad Mount Transformers make homes safer by removing the dangers of overhead lines and putting all live parts inside cabinets that can't be opened. They also have multiple layers of fault protection and meet strict international standards. A ground-mount distribution transformer will give you years of reliable, low-risk service if it is put correctly, inspected, and bought from a certified maker. Utility engineers and home builders all over the United States choose this technology because it is mature, has been tested, and works well.

FAQ

How often should a pad mount transformer be inspected?

Most U.S. utilities suggest visual inspections once a year and electrical testing every two years. Installations that are near water or have a lot of load may need to sample the fluid more often.

What safety signs are required on a pad mount enclosure?

Labels that say "DANGER – HIGH VOLTAGE" according to ANSI Z535 must be on both the HV and LV room doors. It is also common for the nearby pad to have clearance zone marks.

Can a pad mount transformer be installed near a playground?

Yes, as long as the minimum clearance standards are met and the locking system on the Distribution Box / Pad Mount Transformer enclosure can't be opened by anyone else. When sites are less than 20 feet from places with a lot of people walking, many utilities put up protective bollards.

Is oil containment mandatory for residential pad mount units?

Distribution Box / Pad Mount Transformers with 1,320 gallons or more of oil in them must follow EPA Spill Prevention, Control, and Countermeasure (SPCC) rules. More often than not, smaller homes are below that limit, but local environmental laws may have other rules.

What certifications should I verify before purchasing?

Check for compliance with ISO 9001:2015, type-test results for IEC 60076, IEEE C57.12.00, and CE or UL marks. For projects that will be exported, country-specific certificates may also be needed.
