How Do Medium Voltage Transformers Support Industrial Operations?

Medium voltage transformers serve as the operational backbone of modern industrial power systems. Operating between 2.4 kV and 35 kV, a medium voltage transformer bridges utility-grade transmission lines and the practical voltage demands of industrial machinery, process equipment, and facility infrastructure. Whether powering a steel mill, integrating a solar farm into a distribution grid, or energizing a data center, these devices deliver the voltage conversion precision that keeps operations running without interruption. Their role extends beyond simple step-down conversion — they protect downstream electronics, reduce line losses, and directly influence the total cost of ownership for any large-scale facility.

Understanding Medium Voltage Transformers and Their Role in Industry

What Defines a Medium Voltage Transformer?

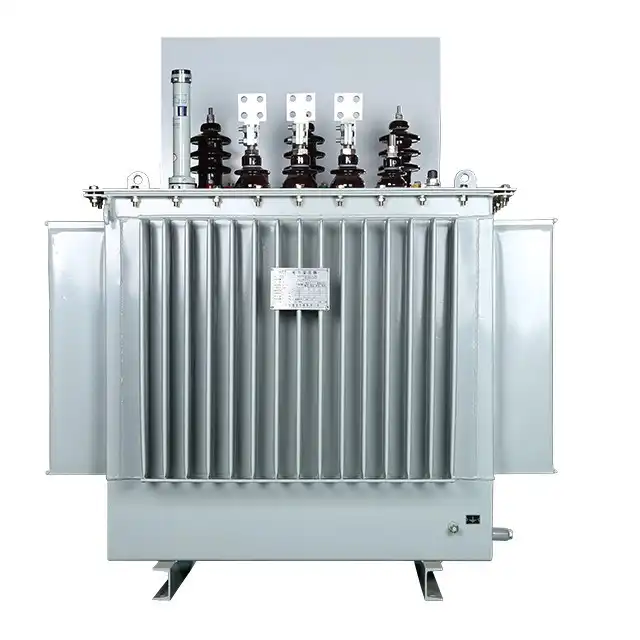

Between high-voltage bulk transfer and low-voltage end-use distribution is a Medium Voltage Transformer, which works in the 2.4 kV to 35 kV range. There are two main types of setups used in industrial settings. Dry-type units use cast resin or vacuum-pressure impregnated (VPI) insulation, which makes them perfect for indoor settings where fire safety is very important. Mineral or manufactured oil is used to insulate and cool oil-immersed units, which provide better thermal performance when heavy loads are applied continuously. Both designs offer galvanic separation, which protects delicate electrical controls and automation systems from sudden changes in the voltage upstream.

At every distribution node, these transformers are needed by factories in the mining, infrastructure, manufacturing, and renewable energy sectors. In a wind or solar farm, the transformer raises the voltage from the generator to the grid and controls the harmonic distortion caused by the power circuits. Specialized rectifier and furnace transformer types can handle non-sinusoidal loads that regular units can't handle in a steel plant or chemical factory. Data centers use K-rated designs that are especially made to get rid of the extra heat that non-linear server loads cause. In each case, the electrical environment needs to be taken into account, not just the highest voltage rating.

How Medium Voltage Transformers Enhance Industrial Efficiency and Reliability

Efficiency is not a single number on a piece of paper. It is the result of choosing the right core material, winding geometry, and cooling system, while making sure the load profile is properly aligned. For instance, a Medium Voltage Transformer with an amorphous metal core can cut no-load losses by up to 70% compared to silicon-steel cores, which can deliver significant savings over the course of 25 years. International energy efficiency standards-certified high-efficiency units can also help reduce a facility's yearly running costs in a measurable way.

These performance factors have a direct effect on operational reliability:

• Core loss reduction: Amorphous metal and grain-oriented silicon steel cores reduce hysteresis and eddy current losses during continuous energization, which lowers the amount of power used when the device is not in use.
• Noise emission control: New low-noise winding designs and vibration-damping mounting systems keep noise emissions within OSHA and urban zoning compliance levels. This is very important for sites that are close to residential areas.
• Thermal management: Advanced cooling configurations like ONAN, ONAF, and forced-air systems stop insulation from breaking down due to heat, directly increasing service life toward the 30-year standard that industrial procurement teams require.
• Predictive maintenance integration: Dissolved gas analysis (DGA) for oil-filled units and partial discharge tracking for dry-type units allow condition-based maintenance that stops unexpected shutdowns before they happen.

When you put these skills together, they solve the main problem that procurement managers and electrical engineers have with procurement: the cost of unplanned downtime. A single broken transformer in a heavy industrial setting can cost thousands of dollars an hour in lost work.

Comparing Medium Voltage Transformers: Making the Right Choice for Industrial Needs

Dry-Type vs. Oil-Immersed: The Application-Driven Decision

Dry-type transformers are clearly better for locations that are inside, in cities, or that are sensitive to the environment. Because they don't pose any risk of oil spills, their cast resin insulation is the standard choice for underground substations, business buildings, and indoor locations that collect green energy. Oil-immersed units can handle more heat and are usually cheaper at higher kVA rates. This makes them the best choice for outdoor substations, utility interconnections, and big industrial switchyards.

Matching Transformer Design to Operational Context

Voltage grade should never be the only thing used to decide what to buy. For use with renewable energy, transformers need to be able to handle irregular loads and converter outputs that are high in harmonics. For heavy processing and mining, you need enclosures with a rating of NEMA 3R or IP55 or higher to protect against corrosive particles and mechanical vibration. EPC companies working on projects governed by IEC or UL must make sure that all units have the right approval marks before they are shipped. Forgetting to do this has caused projects to be late in the past.

When choosing a provider, give more weight to those who can provide documented type-test results from recognized labs, batch quality records that can be tracked, and designs that can be changed to fit your unique load requirements. Long-term dependability over a 10- to 30-year working cycle relies as much on manufacturing consistency as on initial design specification and selecting the appropriate Medium Voltage Transformer configuration.

Procurement and Logistics: Acquiring the Ideal Medium Voltage Transformer

The plan for sourcing is just as important as the technical details. Setting up a framework deal with a reputable Medium Voltage Transformer maker gives you stable prices, guaranteed lead times, and access to technical help for the whole project. When you negotiate a bulk order, you can usually get better unit prices. But the longer-term benefit is supply consistency, which means that you know your transformer provider can deliver the same quality on 50 or 500 units without any problems.

Lead times for custom-wound units are usually between 8 and 20 weeks, but they depend on the kVA rating, voltage configuration, and enclosure specifications. For projects with set times for commissioning, this window needs to be thought about during the planning phase, not after the fact. Installation compatibility, such as flange sizes, bushing arrangements, and safety relay wire, should be checked against site plans before the buy order is sent out, not when the goods are delivered.

Infrastructure for after-sales service is also very important. The total value of a supplier relationship is not just the unit price. It also includes access to spare parts, on-site expert help, and guarantee support that goes beyond the initial setup.

Future Trends and Innovations in Medium Voltage Transformers for Industry

Two paths that are coming together in the Medium Voltage Transformer business are material science and digital integration. Solid-state transformer prototypes that can dynamically regulate voltage and convert between DC and AC without any problems are moving from testing in the lab to being used in the field. As environmental rules get stricter in North America and the EU, mineral oil is being replaced with biodegradable ester fluids in new oil-immersed systems.

IoT-enabled tracking systems now let property managers see data about the temperature, electricity, and mechanical conditions of a building from afar. Embedded sensors that feed data to cloud analytics platforms allow for predictive maintenance processes that cut down on the cost of planned inspections while also making it easier to find problems. Today, procurement managers who put smart tracking capabilities at the top of their list of priorities are setting up their facilities to provide the predictive repair infrastructure that grid operators and industrial insurers will need more and more in the years to come.

Conclusion

In conclusion, a well-designed Medium Voltage Transformer does more than just change the voltage; it also sets the level of stability for every process that comes after it. Choosing the right design for your operation, making sure you work with a supplier whose products are consistently made, and planning for long-term access for maintenance are the choices that separate cost-effective and resilient industrial operations. As rules for energy efficiency get stricter and the grid gets more complicated, a technically sound strategy for getting transformers gets more valuable every year.

FAQ

What voltage range qualifies as medium voltage for industrial transformers?

When used in industry and utilities, Medium Voltage Transformer operating ranges are usually between 2.4 kV and 35 kV, but some standards raise the upper limit to 36 kV. This range is big enough to cover most industrial substations, renewable energy collection, and business distribution needs in North America.

What is the expected operational lifespan of an industrial-grade unit?

A power distribution transformer that is well taken care of and works within its stated limits should last for 25 to 30 years. How long something lasts depends a lot on how well it is insulated, how much heat it has been exposed to, and how often it is maintained based on its state.

How do I choose between dry-type and oil-immersed designs?

Dry-type units are good for locations that are inside, near fires, or in places with strict environmental rules. Oil-immersed units work better in open substations with a lot of power and where thermal performance and cost-effectiveness at high rates are important.

What certifications should I verify before purchasing?

Check for ISO 9001 quality management certification, agreement with IEC or ANSI/IEEE standards, CE or UL marks (depending on where the work is happening), and energy-saving scores from well-known certification bodies.

Can these transformers handle renewable energy integration?

Yes. Designs made just for solar and wind uses take into account the cyclical loading patterns that come with green power profiles and handle harmonic distortion from converters.

Partner with Lijie Electric for Your Medium Voltage Transformer Supply

The Lijie Electric Power Technology Group designs and makes a wide variety of Medium Voltage Transformers, including dry-type and oil-immersed units as well as rectifier, furnace, and mining models. All of these are approved to meet ISO 9001, IEC, CE, and UL standards. We can support large-scale projects with our yearly production capacity and offer technical advice, custom engineering, and support after the project is finished. Email us at lijieelectrical@gmail.com or visit lijie-electrical.com to get in touch with us right away.
