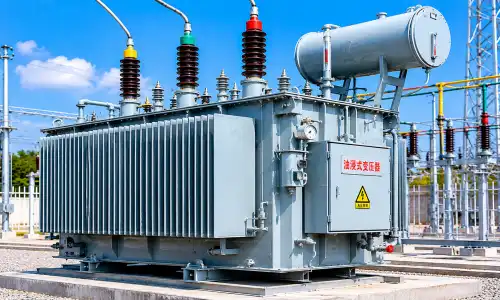

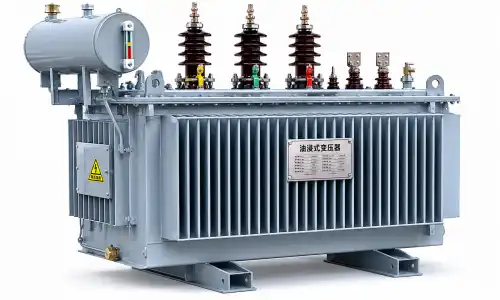

What Are the Key Features of S20 35KV Oil-Immersed Power Transformer?

When you're in charge of big power building projects, picking the right generator can mean the difference between years of trouble-free service and expensive downtime. The S20 type 35KV oil-immersed power transformer is a modern answer that was made to meet the changing needs of utility grids, the integration of renewable energy, and heavy industry uses. This line of transformers combines advanced electromagnetic design with better energy efficiency to offer Level 1 energy performance that lowers lifetime running costs by a large amount while still providing exceptional stability in tough conditions.

Introduction

To distribute power at the 35kV level, you need equipment that can work nonstop under a wide range of load situations while still meeting high safety and efficiency standards. This new S20 type 35KV oil-immersed power transformer is a big step forward from older models. Its design has been improved to make it last up to 30 years in outdoor setups, which is about 50% longer than older S11 models. This guide looks at the technical features, operating benefits, and buying factors that make this line of transformers ideal for grid modernization projects, industrial complexes, and renewable energy installs in North America and around the world.

When purchasing managers, electrical engineers, and project leaders know about these features, they can figure out if the equipment fits with both short-term project needs and long-term working goals. We will talk about what makes this generator stand out in the current market for power tools, from meeting IEC 60076 and ANSI standards to being easy to install.

Technical Specifications and Core Components of the S20 35KV Oil-Immersed Transformer

Voltage and Capacity Range

The transformer's main side has a rated voltage of 35kV, and the voltage can be changed using no-load tap switches that have a range of ±2 2.5%. This adaptability lets field workers improve voltage delivery without turning off the unit, so it can handle changes in source voltage that often happen in long transmission networks. There are choices for capacities ranging from 630kVA to 31,500kVA, so they can be used for a wide range of projects, from small factories to large substations that serve whole city areas.

There are both single-phase and three-phase versions, so they can work with a variety of grid layouts. Standard rates of 50Hz and 60Hz can be handled by the equipment, so it can be used all over the world without any changes to the design.

Structural Design and Materials

The quality of the construction has a direct effect on how long it will last. Smaller units have curved tank designs that let the tanks naturally expand and contract with temperature changes without the need for external stabilizers. This lowers the number of places where leaks could happen. Larger capacity transformers have flat tank designs that are stronger, so they can handle short-circuit forces that are more than 25 times the maximum current.

The S20 type 35KV oil-immersed power transformer features a core made of high-permeability cold-rolled grain-oriented silicon steel. It is assembled using precision manufacturing techniques that minimize eddy current losses. Oxygen-free copper conductors are wound with high-quality insulation paper that undergoes vacuum drying to maintain a moisture content below 0.5%. This meticulous manufacturing process enables the transformer to achieve excellent dielectric strength, thermal stability, and reliable long-term performance.

Insulation and Cooling Systems

Mineral insulation oil can be used as both an insulator medium and a heat transfer agent. The oil meets the requirements of IEC 60296; it has a breakdown voltage greater than 70kV and less than 10ppm of water. Standard cooling methods include oil-immersed self-cooling (ONAN), which uses natural airflow, and oil-immersed air-cooling (ONAF), which uses fans to better get rid of heat during times of high load.

The fully sealed design stops rust and moisture from getting in, which greatly increases the life of the oil and lowers the number of times it needs to be serviced. Most of the time, connection group names are based on the Dyn11 setup, but Yd11 options can be used for certain applications. The impedance voltage matches the technical parameter tables that are in line with what the user wants and what the grid safety coordination needs.

Working Principle and Operational Benefits

How Oil-Immersed Insulation Enhances Performance

Transformer oil is important for more than just cooling. Its high dielectric strength lets designers make small windings while still leaving enough space for electricity to flow. When the load cycles happen, the inside temperatures rise. The oil naturally moves around through convection currents, moving heat to the walls of the tank where it escapes into the air. This constant thermal management stops hot spots in certain areas that speed up the aging of insulation.

The structure is completely sealed, so the oil stays pure throughout its useful life. Open-breather systems let airborne contaminants and wetness slowly lower the quality of the oil. Sealed designs, on the other hand, keep the oil's shielding properties for decades. This means fewer times of replacing the oil and a lower chance of failures caused by moisture.

Energy Efficiency and Cost Savings

According to current standards, a level 1 energy economy is the best level of performance. This is made possible by the S20 series' improved magnetic circuit design, which cuts no-load losses by about 10–15 percent compared to older S13 models. Similar improvements are made to load losses through better wire materials and more advanced winding designs.

S20 type 35KV oil-immersed power transformer is designed to minimize energy losses during power transmission and distribution, helping industrial facilities, renewable energy projects, and utility networks improve overall operating efficiency. Its advanced core materials and optimized winding structure reduce both no-load and load losses, resulting in lower electricity consumption and more stable performance under varying load conditions. The transformer also offers reliable long-term operation, reduced maintenance requirements, and improved thermal performance, making it a cost-effective solution for modern power systems.

Over the life of the generator, these energy gains add up. When compared to normal efficiency models, a common 5MVA unit running at 60% average load can save over 40,000 kWh per year. At industrial energy rates, this means big practical savings that make the project more cost-effective and lower its carbon footprint, which is becoming a more important factor for groups that keep track of Scope 2 emissions.

Reliability in Demanding Environments

Transformers are put through a lot of rough conditions in industrial and utility settings, such as high temperatures, harmonic distortion from varying frequency drives, voltage changes during switching operations, and mechanical stress from fault currents. The S20 design solves these problems with stronger clamping structures for the windings, better ability to handle short circuits, and thermal capacity gaps that allow for brief overloading according to IEC 60076-7 guidelines.

The level of risk resistance is higher than national norms. This gives operators trust in mission-critical installations where unplanned outages can have big effects on operations and finances. This dependability is especially useful in industrial sites and renewable energy installations that are far away and may not be easy to reach for upkeep.

Maintenance Best Practices and Common Issues

Routine Inspection Protocols

Structured repair methods are needed to get the most out of a transformer's life. Every year, the dielectric strength, water volume, pH, and dissolved gas analysis (DGA) of the oil should be checked. These factors give early information about problems that might happen before they cause failures. Insulation resistance tests with megohm meters prove the integrity of the winding, and thermographic surveys find strange heating patterns that could mean connections are loose or insulation is degrading in some places.

External checkups check for oil leaks around gaskets and bushings, and temperature signs and pressure release devices are made sure to work properly. It is also ensured that the cooling system fans turn on at the right times. Compared to units with conservatories, sealed designs require much less upkeep, but they still need to be checked on a regular basis.

Addressing Common Failure Modes

Overheating usually happens when the cooling system gets clogged, when there is too much load, or when oil movement stops. Temperature tracking devices let workers know right away when limits are crossed, so they can lower the load before damage happens. Most oil leaks are caused by damaged gaskets or tanks that aren't built properly. Quick fix stops water from getting in and oil from leaking, which could cause a catastrophic failure.

Insulation wears away slowly over time as heat, electrical, and mechanical stresses build up. Regular DGA testing finds the gases made by insulation breaking down, which lets you plan ahead for upkeep. The S20's better cooling design slows down this aging process, which means it doesn't need to be fixed as often, which lowers the total cost of ownership.

Comparative Analysis for Procurement Decision-Making

Oil-Immersed Versus Dry-Type Technology

Whether an S20 type 35KV oil-immersed power transformer or a dry-type transformer should be used depends on the unique needs of the project. When it comes to high-capacity applications, oil-immersed units offer better thermal management and higher overload capacity. They also typically have lower initial costs per kVA. They are ideal for outdoor installations, industrial environments with established oil-handling procedures, and situations where rapid deployment is important.

Dry-type transformers get rid of the fire risk that comes with flammable liquids. This means that they have to be used in high-rise buildings and other indoor setups. However, they usually cost more to buy, can't handle as much overload, and are more sensitive to external contaminants. For 1000kVA units, the S20 oil-immersed design keeps noise levels below 60dB(A), so it can be used in noise-sensitive areas where dry-type units used to be the norm.

Total Cost of Ownership Considerations

When making purchases, people shouldn't just look at capital costs; they should also look at lifetime costs as well. Over a 30-year working horizon, the S20's longer maintenance-free time lowers service costs. When something is more energy efficient, it uses less power. This saves money that often covers the cost of buying it within 5 to 7 years. Better dependability cuts down on the costs of downtime and emergency repairs.

Buying in bulk for big building projects can get better prices and make sure that all of the setups are the same. Standardization on a single product family is possible because the capacity ranges from 630kVA to 31,500kVA. This makes it easier to keep track of extra parts and train technicians.

Purchasing, Supplier Trust, and After-Sales Support

Selecting a Qualified Manufacturer

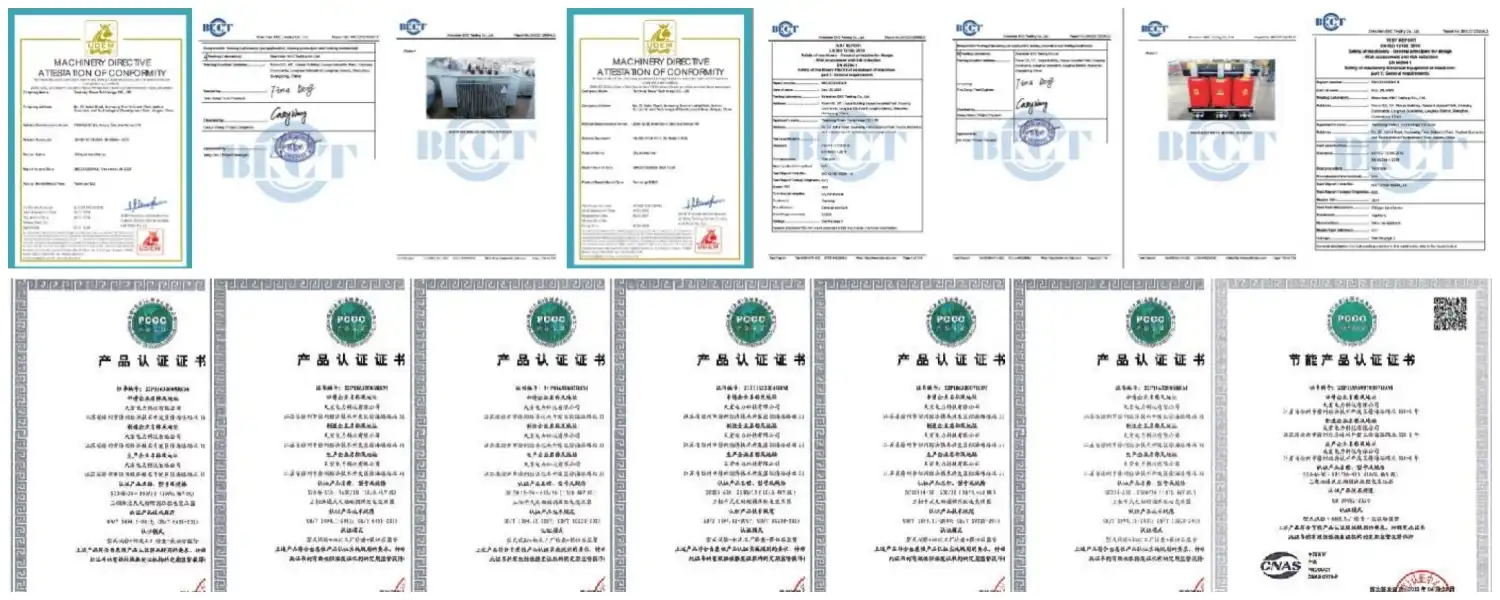

Suppliers you can trust show a few important traits. Standards for manufacturing are confirmed by certifications such as ISO 9001:2015 for quality management, IEC compliance verification, and regional approvals (CE for European markets and UL for North American installs). When projects need multiple units with coordinated delivery dates, production capacity is important. Manufacturers who don't have enough capacity can't support large-scale operations.

The ability to provide technical help sets special sellers apart from commodity vendors. Pre-sale engineering helps make sure that the specs of a transformer are best for each purpose. Factory acceptance testing (FAT) and detailed testing documents help make sure the quality of the product before it is shipped. A full guarantee, which usually lasts between 24 and 36 months, guards against problems with the way the product was made.

Conclusion

The S20 type 35KV oil-immersed power transformer is an advanced, tried-and-true technology that is perfect for the difficulties of current power distribution. The fact that it uses less energy, lasts longer, and is built well makes it ideal for procurement workers who are in charge of utility infrastructure, industrial power systems, and projects that incorporate green energy. By knowing the technical details, how it works, and what repairs it needs, you can make an educated choice that balances the costs of buying new parts with their long-term dependability and performance. This line of transformers will work reliably for decades if they are backed by qualified manufacturers who offer full expert support and after-sales service.

FAQ

How does the S20 compare to previous transformer generations?

Compared to S13 models, the S20 line cuts no-load losses by about 10% and load losses by over 5%, meeting Phase 2 energy efficiency standards. The fully sealed structure increases the outdoor working life to 30 years, which is 50% longer than older designs. It also lowers the regularity of upkeep by better protecting against corrosion and keeping out moisture.

Can this transformer handle continuous overload conditions?

The machine is intended to work at its rated capacity, but it can handle temporary overloads according to IEC 60076-7 standards. Insulation ages faster when it is used continuously at 110% of its maximum load, so it should not be done. Getting the right size during the purchase phase ensures that there are enough capacity reserves for expected load growth without shortening the life of the equipment.

What environmental conditions affect transformer lifespan?

The temperature outside shouldn't get above 40°C at most, but special thermal designs can handle higher temperatures. C4/C5 grade anti-corrosion coats protect the outside of things in seaside areas with a lot of humidity. No matter what the weather is like outside, the tightly sealed design keeps wetness from getting inside, so the insulation stays in good shape for as long as it's supposed to.

Lijie Electric: Your Trusted Partner for S20 Type 35KV Oil-Immersed Power Transformer Solutions

Lijie Electric Power Technology Group has been making transformers for more than 20 years and has 500,000 square meters of working space in Xuzhou and Nantong, China. Over 160 people with graduate and master's degrees work on our research team to make transformer technology better. We are a reliable provider of S20 type 35KV oil-immersed power transformers to major utilities, industry, and green energy clients around the world, as shown by our annual sales of more than 5 billion RMB.

Our goods are fully certified by IEC 60076, CE, and UL, which means they meet the strictest worldwide standards. Because we keep a lot of product on hand, we can quickly fill both sample orders and large purchases of more than a hundred units. Installation help, training for operators, and quick technical support will make sure that your transformers work at their best from the time they are turned on until they are retired.

If you are a purchasing manager looking to buy reliable S20 type 35KV oil-immersed power transformers, please email our team at lijieelectrical@gmail.com or visit lijie-electrical.com to talk about your project needs. We offer thorough technical specifications, competitive prices for large orders, and shipping schedules that work with your building timetable.
