HV Transformers Enable Efficient Integration of Solar and Wind Power Plants

The U.S. renewable energy sector is expanding at an unprecedented pace. As solar and wind capacity scales up, grid operators and project developers face a critical engineering challenge: how do you move gigawatts of variable-output power onto a stable transmission grid? The answer consistently points to one component — the high-voltage transformer. A properly specified HV Transformer bridges the gap between generation assets and grid infrastructure, handling voltage step-up, harmonic filtering, and load variability without sacrificing efficiency or lifespan. This article walks through everything procurement and engineering teams need to know to make confident sourcing decisions.

Understanding HV Transformers and Their Role in Renewable Energy Integration

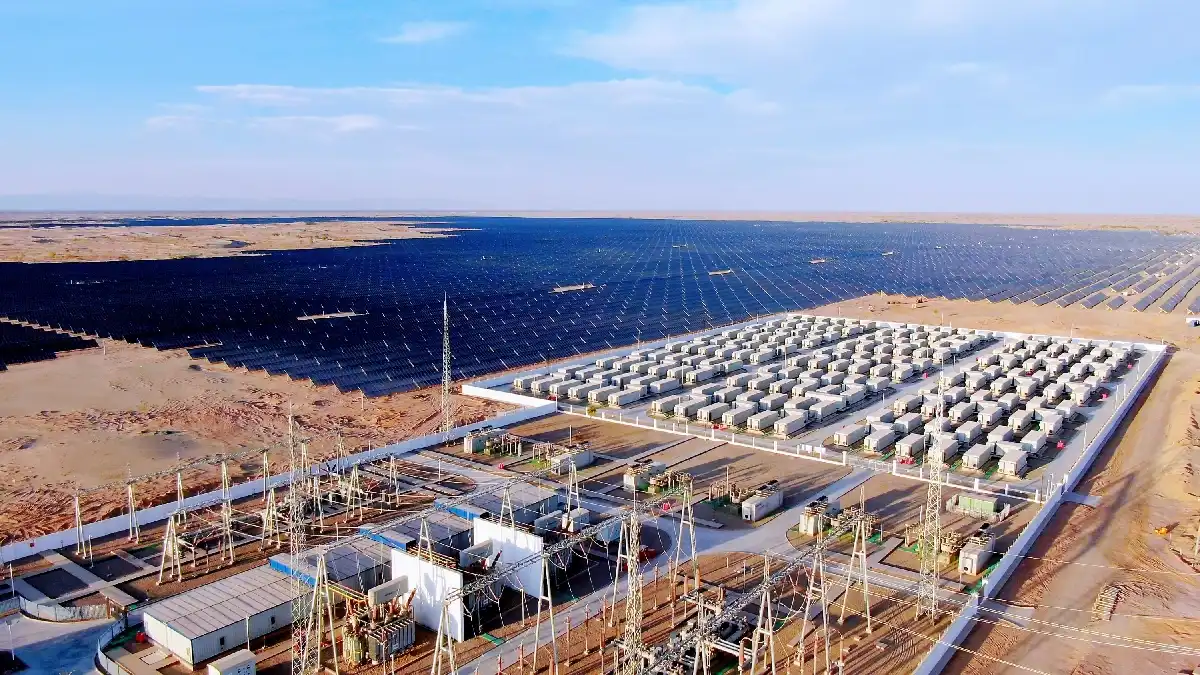

The output voltages of renewable energy sources are usually low, typically between 690V and 35kV for solar inverters and wind turbine engines. Sending power at these levels over even moderate distances produces unacceptable resistive losses (I²R losses). An HV Transformer raises the output voltage to transmission levels, which are usually 110kV, 220kV, or higher, cutting down on transmission losses and making large-scale grid input possible.

How HV Transformers Stabilize Renewable Energy Output

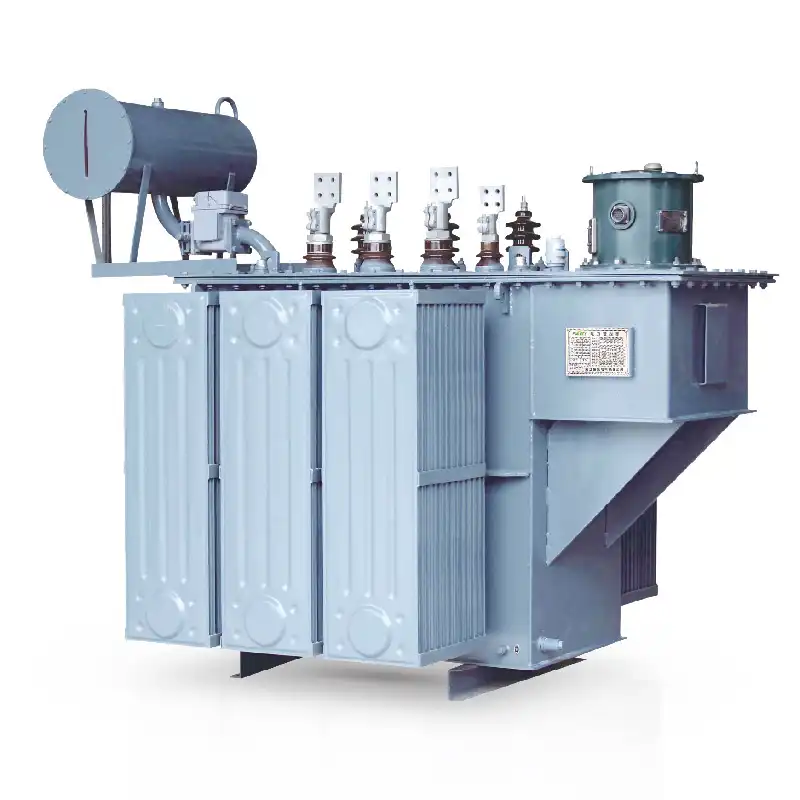

Solar and wind power sources constantly change the amount of power they create. A well-designed HV Transformer can handle this range of loads by operating over a wide load range, featuring on-load tap changers (OLTC) for real-time voltage control, and robust insulation systems that can handle frequent load cycles. Units that follow IEC 60076 and IEEE C57.12.00 have tested dielectric strengths and Basic Impulse Level (BIL) values that keep the grid safe from surge-induced transients, which are common in outdoor renewable energy settings.

Key Technical Parameters That Matter

When engineers look over the specs, they should focus on partial discharge levels below 100 pC at 1.58 Um, impedance voltage values that are best for limiting short-circuit current, and cooling classifications like ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced). These factors have a direct effect on long-term dependability over the 25–30 years that utility-scale projects are expected to be operational.

Performance Optimization of HV Transformers in Solar and Wind Applications

Performance degradation in renewable energy HV Transformers rarely happens all of a sudden. It builds up because of high temperatures, power circuits that produce harmonic distortion, and inadequate cooling—all problems that a well-planned repair strategy can address.

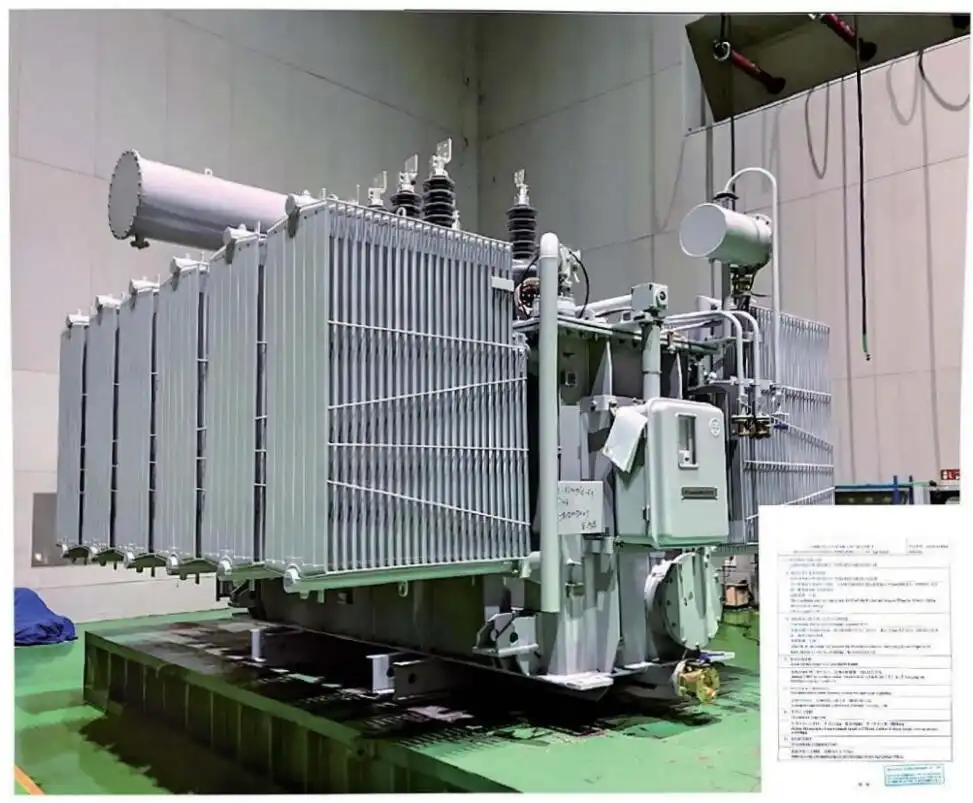

Dry-Type vs. Oil-Filled Units in Renewable Environments

Both types of HV Transformers can be used for green energy, but they have distinct downsides. Dry-type units use open-wound or cast resin coils cooled by airflow. They work well in indoor substations, faraway wind farms, and sites with strict fire safety rules. On the other hand, oil-filled units have better thermal capacity and lower no-load losses, making them the best choice for utility-scale solar farms and inland wind parks where temperature changes are a concern. Transitioning from an old oil-immersed unit to a new amorphous alloy core HV Transformer at a Midwest wind installation resulted in a 12% drop in no-load losses, proving the long-term cost-per-kWh case for high-quality core materials.

Maintenance Practices That Extend Service Life

To make HV Transformers last as long as possible, engineering teams always do the following maintenance tasks:

• Dissolved gas analysis (DGA) on oil-filled units every 12 months: DGA finds small problems like partial discharge, overheating, and arcing before they get worse. If project managers act quickly, they can avoid unplanned power outages that can cost tens of thousands of dollars every day in lost generation income.
• Infrared thermography during peak load periods: Thermal imaging finds hotspots in bushings, tap switches, and winding connections that can't be seen with the naked eye. Dealing with these findings during planned breaks eliminates the chance of a major insulation failure.
• Cooling system servicing aligned with seasonal load cycles: In markets with a lot of solar panels, HV Transformers are most heavily loaded in the summer. Cleaning the radiators, making sure the fans work, and checking the oil levels before the busy season keep the temperature gaps within the design limits during times of high output.

If you follow these steps regularly, you can make an HV Transformer last much longer than its nominal design rating, which is especially helpful for projects with long-term power purchase agreements.

Choosing the Right HV Transformer for Solar and Wind Power Projects

When working on green energy projects, procurement teams are under pressure from three different areas: engineering's technical standards, finance's cost caps, and project management's delivery schedules. All three must be balanced in order to choose the right HV Transformer.

Selection Criteria for Renewable Energy Applications

The voltage ratio and the power supply are good starting points. Procurement professionals should also look at the phase configuration (single-phase vs. three-phase), the impedance voltage needed, and whether a dry-type or oil-immersed design is required. In the U.S., most grid-connection needs are met by units rated between 35kV and 220kV and certified by IEC 60076 or IEEE C57.12.00 for utility-scale solar and wind projects ³. Pay extra attention to certification rules in cross-border procurement; units with ISO 9001:2015, CE, and UL certifications lower permit risks and simplify factory acceptance testing (FAT). Lijie Electric's products, from 35kV prefabricated substations to 500kV ultra-high-voltage units, carry all these certifications alongside CQC energy efficiency certification. Dependability in delivery is also a must. Large renewable energy projects need consistent batch supplies over a number of delivery windows, supported by factories like Lijie Electric's Xuzhou and Nantong bases that allow for steady production of large quantities with short lead times.

Integrating HV Transformers Seamlessly: Installation and Safety Best Practices

A HV Transformer that is technically better is useless if it is installed incorrectly or not covered adequately. Renewable energy sites are hard to install because they are in rural areas, exposed to extreme weather, and have high-voltage DC circuits from solar inverters that create ground fault risks not found in regular grid substations.

Safety Protocols for Renewable Site Installations

It is very important for the HV Transformer maker, the construction contractor, and the grid provider to work together before the installation. Foundation design must account for the unit's total weight when filled with oil, the requirements for seismic zones (especially important in western U.S. states), and the clearance distances required by NFPA 70 and OSHA 1910.303 ⁹. Corrosion protection is often forgotten; offshore wind and coastal solar projects need C5-M class protection according to ISO 12944. Specifying this during procurement instead of after delivery avoids expensive field modifications. Warranty and after-sales service agreements should last at least 5 years and include written response time promises so remote site owners can get technical help without dealing with long periods of downtime.

Future Trends and Innovations in HV Transformer Technology for Renewable Energy

The next generation of grid-connected HV Transformers is quickly becoming digital. IoT devices are built into smart platforms to check winding temperature, oil quality, load current, and partial discharge in real time. Predictive maintenance algorithms use this data to find problems weeks before they happen, cutting down on unplanned outages. At higher voltage levels, amorphous metal cores are becoming more popular, reducing no-load losses by up to 70% compared to traditional grain-oriented silicon steel. This is a strong benefit as carbon reduction rules get stricter in U.S. regulated markets ⁿ, leading developers to switch from transactional sourcing to long-term supplier partnerships for supply continuity and co-development.

Conclusion

Large-scale use of renewable energy relies on power transformation infrastructure that is technically sound, provided reliably, and backed by the ability to provide long-term service. Finding the right HV Transformer for a project's voltage, load, and environmental needs is an engineering commitment that affects how well the unit works for 30 years. Working with a qualified, large-capacity maker takes away supply risk and speeds up grid-connection times, whether your project needs a 35kV prefabricated substation or a 220kV oil-immersed unit.

FAQ

What voltage levels are typical for solar and wind farm transformers in the U.S.?

Most large solar farms that power homes link to the power grid at 69kV to 230kV, so they need step-up HV Transformers with ratings in that range. 34.5kV collector systems are often used in onshore wind projects, feeding into a central HV Transformer that steps them up to 115kV or 230kV. Offshore wind systems may need at least 220kV.

How do dry-type and oil-filled transformers compare for outdoor renewable sites?

Because they can handle more heat and lose less energy when not in use, oil-filled HV Transformers are better for big outdoor setups. When there is a risk of fire or concern for the environment, such as near waterways or on offshore bases, dry-type units are preferred.

What maintenance interval is recommended for renewable energy transformers?

The main maintenance schedule includes checking the cooling system before summer, testing the DGA every year for oil-filled HV Transformers, and doing infrared thermography every other year. Every two years, insulation resistance tests should be done on units that work near the coast or in high-humidity environments.

Can HV transformers handle harmonic distortion from solar inverters?

Yes, as long as they have K-factor ratings or low-loss designs that take harmonic loading into account. This requirement should be stated during procurement, not after installation, to ensure the HV Transformer is wound and insulated for inverter-driven harmonic profiles.

Partner with Lijie Electric for Certified HV Transformer Supply

Lijie Electric sells HV Transformers with values from 35kV to 500kV that are approved by IEC, CE, and UL and are designed to work with green energy sources. We are a reliable HV Transformer manufacturer with more than 2,000 workers and yearly sales of more than 5 billion RMB. We can supply large quantities, make unique designs, and provide quick support after the sale. Contact our expert team today at lijieelectrical@gmail.com or visit lijie-electrical.com to discuss your project requirements.
