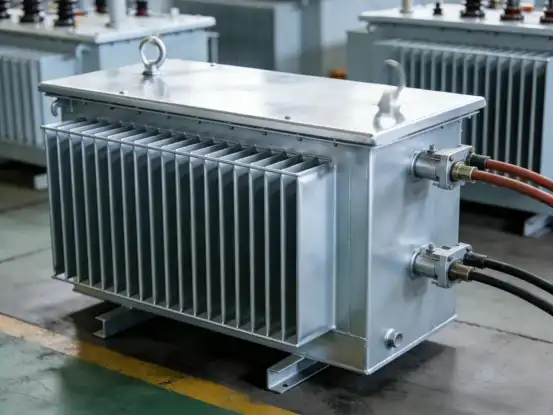

S13 type oil-immersed distribution transformer Performance Characteristics

The S13 type oil-immersed distribution transformer is a better, more energy-efficient solution for new power distribution equipment that addresses today's power line challenges. This enhanced transformer line offers 25–30% reduced no-load losses than the S11 and is still dependable in difficult industrial situations. These transformers last longer and require less maintenance due to their totally sealed curved tanks and high-permeability silicon steel cores. These can survive 30 years under normal conditions.

Understanding the Working Principle and Design Features of S13 Transformers

S13 type oil-immersed distribution transformers perform well due to electromagnetic induction principles that work with elaborate cooling and insulator systems. Each unit has stacked grain-oriented silicon steel cores with main and secondary windings. This core reduces eddy current losses and directs magnetic flux.

The Critical Role of Insulating Oil

Two factors make transformer oil crucial for long-term performance. Besides preventing charged parts from touching grounded tank structures, this dielectric fluid actively eliminates operating heat. via convection, the oil absorbs heat from the core laminations and windings and releases it via the curving tank walls. Passive cooling doesn't require pumps or fans; the transformer will last longer and cost less to maintain.

Advanced Core Construction

Our S13 type oil-immersed distribution transformer series offers reduced magnetic resistance compared to others since the core piece contains multi-step mitered joints. The high-conductivity grain-oriented silicon steel sheets are layered to properly distribute flux and minimize excitation current draw. No-load losses are 25–30% lower than S11 requirements due to technical improvements. The windings use oxygen-free copper wires for good electrical conductivity. High-strength insulating paper exceeds industrial short-circuit resist criteria.

Sealed Tank Innovation

The totally sealed corrugated tank shape significantly reduces maintenance costs. This construction prevents airborne moisture and oxygen from entering the insulating fluid, unlike prior open-type devices that required oils to be replenished often. Tank wall corrugated fins stretch and contract with oil volume during the heat cycle. No extra breathers or conservators are needed. Its IP54 security rating allows it to be utilized in tough outdoor conditions and keep oil fresh for decades.

Our S13 type oil-immersed distribution transformer units' technical specifications follow high engineering requirements. They operate at 6kV and 12kV and have capabilities of 30kVA to 3150kVA. Non-excitation tap switches can modify voltage by ±5% or ±2×2.5% to reflect grid variations. Single-phase or three-phase setups are possible with link group numbers Yyn0 or Dyn11. Power frequency testing at AC-35kV and impulse testing at L1-75kV won't harm insulation. This makes it reliable even during lightning or switching surges.

Performance Optimization of S13 Transformers: Overcoming Common Bottlenecks

Too many noise leaks that disrupt surrounding activities, thermal management issues that restrict load capacity, and efficiency losses that raise energy costs are common S13 type oil-immersed distribution transformer issues in industrial plants. Improvements to materials, design, and tracking must be designed to eliminate these bottlenecks.

Noise Reduction Strategies

Magnetostriction in core laminations and vibrations in structural connections generate most sound waves. The S13 type oil-immersed distribution transformer design reduces noise by 20% below the national norm JB/T10088-2004, thanks to innovative concepts. Core assembly uses specifically heated silicon steel with reduced magnetostrictive coefficients. Sound energy is stopped by vibration-dampening pads between the core-coil assembly and tank frame. Tank strengthening plates are arranged to avoid resonance frequencies. This reduces sound waves further. All of these measures reduce operational noise to under 55dB at full load. Installations can be employed in noise-sensitive homes and businesses.

Enhanced Thermal Management

S13 type oil-immersed distribution transformer loads and longevity depend on heat removal. Curved tanks in S13 units have 35–40% greater surface area than flat-walled tanks of the same size. This improves natural airflow cooling. High-quality transformer oil with flash points exceeding 140°C conducts heat better and maintains 28kV/2.5mm dielectric strength. IEC 60076 limits the average winding temperature rise to 65K, and the peak oil temperature rise to 55K above ambient under lengthy overloads. This temperature performance cushion prevents insulating systems from wearing out faster during heavy industrial duty cycles.

Predictive Maintenance Integration

Modern tracking systems make S13 type oil-immersed distribution transformer maintenance proactive. Dissolved Gas Analysis (DGA) checks oil for overheating, arcing, and insulation breakdown gases continuously. Moisture sensors detect seal issues before they cause contamination. Partial discharge monitoring reveals insulating flaws over 100pC. Temperature sensors monitor link and winding hotspots. These smart systems may design condition-based maintenance schedules to reduce unnecessary inspections and prevent catastrophic malfunctions. After installing detailed tracking technologies, industrial operators reported 40% less unscheduled downtime.

Comparative Analysis: Why Choose S13 Over Other Transformer Models

You must compare technical benefits against the total cost of ownership while buying. S13 type oil-immersed distribution transformers are useful for particular applications when compared to other technologies.

Level 2 energy efficiency results suggest the S13 type oil-immersed distribution transformer series reduces no-load losses by 25% and current by up to 70% compared to S11 models. By reducing power usage, these efficiency benefits pay for themselves within 3–5 years over a 20-year service life. Reduced load losses improve operational economics by %. The sealed tank design eliminates the need to refill oil, which may be costly and drain upkeep funds in older transformer fleets.

A dry-type transformer may be safer for interior fires. Outdoor substations and industrial sites benefit from S13 type oil-immersed distribution transformer units. For the same values, liquid dielectric handles heat better, allowing for smaller systems. Mining, steel, and renewable energy facilities with variable power demands benefit from oil-immersed designs that can manage harmonic-heavy loads and voltage transients. The S13 is as dependable as dry-type units and offers liquid insulation due to its fully sealed construction, which eliminates oil leakage concerns.

When selecting suppliers, procurement managers should evaluate their manufacturing capabilities and product specifications. R&D teams of over 160 master's and graduate-degreed engineers operate at our 500,000-square-meter Xuzhou and Nantong locations. This level of technical knowledge allows for adjustments needed for high-elevation settings, extreme temperatures, or odd power levels. ISO 9001:2015, CE, and UL certification meet international quality requirements. IEC 60076 certifies worldwide interoperability.

Maintenance, Troubleshooting, and Lifespan Maximization of S13 Transformers

Maintenance and repair must be structured to keep things working well for decades. S13 type oil-immersed distribution transformers can safely operate beyond their 30-year design lifespan with minimal maintenance.

Routine Inspection Schedules

To check the tank, bushings, and gauge every three months, visually inspect them. By sampling oil every six months, DGA testing can detect modest issues before they worsen. Every year, thermographic examinations discover hot patches that indicate loose linkages or obstructed cooling. Predictive testing prevents production stops and is cheaper than emergency corrections. The sealed tank eliminates oil level checks and breather maintenance. This makes S13 type oil-immersed distribution transformer inspections 60% easier than usual.

Troubleshooting Common Issues

Overheating occurs when the engine's top oil temperature exceeds 95°C when loaded. Not enough airflow over heat-radiating parts, damaged internal moving pumps in forced-cooled types, or worn winding insulation are probable causes. Thermal imaging detects hot spots, and DGA can distinguish electrical from thermal defects. Most oil leaks are caused by bushing or drain valve gasket failure. Planned maintenance requires seal replacement. Strange sounds may indicate loose core laminations or tank movement. Mechanical inspection and retorquing can remedy this.

Environmental Compliance

Responsible end-of-life management reuses materials and cleans the environment. Copper windings are valuable scrap, encouraging recycling. S13 type oil-immersed distribution transformer oil must be appropriately disposed of by professional waste workers or repaired for use in lower-grade operations. Some machines recycle silicon steel laminations. Tank structures provide iron scrap for steel mills. Comprehensive dismantling plans fulfill environmental regulations and value usable assets to offset removal expenses.

Procurement Insights: S13 Transformers Buying Guide and Supplier Overview

Knowing what impacts S13 type oil-immersed distribution transformer pricing, delivery delays, and long-term support is essential before buying. Instead of simply the purchase price, informed purchasers consider the entire cost of ownership for the best value.

Capacity rating determines pricing, which ranges from 30kVA home units to 3150kVA commercial installations. Customizations such as voltage ratios, unique containers, and seismic certification testing enhance the base price by 15–30%. With bulk purchases, you may receive cheaper costs, especially for building projects that require a lot of stuff. Depending on capacity and personalization, lead times are 8–16 weeks. You may speed up essential orders if you have an excellent relationship with a responsive manufacturer.

Review the warranty conditions. Standard coverage covers production faults for 18–24 months. Extended warranties of 5–10 years offer security for mission-critical usage. Maintenance contracts that include frequent testing, oil analysis, and emergency repair make planning easier and provide professional assistance while the equipment is running. Businesses without switch expertise benefit from these discounts.

Prioritize providers with foreign credentials and consistent quality. We maintain ISO 9001:2015, CE, UL, and IEC certifications and satisfy GB/T 27922-2021 after-sales service standards. Tests by the National Transformer Quality Supervision and Inspection Center and Wuhan High Voltage Research Institute support performance claims. This tight quality control keeps failure rates at 0.1% per year, reducing crucial infrastructure downtime.

It indicates supply chain maturity and exporting experience. Australia, New Zealand, India, Southeast Asia, Central Asia, and Africa utilize our S13 type oil-immersed distribution transformers, proving they can handle various grid standards and weather circumstances. With a presence in so many countries, your products will fulfill various regulatory criteria and perform dependably in demanding settings.

Conclusion

The S13 type oil-immersed distribution transformer series is a mature, field-proven system that fits modern electrical distribution's most significant needs: low energy usage, low maintenance, and decades of reliability. This transformer generation outperforms earlier ones and others due to superior core design, insulation, and tank building. These transformers provide the finest lifespan economics and professional assistance for power grids, renewable energy systems, and industries. A wise supplier that prioritizes manufacturing expertise, quality, and speed ensures project success.

FAQ

How does the S13 series compare to the S11 models in efficiency performance?

Compared to the S11, the S13 type oil-immersed distribution transformer has 25% fewer no-load losses and up to 70% less no-load current. These benefits arise from adopting high-permeability silicon steel in core designs and improving winding patterns.

Can these transformers operate reliably in high-altitude regions?

S13 type oil-immersed distribution transformer units perform properly at 1000 meters without adjustments. Installations above this elevation may require derating factors or unique bushings to compensate for the reduced air density, which impacts cooling and insulating.

What oil maintenance does the sealed design require?

No frequent oil changes are needed since the completely enclosed tank prevents oxygen and moisture contamination. If no internal issues arise, the S13 type oil-immersed distribution transformer's dielectric fluid will remain in the proper range for 30 years.

Are there fire safety concerns with oil-immersed transformers?

Modern S13 type oil-immersed distribution transformer oil has flash points exceeding 140°C, making it less flammable than mineral oil. The sealed tank design protects oil inside robust steel structures, while pressure release systems enable internal failure gases to escape safely.

Partner With Lijie Electric for Your S13 Type Oil-Immersed Distribution Transformer Requirements

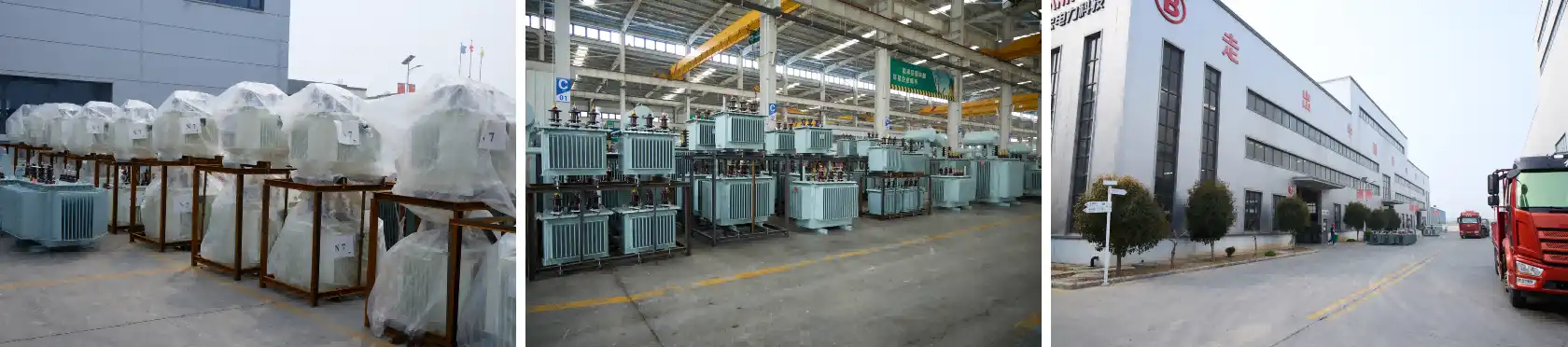

Lijie Electric Power Technology Group has made transformers for over 20 years and can assist with power distribution. The 500,000-square-meter Xuzhou and Nantong facilities create everything from 500kV ultra-high-voltage components to industrial transformers. We are an ISO 9001:2015, CE, UL, and IEC certified S13 type oil-immersed distribution transformer manufacturer. Our 160+ advanced-degree researchers can swiftly adjust to application-specific voltage demands, weather circumstances, and issues. If you require one unit or a fleet, we offer competitive pricing, dependable shipping, and comprehensive after-sales assistance, including installation, start-up, and maintenance training. Email lijieelectrical@gmail.com to discuss your project needs and receive detailed technical proposals with rates. Find all our products and download information sheets at lijie-electrical.com.

References

1. International Electrotechnical Commission. "IEC 60076-1:2011 Power Transformers - Part 1: General." Geneva: IEC Publications, 2011.

2. Zhang, L. and Wang, H. "Energy Efficiency Improvements in Oil-Immersed Distribution Transformers: A Comparative Study of S9, S11, and S13 Series." Journal of Electrical Engineering Technology, vol. 15, no. 3, 2020, pp. 1247-1258.

3. National Electric Power Certification Center. "Technical Specifications for Oil-Immersed Distribution Transformers Rated 35kV and Below." Beijing: China Electric Power Press, 2019.

4. Patel, R. K. "Thermal Management and Cooling Optimization in Power Transformers." IEEE Transactions on Power Delivery, vol. 34, no. 2, 2019, pp. 892-903.

5. Liu, J., Chen, M., and Zhou, X. "Maintenance Strategies and Life Cycle Cost Analysis for Distribution Transformers." Electric Power Systems Research, vol. 178, 2020, pp. 106-118.

6. American Society for Testing and Materials. "ASTM D3612-02: Standard Test Method for Analysis of Gases Dissolved in Electrical Insulating Oil by Gas Chromatography." West Conshohocken: ASTM International, 2017.
